IV-HDCM-500U
Weatherproof Vendal
Day / Night HD-SDI Camera
With Thermal Heater
NOTE
OUTDOOR : SHUTTER ---> Auto
INDOOR : SHUTTER ---> 1/30
20
20
20
Camera Unit
H2.5 Allen Key
Wall Anchor
User Manual
Plastic Sheath x4
Sunshade
Wall Anchor x4
Positioning Sticker
Advertisement
Related Manuals for ID View IV-HDCM-500U
Summary of Contents for ID View IV-HDCM-500U

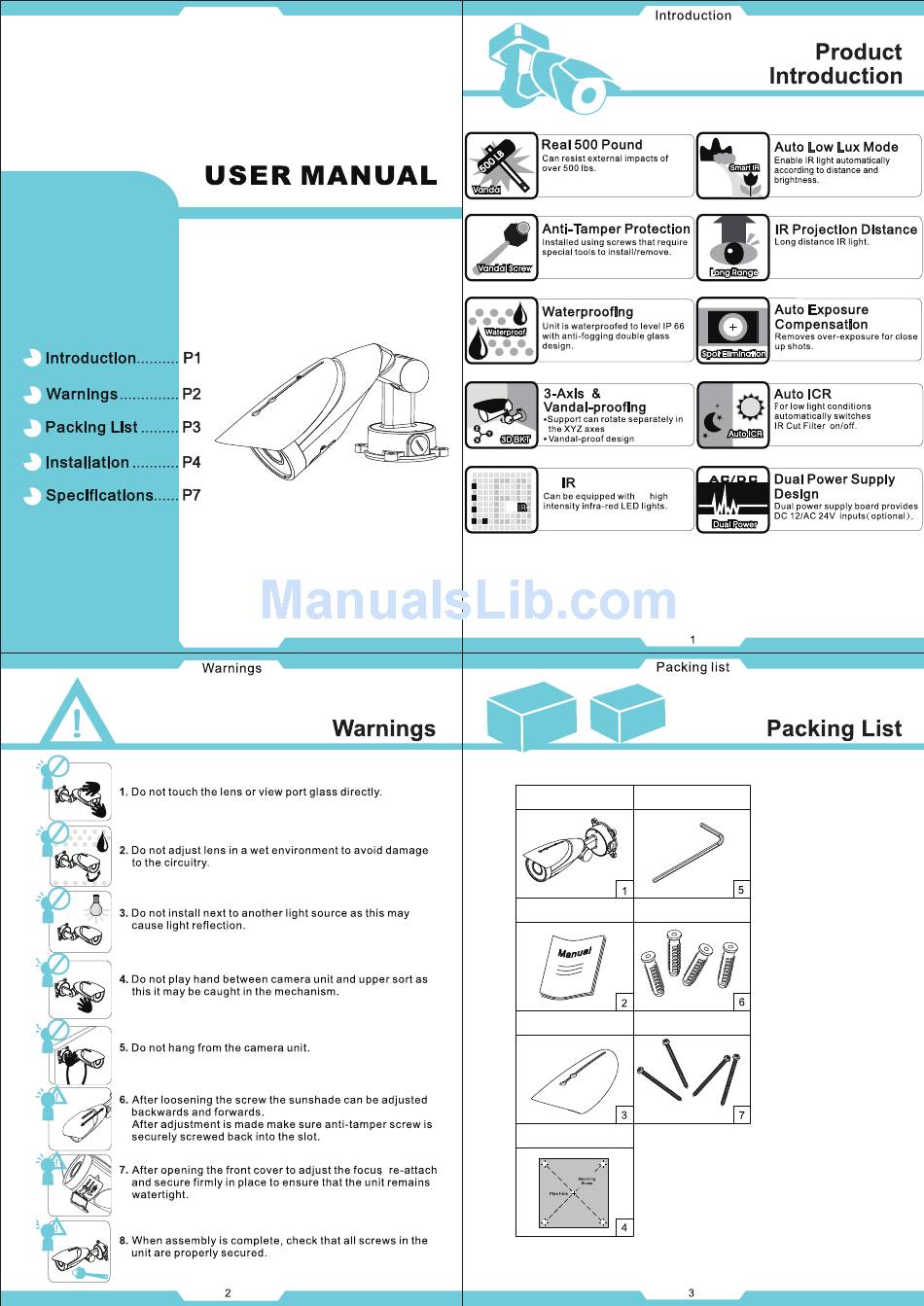

- Page 1 IV-HDCM-500U Weatherproof Vendal Day / Night HD-SDI Camera With Thermal Heater NOTE OUTDOOR : SHUTTER ---> Auto INDOOR : SHUTTER ---> 1/30 Camera Unit H2.5 Allen Key Wall Anchor User Manual Plastic Sheath x4 Sunshade Wall Anchor x4 Positioning Sticker...
- Page 2 RED + BLACK - STEP 6 Use the H2.5 Allen key(P3/NO.5) to loose the screws LEFT RIGHT for your angle adjustment.. DOWN VIDEO IV-HDCM-500U MODEL NO. IMAGE SENSOR 1/2.7” 2.1MP CMOS Sensor SCANNING SYSTEM Proressive Scan RESOLUTION 2.1Megapixel 1080P, 1920x1080 (30FPS) SENSITIVITY(F1.2)
- Page 3 ► Some lenses may not work properly, depending on the setting of the BRIGHTNESS LEVEL. SET UP MENU ► It may not work properly depending on the installed lens. Set the LENS •DC•MANUAL Level of the lens to the optimal value. •...
- Page 4 ‧DEFECT : •D-EFFECT : Select this to adjust the image. ﹣LIVE DPC : Dead pixel compensation on live. ﹣FREEZE : OFF/ON ﹣LEVEL : 0 ~ 60. ﹣MIRROR : OFF/MIRROR/V-FLIP/ROTATE ﹣STATIC DPC : Dead pixel compensation on static. ﹣D-ZOOM : x 2.0~64.0. (Analog video no picture when D-Zoom ON) ﹣START : Close the lens then press the enter key.
