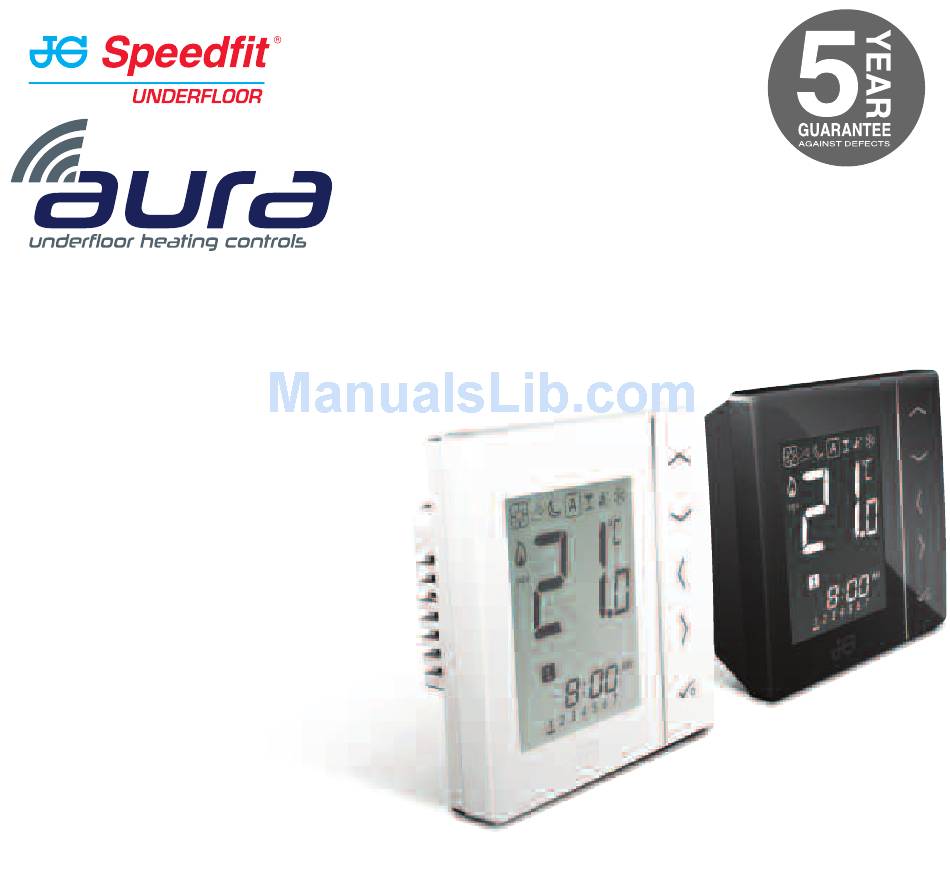

- Page 1 Wireless Thermostats 230v and Battery Operated Instruction Manual For models: JGSTATW2W JGSTATW2B JGSTATW1W JGSTATW1B www.speedfitUFH.co.uk...
- Page 2 Contents Box contents: 4x AAA Batteries Wireless Thermostats 230v and Battery Operated Instruction Manual For models: JGSTATW2W JGSTATW2B JGSTATW1W JGSTATW1B www.speedfitUFH.co.uk 1 x Instruction Manual Fixing screws JGSTATW2 JGSTATW1 Instruction manual: Icons used in this manual: • Box contents Safety •...
- Page 3 Product Compliance & Safety Information Introduction. Thank you for purchasing Product Compliance. This one of our Speedfit Aura Wireless product is CE compliant and Thermostat models. It must be used with meets following the JGCO Wireless Coordinator. The Directives: Wireless...
- Page 4 Product Compliance & Safety Information These instructions are applicable to the 230V AC Aura models stated on the front cover of this Instruction Manual only. Warning. Always isolate the Warning. This product must be Mains supply before fitted by a competent person.
- Page 5 System Overview - Configuration Options Programmable Room The unit can be Thermostat (PRT) configured to either one of the following Wiring Centre Group Control Thermostat UFH Manifold Radiator Group Boiler Thermostat Hot Water Timer Towel Rails Grouping and timer option only available when used with wiring centre.
- Page 6 System Overview - Configuration Options Programmable Room Thermostat (PRT). When configured for PRT (see page 32) it mainly works by itself and allows the user to have separate Time and Temperature control of each zone on the wiring centre, radiator valve or system receiver. Features like Vacation, Party and Frost mode have to set on each individual thermostat.
- Page 7 System Overview - Wireless Coordinator JGCO Wireless coordinator required for communication between these devices. JGWCW JGSTATW JGCO JGTRV JGBR www.speedfitUFH.co.uk...
- Page 8 System Overview - Speedfit Aura The thermostat can communicate with all of these Aura devices. JGBR configured to single room receiver (RX2). Refer to JGBR Boiler Receiver UNDERFLOOR HEATING MANIFOLD Instruction Manual. JGBR configured to Boiler Receiver (RX1). Max 3 TRV Refer to JGBR Instruction Manual.
- Page 9 When the unit is configured as a hot water timer (see page 32) there are two methods of connecting the cylinder thermostat. Unit configured to Hot Water Timer. Cylinder thermostat options: Connected directly to JGWCW (default). Connected directly to Aura Wireless Thermostat (requires additional parameter change. See page 57). www.speedfitUFH.co.uk...
- Page 10 System Overview - Hot Water Option For convenience there is a unique built in option allowing the cylinder thermostat to be connected to either the HW Timer or Wiring Centre. Connected direct to JGWCW Connected direct to JGSTATW (requires (default). additional parameter change see page 57).
- Page 11 Installation - Thermostat Mounting Mounting position and installation. To ensure trouble free operation and efficient control, the unit is best positioned in a draft free area and at 130cm from the floor. Do not position the thermostat near any heat source, behind curtains, direct sunlight or an area of high humidity.
- Page 12 Installation - Thermostat Mounting (JGSTATW1) Carefully remove the front housing. 60mm JGSTATW Instruction Manual...
- Page 13 Installation - Terminal Connections (JGSTATW1) Understanding your terminal connections. Rear of unit Sensor Terminals. Can be used for an external Air or Floor sensor when configured as thermostat. Can also be used for Cylinder thermostat when configured for HW. See page 57.
- Page 14 Installation - Thermostat External Sensor (JGSTATW1) Speedfit Aura External sensor (Sold separately). Note: If you are using an external sensor, the unit has to be configured for External Air Sensor or Floor Protection Sensor please see Device Parameter setting page 57.
- Page 15 Installation - Hot Water Cylinder Thermostat (JGSTATW1) 5 x 20mm 5 x 20mm 5 x 20mm 5 x 20mm SL N L SL N L SL N L SL N L SL N L SL N L SL N L SL N L SL N L SL N L...
- Page 16 Installation - Thermostat Mounting (JGSTATW1) Once you have connected your choice of external sensor (if applicable). Note: Please proceed Insert batteries to page 23. JGSTATW Instruction Manual...
- Page 17 Installation - Thermostat Mounting (JGSTATW1) Carefully remove the front housing. 60mm Carefully remove the front housing. www.speedfitUFH.co.uk...
- Page 18 Installation - Terminal Connections (JGSTATW2) Understanding your terminal connections Rear of unit Sensor Terminals. be used for external Air or Floor sensor when configured as thermostat. Can also be used Cylinder thermostat connection when configured as a Timer. Power Terminals 230v Used for supplying power to the unit.
- Page 19 Installation - Thermostat External Sensor (JGSTATW2) Aura External sensor (Sold separately). Note: If you are using an external sensor, the unit has to be configured for External Air Sensor or Floor Protection Sensor. Please see device parameter setting page 57.
- Page 20 Installation - Hot Water Cylinder Thermostat (JGSTATW2) 5 x 20mm 5 x 20mm 5 x 20mm 5 x 20mm SL N L SL N L SL N L SL N L SL N L SL N L SL N L SL N L SL N L SL N L...
- Page 21 Installation - Thermostat Mounting (JGSTATW2) Check that the wiring is completed for: Power Terminals Sensor Terminals (if applicable) You are ready to secure the rear housing to the wall box. Please use the screws provided. Ensure the orientation arrow is pointing upwards.
- Page 22 Installation - Thermostat Mounting (JGSTATW2) Fit the front housing to the rear housing. Ensure the pin connections are aligned. Align the front housing at Lightly press until you the bottom edge. hear a positive click. JGSTATW Instruction Manual...
- Page 23 Installation - LCD Graphics ICON FUNCTION Box: Indicates selected mode e.g. means the current setpoint is Hi temp, means the Hi temp is not selected. Sunny: High comfortable temperature. Cloudy: Middle comfortable temperature. Moon: Low comfortable temperature. Programmable Thermostat program mode indicator: Indicates program is running, Auto On or Auto Off.
- Page 24 Installation - LCD Graphics ICON FUNCTION Heat indicator: Indicates demand for heat. Cool mode indicator: Indicates cooling is required (if applicable) Temperature indicator: Displays room temperature, Set-temperature, or other information. Temporary manual override indicator: If the set temperature is changed when in program mode, the hand will appear until the next program start time.
- Page 25 Installation - LCD Graphics ICON FUNCTION Hot Water (HW) indicator: Unit operating as a Hot Wwater Timer Hot Water (HW) indicator: Indicates demand for Hot Water. HW Program mode indicator: Indicates program is running. HW Mode indicator: Mode for 1 period of HW a day, from Program 1 ON to Program 3 OFF.
- Page 26 Installation - LCD Graphics ICON FUNCTION Floor sensor probe indicator: Show only when Air + Floor sensor is connected. Low battery indicator: Batteries need to be replaced. Setting indicator: Indicates the unit is inprogram setting mode. Keylock indicator: Keys have been deactivated. JGSTATW Instruction Manual...
- Page 27 Installation - User Interface FUNCTION 1. Increase or decrease setpoint temperature. 2. Increase or decrease Day, Clock, Timer, Party, Holiday and Boost. 3. Select installer parameter value. 1. Mode selection. 2. Long press to return to home display without saving. 3.
- Page 28 Installation - Graphics Key Press once Press x amount of times Hold for five seconds Flashing Short press to Short press to save and back up long press to save and exit JGSTATW Instruction Manual...
- Page 29 Installation - First Power Up www.speedfitUFH.co.uk...
- Page 30 Installation - System Setup System setup checklist The Wireless coordinator must be in pairing mode. Before starting the pairing, make sure the light is flashing on the coordinator by holding the button for 5 seconds. For more information refer to the Coordinator Instruction Manual.
- Page 31 HW Timer What does unit Aura Wiring Centre* Communicate Aura radiator valve with in the Aura System Receiver set for RX2 system System Receiver set to RX1** Grouping requires a wiring centre. Please refer to page 6. Additionally you must have a PRT for grouping to operate.
- Page 32 Installation - System Setup Selecting unit type. Programmable Thermostat (PRT) Digital Thermostat to select the type of unit. After selection has been made, press to confirm. HW Timer Selecting what device to pair with Wiring Centre. Page 33 Radiator Valve. Page 37 to select the type of device to pair with.
- Page 33 Installation - Pairing with Wiring Centre Wiring Centre Checklist The Wireless Coordinator must be in pairing mode. Ensure the wiring centre and optional system receiver (Configured to RX1) for remote boiler switch are powered up. Note: The wiring centre and system receivers will automatically join the Zigbee network when powered up and the Wireless Coordinator is in pair mode.
- Page 34 Installation - Pairing with Wiring Centre to select the wiring centre number to pair with. If you are using groups, use to select group number of each group required. If unit is stand alone then please select -- Group 1 Group 2 JGSTATW Instruction Manual...
- Page 35 Installation - Pairing with Wiring Centre to select the wiring centre zone number 1 to 8. Long press to exit to home screen or continue to change device settings. Refer to page 57. www.speedfitUFH.co.uk...
- Page 36 Installation - Testing the pairing with the JGWCW increase temperature to 30ºC and then press decrease temperature to 10ºC and then press If you are using the optional system receiver configured to RX1 please check that the green light goes on when the temperature is raised and off when reduced. If pairing for your system is complete, please take the Coordinator out of pair mode.
- Page 37 Installation - Pairing the Radiator Valve(s) Radiator Valves Checklist The Wireless Coordinator must be in pairing mode. Ensure that the radiator valves are in pairing mode (Refer to JGTRV Instruction Manual). A maximum of 3 radiator valves can be paired with each thermostat. Please pair TRV’s on a room by room basis.
- Page 38 Installation - Pairing with Radiator Valve Press to start the pairing process. JGSTATW Instruction Manual...
- Page 39 Installation - Pairing with the Radiator Valve The prefix number on the TRV will change as the TRV(s) pair. Once all TRV’s have paired press Long press to exit to home screen or continue to change device settings. Refer to page 57. www.speedfitUFH.co.uk...
- Page 40 Installation - Testing Wireless Pairing You should increase hear the temperature valve open. to 30ºC and then press You should decrease hear the temperature valve close. to 10ºC and then press If you are using the optional system receiver configured to RX1 please check that the green light goes on when the temperature is raised and off when reduced.
- Page 41 Installation - Pairing with Single Room Receiver JGBR Configured as RX2 single room receiver. Refer to JGBR Instruction Manual. Checklist The Coordinator must be in pairing mode. The JGBR (set to RX2) is powered up and the red LED is steady.
- Page 42 Installation - Pairing with Single Room Receiver JGSTATW Instruction Manual...
- Page 43 Installation - Testing Pairing with Single Room Receiver Long press to exit to home screen or continue to change device settings. Refer to page 57. to increase If you are using temperature to the optional 30ºC and then system receiver press Green LED on configured to RX1...
- Page 44 Installation - Pairing with Boiler Receiver Only Used if system receiver is installed on its own. System Receiver configured to boiler receiver RX1. Refer to Boiler Receiver Instruction Manual. Checklist The coordinator must be in pairing mode. The system receiver (set to RX1) is powered up and the red LED is steady.
- Page 45 Installation - Pairing with Boiler Receiver Only www.speedfitUFH.co.uk...
- Page 46 Installation - Pairing with Boiler Receiver Only Long press to exit to home screen or continue to change device settings. Refer to page 57. increase temperature to 30ºC and then press Green LED on decrease temperature to 10ºC and then press Green LED off If pairing for your system is complete, please take the coordinator out of pair mode.
- Page 47 Installation - Modifying System Parameters If you have made an error or need to change your system parameters please follow steps below. This should only be done by your installer. Press all three buttons simultaneously www.speedfitUFH.co.uk...
- Page 48 Installation - Modifying System Parameters Unit will follow power up sequence on page 29. You are now ready to enter or change your System Parameters. Refer to page 31. JGSTATW Instruction Manual...
- Page 49 Installation - Checking System Configuration To check that the complete system is Using identify from the Coordinator communicating and has been configured will show all products that are correctly, you can use identify mode. connected to your system. Press again for 1 Press for 1 second to cancel second to...
- Page 50 Installation - Checking System Configuration To check that the relevant Please follow step 1 on page 47. system is communicating and When in identify mode all receivers has been configured correctly, and the coordinator related to the you can use identify mode. individual PRT will flash.
- Page 51 Installation - Checking System Configuration To check that the relevant system Please follow step 1 on page 47. is communicating and has been When in identify mode all receivers, configured correctly, you can use group thermostats and the identify mode. Coordinator will flash.
- Page 52 Installation - Checking System Configuration To check that the relevant system Please follow step 1 on page 47. is communicating and has been When in identify mode all receivers, configured correctly, you can use control group thermostat and the identify mode. coordinator will flash.
- Page 53 Installation - Checking System Configuration To check that the complete Using identify from the wiring centre will system is communicating and show all products that are connected to has been configured correctly, your wiring centre. The wiring centre you can use identify mode. number will also be shown.
- Page 54 Installation - Checking System Configuration To check that the relevant system Please follow step 1 on page 47. is communicating and has been When in identify mode all radiator configured correctly, you can use valves, receivers and the coordinator identify mode. related to the individual PRT will flash.
- Page 55 Installation - Replacing Product Before replacing any device it must be removed from the Zigbee network. Please ensure the Wireless Coordinator is also in pairing mode. Deleting Wiring Centre from the network. All LED’s will flash momentarily and then the wiring centre will be Press for 15 deleted from the network.
- Page 56 Installation - Replacing Product Before replacing any device it must be removed Your thermostat from the Zigbee network. Please ensure the will now be Wireless Coordinator is also in pairing mode. deleted from the Deleting thermostat from the network. network. You are now ready to install your new thermostat.
- Page 57 Installation - Device Parameters Press all three buttons Device simultaneously parameters will follow system parameters on first power up. If you need to change device parameters follow the steps below. Please note, your system parameters will be shown first but cannot be edited in this section.
- Page 58 Installation - Device Parameters FUNCTION SYSTEM DEFINITION DEFAULT SETTING Heating Pulse Width Modulation Control On-Off 0.5ºC +/- 0.25ºC On-Off 1.0ºC +/- 0.5ºC Room Temperature Offset from -3.0 to Temperature Measured Temperature to 0ºC 3.0ºC Offset Compensate for any error Sensor probe or Sensor/Cyl stat not Connected Cylinder thermostat Sensor/Cyl stat Connected...
- Page 59 Installation - Device Parameters continued FUNCTION SYSTEM DEFINITION DEFAULT SETTING Frost Set point 5ºC - 17ºC Required Temperature for frost 5ºC Temperature protection and holiday mode Hour Format Daylight Saving Time (DST) Heating Set point Maximum temp that can 5ºC - 35ºC 35ºC Limit be set for heating...
- Page 60 Installation - Error Codes Error Prog Non-Prog Code Comm Connection link failure Comm Connection link failure Comm Connection link failure Comm Connection link failure Comm Connection link failure Comm Connection link failure Floor sensor open Floor sensor open Floor sensor short Floor sensor short Prog/Non-prog/HW thermostat Prog/Non-prog/HW thermostat...
- Page 61 Installation - Error Codes Error Prog Non-Prog Code WC lost link with hot water timer Comm Connection link failure Comm Connection link failure (Displayed on all relevant (Displayed on all relevant (Displayed on all relevant thermostats and also hot water thermostats and also hot water thermostats and also hot water timer)
- Page 62 Installation - Technical Detail Model JGSTATW1 / JGSTATW2 Type Wireless Electronic programmable room thermostat (PRT), digital room thermostat and Hot Water Timer Programming Modes User selectable for 5/2, ALL and Individual day options Program Number 1 - 6 Selectable Modes Party, Holiday, Program and Frost Override Permanent and temporary...
- Page 63 User Guide - Setting Time and Date PRT and Group Control Thermostat. www.speedfitUFH.co.uk...
- Page 64 User Guide - Setting time and date PRT and Group Control Thermostat. Use Left to select 12 hour and right to select 24 hour. Hour Minutes Adjust the time using the up or down arrow key. JGSTATW Instruction Manual...
- Page 65 User Guide - Setting time and date PRT and Group Control Thermostat. Year Month Adjust the year/month/day using the up or down arrow key. www.speedfitUFH.co.uk...
- Page 66 User Guide - Understanding Temperature Levels Heating PRT, Group Control Thermostat and Group Thermostat Highest Temperature typically used for early morning and early evening. Typically 21ºC Mid Temperature typically used for times of day when you are active around the home Typically 19ºC Lower Temperature typically used for unoccupied or sleep times.
- Page 67 User Guide - Understanding Temperature Levels Cooling PRT, Group Control Thermostat and Group Thermostat Cooling is only available if your system supports this and the relevant configurations and connections have been made to the unit. Occupied temperature typically 22ºC. Unoccupied temperature typically 40ºC This avoids cooling being active when the property is unoccupied.
- Page 68 User Guide - Default Heating Schedule PRT and Group Control Thermostat Monday to Friday 12.00 7.00 9.00 17.00 23.00 Saturday to Sunday 12.00 8.00 9.00 17.00 23.00 If using grouping, the schedule from the Group Control Thermostat will be applied to group members. JGSTATW Instruction Manual...
- Page 69 User Guide - Default Cooling Schedule PRT and Group Control Thermostat Monday to Friday 12.00 7.00 9.00 17.00 23.00 Saturday to Sunday 12.00 8.00 9.00 17.00 23.00 If using grouping, the schedule from the group control thermostat will be applied to group members. www.speedfitUFH.co.uk...
- Page 70 User Guide - Graphics Key Press once Press x amount of times Hold for five seconds Flashing Short press to save and Short press to back up long press to save and exit JGSTATW Instruction Manual...
- Page 71 User Guide - Setting Required Temperature Levels PRT, Group Control Thermostat and Group Thermostat. Setting the low temperature. By setting the low temperature the program schedule will use this as the low setting. The temperature set are applicable to the individual thermostat.
- Page 72 User Guide - Setting Required Temperature Levels PRT, Group Control Thermostat and Group Thermostat. By setting the low temperature the programs will use this as the low setting. Move back to Repeat for once temperature levels have been chosen. The temperature set are applicable to the individual...
- Page 73 User Guide - Setting the Temperature Schedule If using grouping, the schedule from the group control thermostat will be applied to group members. Use right and left to select the day of the programs. 7 Days Individual www.speedfitUFH.co.uk...
- Page 74 User Guide - Setting the Temperature Schedule Adjust the time using the up or down arrow key. Use right and left to select the Hi/Mid or low temp. JGSTATW Instruction Manual...
- Page 75 User Guide - Setting the Temperature Schedule Repeat through to program 4. If you require a 5th or 6th program enter a time and select your temperature. To remove a program out set the time to --:--. When you set the temperature the schedule will respond to those temperatures see page 71 on how to change www.speedfitUFH.co.uk...
- Page 76 User Guide - Temporary Override PRT, Group Control Thermostat and Group Thermostat. Use the up or down arrow key to view your program set temperature. Temporary override allows you to increase the The temporary temperature or decrease it to the desired setting until override is applicable to the thermostat it reverts back on the next program time.
- Page 77 User Guide - Temporary Override PRT, Group Control Thermostat and Group Thermostat. Confirm the temporary set temperature. To cancel temporary override press See below. www.speedfitUFH.co.uk...
- Page 78 User Guide - Permanent Override PRT and Group Control Thermostat Setting permanent low temperature. Move from Use the up or down arrow key to view your set temperature. See page 71. Repeat for Permanent override in a Group Control Thermostat will also affect the Group Thermostats unless they are removed from the group.
- Page 79 User Guide - Party Mode PRT and Group Control Thermostat. Use the right arrow to select the party mode. The party mode is an option that enables temperature for a period of time you select up to 9hr 50min. Use the up arrow to select the hr/min.
- Page 80 User Guide - Holiday Mode Use the right arrow to select the holiday mode. Holiday set in a Group Control Thermostat will also affect group thermostats Use the up unless they are arrow to select removed from how many days the group.
- Page 81 User Guide - Frost Protection Use the right arrow to select the frost mode. Use the up arrow to select the frost protection temperature. Frost protection is Press tick to not available in confirm the set Cooling. Moving temperature. to this position in Cooling will switch the...
- Page 82 User Guide - Group Thermostat Overview When a group thermostat is it will follow the mode status of the group control thermostat. When a group thermostat is in The group thermostat has and the group now left the group and is in control thermostat permanent is in...
- Page 83 User Guide - Group Thermostat Overview The group thermostat has now left the group and is in permanent To adjust the set temperature, please refer to page 71 - 72. The group thermostat has now left the group and is in permanent To adjust the set temperature, please refer to page 71 - 72.
- Page 84 User Guide - Hot Water (Optional) Mode Selection Mode selection. Hot water will be on once per day. When selected, the hot water timer will follow the program schedule. See Hot water will be page 86. continuously on. Hot water will Hot water will be follow Holiday continuously off.
- Page 85 User Guide - Hot Water Boost www.speedfitUFH.co.uk...
- Page 86 User Guide - Default Hot Water Schedule Your hot water timer comes preset with the times below. These can be adjusted. See next page. Monday to Friday 12.00 6.00 8.00 18.00 22.00 Saturday and Sunday 12.00 6.00 8.00 18.00 22.00 JGSTATW Instruction Manual...
- Page 87 User Guide - Setting Hot Water Times 7 Days Individual www.speedfitUFH.co.uk...
- Page 88 User Guide - Setting Hot Water Times Repeat these steps for programs JGSTATW Instruction Manual...
- Page 89 User Guide - Setting Hot Water Times Repeat these steps for programs www.speedfitUFH.co.uk...
- Page 90 Installer Notes JGSTATW Instruction Manual...
- Page 91 Installer Notes Disclaimer Customers that choose to operate their heating remotely using JG Aura Range technology via their personal computer, tablet or smart phone device(s) will be entering into a contract with Salus Controls plc (“Salus”), which is a third party supplier of the software. John Guest Ltd and affiliates within the John Guest group of companies from time to time (the “John Guest Group”) make no representations...
- Page 92 John Guest Speedfit Limited Horton Road, West Drayton, Middlesex UB7 8JL, England. Tel: 01895 449233 Fax: 01895 420321 www.speedfitUFH.co.uk Technical Help Desk: 01895 425333 The above namestyles are all trademarks of John Guest International Limited. © John Guest International Limited 2014. All rights reserved. Z2105/425/1114...
