Heat Link TR3100 Instructions

Buttons and LCD display

Button / Icon Description
Turning on/off thermostat
Menu button / Program button
M
Auto/Manual mode selection
Set the time and week days
Increase the set value
Decrease the set value
The buttons are locked.
Heating is turned on
The difference between set
temperature and room temperature
more bars means more difference

General Settings

Press buttton t o T urn on/o f f the thermostat. When thermostat is turn ed off, the LCD will only display current temperature reading. When the thermostat is
turned off, press and hold button M for 3 seconds to bring up a configuration menu. In this mode, press button M to select different features' setting.
Features description
Menu #
Model (model selection)
1
2 Sd (switching differential)
3 ATC (air temp calibrate)
FTC (floor temp calibrate)
4
PTD (program time delay)
5
TR--AF (AF model only)
6
(TR= Temperature readout )
MAXFT (set maximum floor
7
temp in AF model)
BL (backlight turning-on time
8
setting)
TF (temperature format)
9
CLOCK
10
11
FP(Frost protection)
SC(setpoint configuration)
12
Please Note: one of the following error messages will appear if one of these problems occur:
If the floor sensor is short-circuit or broken, the LCD will display "Err" an d t he thermostat will cut o f f output.
This product should be installed by a qualified electrician.
TR3100 Thermos t at I nstructions
Button / Icon Description
Auto mode(select by button M)
AUTO
Manual mode(select by button M)
Vacation mode
override Temporary temperature override
Frost protection activated
SET
Set temperature
Programmes number
Room temperature
RT
FT Floor temperature
Economy temperature
Comfort temperature
Features Explanation
This thermostat is a combination model allowing you to
choose between 3 different models. A, AF and F model.
A model: air onl y , with built in sensor
AF model: air & floo r , with both built in and remote sensor
F model: floor onl y , with remote sensor
The numbers of degree difference before switching.
The default is 1°C which means the thermostat will
switch the heating on 0.5°C below the set temperature
and will turn it off 0.5°C above the set temperature.
With a 2°C differential, the heating will switch on 1°C
below the set temperature and will switch off 1°C
above the set temperature.
This is to calibrate air temperature if required.
This is to calibrate floor temperature if required.
This gives more time for user to set the programmes
before reverting back to standard display
This gives option to choose to show air temperature,
floor temperature or to show both floor & air in interval.
This is to protect the floor surface.
This is to set the backlight turning-on time. User
can also set the backlight always on or off.
This alows users to select between °C or °F.
12/24 HOUR clock system selection
This is to avoid room temperature goes below 5°C
This allows user to select between 2 sets of default
programmed setpoints.
See overleaf for further setting up information
( P art I)
Ver.1.3
Turn on/off thermostat
Lock or unlock buttons
Prog
Program button
Prog
Set day
Day Time
Day Time
Set time
Run
Floor
Temp Schl
View floor temp
(AF model only)
Cancel Override
Increase the set value

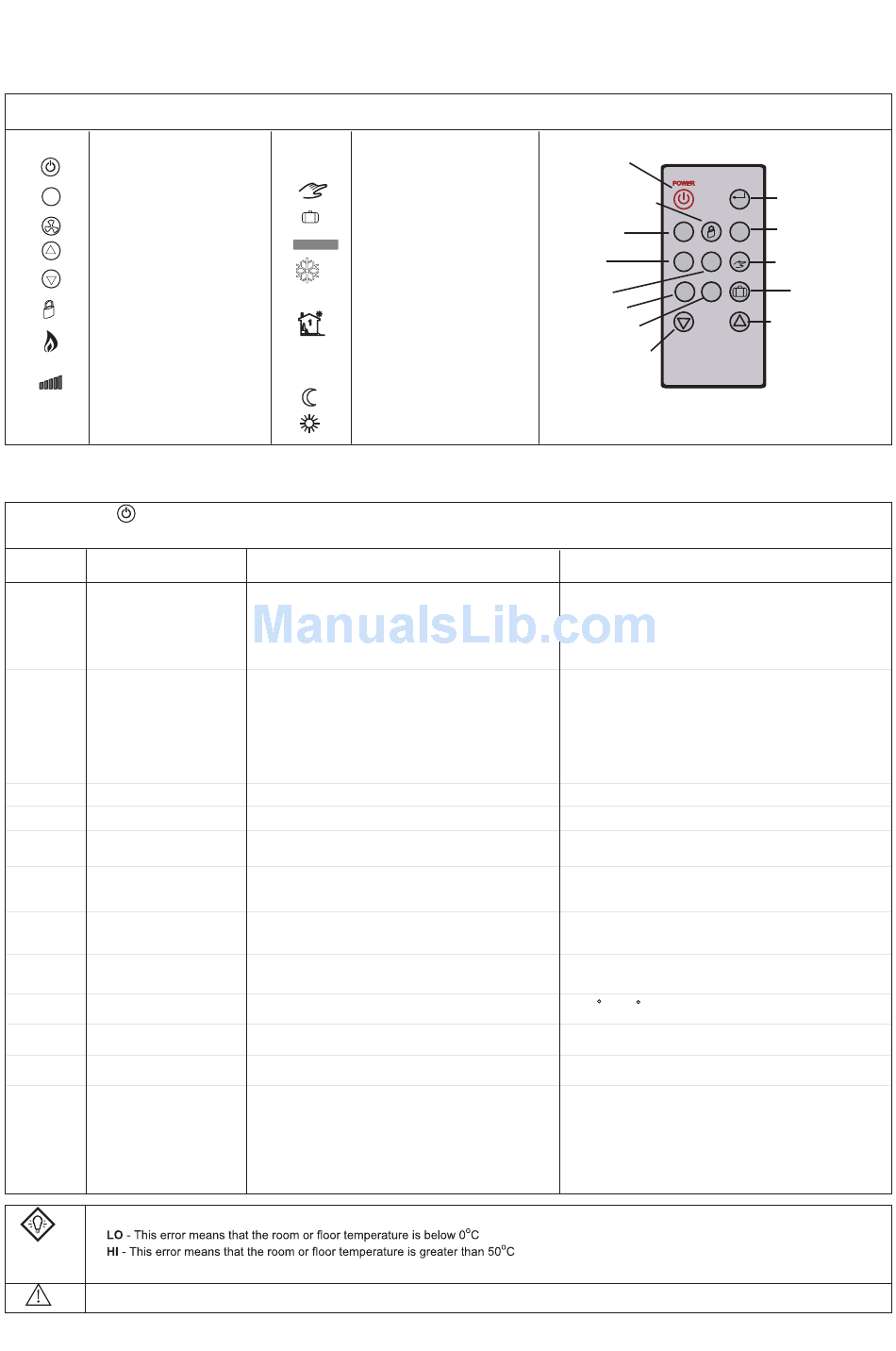

Optional Remote Controller
(TR3100RC model only)
Adjustment (press up or down button to adjust)
A, AF, F
1 = 1 degree(default), 2 =2
-1 = decrease 1 degree, 1 = increase 1 degree...
-1 = decrease 1 degree, 1 = increase 1 degree...
5s , 10s , 15s ,20s (default) , 25s, 30s.
A= to show air temperature, F=to show floor temperature,
A--F = to show both in 5 second intervals
40 degree(default)
30 seconds(default) On= always on, OFF= always off
C or F
24 (default), 12- hour or 24-hour clock system
on= activated, off= deactivated
"4" means the 4 programmes will have 4 independent set temperatures.
Each set temperature can be different to the others.
"2" means: set temperature in program 1 equals the set temperature in
program 3 ; set temperature in program 2 equals the set temperature in
program 4 ; If set temp in program 1 is changed, set temp in program 3
will be changed automatically to the same set temp as program 1. If set
temp in program 2 is changed, set temp in program 4 will be changed
automatically to the same set temp as program 2.
Confirm setting
Enter
Menu(in OFF mode)
Manu
Menu
Auto
Auto
Auto/Manual selection
Vacation mode
Decrease the set value
degrees.........
