Reasnow Cross Hair User Manual

Hide thumbs Also See for Cross Hair:

Advertisement

Quick Links

Download this manual See also: User Manual

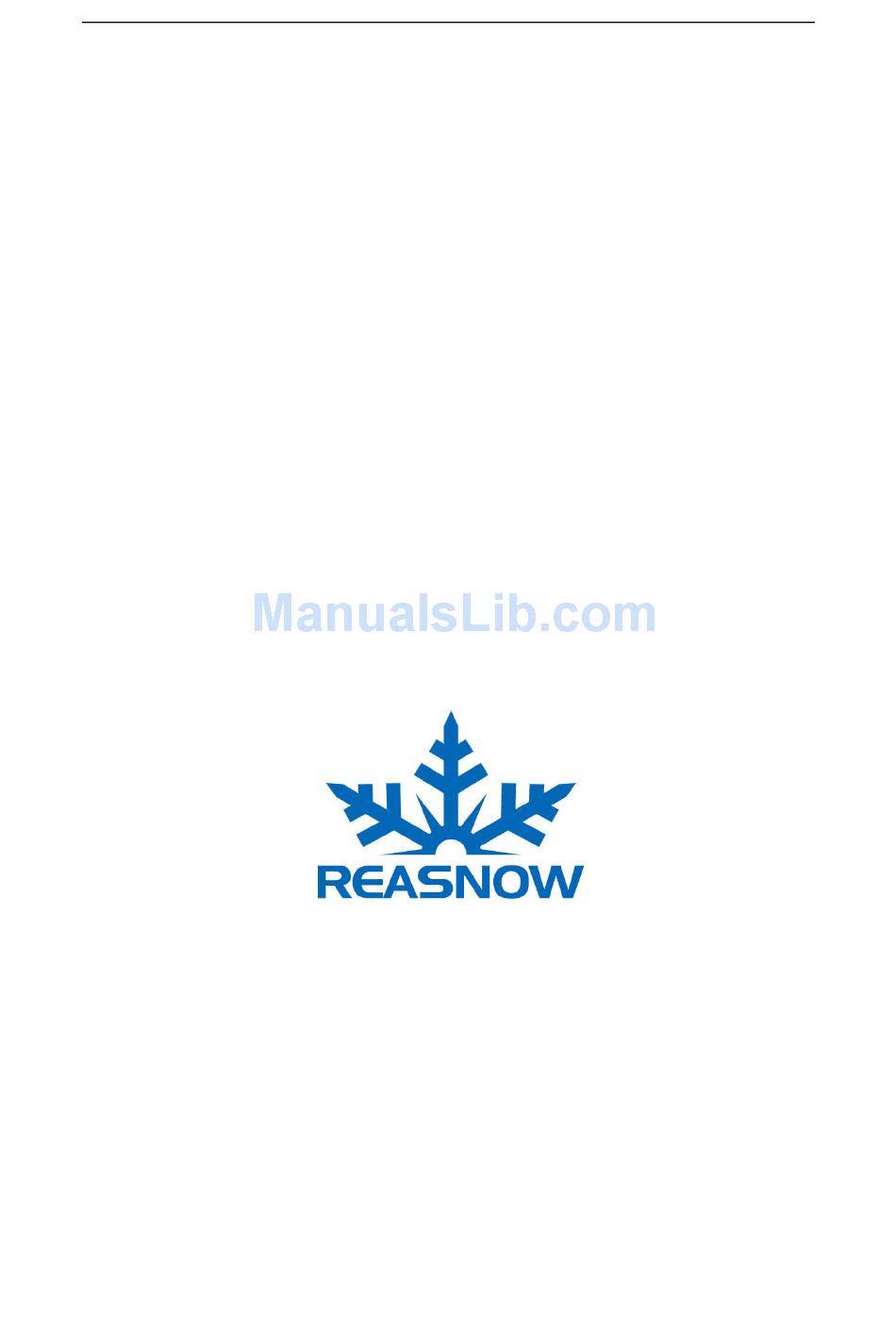

User Manual of Cross Hair
Cross Hair User Manual
V2.8
Feb, 2015
This manual is the intellectual property of ReaSnow. It must only be published in its
original form. Using parts or republishing altered parts of this document is prohibited
without permission from ReaSnow.
http//www.reasnow.com
PAGE 1 / 21

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cross Hair and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Reasnow Cross Hair

Summary of Contents for Reasnow Cross Hair

  • Page 1 Cross Hair User Manual V2.8 Feb, 2015 This manual is the intellectual property of ReaSnow. It must only be published in its original form. Using parts or republishing altered parts of this document is prohibited without permission from ReaSnow. http//www.reasnow.com...

  • Page 2: Table Of Contents

    Table of Contents ▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁ ▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁ ▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁ ▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁ Chapter 1： ： ： ： Introduction: What is the Cross Hair 1.1 Advantages 1.2 Technical Specifications 1.3 To know Cross Hair 1.4 Connections Chapter 2： ： ： ： Setting up the Cross Hair 2.1 Simple set up steps...
  • Page 3 Chapter 1： ： ： ： Introduction: What is the Cross Hair Cross Hair aims to provide the best mouse and keyboard control solution for all game consoles (such as PS4, PS3, XBOX ONE,XBOX 360 etc), and the freedom to choose between the keyboard, mouse, joystick, and other controllers.

  • Page 4: Advantages

    ●PC MODE: When connecting to PC and no USB device plugged into it, its LOGO will be white, then it can be configured on PC by using Cross Hair Manager. Meanwhile you can upgrade firmware and restore factory configuration in this mode.

  • Page 5: Technical Specifications

    USB2: Connect to your mouse. BUTTON: Firmware reparation. LOGO LED: Status indication. Internal Beeper: Status indication. You do not need to look at Cross Hair and will be informed of meaning based on the sound. http//www.reasnow.com PAGE 5 / 21...

  • Page 6: Connections

    Keyboard or joystick or other controller USB 3 Mouse Please refer to Chapter 3.2 for more connection options. Chapter 2： ： ： ： Setting Up Cross Hair 2.1 Simple set up steps 2.1.1 Step 1: Connect to PC (PC MODE) http//www.reasnow.com...
  • Page 7 ● Please connect your Cross Hair according to the figure above, using the USB cable included in the package. Make sure that there is no controller, keyboard, mouse, joystick or anything else plugged into it. And when Cross Hair LOGO is white, it enters into PC MODE, and can then be configured on PC.
  • Page 8 You should save the configuration first, before exiting Manager, and after that, unplug the Cross Hair from PC. Changes you made will not be saved in you Cross Hair until you have clicked on the “Save” button. Do not shake the USB cable, unplug it, or turn off your PC during the saving.

  • Page 9: Basic Settings

    2.2.7 Set a certain configuration as Start Up. Select one configuration first and click on the “Start Up” button. Then this configuration will be activated automatically every time when Cross Hair is powered on. 2.2.8 Key mapping http//www.reasnow.com PAGE 9 / 21...
  • Page 10 User Manual of Cross Hair Click the mapped key icon, and you will enter into a mapping dialog as shown below. Firstly, choose the hardware from the options of mouse, keyboard, joystick and NONE. Secondly, use Auto Detect or Drop-down menu , to select the key you want to use, and to substitute a certain key on controller.
  • Page 11 User Manual of Cross Hair This color can indicate which configuration you are using. 2.2.11 Choose the hotkey for this configuration for fast activation. Once the hotkey is invoked in PLAY MODE, this configuration will be activated instantly. 2.2.12 Stick mapping ●...
  • Page 12 User Manual of Cross Hair Please remember to set mouse’s DPI and game’s LOOK sensitivity to maximum first. And after these two procedures are done, if the mouse is too slow, you need to set HIP and ADS sensitivity to a bigger value. If the mouse is too fast, you need to set HIP and ADS sensitivity to a smaller value.
  • Page 13 User Manual of Cross Hair 2.2.16 More settings This button will bring you to options that are not frequently used. 2.2.17 Notification settings Maximum Turn Speed indication: If selected, when turn speed exceeds maximum, the LOGO will flash red twice.

  • Page 14: Global Settings

    We provide our users with this function for the most flexible and comfortable setting experience. Although everything of Cross Hair can be configured on PC using its Manager, you will like setting it up in-game, for this procedure will give you instant feed back when changing the settings.
  • Page 15 User Manual of Cross Hair Game Console Controller Keys to enter/exit CONFIG MODE Dual Shock 4 SHARE+OPTIONS Dual Shock 3 SELECT+START XBOX ONE VIEW+MENU XBOX 360 BACK+START In CONFIG MODE, you can use the controller to change HIP and ADS sensitivity as well as key mapping.

  • Page 16: Things To Do Before Playing

    Once the key on the controller is pressed, LOGO will show a stable blue light, and then wait for the corresponding key on the keyboard, mouse, joystick, etc. After selecting your key, Cross Hair will keep flashing blue again. Then a new key mapping can be continued. After mapping all the keys, you can press SHARE+OPTIONS...
  • Page 17 User Manual of Cross Hair 3.1.3 Mouse Button Function Buttons of some mouse can be configured. If you want to use them to replace buttons from controller, you should set them as standard keys of keyboard or mouse, do not set them as combination keys or special function keys.

  • Page 18: Ways To Use Cross Hair

    Your controller’s layout should be set as default, and change of these will confuse Cross Hair. 3.2 Ways to Use Cross Hair Connect all devices (controller/keyboard/mouse) to Cross Hair first, and then connect Cross Hair to game console. 1. Use a keyboard and mouse, instead of a controller 2.
  • Page 19 ● ● ● PS1. Connect all devices to Cross Hair first, and then connect Cross Hair to game console. That is the procedure we recommend. Change your connection only when Cross Hair is powered off. PS2. Make sure to logout the user on your game console before connect Cross Hair to it.
  • Page 20 Make sure there is no controller, keyboard, mouse, joystick or anything else plugged into it. When the Cross Hair LOGO is white, it enters into PC MODE, and can then be upgraded and restored on PC.
  • Page 21 Restore Factory Configuration: Restore configuration back to factory default. All your own changes will be lost. During upgrading or restoring, do not shake the USB cable, unplug it, or turn off your PC. These behaviors will damage your Cross Hair. http//www.reasnow.com PAGE 21 / 21...
