NS-B4111_15-0548_QSG_V6_EN.ai 1 6/23/2015 12:20:44 PM
NS-B4111_15-0548_QSG_V6_EN.ai 1 6/23/2015 12:20:44 PM
PACKAGE CONTENTS
• CD boombox
• AC power cord
• Quick Setup Guide
FEATURES
Top
1
Handle
4
FM antenna
2
CD door
5
CD door open
3
Volume control
Back
1
AUX IN jack
3
Headphone jack
2
Battery compartment
4
AC input
Before using your new product, please read these instructions to prevent any damage.
Front
REPEAT
PROG/MEM
SOURCE
#
Item
CD Function
AM/FM Function
1
Pause/Play
Auto scan
2
Previous
Previous
3
Next
Next
4
LCD screen
Displays source and audio information
5
Rewind
Tune down
6
LED
Lights red when in Standby mode
7
Fast-forward
Tune up
8
Stop
N/A
9
REPEAT
Repeat
N/A
10
PROG/MEM
Program
Station storage
11
SOURCE
Source
Source
12
Standby/On
Standby/On
13
Speakers
Plays audio from your boombox
Flat size (W×H): 297 × 210 mm.
Final folded size: 99 × 210 mm.
Quick Setup Guide |
NS-B4111
CD Boombox
IMPORTANT SAFETY INSTRUCTIONS
1
Read these instructions.
2
Keep these instructions.
3
Heed all warnings.
4
Follow all instructions.
5
Do not use this apparatus near water.
6
Clean only with dry cloth.
7
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
10
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11
Only use attachments/accessories specified by the manufacturer.
12
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13
Unplug this apparatus during lightning storms or when unused for long periods of time.
14
Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
15
Ventilation: Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the
product and to protect it from overheating, and these openings must not be blocked or covered. The openings
should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not
be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the
manufacturer's instructions have been adhered to.
16
The power plug is used as the disconnect device and should remain readily accessible during the device' s intended use.
To completely disconnect the device from power, you should disconnect the power plug from the AC power outlet.
17
The battery should not be exposed to excessive heat, such as direct sunlight, fire, or the like.
18
Cautions and other markings are located at the bottom of the apparatus.
19
The marking information is located at the bottom of apparatus.
20
No naked flame sources, such as lighted candles, should be placed on the apparatus.
Caution: The use of any controls, adjustments, or procedures other than those specified herein may result in hazardous
radiation exposure.
Safety information
Warning: To reduce the risk of fire or electric shock, do not expose this
appliance to rain or moisture.
This apparatus shall not be exposed to dripping or splashing, and no objects
filled with liquids, such as vases, shall be placed on the apparatus.
Class II equipment symbol
This symbol indicates that the unit has
a double insulation system.
CAUTION
RISK OF ELECTRIC
SHOCK DO NO OPEN
The lightning flash with arrowhead
WARNING: TO REDUCE THE RISK OF ELECTRIC
The exclamation point within an
symbol, within an equilateral triangle,
equilateral triangle is intended to
SHOCK, DO NOT REMOVE COVER (OR BACK).
is intended to alert the user to the
alert the user to the presence of
NO USER-SERVICEABLE PARTS INSIDE. REFER
presence of
uninsulated
"dangerous
important operating and
SERVICING TO QUALIFIED SERVICE
voltage" within the product' s
maintenance (servicing) instructions
PERSONNEL.
enclosure that may be of sufficient
in the literature accompanying the
magnitude to constitute a risk of
appliance.
electric shock to people.
V6
FINAL
FOR PRINT
Advertisement
Table of Contents
Related Manuals for Insignia NS-B4111
Summary of Contents for Insignia NS-B4111
- Page 1 Flat size (W×H): 297 × 210 mm. FOR PRINT NS-B4111_15-0548_QSG_V6_EN.ai 1 6/23/2015 12:20:44 PM NS-B4111_15-0548_QSG_V6_EN.ai 1 6/23/2015 12:20:44 PM Final folded size: 99 × 210 mm. Quick Setup Guide | NS-B4111 CD Boombox PACKAGE CONTENTS IMPORTANT SAFETY INSTRUCTIONS Front Read these instructions.
- Page 2 • If the CD skips or gets stuck on a section of the disc, it is probably dirty INSIGNIA is a trademark of Best Buy and its affiliated companies. CD on the spindle and push down to lock it in place.
Need help?
Do you have a question about the NS-B4111 and is the answer not in the manual?
Questions and answers
Where do you select the **** or fm channel?
To select the AM or FM channel on the Insignia NS-B4111, follow these steps:
1. Slide the function selector (FUNCTION) to the "RADIO" position.
2. Press the AM/FM button to choose between AM or FM mode.
3. Turn the tuning control (TUNING) to find the desired station.
If you tune to an FM station that broadcasts in stereo, the "ST" indicator will appear on the upper right corner of the LCD screen. For optimal FM reception, fully extend the telescopic FM antenna and keep it in a vertical position.
This answer is automatically generated
Can this be used as an external optical drive?
No, the Insignia NS-B4111 cannot be used as an external optical drive.
This answer is automatically generated

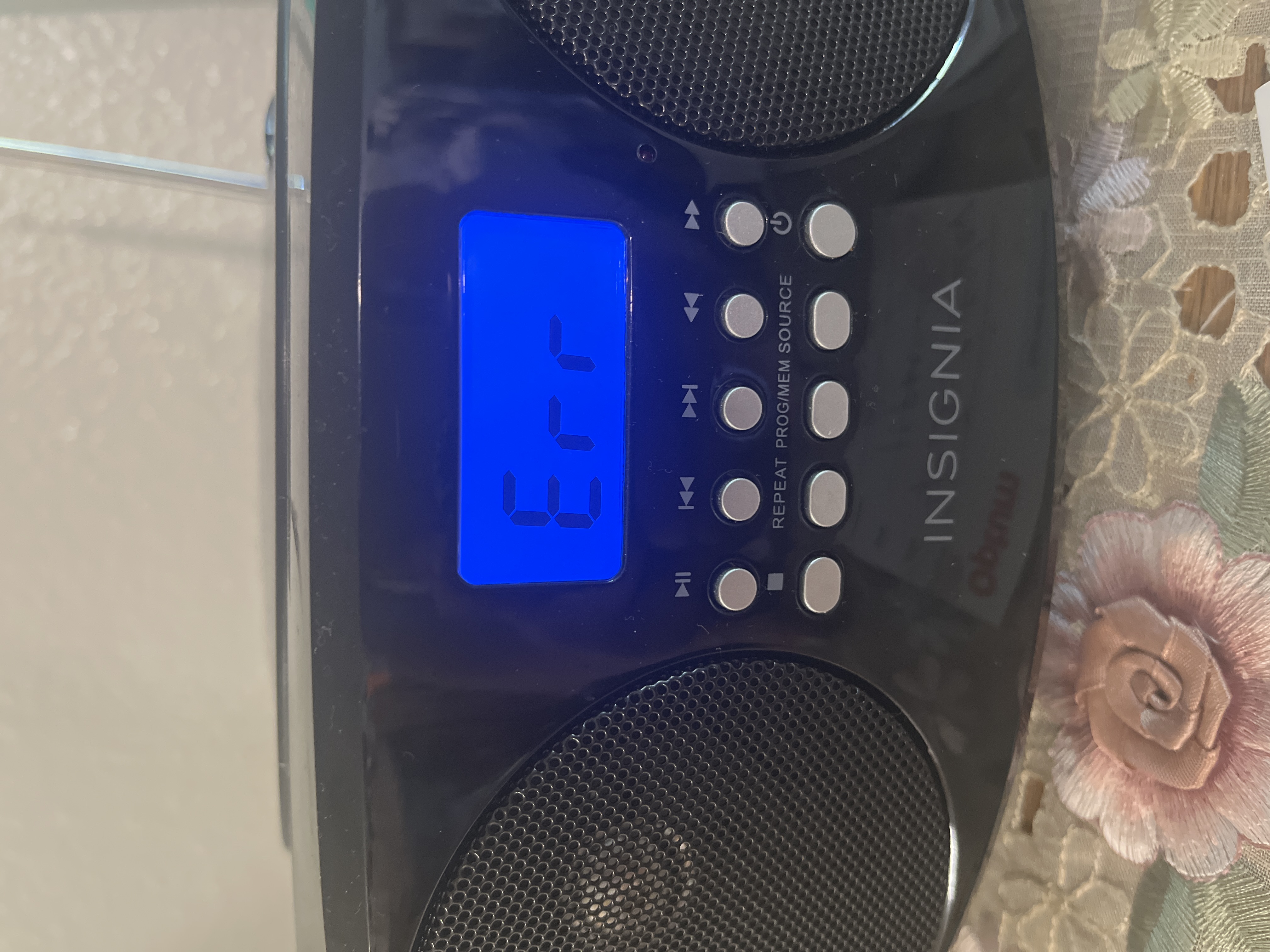

What to do went CD don’t play and show the letters E r r
