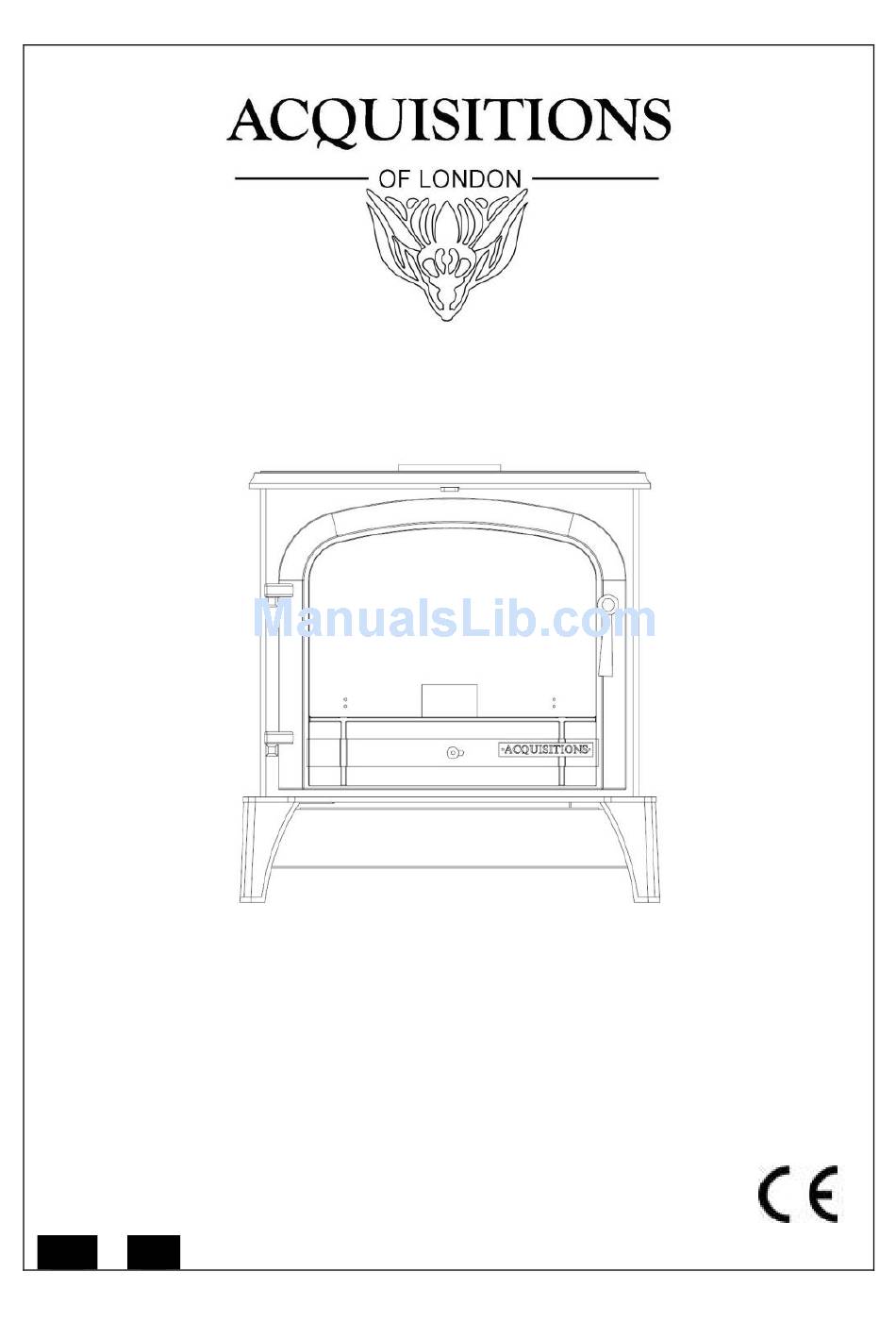

- Page 1 BLOOMSBURY GAS STOVE INSTALLATION,USER & SERVICING INSTRUCTIONS (TO BE LEFT WITH THE CUSTOMER) UK & IRELAND Bloomsbury Gas Stove For use in UK & Ireland on Natural gas at a supply pressure of 20mbar or Butane/propane at a supply pressure of 28mbar/37mbar...
-
Page 2: Table Of Contents
INSTALLATION INSTRUCTIONS CONTENTS Important Notes Page 2 Commissioning the Stove Page 8 Technical Information Page 3 Check for Spillage Page 8 Dimensions and Clearances Page 4 Customer Briefing Page 9 Installation Page 5 IMPORTANT NOTES This stove is a fuel effect radiant convector. Before installation, ensure that the local distribution condition (identification of the type of gas and pressure) and the adjustment of the appliance are compatible. -
Page 3: Technical Information
TECHNICAL INFORMATION Natural Gas Settings BLOOMSBURY GAS STOVE GATEGORY HEAT INPUT (NETT) 6.08kW/3.14kW 6.08kW/3.14kW 6.08kW/3.14kW HIGH/LOW SUPPLY PRESSURE 20 mbar 20 mbar 20/25 mbar INJECTOR SIZE 82/440 82/440 82/440 GAS CONNECTION 8mm O.D. Tube 8mm O.D. Tube 8mm O.D. Tube 0.65m³/h... -
Page 4: Dimensions And Clearances
DIMENSIONS AND CLEARANCES Fig 1 –Bloomsbury Gas Stove Dimensions Page 4 AB-G200L-REM-I01-150914... -
Page 5: Installation
It is recommended that a minimum height of 610mm from the stove should be established before any significant change in the direction of the flue. An optional rear flue attachment is available as an accessory from www.acquisitions.co.uk (see Fig.1). Page 5 AB-G200L-REM-I01-150914... - Page 6 Ventilation Ventilation should be in accordance with National Regulations. In the United Kingdom, purpose provided ventilation is not normally required, except in new build houses. For Republic of Ireland refer to I.S813 issued by the National Standards Authority of Ireland. Gas Connection ...
- Page 7 Positioning the Logs Slacken the screw securing the door handle and open the stove door. Position the back board into the burner tray ensuring that is correctly seated behind Tab A and that the flame strip is not obstructed (Fig 2). Locate LOG1DMR and LOG2DMR into position on the back board as shown (Fig 3).
-
Page 8: Commissioning The Stove
COMMISSIONING THE STOVE Once the fire is in place, connected, flued correctly, and the logs are in place, you can proceed with lighting the stove and ensuring the all the features are working correctly. The Fire control unit is located behind the right-hand foot of the stove. ... -
Page 9: Customer Briefing
Stress that no extra logs must be added over and above those supplied with the appliance and that any replacements must only be authorized Acquisitions spares. Recommend that the stove is regularly serviced and the flue system checked by qualified persons. -
Page 10: General Notes
USER INSTRUCTIONS CONTENTS General Notes Page 10 Spillage Monitoring System Page 23 Important Notes Page 10 Error Codes Page 23 Positioning the Logs Page 11 Cleaning Page 27 Stove Controls Page 12 Servicing Page 27 Operating the Stove Page 15 GENERAL NOTES ... -
Page 11: Positioning The Logs
has to clear out any air locks, also if it is an LPG burner and has been stood unused for time, the gas could have settled in the pipework and again this could take longer. POSITIONING THE LOGS The logs should only be arranged as detailed below and by a qualified person. The stove must only be fitted with the ceramics supplied. -
Page 12: Stove Controls
Under no circumstances should the stove be operated with the door open, without the door attached or the glass in the door damaged, broken or missing STOVE CONTROLS This stove is fitted with a gas valve which can be operated via the remote control or using the control unit which is located behind the right-hand foot of the stove. - Page 13 Red indicator LED: OFF: Burner is in standby and ready for start, or already in continuous operation Fast flashing: Control unit is busy and will not accept commands. Medium fast flashing: Control unit is preparing a (re)start of the burner. Slow flashing: Control unit is detecting an error.
- Page 14 Fig 9 – Remote Control Handset Grasp around the handset covering the back and sides to unlock its functions. The green unlock light will illuminate to show when the handset is unlocked and ready to accept commands. (N.B. Keep a grip of handset to keep it unlocked, to continue to operate the command buttons).
-
Page 15: Operating The Stove
OPERATING THE STOVE Quick start user instructions Control unit The control unit is situated on your fire. Figure 8 shows the main features of the control. The control requires 3 AA size alkaline batteries to be inserted under the battery compartment cover. - Page 16 When the word “pilot” appears at the bottom left hand corner of the display, immediately release the power button. A second flash of the unlock light and a longer beep will also sound at the time to release the power button. The Fire should be lit within a few seconds.
- Page 17 Setting the time Holding the handset as described previously to unlock the keypad, press and hold “SET” for a few seconds and the display will be as shown. Setting the display for 12 or 24 Hour display As always when pressing the remote control buttons keep the control held to keep the green light on and therefore handset safety feature, unlocked.
- Page 18 Setting the Hour Press and release the + or – button to change the hour to the correct hour and press set to store and to move to setting the minute. Repeat this for setting the minutes. Setting the temperature display to Celsius or Fahrenheit. Press and release the + or - button to toggle between °C and °F.
- Page 19 The control is designed to get the most out of the batteries but when eventually the display shows they are spent(when the battery legend is an empty area, we recommend you change the batteries in the handset before they are flat, to avoid having to reprogram the time of day in again.
- Page 20 Subsequent hand set pairing Display handset The handset should be supplied already paired with your fire, however if it becomes necessary to cancel the pairing and re pair it again do the following steps below. (NOTE: A new pairing can be accidentally started by accidentally pressing the plus and minus buttons together at the same time on the Control unit and held for 5 seconds.
- Page 21 Pairing the handset to the Fire control unit With 2 good quality AA alkaline batteries in the handset in the direction shown inside, if the handset can be paired with a control, it will have the display with the word TESC on the display as shown over leaf.
- Page 22 Thermostatic Mode Thermostatic mode will allow you to set a desired temperature for the stove to maintain. Once the temperature is reached the fire will reduce the power to minimum and regulate itself to maintain the temperature. The timed thermostat can be set before or during manual operation of the fire. Hold the handset to unlock as described previously and press the mode button as many times as necessary until the THERMOSTAT symbol is flashing at the top of the display.
-
Page 23: Spillage Monitoring System
SPILLAGE MONITORING SYSTEM The stove is fitted with a spillage monitoring system which senses any excess temperature due to a flue restriction or blockage. In this event the gas supply is automatically turned off. Should this occur then slide the Fire control unit isolator switch to OFF (0) position and wait approximately 10 minutes for the switch to automatically reset. - Page 24 Page 24 AB-G200L-REM-I01-150914...
- Page 25 Page 25 AB-G200L-REM-I01-150914...
- Page 26 Page 26 AB-G200L-REM-I01-150914...
-
Page 27: Cleaning
CLEANING Ensure that the stove is turned off before cleaning and is cold. DO NOT use abrasive cleaning agents. The stove is supplied with ceramic logs that should only be cleaned and arranged by a qualified person in accordance with the Installation Instructions. SERVICING It is essential that the stove is regularly serviced, and the flue system checked by a qualified person. - Page 28 Acquisitions Fireplaces Ltd. Acquisitions House, 24-26 Holmes Road, London NW5 3AB Tel: 020 7482 2949 Fax: 020 7267 4361 e-mail: sales@acquisitions.co.uk www.acquisitions.co.uk Manufactured for Acquisitions by Esse Engineering Ltd Page 28 AB-G200L-REM-I01-150914...
