9/11 (PP)
Bloomsbury
GAS FIRED STOVE
GAS FIRED STOVE
GAS FIRED STOVE
GAS FIRED STOVE
INSTALLATION & USER INSTRUCTIONS
(TO BE LEFT WITH THE CUSTOMER)
UK & IRELAND
Acquisitions Fireplaces Ltd. Acquisitions House, 24-26 Holmes Road, London NW5 3AB
Tel: 020 7482 2949
Fax: 020 7267 4361
e-mail: sales@acquisitions.co.uk
www.acquisitions.co.uk
GB
IE
Manufactured for Acquisitions by Esse Engineering Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bloomsbury and is the answer not in the manual?

Questions and answers

Related Manuals for Acquisitions Bloomsbury

Summary of Contents for Acquisitions Bloomsbury

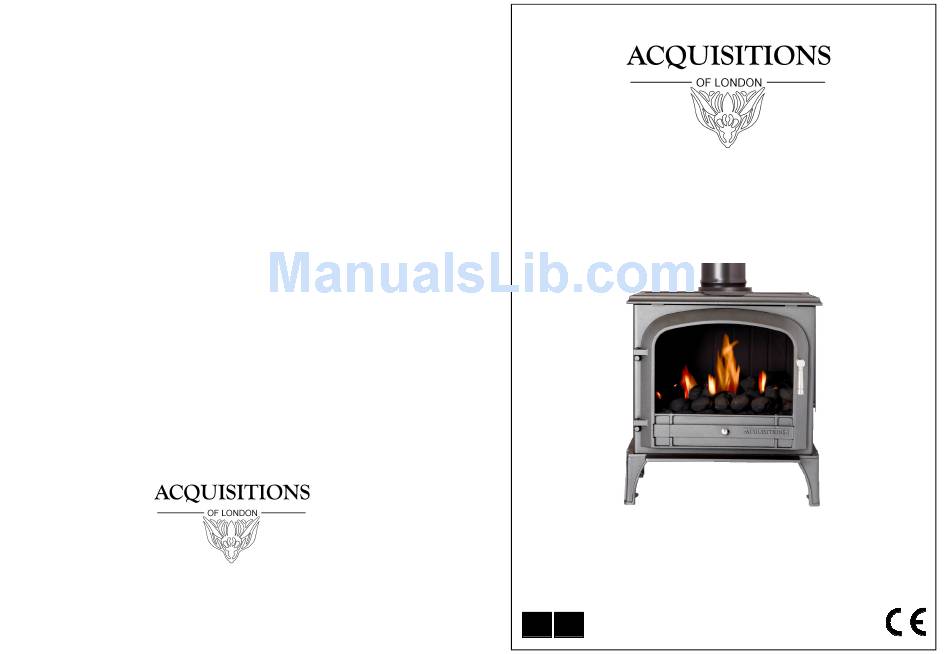

  • Page 1 GAS FIRED STOVE GAS FIRED STOVE INSTALLATION & USER INSTRUCTIONS (TO BE LEFT WITH THE CUSTOMER) UK & IRELAND Acquisitions Fireplaces Ltd. Acquisitions House, 24-26 Holmes Road, London NW5 3AB Tel: 020 7482 2949 Fax: 020 7267 4361 e-mail: sales@acquisitions.co.uk www.acquisitions.co.uk...

  • Page 2: Table Of Contents

    Fig. 1 - Dimensions INJECTOR SIZE 16.4mbar HIGH 32.5mbar HIGH SETTING PRESSURE 2.3mbar LOW 5.0mbar LOW GAS CONNECTION 8mm O.D. Tube 8mm O.D. Tube GAS CONSUMPTION 0.67m 0.24m Optional rear flue attachment available from ACQUISITIONS NOTE All dimensions are in millimetres...

  • Page 3: Installation

    INSTALLATION POSITIONING THE COALS Install the stove in accordance with the requirements given below. If a concealed gas connection is to be made prepare the pipe work prior to installing the stove. Positioning the Stove The stove can be installed in any adequate area suitable for multi-fuel fires and stoves. Clearances for non-combustible material in the fireplace opening must be at least 50mm on the left hand side, 100mm on the right hand side and 75mm at the back.

  • Page 4: Commissioning The Stove

    Fig 4 - Control Knob (Manual) COMMISSIONING THE STOVE Manually Operated Stoves The stove is fitted with a pilot light, piezo spark and flame sensing device. The control knob is located behind the right-hand foot of the stove. The pilot light is centrally located behind the front coal piece. Should the stove be extinguished for any reason wait 3 minutes before re-ignition is attempted.
  • Page 5 Low Setting HANDSET OPERATION HANDSET OPERATION (refer to Fig. 6) HANDSET OPERATION HANDSET OPERATION Turn Knob B clockwise to low setting (just before flame is extinguished). Check that the setting pressure is in accordance with that given in the TECHNICAL INFORMATION Mains electrical power is not required as this system runs on batteries only.
  • Page 6 Programming the Timer Please note, the placement of the transmitter (temperature sensor) is important Press TIMER TIMER TIMER until P1 TIMER flashes (period 1, heating cycle on). • to assure proper temperature regulation. Generally, a more constant temperature Set the time for the beginning of the first heating period by pressing ( ) for hour •...

  • Page 7: Check For Spillage

    Stress that no extra coals or logs must be added over and above those supplied with the stove and that any replacement parts must only be authorised ACQUISITIONS spares. Recommend that the stove is regularly serviced and the flue system checked by qualified persons.
  • Page 8 Fig. 9 - Control Knob CUSTOMER INFORMATION SECTION This stove has been individually designed to add charm and character to your home. Providing a highly efficient heat source, the stove has the look and charm of a real stove coupled with the convenience of clean burning gas.
  • Page 9 REMOTE CONTROLLED STOVES To Turn OFF Gas to Stove This stove has a pilot that must be lit manually. When lighting the pilot, follow these Turn Knob A clockwise until reaching stop. In this position only pilot gas flows. To shut •...
  • Page 10 Programming the Timer Please note, the placement of the transmitter (temperature sensor) is important to assure proper temperature regulation. Generally, a more constant temperature Press TIMER TIMER TIMER TIMER until P1 flashes (period 1, heating cycle on). • will be assured, if the transmitter is not too far from the gas appliance. Before Set the time for the beginning of he first heating period by pressing ( ) for hour •...
