Xqisit B06 User Manual

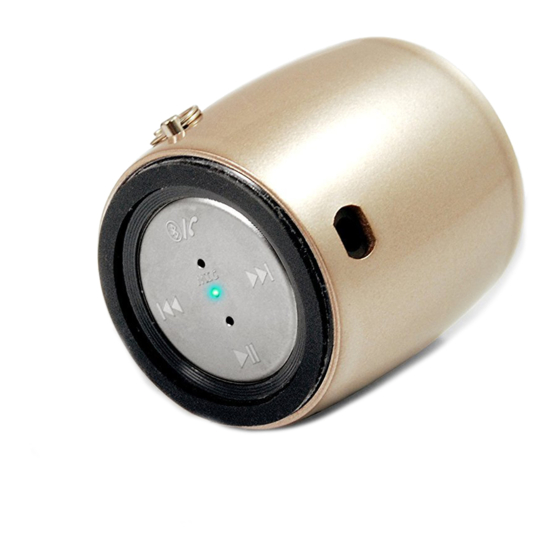

B06 Mini Portable Speaker user manual
Easy to carry around and ideal for travel, you can enjoy your music anywhere
with your friends. Use as an external speaker for your smartphone, laptop or
media player.
• Function control buttons
• Standby indicator
• Microphone
• Charging indicator
• Micro USB • Audio jack
charging cable
Getting started:
Please follow these simple steps to start using your mini Bluetooth Speaker:
charging, please remove the cable from the speaker.
• Make sure the mini Bluetooth speaker and your compatible Bluetooth enabled device are no more than 1 metre
away for the initial pairing process.
• Once paired, there will be a 10 metre Bluetooth sensing distance.
Note:
a) Charge indication: when charge is in process, the charging indicator will be red. When compete, the charging
b) Low battery indication: you will be promoted with a voice alert "low battery".
Warning:
Do not charge the speaker with other unsuitable AC/DC power adapters. The speaker must be charged either via
USB port or by a USB AC/DC adapter.
Input AC100-240V, 50-60Hz
Output DC 5V 500mA
Press and hold the button for 4 seconds. You will hear a voice alert saying "Power on". The standby
PLAY
PLAY
To pair:
Prior to using your Bluetooth speaker for the 1st time, you must pair it with a
Bluetooth enabled device. Please follow these simple steps:
b) Place your Bluetooth speaker and device no more than 1 metre apart.
c) Press and hold the
PLAY
alternately. It is now ready for pairing.
e) Activate your device's Bluetooth function, and select Mini BT Speaker from the search list. Select OK to pair
the speaker.
f) If required, the pass key is '0000' and press OK.
g) When pairing is complete, you will hear a voice alert "connected". The speaker is ready for use and in standby
Speaker functions:
a) Play / Pause music
You can control via your device, or by pressing the
b) Adjust the volume
Press and hold the reduce volume
level.
c) Play next / previous song
Quick press the button for previous song, and press
d) Answer a call
Wait for the speakerphone to ring, then short press the
your Smartphone in the normal way.
e) End a call
Short press the button to end the call, or you can end the call via your smartphone in the normal way.
• Lanyard f) Last number redial:
When in standby more, short press two times
button for 4 seconds. You will hear a voice alert saying "Power on". The standby
button.
PLAY
button or increase volume button repeatedly to achieve the required
button for the next song.
button to accept the call, or answer the call on
for last number redial.
Disconnect the speaker and smartphone:
Press the button for 5 seconds.
PLAY
Or disconnect the speaker via the Bluetooth options on your smartphone
Connection with 3.5 mm audio cable:
You can also connect to portable speaker with a 3.5mm audio cable to listen to music if you do not want to use
Bluetooth. Simply connect the cable to the headphone socket of the audio source, and plug the 3.5mm cable back
to the speaker.
Maintenance:
a) Do not charge the speaker with other unsuitable AC/DC power adaptors.
The speaker should be charged via USB port or by a USB AC/DC adapter with Input:
AC 100-240 V, 50-60 Hz
b) Do not expose the speaker to liquid, moisture or humidity.
c) Do not expose the speaker to high temperature.
d) Do not use abrasive cleaning solvents to clean the speaker.
e) Do not attempt to disassemble the speaker.
Safety Notice:
a) Check local laws regarding use of a mobile handset and speakerphone while driving.
b) Never mount or store over any air bag deployment area.
c) Not suitable for children as small parts may be a choking hazard.
Trouble Shooting:
If you are unable to connect your speaker and smartphone, please try the following:
a) Ensure your smartphone's Bluetooth feature is activated
b)Ensure the speaker is within a maximum of 10 metres of your mobile device and there are no obstructions
Signal / Noise ratio: > 80 dB
Driver: 4 oHm 3 Watt
Rating Power: 3 W
Line in: 3.5 mm
Rechargeable battery: 300 mAH lithium ion
Battery voltage: 3.7 V
Full charging time: 3 hours
Talk time: 3 hours
Standby time: 12 hours
Version 3.0, Class 2, 10 Metres
Power input: Micro USB (5 V / 500 mA)
Weight: 42 g
Dimensions: 37x34 mm
Voice alert:
Switch on "Power On"
Pairing mode "Pairing mode"
Devices connected "Connected"
Pairing Disconnected "Disconnected"
Receive incoming call "Call from ..."
Already Max Volume "Maximum Volume"
Already Min Volume "Minimum Volume"
Re-dial Last call "Redial"
Low battery "Low battery"
