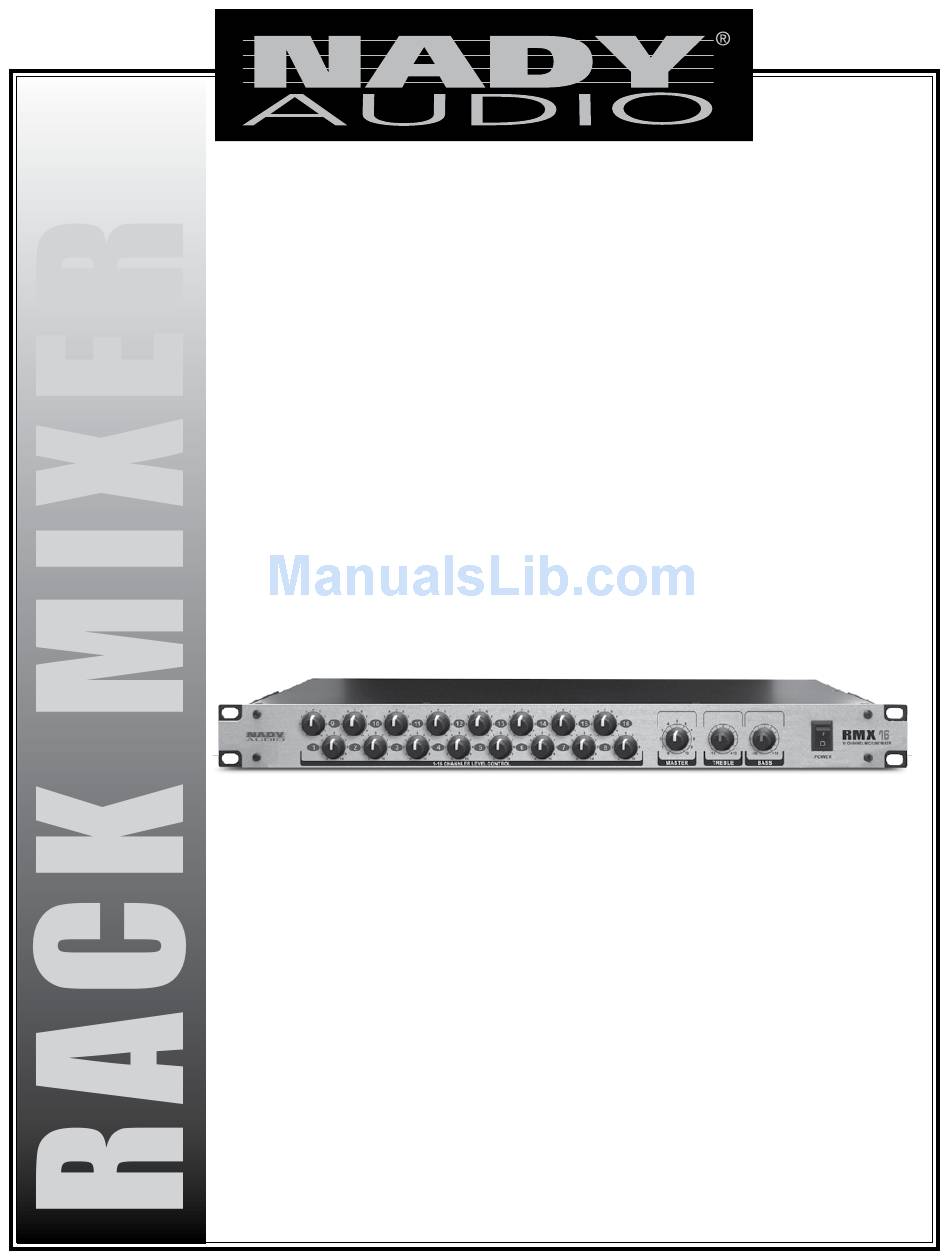

- Page 1 O W N E R ’ S M A N U A L RMX 16 16 Channel Mic/Line Mixer...
-
Page 2: Table Of Contents
Congratulations on your choice of rack mixer—you have purchased one of the finest rack mixers on the market today. This unit was developed using the expertise of professional sound engineers and working musicians. You will find that your new NADY AUDIO RMX- 16 has superior performance and greater flexibility than any other rack mixers in its price range. -
Page 3: Warning
WARNING An equilateral triangle enclosing a lightening flash/arrowhead symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure which may be of sufficient magnitude to constitute a risk of electric shock. ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR An equilateral triangle enclosing an exclamation point is intended to alert the user to the presence of important operating and service instructions in... -
Page 4: Installation
RACk MOUNTINg The RMX 16 fits into one standard 19” rack unit of space (1 3/4”). Parts of the unit can become very warm during use. This is normal during operation. Care should be taken to ensure that there is enough space around the unit for cooling (at least 12” or 30cm). Do not place the RMX 16 on high temperature devices such as power amplifiers, etc., or the unit may overheat in operation. -
Page 5: Controls & Connectors
CONTROLS AND CONNECTORS FRONT 1-16 CHANNELS LEVEL CONTROL MASTER OUTPUT SERIAL: LINK 1. POWER SWITCH 3. MASTER LEVEL CONTROL Use this switch to power unit ON or OFF. The integrated LED Adjusts the master level of the combined individual channel will light when the unit is ON. -
Page 6: Specifications
S P E C I F I C AT I O N S Frequency Response: ..............10Hz—20KHz +/-3dB Total Harmonic Distortion (THD) + Noise: ....... 0.1% S/N Ratio: ..................>60dB Tone Controls Bass: .................... +/-12dB / 100Hz Treble: ..................+/-12dB / 10KHz Inputs: .................. - Page 8 NADY SYSTEMS, INC. • 6701 SHELLMOUND STREET, EMERYVILLE, CA 94608 Tel: 510.652.2411 • Fax: 510.652.5075 • www.nady.com...
