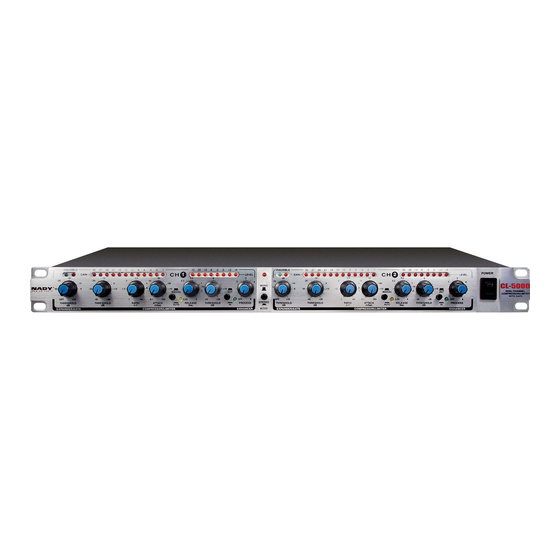

- Page 1 CL-5000 DUAL CHANNEL COMPRESSOR LIMITER WITH GATE OWNER'S MANUAL...
- Page 2 This unit was developed using the expertise of professional sound engineers and working musicians. You will find your new NADY AUDIO CL-5000 has superior performance and greater flexibility than any other compressor in its price range.
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING – When using electric products, basic precautions should always be followed, including the following: 1. Read all the instructions before using the product. 2. Do not use this product near water (e.g., near a bathtub, washbowl, kitchen sink, in a wet basement, or near a swim- ming pool, etc.) 3. -
Page 4: Table Of Contents
4.1 Initial Settings for the Limiter Function ... 14 D. SPECIAL APPLICATIONS ... 14 1. USING THE CL-5000 FOR RECORDING AND CASETTE DUPLICATION ... 14 1.1 The CL-5000 in Digital Recording and Sampling ... 15 1.2 The CL-5000 in Mastering ... 15 2. -
Page 5: A Introduction
When processing signals from individual instruments such as drum, guitar, etc., and when using the compres- sor to protect the audio system against signal transients, it is imperative that the control times be user- adjustable. The CL-5000 offers this feature by providing both ATTACK and RELEASE controls to allow for variable sound processing. -
Page 6: Controls, Connections, Operation
The CL-5000 is equipped with an IRC (Interactive Ratio Control) Expander, so that its expansion ratio is automatically adjusted dependent on the program material. Critical signals in the vicinity of the threshold level are processed with a minute expansion ratio, whereas signals that reduce in level will be subjected to an increasingly higher ratio, which will result in greater attenua- tion. -
Page 7: Compressor/Limiter Section (Operation)
In the CL-5000, control of the dynamics process is achieved by means of a high quality VCA (Voltage Controlled Amplifier) with an operating range of about 60 dB, i.e., the input signal level can be reduced or increased within a range of 60 dB. Input signal levels below the adjusted threshold are not reduced. - Page 8 The 12-segment GAIN REDUCTION meters indicate how effectively the gain is reduced by the compressor, within a range from 1 to 30 dB. (Note: Although the VCA of the CL-5000 features a control range of almost 60 dB, it is not useful to display the entire range, as in practice, such a broad control range will hardly ever be required.
-
Page 9: Dynamic Enhancer Section (Operation)
Dynamic Enhancer Section (Operation) Dynamic enhancement allows for selective replacement of high-end loss accrued through use of compression. As the signal level rises towards the threshold point where compression will occur, high frequency enhancement is added at the same degree to which the input signal is compressed. -
Page 10: Rear Panel
AC INPUT Made in China 14. INPUTS: The CL-5000 is equipped with both 1/4" (6.3mm) TRS and XLR audio input jacks. These can be used for either balanced or unbalanced operation as follows: . Unbalanced use of mono 1/4" plugs: Balanced use of TRS stereo 1/4"... -
Page 11: Applications
In this section, several typical applications of the CL-5000 are discussed. The following basic settings can resolve most dynamic problems. They are the ideal starting point. Please take the time to study the application examples carefully, in order to be able to make full use of the capabilities of your CL-5000 in the future. -
Page 12: Expander/Gate Section
Patch the CL-5000 into a snare drum channel for example and adjust it so that triggering only occurs on snare hits. Each mic should be set to its maximum operating level, monitored and the THRESHOLD level set so the each snare hit sounds acoustically clean and separate, as though it was played on its own. -
Page 13: Reducing Leakage In Stage Mics
PA and monitors, which can lead to undesired noise and feedback problems. Using the CL-5000, the mic channel can be shut off when it is not being used, reducing the possibility of noise pickup and feedback. -
Page 14: The Cl-5000 As A Sound Effects Unit
4. LIMITER FUNCTION In addition to providing a variety of ways to compress signals, the CL-5000 can also be used to limit the overall output level of the unit and to protect subsequent units from signal peaks, short term overloading and over modulation (transmitters etc.). -
Page 15: Special Applications
An automatic gain control system achieves better and more constant results. Use the CL-5000 by starting with the initial settings, and use its dynamic control functions to drive either an analog or digital recording noise and distortion free up to the limit of its maximum dynamic range. -
Page 16: The Cl-5000 As A Protective Device
If you increase the average signal level by 3 dB with the CL-5000 limiter function, you effectively double the power amplifica- tion. In this way, for example, you can use a CL-5000 to convert a PA system of 5,000 Watts into a distortion-free 10,000 Watts system. -
Page 17: Protection Of A System With An Active Crossover
But in many cases, this function leads more to a disturbance than to an improvement of the sound quality. If the CL-5000 is preceding this system, the signal peaks can be eliminated before they reach the limiters of he processing system. -
Page 18: Using The Cl-5000 With Tape Recorders
5.1 Reshaping Sampled Sounds With the help of the CL-5000, existing or new sampled sounds can be brightened up, changed or used to create new sound. The attack times and the dynamics of the sounds can be changed as desired. -
Page 19: External Sidechain Applications
When de-essing, simply insert an equalizer, not into the audio path, but into the sidechain path of the CL-5000. The equalizer is inserted between the audio input and the DETECTOR LOOP input of the CL-5000 . The equalizer is now inserted into the sidechain loop and controls the unit. -
Page 20: Frequency Selective Filtering Of Unwanted Signals
Take care to decrease the amplitudes of the frequencies you are trying to eliminate. Proceed now as described in the previous section E 2.1 “The CL-5000 As A De-Esser”. This will result in compression of the selected frequencies and thus a decrease in the gain of these frequencies in the program mate 2.3 Suppressing Instruments During Recording... -
Page 21: Emphasizing Musical Instruments During Recordin
2.4 Emphasizing Musical Instruments During Recording Conversely, you can use the CL-5000 to bring out an instrument solo or a lead vocal in a cluttered mix. Match the frequencies of the equalizer to the frequencies of the instruments to be emphasized (it is best to use a notch filter with a high slope). (Note: In this application, make sure you only reduce the amplitude of the selected frequencies.) The compression results in a subjective... -
Page 22: Anticipated Compression
If you feed the audio signal directly into the DETECTOR LOOP input and send the audio signal through a delay before the audio input, the CL-5000 can anticipate the need for gain change. With experimentation, the effect can create a “zero” attack time at a given frequency. -
Page 23: Specifications
INPUT Type Connectors Impedance Nominal Operating Level Max. Input Level CMRR DETECTOR INPUT Type Impedance Max. Input Level OUTPUT Type Connectors Impedance Max. Output Level Bandwidth Frequency Response Noise Crosstalk Stereo Coupling CMR@ 1 KHz EXPANDER/GATE SECTION Type Threshold Attack Release COMPRESSOR SECTION Type... - Page 24 INDICATORS 12 segment GAIN REDUCTION meter 8 segment LEVEL meter LED indicator for each function switch INAUDIBLE LEDs POWER SUPPLY AC Voltage Power consumption Fuse Power Cord Connector DIMENSION WEIGHT For improvement purposes, modifications may be made from time to time to this product without prior notice, so specifica- tions and appearance may differ from those listed or shown.
- Page 25 DO NOT ATTEMPT TO SERVICE THIS UNIT YOURSELF AS IT CAN BE DANGEROUS AND ALSO WILL VOID THE WARRANTY. NADY SYSTEMS, INC. • 6701 SHELLMOUND STREET • EMERYVILLE, CA 94608 Tel: 510.652.2411 • Fax: 510.652.5075 • www.nady.com ' 2000 NADY SYSTEMS...
