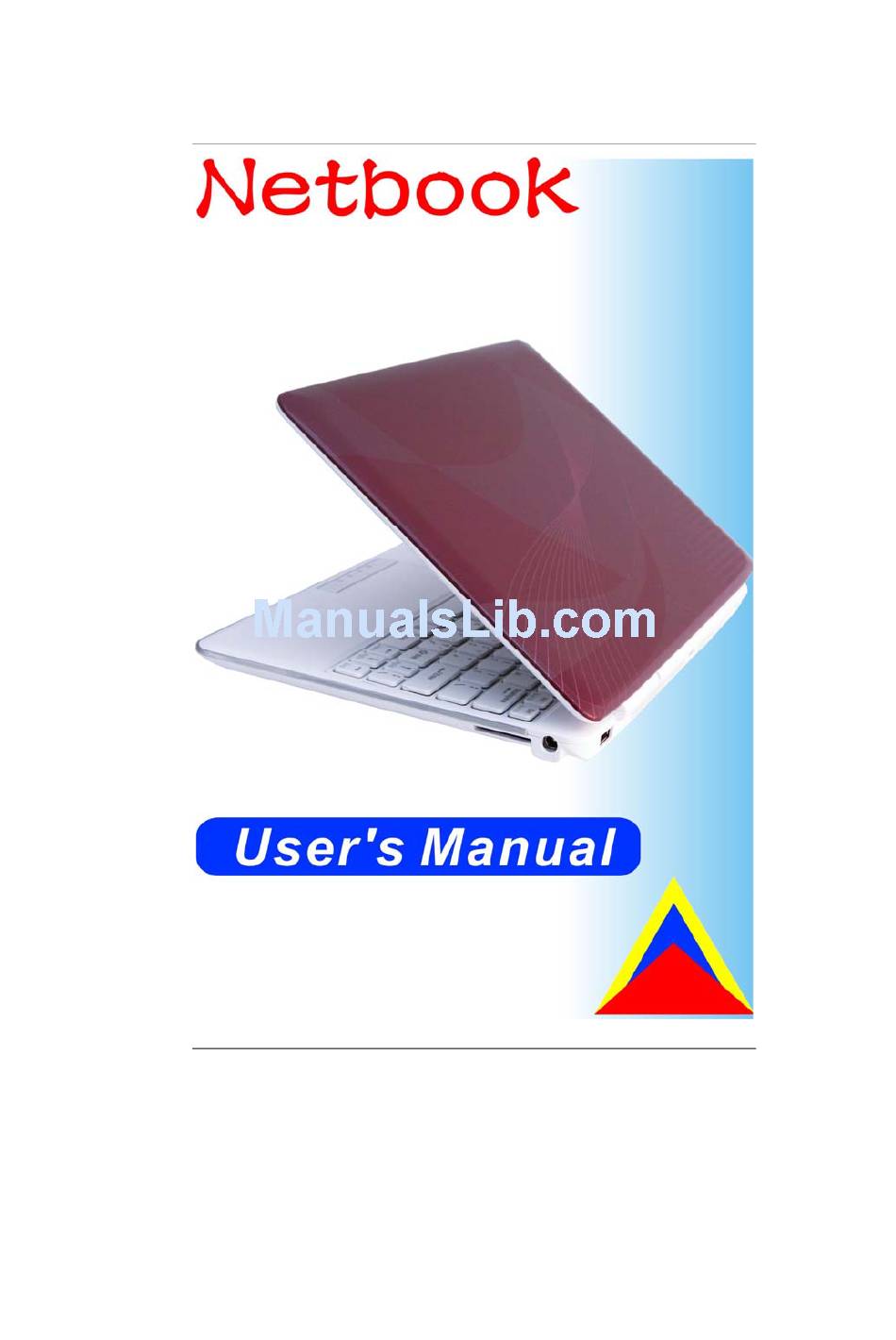

Uniwill T10ILx User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T10ILx and is the answer not in the manual?

Questions and answers

Related Manuals for Uniwill T10ILx

Summary of Contents for Uniwill T10ILx

  • Page 2 Preface © Copyright 2008 © All Rights Reserved. The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if...
  • Page 3 Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio TV technician for help This device complies with Part 15 of the FCC Rules.

  • Page 4: Table Of Contents

    Table of Content ................2 EFORE YOU TART ..........9 ET YOUR COMPUTER ACCLIMATE ITSELF ..........10 UMIDITY LARE ..............10 UITABLE PLACE TO WORK ..................12 NTRODUCTION ..................13 RONT ..................15 ..................15 IGHT ..................16 ...................17 OTTOM CRT/LAN P ................18 ................21 ETTING TARTED AC A ............21 ONNECTING THE DAPTER :............23...
  • Page 5 ..................52 ETUP 3G C ..................64 ONNECTION ................70 ROUBLESHOOTING ................71 O SPEAKER OUTPUT ............71 OUND CANNOT BE RECORDED ..72 HE HARD DISK DRIVE DOES NOT WORK OR IS NOT RECOGNIZABLE .....72 HE HARD DRIVE IS MAKING ABNORMAL WHINING NOISES ......72 HE HARD DISK DRIVE HAS REACHED ITS CAPACITY ........73 HE HARD DISK TAKES LONGER TO READ A FILE ...............73...

  • Page 7: Before You Start

    Use this manual will help you get the most from your notebook computer. If you are an experienced user of computers and/or Microsoft’s Windows operating systems, you might find it useful to read the Quick Start Guide that comes along with your accessories.
  • Page 8 Make sure to use the right voltage for the power source when connecting the equipment to the power outlet. Place the power cord in such a way that people can not step on it. Do not place anything on top of the power cord. All cautions and warnings on the equipment should be noted.
  • Page 9 The minimum specifications for the flexible cord are No. 18 AWG, (2) Type SPT-2, and (3) 2-conductor. For Japan: All components of the cord set must bear a “PSE” mark and in accordance with the Japanese Dentori Law. The minimum specifications for the flexible cord are .75m ㎡...
  • Page 10 Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. Do not use the telephone to report a gas leak in the vicinity of the leak. Use only the power cord and batteries indicated in this manual.
  • Page 11 Bitte lesen Sie diese Hinweis sorgfältig durch. Heben Sie dirse Anleitung für den späteren Gebrauch auf. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Versenden Sie Keine Flüssig- oder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung. Die Netzanschluβsteckdose soll nahe dem Gerät angebracht und leicht zugänglich sein.
  • Page 12 Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen und von einer qualifizierten Servicestelle zu Überprüfung.: Netzlabel oder Netzstecker sind beschädigt. Flüssigkeit ist in das Gerät eingedrungen. Das Gerät war Feuchtigkeit ausgesetzt. Wenn das Gerät nicht der Bedienungsanleitung entsprechend funktioniert oder Sie mit Hilfe dieser Anleitung keine Verbesserung erzielen.
  • Page 13 Die Minimalanforderungen für das Kabel sind .75m ㎡ Leiter. (2) Type VCTF oder VCTFK, und (3) 2- conductor. Der Kabelsatz muss mindestens für eine Stromstärke von 7A geeignet sein. Der Wandstecker muss ein zweipoliger geerdeter Steckertyp gemäß dem Japanese Industrial Standard C8303 (15A, 125 VAC) sein.

  • Page 14: Let Your Computer Acclimate Itself

    Benutzen Sie das Telefon nicht um ein Gasleck zu melden, falls es sich in der Nähe des Lecks befindet. Verwenden Sie nur die in diesem Benutzerhandbuch angegebenen Stromkabel und Batterien. Werfen Sie die Batterien nicht ins Feuer, sie könnten explodieren. Informieren Sie sich über die örtlichen Bestimmungen bezüglich der Entsorgung.

  • Page 15: Heat , Cold , Humidity , And Glare

    Find a suitable place for your computer that’s not too hot, too cold, too dark, or too bright. Glare can make it hard to read the screen. Try to avoid the computer components from being destroyed if it is over heated, so try to allow plenty of room for air to circulate around the case.

  • Page 17: Introduction

    Install the battery pack Connecting the AC adapter Opening the display panel Turning on your computer...

  • Page 18: Front View

    With the LCD screen open, you will see several features important for operating your notebook computer. Camera (Optional) LCD Display...
  • Page 19 Keyboard Power/Suspend Button Press for 1 seconds to turn on the system. Press and hold for at least 4 seconds to turn off the system. Press the power / suspend button again to return from the suspend mode. Touchpad Touchpad Buttons LED Status Indicator &...

  • Page 20: Left View

    Stereo Headphone Jack DC In...

  • Page 21: Rear View

    Enhanced USB 2.0 Port ” ” ” ” Mini CRT Port (For connection of external CRT and LAN) USB 2.0 Port...

  • Page 22: Bottom View

    Microphone Battery lock Battery Compartment Battery latch This system provides you with a cable that lets you connect to an external CRT and LAN connection.

  • Page 23: Crt/Lan Port

    CRT Port Ethernet / LAN Port...
  • Page 24 Mini CRT connector...

  • Page 26: Connecting The Ac Adapter

    A universal AC adapter is provided to supply your computer with power and also charge the computer’s battery pack. The adapter’s AC input voltage can range anywhere from 100 to 240 volts, covering the standard voltages available in almost every country. To connect the computer to an external power source:...
  • Page 27 Whenever possible, keep the AC adapter plugged into the notebook and an electrical outlet to recharge the battery. ’ ’ Hold the button down for a second or two and release. The Power- On Self Test (POST) runs automatically. After the POST is completed, the computer reads the operating system from the hard disk drive into computer memory (this is commonly referred to as “booting”...

  • Page 28: T I B Pack

    ’ ’...

  • Page 29: T R B Pack

    The installed battery pack charges automatically any time the computer is connected to the AC adapter and an external power source. It is a good idea to occasionally discharge the battery pack fully to preserve its operating performance.

  • Page 31: Using The Notebook Computer

    The LCD screen display can be adjusted by the following key combinations. Fn + F4 Changes Display Mode: LCD only, CRT only Fn + F7 Increases the brightness level. Fn + F8 Decreases the brightness level. LCD screens are delicate devices that need careful handling. Please pay attention to the following precautions: When you are not using the computer, keep the LCD screen closed to protect it from dust.
  • Page 32 ’ ’ Action System Control Fn + F1 Enters Suspend Mode. Fn + F2 Enable/Disable 3G application Fn + F3 Enable/Disable the WLAN application Fn + F4 Changes Display Mode: LCD only, CRT only Fn + F5 Increase the speaker volume. Fn + F6 Decrease the speaker volume.

  • Page 33: Osd-Bar Icon

    WLAN On/Off or Fn + F3 BlueTooth On/Off or Fn + Esc 3G On/Off or Fn + F2 Brightness or Fn + F7/Fn + F8 Mute On/Off or Fn + F10 Volume or Fn + F5/Fn + F6 Caps Locks On Num Locks On Scroll Locks On Silent Mode ON...
  • Page 34 Live Power is a saving scheme technique that provides saving your battery consumption by disabling some devices thus extending the battery life. Click on the Live Power icon from the lower right bar of your screen to open up the Live Power Display.

  • Page 35: Power Saving Mode

    LCD Brightness: Level 1 HDD Off: Idle after 3 minutes LCD Off: Idle after 5 minutes Sleep: Idle after 5 minutes Hibernate: Idle after 10 minutes LCD Brightness: Level 5 HDD Off: Idle after 30 minutes LCD Off: Idle after 15 minutes Sleep: Idle after 1 hour Hibernate: Idle after 2 hours...

  • Page 36: High Performance Mode

    LCD Brightness: Level 5 HDD Off: Never LCD Off: Never Sleep: Never Hibernate: Never LCD Brightness: Level 5 HDD Off: Idle after 4 hours LCD Off: Idle 4 hours Sleep: Idle after 1 hour Hibernate: Idle after 2 hours...

  • Page 37: Mode

    CPU Loading Battery High Middle plus Middle life% 50% up 30% up 4%up <4% level High Performance High Performance High Performance Normal mode mode mode mode level High Performance High Performance Normal Normal mode mode mode mode level High Performance Power Normal mode Normal mode...

  • Page 38: Touch Pad Precautions

    The TouchPad is a pressure sensitive device. Please take note of the following precautions. Make sure the TouchPad does not come into contact with dirt, liquids or grease. Do not touch the TouchPad if your fingers are dirty. Do not rest heavy objects on the TouchPad or the TouchPad buttons.

  • Page 39: T B P System

    Before using the computer on battery power for the first time, check the battery status icon on the Windows Toolbar to make sure the battery is fully charged. See Battery Status later in this section for a description and explanation of the Windows Battery icon. Charging the battery takes about 2.5 hours to charge when the system is in off state.

  • Page 40: A B Pcf

    battery fully recharge. When the battery charge indicator turns off, the battery is fully charged. Turn On the notebook, let the battery run down until the battery is in low-low state and you hear a warning beeps. The system will automatically enter the Suspend mode. You can now connect the AC adapter.
  • Page 41 “Battery Low Low” status the beeping sound will accelerate. Your battery now has 1 ~ 2 minutes of battery charge remaining. You must save your data or connect AC power immediately; otherwise, you may lose your data. Sound Meaning Continuous Battery Low: Indicates that there is 7 to 10 minutes beeping every 5 charge remaining.

  • Page 42: Help Windows

    For Windows XP help, click Start Help and Support icon will open the dialog box. Desktop may vary differently on the software installed in your notebook with different or additional shortcuts.
  • Page 43 Used for storing deleted files in case you want to recover and save it in your system. The files will only be deleted from the Recycle Bin permanently only if you empty it by right clicking your mouse and select the “Empty Recycle Bin”. Allows easy access...

  • Page 44: Control Panel

    It is in this area that you can change how Windows looks and works. Click Start Control Panel dialog box. There are two interfaces – Classic View or Category View.
  • Page 47 For you connect to the Internet, a wired LAN environment normally uses the company’s LAN or a broadband modem.
  • Page 48 Bluetooth is a developing, world wide, open, short-range radio specification focused on communication between the Internet and Net devices, plus it defines communication protocols between devices and computers. It connect wirelessly to your world: In home, at work, in motion and at play.

  • Page 51: Running Bios Setup

    The Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/Output System). It runs and maintains a variety of hardware functions. It is menu-driven software, which allows you to easily configure and change the settings. The BIOS contains manufacture’s default settings for the computer’s standard operations.

  • Page 52: Main Setup

    Saves changes and reboots the Save and Exit computer. <Tab> Select a field Selects the next field. ↑ Select an item Selects the next upper item. Select an item Selects the next lower item. ↓ Lower value Selects the next value within a field. Higher value Selects the next value within a field.

  • Page 57: Exit Setup

    “ ” “ ” ” ” “ ” “ “ ” “ This process enables you to restore your system whether your system is damaged or for some other reason that you can not operate your computer. First turn on the power. When the BIOS performs the POST (Power-On Self Test) Press F9 key quickly to activate the System Recovery Program.
  • Page 58 Or click the “Quit” if you want to discontinue with the application. Click the “Recover your computer” if you want to proceed.
  • Page 59 You will be asked whether you would like to proceed with the recovery procedures. Click “OK” if you want to proceed or “Cancel” if you want to discontinue with the recovery procedures.
  • Page 60 The system will start with the recovery procedures. This illustration indicates the system has finished with the recovery procedures.

  • Page 62: Vga Utilities

    VGA Utilities You can click the touchpad or mouse right button and select the “Properties” item. Select the “Display Settings” option to enter its window display. Click on the “Advanced Settings” tab to enter “Generic PnP Monitor on Mobile Intel ® 4 Series Express Chipset Family” window display.

  • Page 69: Connection

    3G is the third generation of mobile phone standards and technology. 3G enable users a wide range of more advanced service while achieving greater network capacity through improved spectral efficiency. Press the hot key combination of Fn + F2 or click the 3G application icon to start executing the application.
  • Page 70 From the Mobile Partner display window, click on the “Tools” item Select the “Options”.
  • Page 71 Double click on the “Profile Management” and click on the “New” tab Click on the “OK” tab.
  • Page 72 On the next window, click on the “Connect” tab. The HSPA is successfully connected...

  • Page 75: Troubleshooting

    Your computer has been fully tested and complies with the system specifications before shipping. However, incorrect operations and/or mishandling may cause problems. This chapter provides a reference for identifying and correcting common hardware and software problems that you may encounter. When you encounter a problem, you should first try to go through the recommendations in this chapter.

  • Page 76: N O Speaker Output

    Be sure all the device drivers are installed properly. For example, without the audio driver properly installed, the speakers and microphone will not work. If external devices such as USB camera, scanner, printer do not function correctly when connected to the system, it is usually the device’s own problem.

  • Page 77: The Hard Drive Is Making Abnormal Whining Noises

    Click Options and select Properties. Select Recording and click the OK button. After Click OK button, the recording volume control panel will appear. Go to [Start > Settings > Control Panel] and double-click the Multimedia icon (or Sounds and Audio Devices icon). In the Volume or Audio page, make sure that the audio codec mentioned in the spec is the default recording device.

  • Page 78: The Hard Disk Takes Longer To Read A File

    Many browsers store files in the hard drive as a cache to speed up the performance. Check the program’s Online Help for instructions on decreasing the cache size or on removing temporary Internet files. Empty the Recycle Bin to create more disk space. When you delete files, Windows saves them to the Recycle Bin.

  • Page 79: The Built - In Touch Pad Performs Erratically

    Make sure there is no excess perspiration or humidity on your hand when using the touch pad. Keep the surface of the touch pad clean and dry. Do not rest your palm or wrist on the surface of the touchpad while typing or using the touch pad.

  • Page 80: The Post Does Not Show An Increased Memory Capacity When

    Certain brands of memory module may not be compatible with your system. You should ask your vendor for a list of compatible DIMM. The memory module may be defective. This is often a software or Windows-related problem. A program is draining the memory resources. Close the application programs you’re not using and restart the system.

  • Page 81: Windows Crashes Or Freezes When You Remove The The Computer Becomes Hot

    Make sure you have <Stop> the PC card before removing it. Double-click the Safely Remove Hardware icon at the lower right corner of the task bar and select the card you wish to stop. When you click <Close>, in few seconds Windows will prompt you to remove the card.

  • Page 82: The Usb Device Does Not Work

    Check the settings in the Windows Control Panel. Make sure you have installed the necessary device drivers. Contact the device vendor for additional support. Detach the external device; insert it into the Enhanced USB port. Separate the cable with the equipment; first insert the wire into the port, then connect the device with the cable that is inserted into the Enhanced USB port.
  • Page 84 Supports WinXP, Home Edition with logo submission Supports Windows 7, Starter, Home Basic Atom N270 CPU single core, 45 nm, up to 1.6GHz, 512KB L2 Cache, 533MHz FSB, TDP 2.5W Atom N280 CPU single core, 45 nm, up to 1.66GHz, 512KB L2 Cache, 667MHz FSB, TDP 2.5W DDRII 667/800 MHz support (667/800 MHz may be downgraded to 533MHz)
  • Page 85 Supports 10/100 Mb/Sec. PCI-E interface Mini Card w/ PCIE interface IEEE802.11b/g/n 1x2 module with N logo Support SD/MS/MMC/MS pro Memory Card Support 1.3M & 2.0M Camera ” ” ” 1.8” 5mm SATA HDD supported US/83,UK/84,BR&JP/87 Keys K/B supported PS2 Touch Pad with 2 buttons Support gesture function (optional) 10.1”...
  • Page 86 50/60Hz, 40 Watts. 3 Pin (Suggest to use 3 Pin for Voltage over 200V area) Manufacture: Dee Van Enterprise Co., Ltd. Model: DSA-30PFA-19US (30W) Model: DSA-30PFA-19UK (30W) Model: DSA-30PFA-19EU (30W) Model: DSA-30PFA-19CH (30W) Manufacture: Delta Electronics, Inc. Model: ADP-40PH AB (40W 2pin)/ADP-40PH BB (40W 3pin) Manufacture: Lite-On Technology Corporation.
