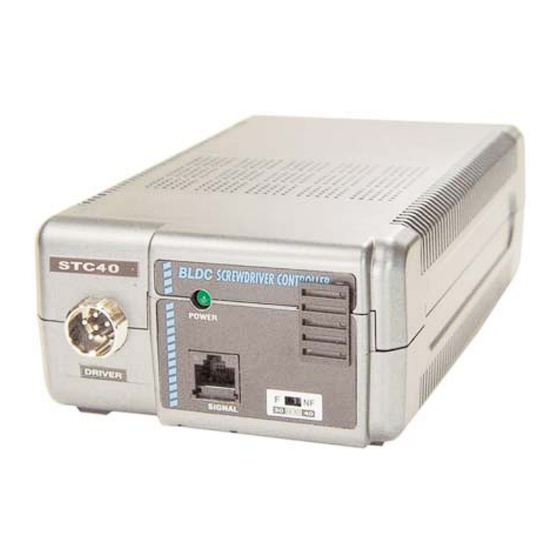

- Page 1 STC 40 Operation Instructions (Rev 3.0 9/9/11) RoHS Power Supply for E-DRIV BF & NFSeries Brushless Electric Screwdrivers Corporate Headquarters: 1080 North 11th Street, San Jose, CA 95112 Phone: (408) 292-2214 Fax: (408) 292-2733 www.mountztorque.com...
- Page 2 STC40 Transformer (Rev 3.0 9/9/11) Power Securely place the power cord into the back of the STC 40. Flip the switch on the back to turn on the unit: Light turns Green. Connecting Electric Screwdriver Before connecting the electric screwdriv-...
- Page 3 An alarm and break system notifies you when the ratcheting clutch occurs with an electric screwdriver. If the tool ratchets continuously 5 or 6 times, the STC 40 will provide a buzzer alarm along with the red LED light Also it will stop the output power for 5 seconds as a secondary protection.
- Page 4 STC40 Transformer (Rev 3.0 9/9/11) Interface for Start / Stop Signal Timing Chart Page 4 Corporate Headquarters: 1080 North 11th Street, San Jose, CA 95112 Phone: (408) 292-2214 Fax: (408) 292-2733 www.mountztorque.com...
- Page 5 STC40 Transformer (Rev 3.0 9/9/11) Connections Page 5 Corporate Headquarters: 1080 North 11th Street, San Jose, CA 95112 Phone: (408) 292-2214 Fax: (408) 292-2733 www.mountztorque.com...
- Page 6 (Rev 3.0 9/9/11) U-3B Interface Converter (Accessory) The PLC interface converter provides three types of signals by converting the open collector signal from STC 30 Plus v4.2 & STC 40. Model: U-3B Item #145753 Size (WxDxH): 3" x 2 3/8" x 1"...
- Page 7 STC40 Transformer (Rev 3.0 9/9/11) Page 7 Corporate Headquarters: 1080 North 11th Street, San Jose, CA 95112 Phone: (408) 292-2214 Fax: (408) 292-2733 www.mountztorque.com...
- Page 8 Mountz Inc. features an experienced calibration and repair staff. Our trained technicians can calibrate and repair most any tool. Mountz provides rapid service with quality that you can trust as we offer three state-of-the-art calibration lab and repair facilities that can calibrate up to 20,000 lbf.ft.
