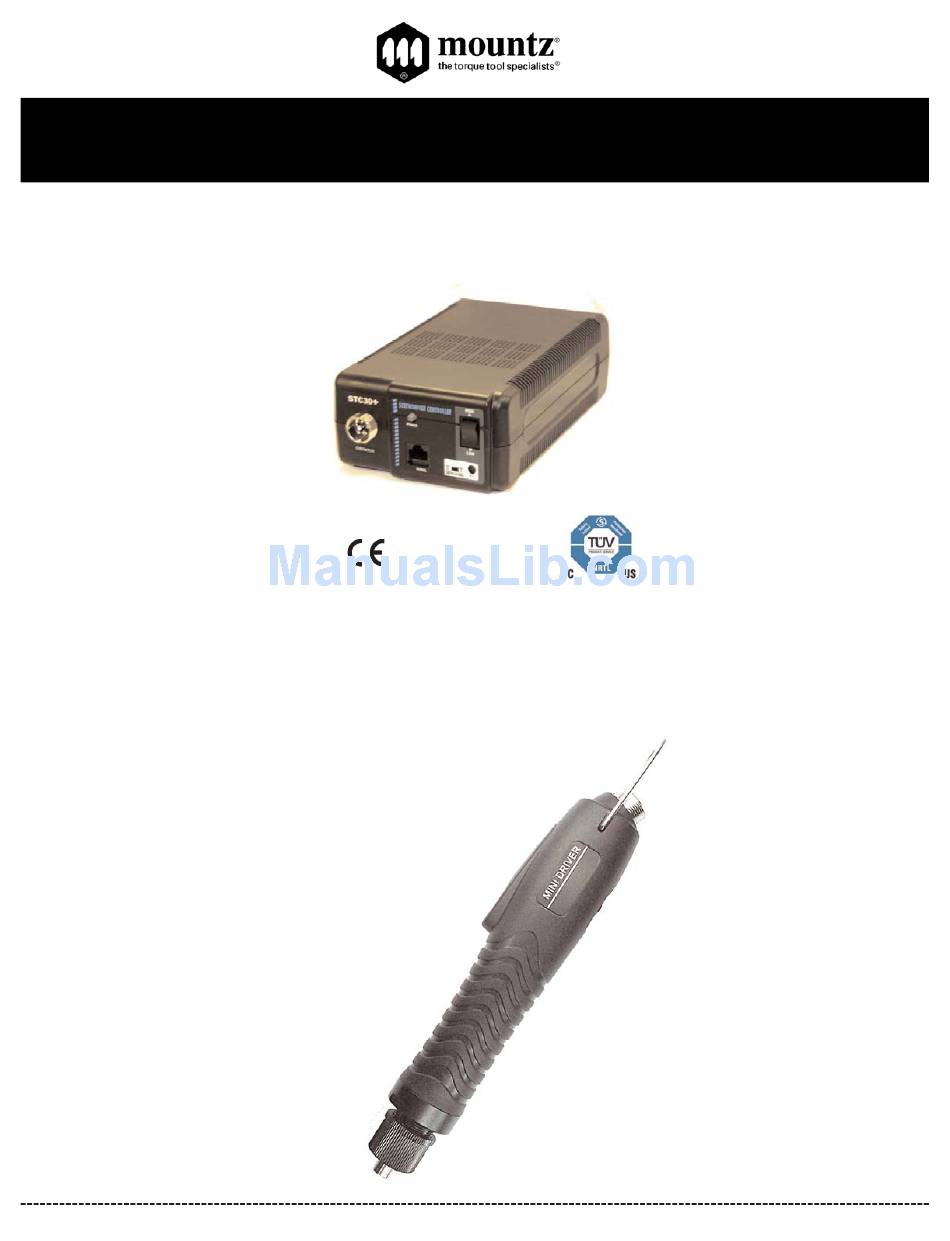

- Page 1 STC 30 Plus v4.3 Operation Instructions (Rev 3.0 9/9/11) RoHS Power Supply for Electric Screwdrivers Corporate Headquarters: 1080 North 11th Street, San Jose, CA 95112 Phone: (408) 292-2214 Fax: (408) 292-2733 www.mountztorque.com...
- Page 2 STC30 Plus (v4.3) Transformer (Rev 3.0 9/9/11) Power Securely place the power cord into the back of the STC30 Plus. Flip the switch on the back to turn on the unit: Light turns Green. Connecting Electric Screwdriver Before connecting the electric screwdriver, make sure the little switch in the lower bottom right of the STC 30 Plus (v4.3) is positioned in the proper setting (EF or K).
- Page 3 STC30 Plus (v4.3) Transformer (Rev 3.0 9/9/11) Double Hit Mode The Double Hit mode is for very soft joint applications. When an electric screwdriver runs down a fastener and the tool clutches off once the preset torque is achieved there can be some joint relaxation that can occur. The Double Hit mode has the electric screwdriver perform a second hit to stabilize the torque for joint relaxation.
- Page 4 STC30 Plus (v4.3) Transformer (Rev 3.0 9/9/11) Connector and Cables (These cables are included with Scout Screw Counter) Cable for connecting Scout to the STC30 Plus (Item #14-801120) RJ-11 Pin No. Color Function Modular Jack Solid Orange Not Used White/Orange Stop Signal Cable Blue...
- Page 5 STC30 Plus (v4.3) Transformer (Rev 3.0 9/9/11) PLC connections STC30 Plus Electric Screwdriver Scout Screw Counter Signal Out Fastening Start Fastening Stop Signal In Signal In Cycle Start Driver Lock Signal Out Driver Lock Cycle End Buzzer Interface for Start / Stop Signal & Driver Lock 12 VDC (+) STC30 Plus (4.0) Torque Up (Orange)
- Page 6 STC30 Plus (v4.3) Transformer (Rev 3.0 9/9/11) U-3B Interface Converter (Accessory) The PLC interface converter provides three types of signals by converting the open collector signal from STC 30 Plus v4.3 & STC 40. Model: U-3B Item #145753 Size (WxDxH): 3" x 2 3/8" x 1"...
- Page 7 STC30 Plus (v4.3) Transformer (Rev 3.0 9/9/11) Page 7 Corporate Headquarters: 1080 North 11th Street, San Jose, CA 95112 Phone: (408) 292-2214 Fax: (408) 292-2733 www.mountztorque.com...
- Page 8 Mountz Inc. features an experienced calibration and repair staff. Our trained technicians can calibrate and repair most any tool. Mountz provides rapid service with quality that you can trust as we offer three state-of-the-art calibration lab and repair facilities that can calibrate up to 20,000 lbf.ft.
