VENTILATION FAN
WITH LIGHT
READ AND SAVE THESE INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY
TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer at the address
or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel
and lock the service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of
gases through the flue (chimney) of fuel burning equipment to pre-
vent backdrafting. Follow the heating equipment manufacturer's
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electri-
cal wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. If this unit is to be installed over a tub or shower, it must be marked
as appropriate for the application and be connected to a GFCI
(Ground Fault Circuit Interrupter) - protected branch circuit.
8. Never place a switch where it can be reached from a tub or
shower.
9. To reduce the risk of electrical shock, do not use this fan with
any solid-state speed control.
10. Not for use in kitchens.
11. Do not install in a ceiling insulated to a value greater than R-
40.
12. This unit must be grounded.
!

CAUTION

1. For general ventilating use only. Do not use to exhaust hazard-
ous or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
3. Please read specification label on product for further information
and requirements.
FOR BEST RESULTS
When installing the Exhaust Fan/Light in a new construction site,
install housing during the rough-in construction of the building. The
blower unit, reflector and grille should be installed after the finished
ceiling is in place.
Hanger Bars
Slots
Tabs
Planning DUCTWORK AND WIRING

DUCTWORK

1. Use 4" round duct.
2. Plan duct run from discharge opening of fan to the outside. For
best fan performance, make duct run as short as possible and
use minimum number of elbows.
3. Use optional Broan ducting accessories as needed.
Plan to run 120 VAC house wiring (with ground) from power source,
through wall switch, to junction box in housing. For separate control
of fan and light use an optional Broan switch.
IMPORTANT: Use wire suitable for 90

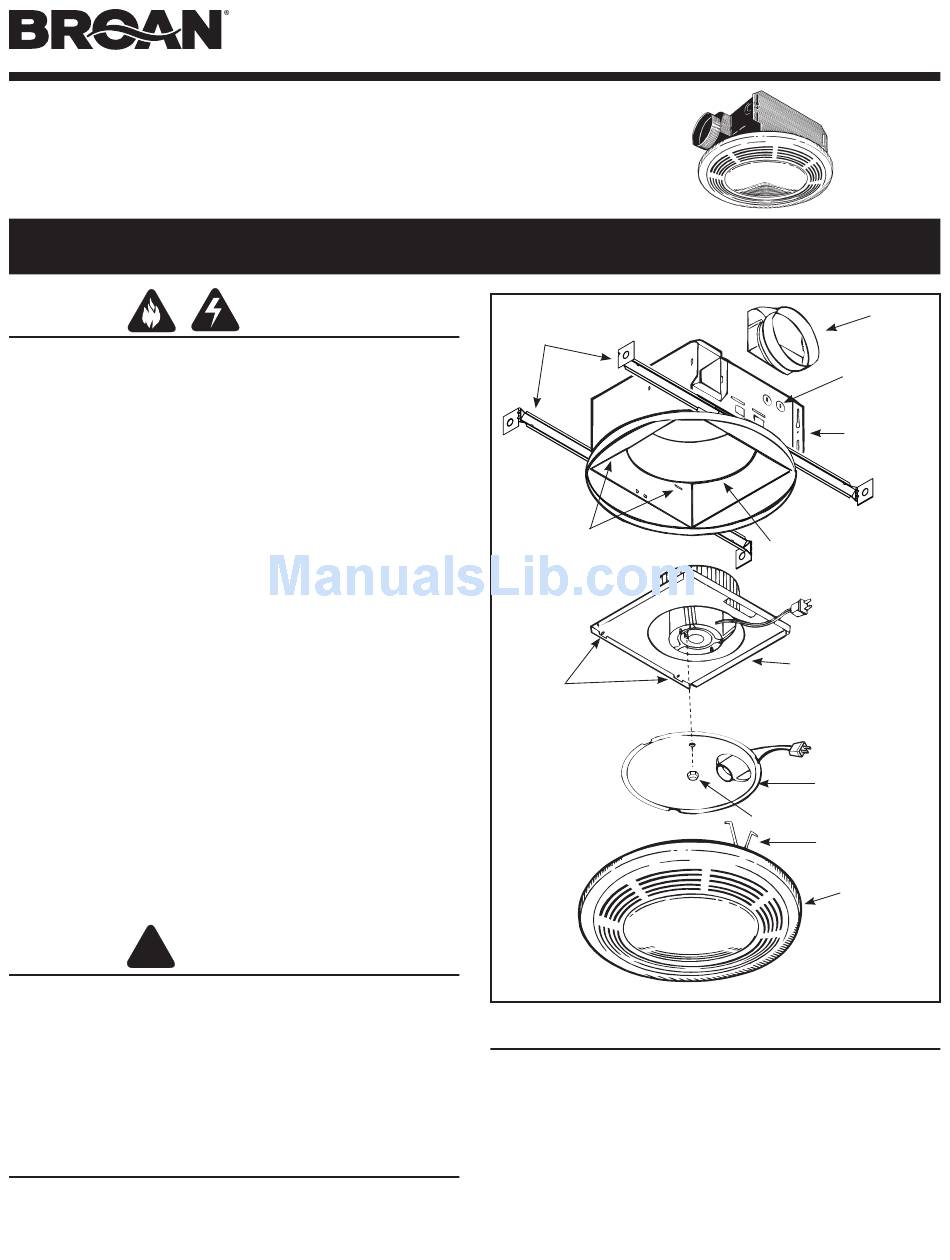

MODEL 751
Page
Duct
Collar

Wiring

Knockouts
Housing
Scroll
Power/Blower
Unit
Reflector
Assembly
Acorn Nut
Mounting
Springs (2)
Grille/Lens
Assembly
FIGURE 1
C.
o

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 751 and is the answer not in the manual?

Questions and answers

Summary of Contents for Broan 751

  • Page 1 MODEL 751 Page  VENTILATION FAN WITH LIGHT READ AND SAVE THESE INSTRUCTIONS Duct WARNING Collar Hanger Bars TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY Wiring TO PERSONS, OBSERVE THE FOLLOWING: Knockouts 1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty. Housing 2. Before servicing or cleaning unit, switch power off at service panel...
  • Page 2 MODEL 751 Page  INSTALLATION IN A NEW CONSTRUCTION SITE PREPARATION 1. Refer to Figure 1. Remove power unit/blower assembly from housing. A. Unplug power unit. B. Remove screw (located next to plug-in receptacle) which holds power/blower unit mounting plate in place. Save screw. C. Lift mounting plate at end near the plug-in receptacle until blower wheel clears the scroll. D. Remove plate by pulling its tabs out of slots in housing. Set power/blower unit aside until needed. MOUNTING THE HOUSING MOUNTNG USING MOUNTING TABS Refer to Figure 2.
  • Page 3: Completing Installation

    MODEL 751 Page  POWER/BLOWER UNIT INSTALLATION 1. Refer to Figure 1. Place power/blower unit into housing so that mounting plate’s tabs insert into slots in housing. 2. Press other end of mounting plate down until it is firmly seated over scroll and plug-in receptacles. 3. Secure mounting plate to housing with provided screw. 4. Insert motor plug into junction box receptacle. COMPLETING INSTALLATION 1. Insert lamp plug into junction box receptacle and secure reflector assembly to motor frame with wing nut provided. 2. Insert lamp (100 watt maximum) into the socket. NOTE: Lamp must be purchased separately. 3. Insert the grille assembly’s mounting springs into the slots on both sides of the housing by squeezing the springs together. 4. Press grille assembly firmly into place against the ceiling. INSTALLATION IN EXISTING CONSTRUCTION PLANNING Review “INSTALLATION IN A NEW CONSTRUCTION SITE” and...
  • Page 4: Service Parts

    The motor is permanently lubricated. Do not oil or disassemble motor. Replace grille assembly flat against the ceiling after relamping. SERVICE PARTS WARRANTY PART NO. DESCRIPTION 97017704 Power Unit Assembly BROAN-NUTONE ONE YEAR LIMITED WARRANTY 2 100599-000 Motor Broan-NuTone warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of one year from the date of 32787-000 Motor Isolation Mount original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUD- 32788-000 Ground Clip ING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. 5 100603-000 Blower Wheel...
  • Page 5 MODELO 751 MODEL 751 Página  Page  VENTILADOR DE VENTILACIÓN CON LUZ LEA Y CONSERVE ESTAS INSTRUCCIONES COLLARÍN DE BARRAS DE ADVERTENCIA CONDUCTO SUSPENSION PARA REDUCIR EL RIESGO DE INCENDIO, CHOQUE ELECTRICO, O LESION AGUJEROS A PERSONAS, PROCURE LO SIGUIENTE: CIEGOS DEL 1. Utilice esta unidad sólo en la manera prescrita por el fabricante. Si tiene usted...
  • Page 6 MODELO 751 MODEL 751 Page  Página  INSTALACION EN UN LUGAR NUEVO DE CONSTRUCCION PREPARACION 1. Refiérase a la Figura 1. Saque el conjunto de la unidad de potencia/soplador de la caja. A. Desenchufe la unidad de potencia. B. Quite el tornillo (localizado junto al receptáculo de clavija) que sostiene la placa de montaje de la unidad de potencia/soplador en su sitio. Reserve el tornillo. C. Levante la placa de montaje en el extremo cerca del receptáculo de clavija hasta que la rueda del ventilador se separe de la espiral. D. Quite la placa tirando de las lengüetas hacia afuera en la caja. Ponga la unidad de potencia/soplador a un lado hasta que la vuelva a necesitar. 2. Quite uno de los agujeros ciegos del cableado de la caja. MONTAJE DE LA CAJA MONTAJE CON LENGUETAS Refiérase a la Figura 2.
  • Page 7 MODELO 751 MODEL 751 Página  Page  INSTALACION DE LA UNIDAD DE POTENCIA/SOPLADOR 1. Refiérase a la Figura 1. Coloque la unidad de potencia/soplador en la caja para que las lengüetas de la placa de montaje se inserten en las ranuras de la caja. 2. Presione el otro extremo de la placa de montaje hasta que esté firmemente asentada sobre los receptáculos de espiral y de clavija. 3. Fije la placa de montaje a la caja con el tornillo provisto. 4. Inserte el enchufe del motor en el receptáculo de la caja de empalme. PARA TERMINAR LA INSTALACION 1. Inserte el enchufe de la lámpara en el receptáculo de la caja de empalme y fije el conjunto del reflector al bastidor de motor con la tuerca de mariposa provista. 2. Instale bombillas de 100 vatios (máximo) para la luz y 7 vatios (máximo) para la luz de noche.
  • Page 8 Reemplaze ensamblaje de la parilla contra el techo después de cambiar la lámpara. PIEZAS DE SERVICIO CLAVE PIEZA GARANTIA DESCRIPCION 97017704 Ensamblaje de la unidad de potencia 100599-000 Motor GARANTIA BROAN-NUTONE LIMITADA POR UN AÑO 32787-000 Montaje del aislamiento Broan-NuTone garantiza al consumidor comprador original de sus productos que dichos productos carecerán de defectos en materiales o en mano de obra por un período de un año a partir de la fecha original de compra. NO 32788-000 Sujetador de tierra EXISTEN OTRAS GARANTIAS, EXPLICITAS O IMPLICITAS, INCLUYENDO, PERO NO LIMITADAS A, GARANTIAS 100603-000 Pistón impulsor IMPLICITAS DE COMERCIALIZACION O APTITUD PARA UN PROPOSITO PARTICULAR. 86000-000 Ensamblaje del réflector Durante el período de un año, y a su propio criterio, Broan-NuTone reparará o reemplazará, sin costo alguno cualquier...
