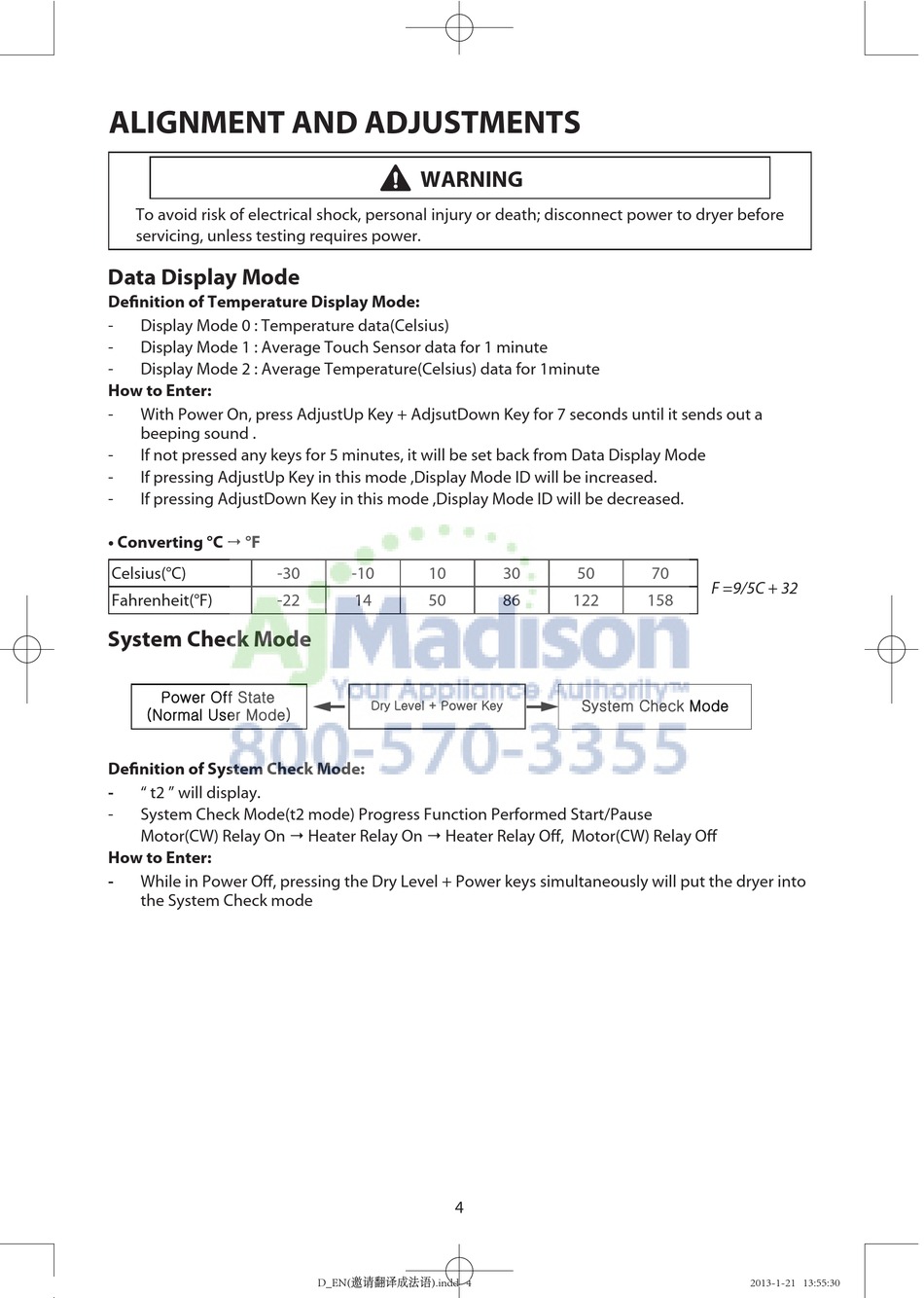

ALIGNMENT AND ADJUSTMENTS
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.

Data Display Mode

Definition of Temperature Display Mode:
- Display Mode 0 : Temperature data(Celsius)
- Display Mode 1 : Average Touch Sensor data for 1 minute
- Display Mode 2 : Average Temperature(Celsius) data for 1minute
How to Enter:
- With Power On, press AdjustUp Key + AdjsutDown Key for 7 seconds until it sends out a
beeping sound .
- If not pressed any keys for 5 minutes, it will be set back from Data Display Mode
- If pressing AdjustUp Key in this mode ,Display Mode ID will be increased.
- If pressing AdjustDown Key in this mode ,Display Mode ID will be decreased.
• Converting °C  °F
Celsius(°C) -30
Fahrenheit(°F) -22

System Check Mode

Definition of System Check Mode:
-
" t2 " will display.
- System Check Mode(t2 mode) Progress Function Performed Start/Pause
Motor(CW) Relay On  Heater Relay On  Heater Relay Off, Motor(CW) Relay Off
How to Enter:
- While in Power Off, pressing the Dry Level + Power keys simultaneously will put the dryer into
the System Check mode
WARNING
-10 10 30
14 50 86
4
50 70
F =9/5C + 32
122 158
