ALIGNMENT AND ADJUSTMENTS
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.

TEST MODE

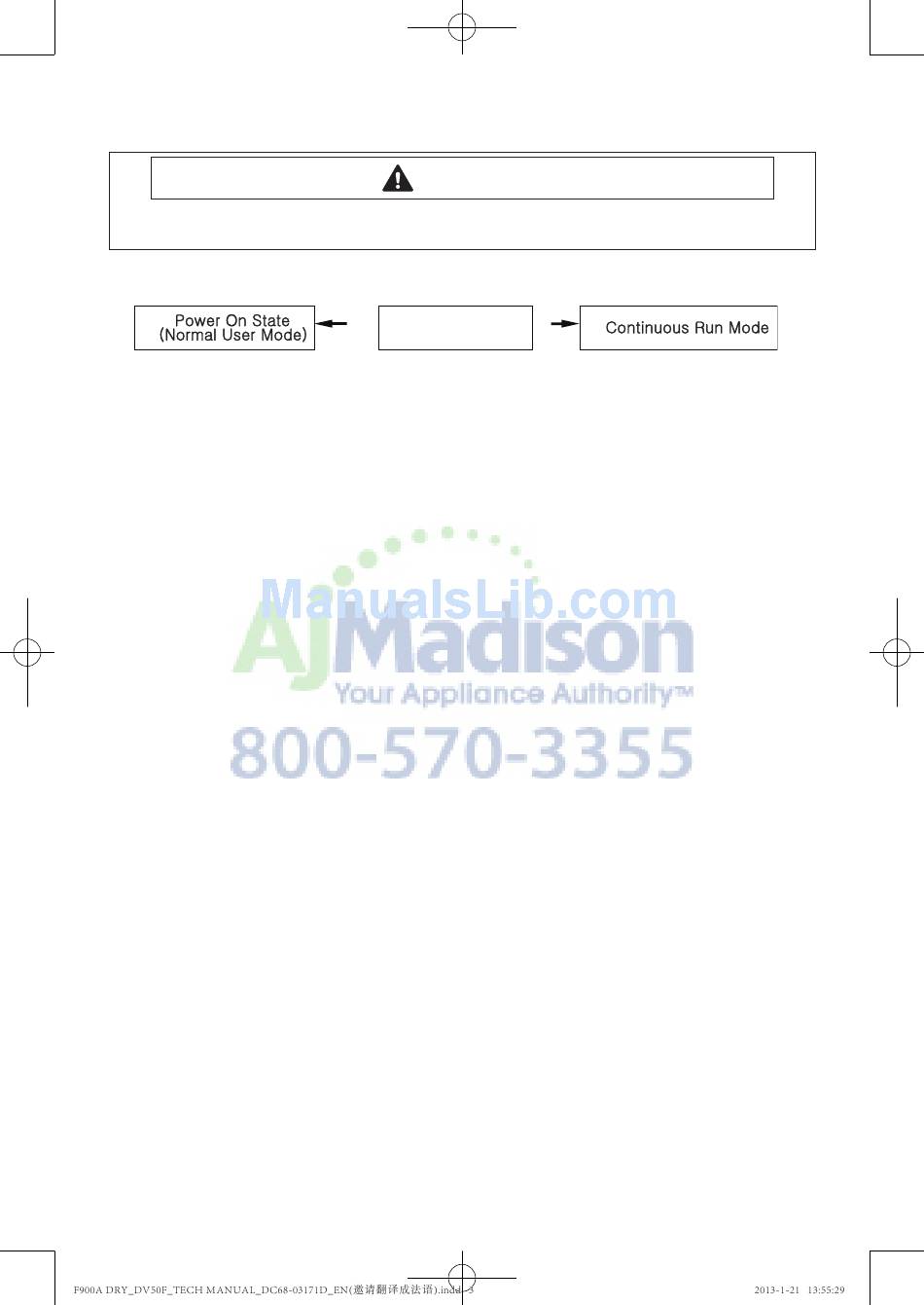

Continuous Run Mode:
1.
Press Mixed Load Bell + Dry Level for 7 sec during Power On State (Normal User Mode) .
2. Once in Continuous Run Mode, display "CC" for 1 sec and the number of Cycle for 1 sec and
the remaining time for 1 sec in turns.
3.
The previous cycle will restart during Continuous Run Mode until the mode is deactivated.
4.
During Continuous Run Mode, press Mixed Load Bell + Dry Level for 7 seconds to return to
normal user mode.

Service Mode

Definition of Service Mode
-
Dryer must be on before Service Mode can be entered.
- Upon entry into Service Mode, the Sensor Bar Touch Data will be shown (Default Service
Mode).
How to Enter:
-
To enter Service Mode, press Mixed Load Bell and Temp Keys for 3 seconds, until it sends out
a beeping sound.
- If pressing Mixed Load Bell + Temp Keys for 3 seconds in Service mode , it will return Normal
mode.
- Even though entering Service mode, the operating cycle will not be influenced.
Sensor Bar Touch Data Mode
Definition of Sensor Bar Touch Data Mode:
-
This action will put the dryer into sensor bar touch data mode
- Dryer will display Sensor Bar data. This mode is default mode of entering service mode
How to Enter:
- With Power On pressing Mixed Load Bell and Temp Keys for 3 seconds
Cycle Count Mode
Definition of Cycle Count Mode:
- This mode is to bring up the total number of cycles that User have carried out.
How to Enter:
- To enter cycle count mode press the Mixed Load Bell in Service Mode.
Software Version Mode
Definition of Software Version Mode:
- It is to retrieve its software version
How to Enter:
- At Service Mode, press Temp until it sends out a beeping sound
ex) In case of "U0 05", U0 means major version "U0" 05 means minor version "05"
- If press Temp key In Software Version Mode, it will return Service Mode.
WARNING
Mixed Load Bell
+Dry Level 7 sec
3
