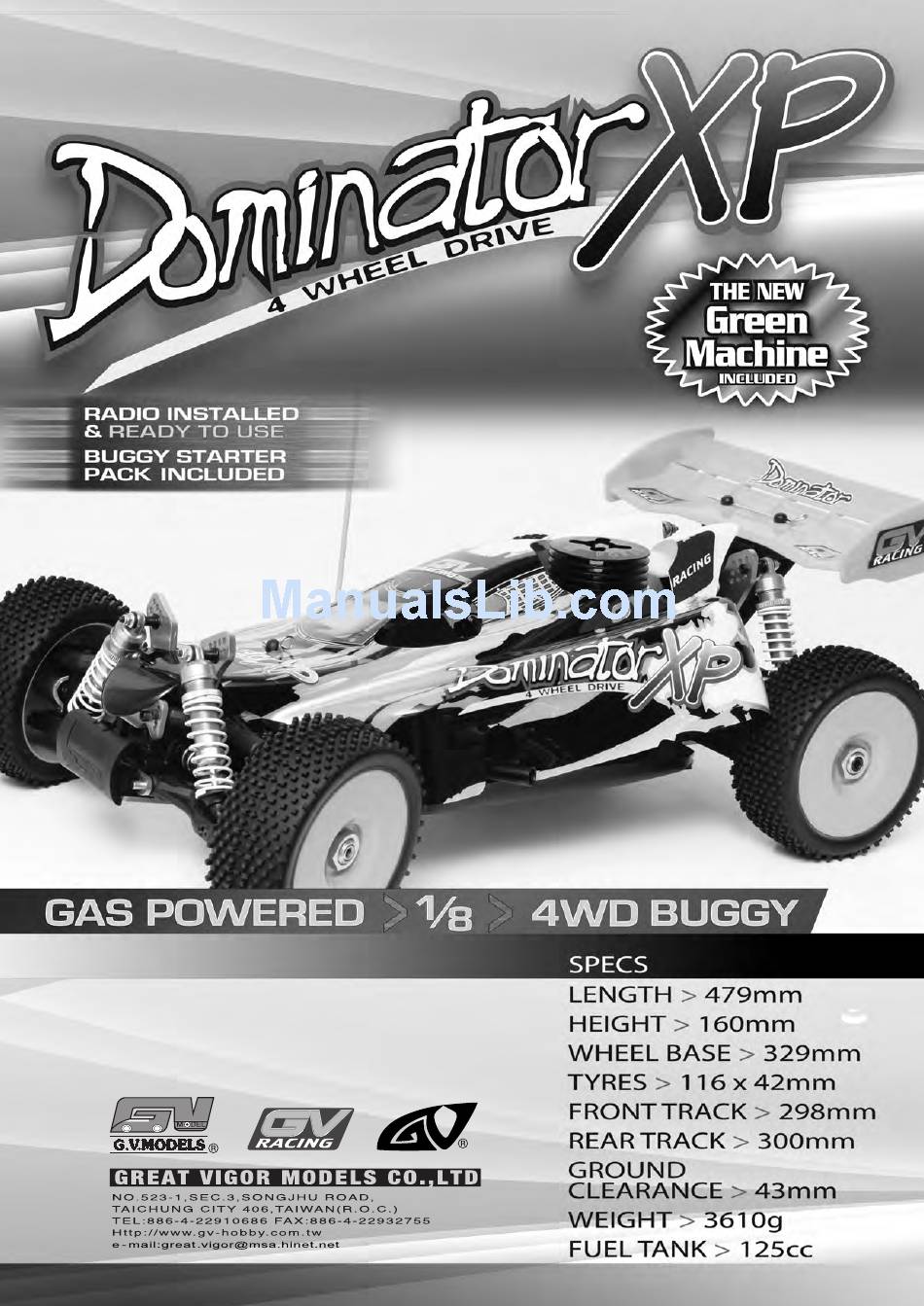

GREAT VIGOR Dominator XP User Manual

4 wheel drive
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dominator XP and is the answer not in the manual?

Questions and answers

Summary of Contents for GREAT VIGOR Dominator XP

  • Page 2 INTRODUCTION INTRODUCTION Thank you for selecting this Great Vigor Product. Please read all instructions and familiarize yourself with the products and controls before operation. To prevent serious personal injury and/or property damage, operate all controlled models in a responsible manner as outlined herein. If you come across any problems and need some help, you can contact us on the internet at www.gv-hobby.com.tw.
  • Page 3 ADDITIONAL ITEMS NEEDED FOR OPERATION INTRODUCTION Receiver Tx/Rx Charger (Included with RTR version) (Purchase separately) Engine (Included with RTR version) Servo Plug 2 Channel Radio Set (Included with RTR version) (Included with RTR version) (Included with RTR version) Fuel&Fuel Pump Battery Glow Plug Igniter Um-3 Battery (8 Pcs)
  • Page 4 Step 1 Front, Rear and Center Differentials 1A - O-Ring 3x1mm -- 12 1B - Pin 2.5x12.8mm -- 6 MV11721 MV11711 1C - Pin 4x26.6mm -- 6 MV22873 MV22873 MV22873 <1-1> MV22811 MV22832 (43T) (48T) MV22873 MV22873 MV22873 Differential Differential Step 1-1 MV22873 MV22873...

  • Page 5: Front Gearbox

    Step 2 Differential Front and Rear 2B - Tapping Screw 2x10mm -- 8 2A - Shim 8x12x0.2mm -- 2 2C - Grub Screw 5x4mm -- 2 MV2276 2D -- Ball Bearing 8x16x5mm -- 4 Step 1 Step 2-1 MV2276 MV22821 For Front and Rear (x2) MV1173 <2-1>...

  • Page 6: Front Shock Tower

    Step 4 Front Shock Tower 4C - Cap Screw 3x25mm -- 2 4A - Lock Nut 3mm -- 4 4B - Cap Screw 3x16mm -- 4 Step 4-1 Step 3 MV1325GR MV110 <4-1> Step 5 Front Suspension 5C - Pin 2.5x13.8mm -- 2 5A - Grub Screw w/Threadlock 4x3mm -- 4 5D - Pin 2.5x16.8mm -- 2 5B - Grub Screw w/Threadlock 5x5mm -- 2...
  • Page 7 Step 6 Front Upper Arm 6A - Lock Nut 3mm -- 4 6C - Turnbuckle 5x25mm -- 2 6B - Grub Screw 4x10mm -- 2 6D - Cap Screw 3x40mm -- 4 MV349F4 MV349F4 11.4mm For Right and Left Sides (x2) <6-1>...

  • Page 8: Front Suspension

    Step 7 Front Suspension 7B - Button Head Screw 4x12mm -- 2 7A - Lock Nut 3mm -- 2 7C - Cap Screw 3x42mm -- 2 7D - Hinge Pin 4x67.5mm -- 2 Step 4 MV162D4 Step 6R Step 6L MV11101 Step 8 Rear Gearbox...

  • Page 9: Wing Mount

    Step 9 Wing Mount MV1412 MV1412 MV1412 9A - Button Head Screw 3x18mm -- 4 MV1412 9B - Post 6x32mm -- 2 Step 10 Rear Shock Tower 10A - Lock Nut 3mm -- 4 10D - Cap Screw 3x25mm -- 6 10B - Lock Nut 4mm -- 1 10E - Cap Screw 4x45mm -- 1 10C - Button Washer Head Screw 3x10mm -- 2...

  • Page 10: Rear Suspension

    Step 11 Rear Suspension MV105 For Left Side 11A - Grub Screw w/Threadlock 5x5mm -- 2 MV3461 11B - Pin 2.5x16.8mm -- 2 MV3461 11C - Shim 8x12x0.2mm -- 2 MV107GR 11D - Ball Bearing 8x16x5mm -- 4 For Right Side Step 12 Rear Upper Arm 12A - Lock Nut 3mm -- 4...
  • Page 11 Step 13 Rear Suspension 13D - Button Head Screw 4x12mm -- 2 13A - Flanged Lock Nut 3mm -- 2 13B - Cap Screw 3x20mm -- 2 13C - Hinge Pin 4x67.5mm -- 2 Step 10 Step 12 MV162D4 (MV11101) Step 12 MV3562 Step 14...
  • Page 12 Step 15 Front Chassis Brace MV30763GR MV1624F4GR Step 7 15A - Button Washer Head Screw 3x10mm -- 1 15B - Button Head Screw w/Threadlock 3x12mm -- 1 15D - Lock Nut 4mm -- 1 15C - Cap Screw 4x55mm -- 1 Step 16 Chassis 16D - F/H Hex Screw w/Threadlock 4x10mm -- 6...
  • Page 13 Step 17 Steering Rods MV11303 17A - Turnbuckle 5x48mm -- 2 V221524 MV11303 V221524 29mm For Right and Left Sides (x2) Step 18 Steering 18A - Lock Nut 3mm -- 4 MV30731 18B - Servo Saver Screw 3x19.7mm -- 2 18C - Cap Screw 3x20mm -- 2 MV3071 MV3071...
  • Page 14 Step 19 Front Suspension Mounting and Steering Linkage Step 18 Step 15 Step 16 19B - Lock Nut 3mm -- 2 19C - Button Head Screw w/Threadlock 4x10mm -- 2 19D - F/H Hex Screw 3x16mm -- 2 19E - F/H Hex Screw 4x15mm -- 6 19A - Shim 6.1x9.8x0.2mm -- 2 19F - Button Head Screw 3x20mm -- 2...
  • Page 15 Step 20 Rear Suspension Mounting Step 14 Step 19 20A -- Lock Nut 3mm -- 1 20B -- F/H Hex Screw 3x16mm -- 1 20C -- F/H Hex Screw 4x15mm -- 4...
  • Page 16 Radio Plate Mount Step 21 21A - Flanged Lock Nut 4mm -- 1 21B - Button Head Screw w/Threadlock 3x8mm -- 3 21C - Button Washer Head Screw 3x10mm -- 10 Throttle 21D - Post 6x32mm -- 3 MV308 MV308 MV3746 MV3746 MV3103...
  • Page 17 Step 23 Radio Tray Mounting Step 21 SE030Y Switch MV3104 Step 22 Battery Step 22 Receiver <23-1> Step 23-1 Step 20 23A - Round Head Machine Screw 2x10mm -- 2 (Included with Switch) 23B - F/H Hex Screw w/Threadlock 3x8mm -- 3 23C - F/H Hex Screw 3x10mm -- 4 23D - Button Washer Head Screw 3x10mm -- 5...
  • Page 18 Step 24 Centre Differential 24A - Grub Screw w/Threadlock 3x3mm -- 2 24B - Button Head Screw 2x6mm -- 4 24C - Brake Pin 3x10mm -- 4 24D - Button Head Tapping Screw 3x10mm -- 2 24E - Button Head Screw 3x25mm -- 4 24F - Ball Bearing 3x6x2.5mm -- 2 MV30424GR 24G - Flanged Ball Bearing 5x8x2.5mm -- 2...
  • Page 19 Centre Differential and Drive Shafts Step 25 25A - F/H Hex Screw 4x15mm -- 4 MV3551 Step 24 MV3552 Step 23...

  • Page 20: Fuel Tank

    Step 26 Fuel Tank MV3033 MV3031 Silicone Tubing Silicone Tubing (MV3081) (MV3081) Step 25 26A - Washer 3x8x1mm -- 2 26F - Rivet 8x4.2x6mm -- 2 26B - F/H Hex Screw w/Threadlock3x8mm -- 2 26D - Cap Screw w/Threadlock 3x12mm -- 2 26C - Button Washer Head Screw 3x10mm -- 1 26E - Post 6x27.5mm -- 2...

  • Page 21: Engine And Clutch

    Step 27 Engine and Clutch Engine 27A - Lock Nut 3mm -- 4 27B - Button Head Screw 3x6mm -- 1 27C - Cap Screw 3x16mm -- 4 27D - Shim 5x8x0.2mm -- 2 MV36304 27E - Shim 5x8x0.4mm -- 1 MV1981 27F - Washer 5x8x1mm -- 1 (SG)

  • Page 22: Air Filter Assembly

    Air Filter Assembly Step 29 XV2036Y Air Cleaner Oil Step 29-1 XV2036Y XV2036Y <29-1> XV2036Y XV2036Y Step 28 XV2036Y 29A - F/H Tapping Screw 3x10mm -- 1 Muffler Step 30 Step 29 MV3761BA SE009Y SE009Y...

  • Page 23: Engine Mounting

    Step 31 Engine Mounting 31A - Grub Screw w/Threadlock 4x4mm -- 1 31B - Button Head Screw w/Threadlock 5x10mm -- 4 Step 30 Make sure you can still slide your engine, then please lnsert a sheet of notebook paper to set the clutch bell pinions with the main gear mesh.
  • Page 24 Fuel Pick-up and Pressure Tubing Step 32 Silicone Fuel Pick-Up Tubing Silicone Pressure Tubing Step 33 Shock Bodies and Shock Shafts 33A - Lock Nut 2.6mm -- 4 33F - Shock Shaft 3.5x52mm -- 2 33G - Shock Shaft 3.5x61mm -- 2 33B - Washer 2.5x5.9x0.5mm -- 4 33H - Shock Body 14x45mm -- 2 33C - O-Ring 2.5x1mm -- 4...

  • Page 25: Shock Oil

    Step 34 Shock Oil MV138016 Silicone Shock Oil (Not Included) 33B450GR (33B530GR) After filling with shock oil, GENTLY pump shock shaft up and down several times to eliminate air bubbles. Step 33 For Front and Rear (x4) Step 35 Shock Springs Step 34 For Front (x2) Step 34...
  • Page 26 Step 36 Front and Rear Shock Mounting 36A - Flanged Lock Nut 3mm -- 4 36B - F/H Hex Screw 3x20mm -- 4 Step 35F (34B980A01) MV1382 For Front Step 32 MV1382 Step 35R (34B116A01) For Rear Step 32...

  • Page 27: Steering Linkage

    Step 37 Steering Linkage 37A - Lock Nut 3mm -- 1 37B - Flanged Lock Nut 3mm -- 1 37C - Threaded Stud 3x16mm -- 1 37D - Button Head Screw 3x12mm -- 1 Step 36 37E - Button Head Screw 3x20mm -- 1 MV1302 MV1302 MV1302...
  • Page 28 Step 39 Throttle and Gas-Linkage Included with Servo Step 38 MV12601 22mm 36mm Step 37 SE002 39A - Grub Screw 3x3mm -- 4 Step 40 Throttle and Gas-Linkage High Throttle Throttle Full Brake...

  • Page 29: Wheels And Tyres

    Step 41 Antenna Support Tube Mounting Antenna Support Tube Slide the antenna through the antenna support tube, then push the antenna support tube into the antenna mount. DO NOT cut the excess antenna shorter. Allow the excess antenna wire to hang out Receiver Box beyond the end of antenna support tube.
  • Page 30 Step 43 Wheels, Body and Wing Mounting 43A - Wheel Nut 17mm -- 4 MV1201 XV3753GR XV1204 Body MV120 (MV106GR) Step 42 Step 42 Step 41 (MV106GR)
  • Page 31 DOMINATOR XP 4WD NITRO BUGGY REPLACEMENT PARTS LIST BB0306025 BB0508025T BB081605 BB051004 Ball Bearings 3x6x2.5mm Flanged Ball Bearings 5x8x2.5mm Ball Bearing 5x10x4mm Ball Bearing 8x16x5mm BU061003 MV105 L=43mm MV107GR MV106GR Bushings 6x10x3mm Wheel Shafts Wheel Nuts - Green Hex Hubs 17mm - Green MV110 L=14.2mm...
  • Page 32 MV1335GR MV134 MV138011 L=52mm MV1325GR Front Shock Tower 4mm - Green Rear Shock Tower 4mm - Green Front Shock Shaft Set 3.5mm Wheel Hubs - Front L=45mm MV138016 33B450GR MV1382 MV1383W15 L=58mm Front Shock Body Set 3.5mm - Green Shock Rebuild Kit Shock Spring Spacer &...
  • Page 33 MV162U5GR MV1981 MV204P MV162D6 Suspension Holder Supports Front Upper Suspension Plate - Green Clutch Shoes And 1.0mm Springs Clutch Nut For 3 - Shoe Clutch MV2276 MV2051G MV2053 XV2036Y Differential Housing - Alu Cover Exhaust Header Exhaust Header Spring Air Filter Assembly - Yellow MV22821 MV22832 MV22873...
  • Page 34 MV308 L=32mm MV3081 L=27.5mm MV310 MV303T Radio Tray Post Fuel Tank Post Rivet For Full Tank Servo Mount Set - Throttle MV3104 MV3113 MV3114GR MV3103 Engine Mounts Servo Mount Set - Steering Transponder Mount Engine Mount Spacers 4mm - Green MV347R3 MV3481 MV3461...
  • Page 35 MV3693S MV37004GR MV3746 MV3761BA Dlish Wheels - Green Antenna Mount Buggy Tires - Square w/lnserts 2-Chamber Tuned Pipe - Black MVC14T3 SE002 SE0031Y SE009Y Clutch Bell - 14T Rod Stopper Set Plastic Parts Accessories - Yellow Exhaust Coupler - Yellow ONB3X1 WWACO8X12 WWACO8X12X0.4...
  • Page 36 DOMINATOR XP 4WD NITRO BUGGY OPTION PARTS LIST MS3332 SEM2251 MV0472 MS3331 2-Speed Conversion Kit - Steel 2-Speed Main Gear Shaft 2-Speed Clutch Housing 2-Speed One-Way Mount w/Bearing MV31217 MV312171 MV3333 MV3132 2-Speed Clutch Bell for 12T/17T 2-Speed Clutch 2-Speed Clutch Bell - 12T/17T...
  • Page 37 MV3016R SEM30424C Chassis 3mm - Red Main Gear Plate 3mm - Carbon MV3024R Main Gear Plate 3mm - Red SEM3016H MV30424BA Chassis 3mm - 7075 Main Gear Plate 3mm - Black 33B530R 33B450R Front Shock Body Set 3.5mm - Red Real Shock Body Set 3.5mm - Red L=45mm L=53mm...
  • Page 38 SE009BA SE009R Exhaust Coupler - Black Exhaust Coupler - Red SE009G Exhaust Coupler - Green SE009P Exhaust Coupler - Purple SE009B SE096 SE009PN Exhaust Coupler - Pink Exhaust Coupler - Blue Fuel Filter SE030B XV2036BA Silicone Switch Cover - Blue Air Filter Assembly - Black SE030BA Silicone Switch Cover - Black...
  • Page 39 SEM1341BA Front Steering Hubs - Black SEM1341H Front Steering Hubs - Hard Anodize SEM1335H SEM1341B SEM1325H Rear Shock Tower 5mm - Hard Anodize Front Shock Tower 5mm - Hard Anodize Front Steering Hubs - Blue MV1624R4 MV1624R42 MV1624F4 MV1624F42 Front Chassis Brace Front Chassis Brace Rear Chassis Brace Rear Chassis Brace...
  • Page 40 MV30751R SEM3071BA Servo Saver Steering Plate 3mm - Alu Servo Saver w/Bearings - Black SEM30751C SEM3071H Servo Saver Steering Plate 3mm - Alu Servo Saver w/Bearings - Hard Anodize Carbon SEM30751H SEM3071B Servo Saver Steering Plate 4mm - Hard Anodize Alu Servo Saver w/Bearings - Blue SEM3461BA Alu Rear Hubs Left/Right - Black...
  • Page 41 MV3862W MV386W Pre-Trued Foam Tyre/10-Claw Wheels Pre-Trued Foam Tyre/5-Claw Wheels - White - White MV3862Y MV386Y Pre-Trued Foam Tyre/10-Claw Wheels Pre-Trued Foam Tyre/5-Claw Wheels - Yellow - Yellow MV3862BA MV386BA Pre-Trued Foam Tyre/10-Claw Wheels Pre-Trued Foam Tyre/5-Claw Wheels - - Black Black MV375RE XV3751RE...
  • Page 42 SEM1412T SEM1982GR SEM2033 SEM375T 3-Shoes Clutch Shoes - 7075 Prefilter Sleeves Alu Super Wing Alu Wing Mount 34C450HA06315WH Shock Set - C Type (Hard Anodize) 34C530HA08315WH Shock Set - C Type (Hard Anodize)
