E-Seek M260 Product Reference Manual

2d bar code scanner
Hide thumbs Also See for M260:

Advertisement

Table of Contents

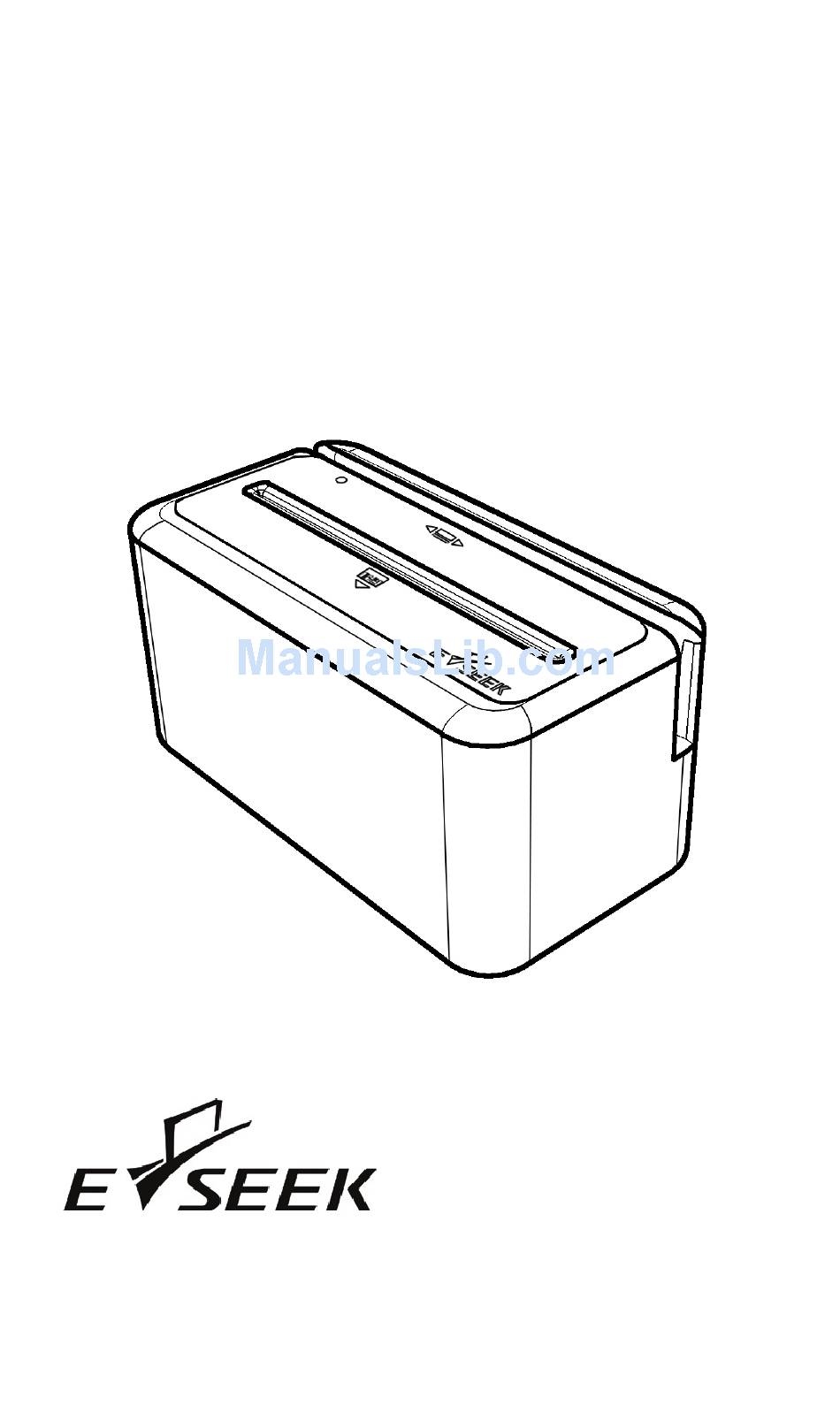

Product Reference Guide

Product Reference Guide
Model M260
www.e-seek.com

Advertisement

Table of Contents
loading

Related Manuals for E-Seek M260

Summary of Contents for E-Seek M260

  • Page 1: Product Reference Guide

    Product Reference Guide Product Reference Guide Model M260 www.e-seek.com...
  • Page 2 Product Reference Guide...
  • Page 3 Product Reference Guide Model M260 2011 E-Seek Incorporated, All Rights Reserved. E-Seek reserves the right to make changes to any product to improve reliability, function, or design. E-Seek does not assume any product liability arising out of, or in connection with, the application or use of the product, circuit, or application described herein.
  • Page 4 Product Reference Guide Parts of the Model M260 2D Bar Code and Magnetic Stripe Reader This page will provide an illustrated breakdown of the Model M260. 1. Cable Interface Connector 2. Power Supply Connector 3. Power On - Good Read LED 4.
  • Page 5 8. Kiosk Connector Bottom View Model M260 Product The Model M260 is a 2D Bar Code Scanner designed for reading and decoding 2D Bar Code on ID Cards and Driver’s Licenses. The Model M260 presents decoded Bar Code information through RS 232 interface or USB, utilizing an RJ 45 connector and Kiosk connection.

  • Page 6: Cable Options

    Cable Options 1. USB Cable 2. Serial Cable 3. Kiosk Cable Installing the Kiosk Cable Simply connect the kiosk male connector on the interface cable to kiosk female connector built into the Models M260 as per the illustration below. Mating Connector...

  • Page 7: Installing The Power Supply

    Installing the Interface USB or Serial Cable Simply connect the RJ 45 male connector on the interface cable to RJ 45 female connector built into the Models M260 as per the illustration below. Installing the Power Supply Simply connect the Power Supply Module to a convenient AC outlet and the cable to the Model M260 as shown below.

  • Page 8: Scanning A 2D Bar Code

    Product Reference Guide Scanning a 2D Bar Code Simply insert and remove the card to be read in a smooth and continuous motion. The reader will emit a double beep tone and the green LED will flash on a good read. Orient the bar Code to be read in accordance with the illustration below.

  • Page 9: What Does The Beep Mean

    Manual) it will emit a Melody tone to signify that it has successfully been programmed. When a Bar Code has successfully decoded the unit will emit a beep tone. Technical For downloading the program guide or to contact us, please visit our website at www.e-seek.com.

  • Page 10: Regulatory Information

    Regulatory Information Radio Frequency Interference Requirements The Model M260 have been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules and Regulations. These limits are designed to provide reasonable protection against harmful interference when the equipment operated in a commercial environment.

  • Page 11: Radio Frequency Interference Requirements - Canada

    Products intended for sale within the European Union are marked with the CE Mark which indicates compliance to applicable Directives and European Normes (EN). The Model M260 have been tested and are certified to meet all applicable Directives and European Normes.

  • Page 12: Specifications

    Product Reference Guide Specifications Decoder Two Dimensional PDF417 Linear Barcodes Code 39 & Code 128 Hands-free, Manual Insertion of Card Operating Mode ID card or Magnetic Stripe Swipe action - RS-232C Serial Port Interface - USB 2.0 Full speed (w/FTDI drivers, Windows certified) 4 mA @ 5VDC - Standby;...
  • Page 13 Product Reference Guide Appendix A Mounting picture. (Inch) 4.33 #4-40 HOLES 2.04 2 PLACES...
  • Page 14 Product Reference Guide Appendix B Serial Port Pin outs (RJ-45 & Kiosk) Function Direction Remark VUBS POWER from USB +5V +15V DC IN/OUT USB DEVICE IN/OUT USB DEVICE RXD on host TXD on host CTS on host RTS on host Kiosk Connector Pin Position Molex 0430451000 Mating Connector: Molex 0430251000...
  • Page 15 Product Reference Guide NOTES...
  • Page 16 Product Reference Guide 201100-C0...
