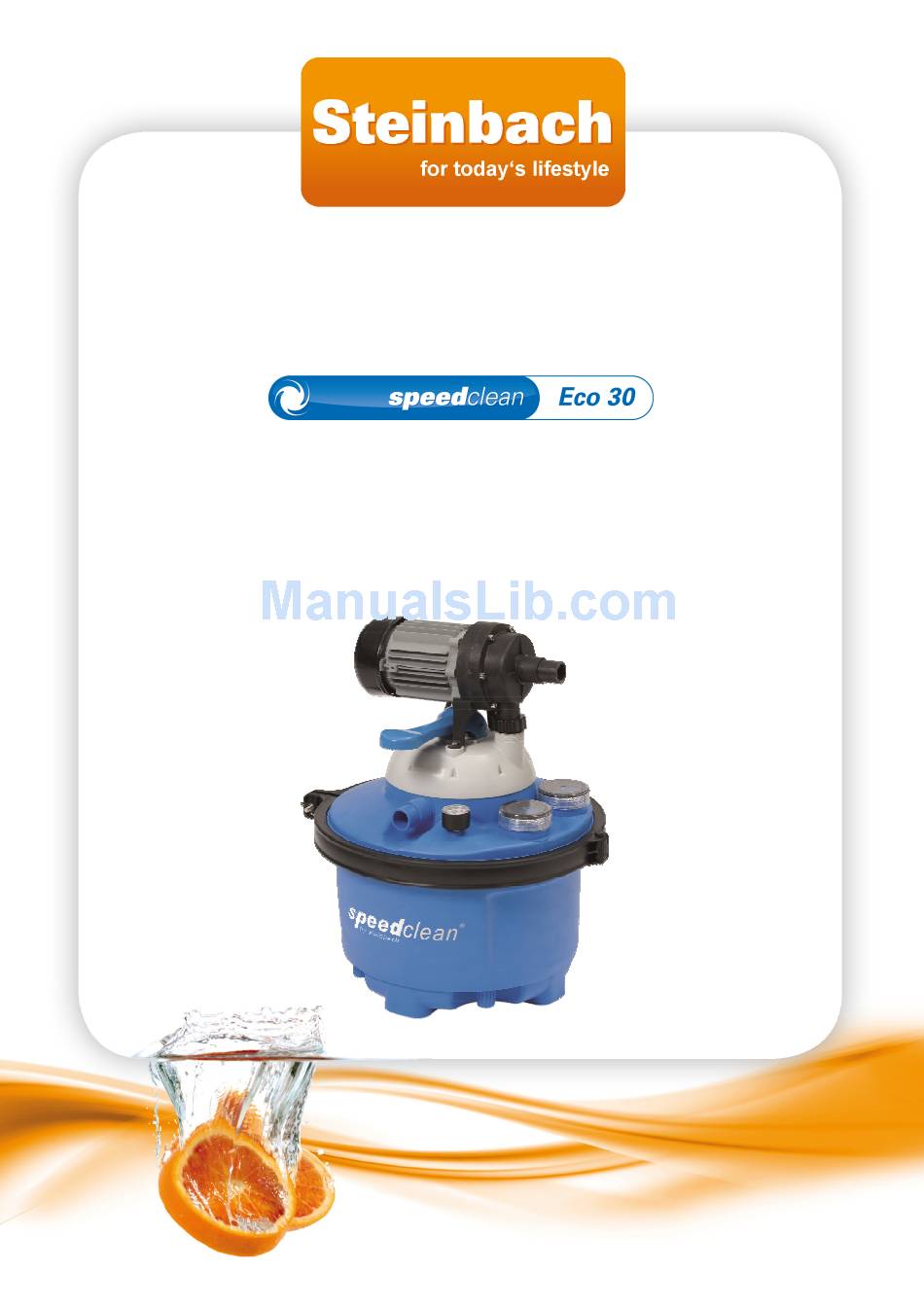

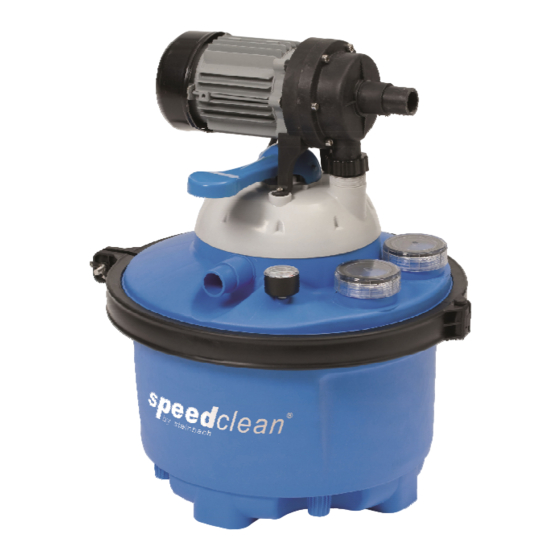

- Page 1 Speedclean Eco 30 Owner’s Manual Speedclean Eco 30 Universal Pool Filter System Art. Nr. 00-40250 2011_V1 page 1 of 16...
-
Page 2: Speedclean Eco
Speedclean Eco 30 Basic safety precautions should always be followed, including the following: Failure to follow instructions can cause severe and/or fatal injury. In this manual, the callout boxes, CAUTION, IMPORTANT and ADVICE have the following meanings: CAUTION This heading is used when injury or accidents may occur if the operating instructions, work instructions, work pro- cedures, etc. -
Page 3: Table Of Contents
Speedclean Eco 30 Table of Contents: Safety Warnings ............................... 4 General Information ............................5 How Sand Filtration Works ........................5 Powering the Filter Pump ........................5 Change Valve Positions .......................... 5 ... -
Page 4: Safety Warnings
Speedclean Eco 30 1 Safety Warnings Read all warnings and cautions noted below. Failure to do so could result in serious or fatal injury. Prior to installation of this unit, carefully read and adhere to all CAUTION, IMPORTANT, and ADVICE notices located throughout this manual. -
Page 5: General Information
Speedclean Eco 30 2 General Information This manual provides information relating to the installation, utilization and maintenance of our filtration system. We recommend that you read this manual in its entirety and keep it for future reference. The filter included in the filtration system consists of high-grade Polypropylen (PP). It is seamless and manufac- tured as a single unit and it is absolutely corrosion resistant and resistant to commercially available swimming pool chemicals. -
Page 6: Safety Notes
Speedclean Eco 30 Safety Notes Your filter pump was constructed and tested and left the manufacturing plant in technically operational condition. In order to maintain this condition and ensure safe operation, the user should observe the notes and product in- formation contained in this technical handbook. -
Page 7: Technical Specifications
200 Watt Protection Class IP X5 Cable length including plug 1,5 m Max. ambient temperature 35 °C Sand Volume approx. 12 kg Dimensions (LxWxH) 400x400x470mm Weight (without filling) approx. 12 kg Performance chart Speedclean Eco 30 2011_V1 page 7 of 16... -
Page 8: Parts List / Reference
Speedclean Eco 30 4 Parts List / Reference Before starting installation, check to make sure all parts are present in package. Primary Components Pump Adapter 32/38mm (1) Water Pump (1) See attached Parts-List Filter Tank (1) Tank Cover with Control-Valve (1) -
Page 9: Installation Diagram
Speedclean Eco 30 Installation Diagram The following illustration shows the components of the filter system. 1) Filter Container 2) Recirculation Pump Speed 3) 3-Way Central Valve 4) Suction-side connection from pool (untreated water) 5) Pressure side connection to pool (purified water) -
Page 10: Power Source Instructions
Speedclean Eco 30 CAUTION Power Source Instructions The filter pump system you have purchase is equipped with a standard electrical cord and plug which should only be connected to a power outlet protected by a qualified Ground –Fault-Circuit-Interrupter (GFCI) with I ≤... - Page 11 Speedclean Eco 30 b) After that, fill the filter material in the sand chamber. The filter material consists of double-burned quartz sand that has to be ordered separately. The quartz sand must have a grain size of 0.40 mm to 0.80 mm be in accordance with DIN EN 12904.
-
Page 12: Filter Operations
Speedclean Eco 30 6 Filter Operations The filtration system is equipped with a 3-way central valve on the container cover for manual control of the de- vice, which is designed for the required flow rate. Press down firmly on the valve lever with the heels of your hands then rotate to the desired setting. -
Page 13: Operation Of The 3-Way Valve
Speedclean Eco 30 IMPORTANT DO & DONT‘S Be aware and make note of the filter pressure when the sand is clean. Backwash when you see an increase of 0.3 to 0.6 bar on the pressure gauge. Backwash long enough to get the job done right. Let the system backwash until the water exiting the waste line is clear. -
Page 14: Backwash Process
Speedclean Eco 30 CAUTION Do not plug the system in until advised to do so below. 1) Make certain the pump is not plugged in to a power supply. 2) Start with the valve in Closed position (position 3). 3) If you haven’t done so already, fill your pool with water. Regarding the required filling height refer to the manual of your pool. -
Page 15: Cleaning The Filter
Speedclean Eco 30 Cleaning the Filter The constant build-up of dirt increases resistance in the filter. If the pressure (see the pressure gauge) in the filter container increases by approximately 0.2 – 0.3 bar above the original pressure reading, the filter needs to be backwashed. -
Page 16: Troubleshooting
Speedclean Eco 30 8 Troubleshooting Malfunction Cause Solution Pressure gauge has reading Dirty filter bed Backwash the Filter (Valve Position over 1 bar. Nr. 2) Pressure is too low Suction line contaminated with dirt. Clean suction line Pump gets too little water. - Page 18 Wir senden Ihnen diese gerne kostenlos zu. Dear customer! Instructions in your language are available at www.steinbach.at/manual. In case you do not have internet access, please write us to request the instructions. We will be happy to send you a copy without additional cost.
