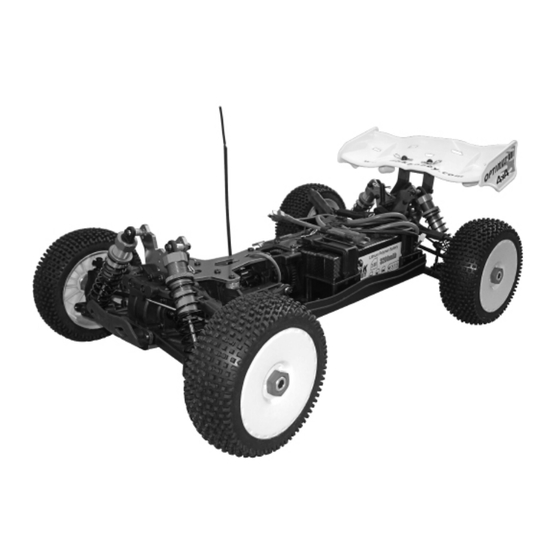

DHK Optimus XL User Instruction Manual
1/8 scale 4wd brushless electric buggy
Hide thumbs
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
page
of
17
Go
/
17
Bookmarks
Advertisement
Quick Links
Download this manual
用户使用说明书
User's Instruction Manual
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Related Manuals for DHK Optimus XL
Motorized Toy Car DHK 8382 User Instruction Manual
1/8 scale 4wd brushless electric monster truck (16 pages)
Motorized Toy Car DHK Shogun 8385 User Instruction Manual
(28 pages)
Summary of Contents for DHK Optimus XL
Page 1
用户使用说明书 User’s Instruction Manual...
Page 2
Overall length : 19.4" (493.3mm) Width : 12.1" (307.7mm) Height : 6.76" (171.9mm) Wheelbase : 12.98" (330.1mm) Ground clearance : 1.36" (34.6mm) Weight (net) : 3.05kgs (6.8 LBs) Front track/rear track : 10.23" (260.0mm)/10.43" (265.0mm) Tire diameter/width : Ø4.6”, 1.8” (Ø 118mm, 45mm) Wheel diameter/width : Ø3.2”, 1.6”...
Page 3
3670 motor KV(RPM) : 2260 Power : 14.8V Empty load current : 4.0A(10V) Resistance(Ω) : 0.01Ω Length(including motor shaft) : 85mm Diameter : 36mm Weight : 338g Shaft diameter : 5mm Battery (Li-Po) : 2-4S Features : Metal gears, ball bearings Working voltage : 6.0V Speed (seconds/60℃...
Page 4
Part# Desc 8381-100 Assembly of diff gear box 8381-101 Diff set 8381-102 Diff outdrive/pins (dia 2*10mm) 8381-103 Pins(dia 2*10mm) (16 pcs) 8381-104 Flathead screw-coarse thread(KB2.6*10mm) (16 pcs) 8381-105 Crown gear-41T (large)/pinion gear-11T (small) 8381-106 Diff case set/diff case cover/diff gasket 8381-107 Washer-A/washer-B (8 pcs each) 8381-108...
Page 5
Part# Desc Part# Desc 8381-208 Center outdrive set 8381-708 Wheel axle (2 pcs) 8381-300 Shock absorber complete (aluminum) (2 pcs) 8381-709 Steering arm (2 pcs) 8381-301 Shock cap (2 pcs) 8381-710 Ball bearing(dia 6mm * dia 12*4mm) (2 pcs) 8381-302 Shock connecting rod-upper/lower/O ring (dia 12mm*dia 2mm) 8381-711 Hex adapter/M12 17mm nut...
Page 6
Part# Desc 8381-007 Receiver cover-upper/lower 8381-008 Antenna tube (3pcs) Outer dia: 3.2mm, Internal dia: 2.0mm, Length: 12mm 8381-009 Pin-B(dia 1.2mm) (16 pcs) 8381-010 Screw washer(4 pcs) 8381-011 Flathead screw(KM3X10mm) (16 pcs) 8381-012 Flathead screw-coarse thread(KB3*10mm) (16 pcs) 8381-013 Flathead screw-coarse thread(KB3*12mm) (16 pcs) 8381-014 Flathead screw (KM3*5mm) (16 pcs) 8381-015...
