DHK Shogun 8385 User Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

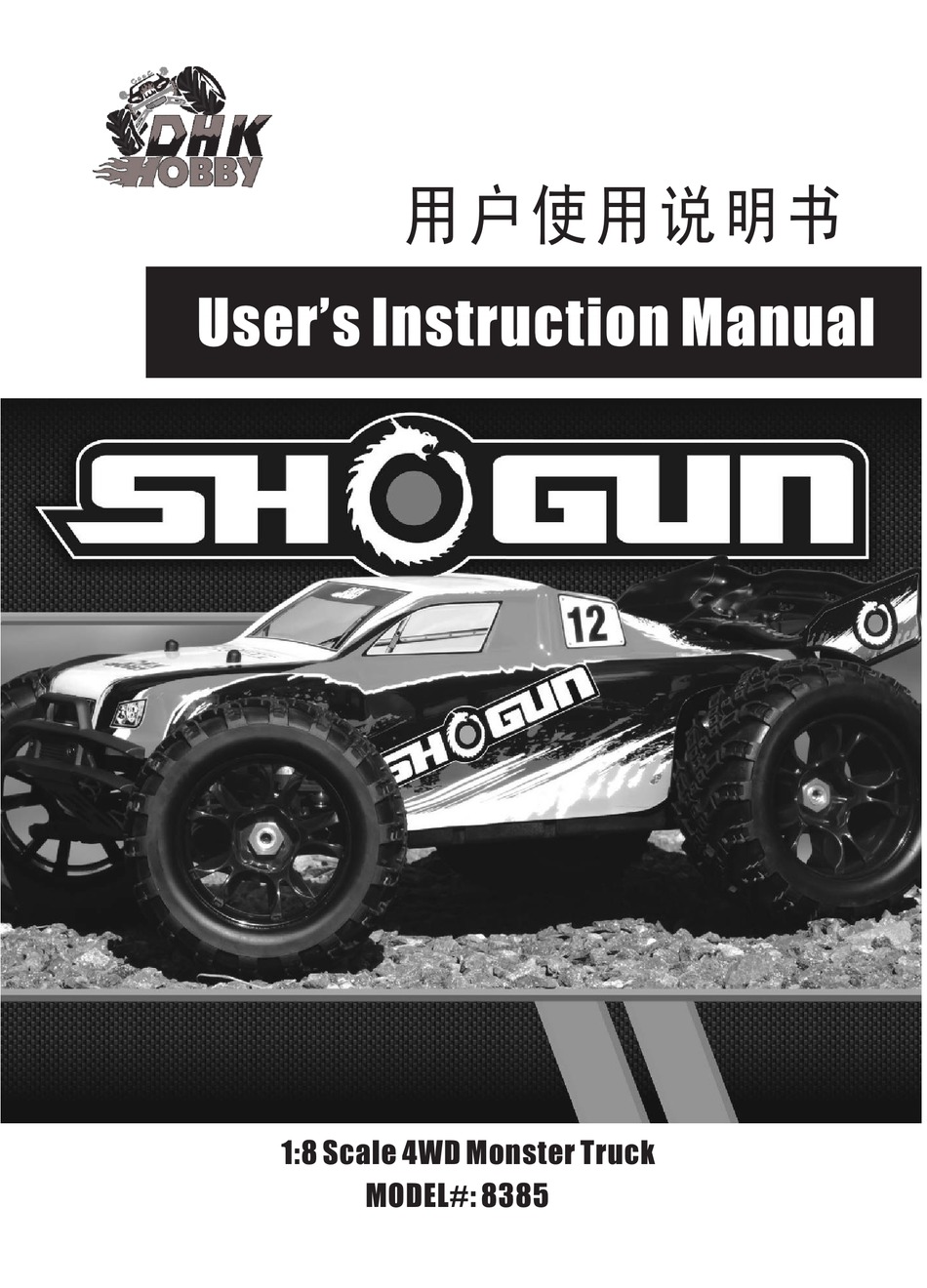

SHOGUN
1:8 Scale 4WD Monster Truck
MODEL#: 8385

Advertisement

loading
Need help?

Need help?

Do you have a question about the Shogun 8385 and is the answer not in the manual?

Questions and answers

Related Manuals for DHK Shogun 8385

Summary of Contents for DHK Shogun 8385

  • Page 1 SHOGUN 1:8 Scale 4WD Monster Truck MODEL#: 8385...
  • Page 2 Thank you for choosing DHK’s Shogun! This model is designed in thorough research and assembled with utmost craftsmanship. This high performance 1:8 scale 4WD brushed monster truck can run very fast. It is easy to drive and it uses quality parts to achieve its best performance. With proper and regular maintenance, you will enjoy a lot of fun and joy when you drive this R/C kit.

  • Page 3: Model Specifications

    Model Specifications Overall length: 19.5" (497mm)(including rear wing) 15.3" (389mm) Width: Height: 7.1" (181mm) (including rear wing, body not included) 12.9" (330mm) Wheelbase: 1.96" (49.8mm) Ground clearance: 12.1" (306mm)/12.3" (313mm) Front track/rear track: Ф6.2”/3.7” (Ф158/95mm) Tire diameter/width: Ф3.5”/2.6” (Ф88/66mm) Wheel diameter/width: Gear ratio: 12.33:1 Radio System...
  • Page 4 Skipping Needles Matrix ① ② ③ ④ ⑤ ⑥ Needles placement and corresponding functions Needles Functions 1, 2 Forward, brake, reverse Forward, brake, no reverse 2, 3 Lipo battery 4, 5 NiMh battery 5, 6 755 brushed motor parameters Constant voltage: 12.0V Direction: CCW At no load Electrical Characteristics...
  • Page 5 Description Description Part# Part# 8133-100 Assembly of diff gear box Shock absorber complete (2 pcs) 8136-300 8133-101 Diff set Shock ball (8 pcs) 8381-305 8381-102 Diff outdrive/pins (Ф2*10mm) M3 nylon nut (8 pcs) 8381-306 8381-103 Pins(Ф2*10mm) (16 pcs) Shock shaft (4 pcs) 8381-309 Flathead screw-coarse thread Shock spring (4 pcs)
  • Page 6 Description Description Part# Part# 8381-708 Wheel axle (2 pcs) Motor gear-13T/set screw (M4*4) 8385-9M2 Ball bearing(Ф6mm*Ф12*4mm) B head screw(BM4*10mm) 8381-710 8385-9M3 (2 pcs) (16 pcs) 8381-714 C-hub (2 pcs) Servo mount 8381-9S1 8381-717 Shock tower (2 pcs) Servo arm-C (2 pcs) 9381-9S4 8381-718 Pivot ball mount (4 pcs)

  • Page 7: Optional Parts

    Description Part# Optional parts High Voltage ESC H126 Anti-roll bar assembly 8381-400 H127 775 Motor Assembly of anti-roll bar linkage-left 8381-40L H128 10.8V SC 3000mAh NiMh battery Assembly of anti-roll bar linkage-right 8381-40R 9-cell NiMh battery charger, 12.6V Anti-roll bar rod end (8 pcs) 8381-401 H129 1000mAh output...
  • Page 13 8381-203 Spur gear-43T(plastic) 8381-204 Set screws (M4*4mm) 8381-206 Center diff gear box/ 8381-201 Central diff set (2 pcs) (16 pcs) center diff gear box plate...
  • Page 14 8136-300 Shock absorber 8381-305 Shock ball (8 pcs) 8381-306 M3 nylon nut (8 pcs) 8381-208 Center outdrive set complete (2 pcs) 8381-50R Assembly of upper 8381-50L Assembly of upper 8136-302 Shock spring (4 pcs) 8381-309 Shock shaft (4 pcs) sus.arm-right sus.arm-left 8381-502 Upper sus.arm/rod 8381-503 Upper sus.arm linkage...
  • Page 15 8381-706 Lower sus.arm-front (2 pcs) 8381-707 Drive shaft set/revolving 8381-714 C-hub (2 pcs) 8381-708 Wheel axle (2 pcs) shaft (2 sets) 8381-717 Shock tower (2 pcs) 8381-724 T head hex screws 8381-725 T head hex screws 8381-723 C-hub screw bushings (TM4*12mm) (16 pcs) (TM4*22mm) (16 pcs) (16 pcs)
  • Page 16 8385-9M1Motor mount 8385-9M2 Motor gear-13T/set 8385-9M3 B head screw 8381-9S4 Servo arm-C (2 pcs) screw (M4*4) (BM4*10mm) (16 pcs) 8381-9S5 B head screw 8135-002 Chassis (BM2.6*6mm) (12 pcs) 8135-004 Upper deck mount-F/R 8135-005 Battery mount-C/D 8383-002 Rear wing (black) 8384-001 Tire complete (2 pcs) 8385-003 Screw washer-M4 8384-004 Tires with wheel 8385-001 Printed body (PC)
  • Page 17 8385-004 Flathead screw 8331-003 Body foam(φ18*φ8*2) (KM4X10mm) (16 pcs) (4pcs) 8381-006 Central drive shaft-B 8381-005 Central drive shaft-A 8381-007 Receiver cover-upper/ 8381-012 Flathead screw-coarse 8381-008 Antenna tube (3pcs) 8381-009 Pin-B(Ф1.2mm) (16 pcs) lower thread(KB3*10mm) (16 pcs) 8381-024 Flathead screw 8381-022 17mm nut (4 pcs/set) 8381-016 Upper deck-A 8381-017 Upper deck-B (KB4*11.5mm)(12 pcs)
  • Page 18 8381-404Set screws (M3*3mm) 8381-405 Anti-roll bar(dia 2.2mm) 8381-402 Anti-roll bar linkage 8381-403 Anti-roll bar pivot ball- (8 pcs) (2 pcs) (4 pcs) upper/lower (4 sets) 8381-716 Set screws (M4*10mm) 8381-607 Steering plate 8381-709 Steering arm (2 pcs) D302HT 2.4GHz LCD transmitter (16 pcs)
  • Page 20 Parts Diagrams Receiver Functions Frequency range : 2.4GHz 2.4GHz modulation : AFHDS Sensitivity : -100dbm Working voltage : DC4.8-6.0V Working current Size : 5.7*26*15.2mm Weight : 11.2g...

  • Page 21: Parts Diagrams

    Parts Diagrams...
  • Page 22 LCD Functions and Operations Key Operations Display Interface BATT: battery status, function reset settings MOD: Setting up mode and naming...
  • Page 25 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
