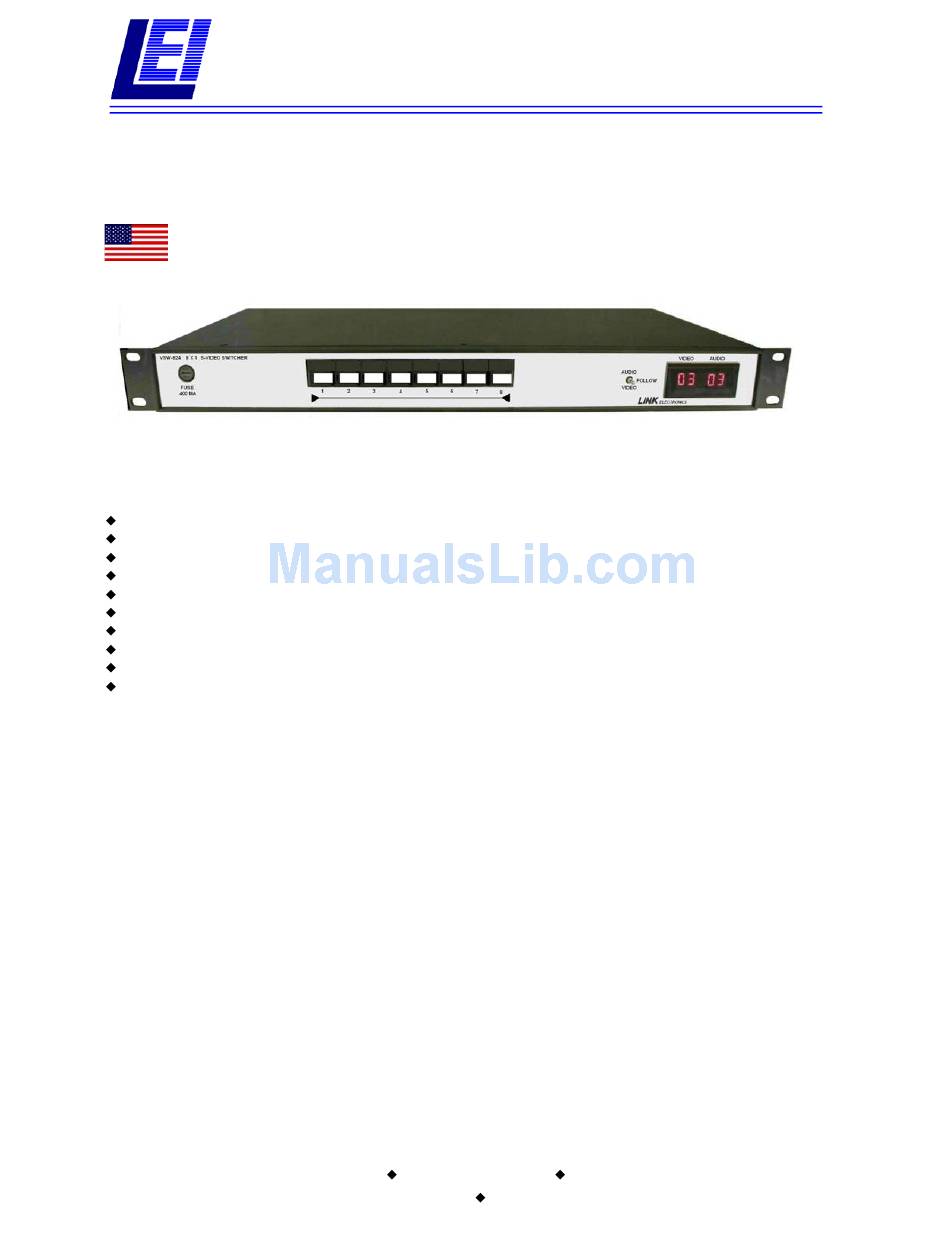

Link electronics VSW-824 Specification Sheet

LINK ELECTRONICS, INC.
VERTICAL INTERVAL VIDEO SWITCHER
8 X 1 S-VHS MATRIX, SERIAL CONTROL
MODEL VSW-824
MADE IN THE USA

FEATURES

8 S-VHS Source Inputs
1 Destination Output
Serial Controlled
Vertical Interval
Wide Bandwidth
Digital Switching
One Rack Unit Cabinet
Audio Follow Companion
Audio & Video Break-away
7 Seg LED Reads Source #
The VSW-824 Is a wide band-width vertical
Interval switcher designed for S-VHS inputs. It's
eight terminated inputs and single output allow the
user to efficiently and economically route or
delegate multiple S-VHS video signals.

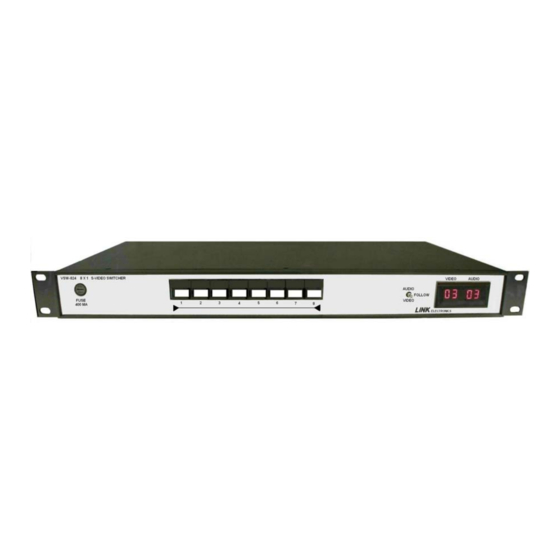

Packaged in a 19" rack mountable cabinet, the
VSW-824 features 8 S-VHS inputs. High-quality
push buttons and LED digital readout of audio and
video channel selection make this unit an ideal
solution. Audio and video breakaway is front panel
controlled. . Serial control is provided through a D-
Sub connector. Remote control is provided
through a RJ-11 connector.
characteristics are RS-232, RS-422 and RS-485.
LINK
ELECTRONICS, INC.
Serial control
2137 Rust Avenue
Phone 573 334 4433
Switching is accomplished during the vertical
interval by using the vertical sync derived from the
video at the output stage of the VSW-824 video
swftcher.
The VSW-824 is a video-only switcher with both
sets of LED digital readouts for the audio and
video selected. When connected with the PAF-
823 audio follow unit, the VSW-824 selects the
video and it's Companion audio. A three position
front panel switch selects audio follow, audio
breakaway, and video break-away. There is one
output of the selected video on the rear panel.
Cape Girardeau, MO 63703-7668
FAX 573 334 9255
800 SERIES
