Seorim Technology SVG-3111 Full Manual

1channel video server
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

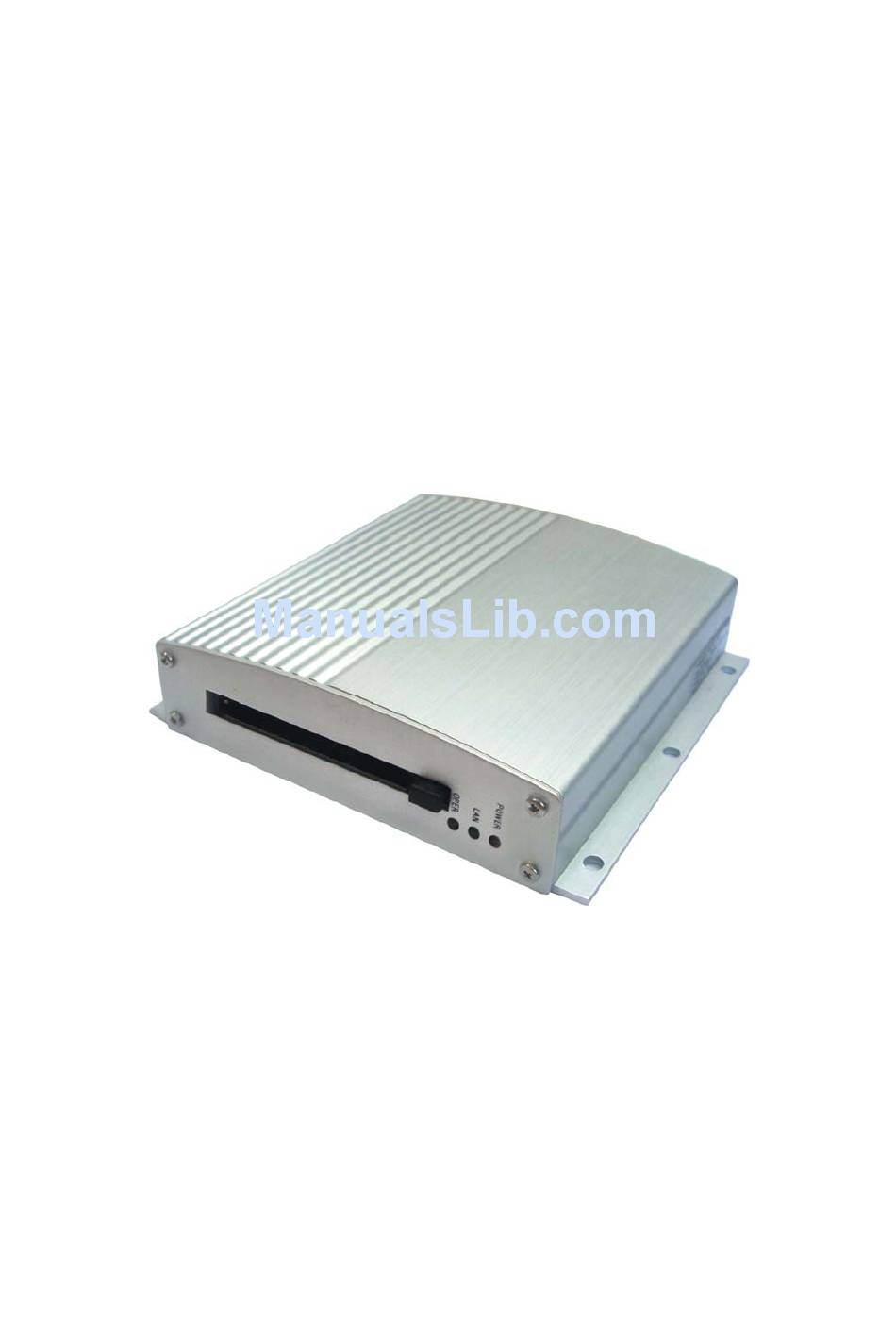

1Channel Video Server SVG-3111 Full Manual
1CHANNEL VIDEO SERVER
MODEL: SVG-3111 Wireless
Full Manual (English)
Version 1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SVG-3111 and is the answer not in the manual?

Questions and answers

Related Manuals for Seorim Technology SVG-3111

Summary of Contents for Seorim Technology SVG-3111

  • Page 1 1Channel Video Server SVG-3111 Full Manual 1CHANNEL VIDEO SERVER MODEL: SVG-3111 Wireless Full Manual (English) Version 1.0...
  • Page 2 1Channel Video Server SVG-3111 Full Manual Warning The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 3 1Channel Video Server SVG-3111 Full Manual Warning This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4 1Channel Video Server SVG-3111 Full Manual Precautions 1. HEED WARNINGS Adhere to all warnings on the appliance and in the operating instructions. 2. POWER SOURCES Operate this equipment only from the type of power source indicated on the label. If you are not sure of the type of power being used, consult your dealer or local power company.
  • Page 5 1Channel Video Server SVG-3111 Full Manual 12. IMPORTANT NOTE TO THE INSTALLER This installation should be made by a qualified service person and should conform to all local codes. In order to provide this product with protection against risk of unintentional operation by...

  • Page 6: Table Of Contents

    3.2.3. Ports Setup ....................27 3.3. Installation with a Router..................28 3.3.1. Network Setup with a Router..............28 3.3.2 Check the configuration of a ROUTER, SVG-3111 and PC..... 29 4. Display Mode ........................30 4.1. Initial Log-in Screen ..................... 30 4.1.1.
  • Page 7 1Channel Video Server SVG-3111 Full Manual 5.5. Service Setting ...................... 41 5.5. Service Setting ...................... 42 5.6. Interface Setting....................43 5.7. Motion Detect Setting................... 46 ..................... 47 5.8. User Setting Video Server Connection Diagram..........48 APPENDIX A. APPENDIX B. Technical Specification of SVG-3111………………………………………50 ................

  • Page 8: Introduction Of Svg-3111 Wireless

    The equipment is capable of receiving analog video and audio input from four channels. Measuring only 120 X 28 X115mm, SVG-3111 offers a powerful set of features including alarm management, event handling, motion detection and remote setup and control. They come equipped with sophisticated firmware and software which make it easier to upgrade.
  • Page 9 1Channel Video Server SVG-3111 Full Manual • IP Filtering SVG-3111 can block the access from a particular IP address through IP filtering. Only the IP addresses recognized by the user can access the video server. • Embedded Motion Detection function SVG-3111 has an embedded sensor system that detects movements.

  • Page 10: Features

    1Channel Video Server SVG-3111 Full Manual 1.3. Features Built-in Web Server and Network Interface No PC Needed for Operation – Standalone Unit Linux Based Operating System Motion Detection : Adaptive Detection Level Setting Monitor live video transmitted in real-time - Remote monitoring up to 120 fps live video...

  • Page 11: Packing Contents

    1Channel Video Server SVG-3111 Full Manual 1.4. Packing Contents NETWORK VIDEO DECODER Cross LAN Cable CD-ROM with manual and software DC Adapter(12V/1A) Power Cable +Terminal Block 2p Terminal Block 5p 1.5. System Requirements Operating System : Microsoft Windows® 2000 or Windows® XP CPU : Intel®...

  • Page 12: System Configuration

    1Channel Video Server SVG-3111 Full Manual 1.6. System Configuration...

  • Page 13: Physical Description

    1Channel Video Server SVG-3111 Full Manual 1.7. Physical Description 1.7.1. Front View ▪ SVG-3111 Wireless 1) POWER : Power Supply status displays (Red LED on) 2) LAN: When data is transmitted and received through the LAN port, the LED blinks.

  • Page 14: Rear View

    1Channel Video Server SVG-3111 Full Manual 1.7.2. Rear View 1) VIDEO IN : 1Vp-p Composite, 1Channel 2) AUDIO IN : MONO Audio Input, 1Channel 3) AUDIO OUT : MONO Audio Output, 1Channel 4) POWER: DC9V/500mA 5) IN/OUT/RS-485 : RJ-45 Ethernet Connector 6) LAN : 1Vp-p Composite, 1Channel 7) RESET : MONO Audio Input &...

  • Page 15: Basic Setup Of Svg-3111

    LAN Cable provided in the package. • On the assumption that both the user PC and SVG-3111 are used under static IP, and SVG-3111 is directly connected with the user PC or Local Network, the installation procedure is to be: ①...

  • Page 16: Network Setting Of A Pc

    Be sure to use Exclusive Power Adapter -④ of [Pic.2.1]) 5) Wait about 2 minutes after power is on the SVG-3111 Video Server. The light on LINK LED shows that the system is booted successfully. 2.2. Network Setting of a PC 2.2.1.
  • Page 17 1Channel Video Server SVG-3111 Full Manual 2) Click Local Area Connection 3) Check the properties of Internet Protocol [TCP/IP]...
  • Page 18 255.255.255.0 and 192.168.1.1 as it is shown in the picture above. • Caution - To activate SVG-3111, the user PC must have the same network setup status as it is preset in the SVG-3111 Video Server. But when you assign the IP address, please be careful not to use the default IP written on the back side of the video server (192.168.1.10), since the same default IP...

  • Page 19: Operation Of The Web Viewer (Url 192.168.1.10)

    1Channel Video Server SVG-3111 Full Manual • After network setting of a PC, you can verify the network status as following: 1) Go to ’ Start’ -> ‘Run’ ->input ‘cmd’ 2) When a DOS window appears as above, input 'ipconfig'.
  • Page 20 1Channel Video Server SVG-3111 Full Manual 3) Click ‘Install’. 4) When installation of ‘vg3xview_viewer' is completed, the initial Log-in Page appears. User Log-in Page...
  • Page 21 1Channel Video Server SVG-3111 Full Manual 4) When the Log-in Page appears, input ID and Password and click ‘Connect’. - Default ID: admin - Password: Ser (‘S’:capital letter, ‘er’: small letter) 1CH Web Viewer 5) The Web Viewer appears and images of the Camera display.

  • Page 22: Configuration Of Network Environment

    Router. When installing the router, input IP address of SVG-3111 (192.168.1.10) in a DMZ. If a DMZ is not available on the router, go to ‘Port Forwarding’ or ‘NAT’ application on the router and setup the ports matching to the port setting of SVG-3111.
  • Page 23 : A router is required under PPPoE environment. Also with a Leased Line or Cable Modem, the user can use a router. The default IP of SVG-3111 is preset to 192.168.1.10 and Subnet Mask to 255.255.255.0 and Gateway to 192.168.1.1.

  • Page 24: Installation Without A Router

    1Channel Video Server SVG-3111 Full Manual 3.2. Installation without a Router 3.2.1. Basic Network Setup 1) After checking Video, connect SVG-3110 to a PC with a Cross LAN Cable 2) Cable connection and Network Setup should be done as it is instructed in ‘ 2.1.
  • Page 25 10) Setup Port numbers in the Port Setting Lines. (->see 3.2.3.Ports Setup) 11) Click ‘Apply’ to save setting values. 12) After Network Setting, remove the Cross LAN Cable connected between SVG-3111 and a PC. 13) Connect SVG-3111 to a Local Area Network with a Straight LAN Cable.

  • Page 26: Dns Setup

    14) Connect a PC to a Local Area Network with a Straight LAN Cable. VIDEO CHECK: Run a Web Browser on your PC, input default IP of SVG-3111 in URL and click ‘Enter’, - When Video is seen, SVG-3111 is correctly set up.

  • Page 27: Ports Setup

    1Channel Video Server SVG-3111 Full Manual 3.2.3. Ports Setup ▶ Network Setting -> ‘Ports’ -> - Set up Port number in each line of Port Setting. ▶ The default port number is preset as follows: (The user can change the port number, if necessary;...

  • Page 28: Installation With A Router

    4) Input default IP Address, Subnet Mask, Gateway of SVG-3111. 5) Input first and secondary IP addresses for DNS. In a case like this SVG-3111 is installed with an IP Sharing Device, type the local IP of the Router in the 2 DNS Address.

  • Page 29: Check The Configuration Of A Router, Svg-3111 And Pc

    1Channel Video Server SVG-3111 Full Manual 3.3.2 Check the configuration of a ROUTER, SVG-3111 and PC Example Please be aware of the following when installing SVG-3111Wireless ▶Caution 1: Please go to the Admin Page of the Router. SN 255.255.255.0 WEPKey :...

  • Page 30: Display Mode

    Characters and Numbers. Also be aware of that ESSID needs to be classified with Capital or Small letters. Please read carefully the user manual of the router. ▶ Caution 3: GW of a PC and SVG-3111 must accord with the IP of the ROUTER...

  • Page 31: Initial Log-In Screen Of Svg-3111

    1Channel Video Server SVG-3111 Full Manual 3. Click ‘Install’. 4. When installation of ‘vg3xview_viewer' is completed, the initial Log-in Page appears. 4.1.2. Initial Log-in Screen of SVG-3111 ▶ Admin/User Login...
  • Page 32 1Channel Video Server SVG-3111 Full Manual When the Log-in Page appears, input ID and Password and click ‘Connect’. Initial Log-in setting is: - Default ID: admin - Password: Ser (‘S’:capital letter, ‘er’: small letter) Caution: Only the Administrator is authorized to reset the 'Setting Values'.

  • Page 33: Live Page

    1Channel Video Server SVG-3111 Full Manual 4.2. Live Page 4.2.1. Screen Mode To change the setting values, you can move into ‘SETTINGS’. In the ‘LIVE PAGE’, you can monitor video images transmitted from 1 channel.

  • Page 34: Admin Setting Mode

    1Channel Video Server SVG-3111 Full Manual 5. Admin Setting Mode 5.1. General Setting General Setting • Date/Time 1) Server Date: shows the date of operation 2) Server Time: shows real time of operation...

  • Page 35: Encoder Setting

    1Channel Video Server SVG-3111 Full Manual 5.2. Encoder Setting Encoder Setting • MPEG-4 Encoder 1) Quality: You can adjust the quality of the live video. 30~2000kbps in the Frame mode 30~2000kbps in the GOP mode 2) Frame Rate: The frame rate can be setup.
  • Page 36 1Channel Video Server SVG-3111 Full Manual 5) Format: The video format can be setup when a camera is compatible with PAL and NTSC. (Usually, the format is selected automatically: PAL/NTSC, according to the type of camera,) • Audio Encoding 1) Encoding Method: shows the method of encoding 2) Encoding Bit Rate: shows bit rate of encoding •...

  • Page 37: Event Setting

    1Channel Video Server SVG-3111 Full Manual 5.3. Event Setting Event Setting...
  • Page 38 1Channel Video Server SVG-3111 Full Manual • Generals 1) Pre Event dwell time: When an alarm occurs, recording time before the occurrence of the alarm can be setup. (0~30 sec.) 2) Post Event dwell Time: When an alarm occurs, recording time after the occurrence of the alarm can be setup. (0~120 sec.)
  • Page 39 1Channel Video Server SVG-3111 Full Manual • FTP Server : The IP and directory of FTP server can be setup. The user ID/ and Password of FTP server can be setup. • E-Mail : The user can assign the E-mail address to receive the notification when an event occurs.
  • Page 40 1Channel Video Server SVG-3111 Full Manual ▶ Check up the following to operate email-sending function properly. • On the Motion Detect mode Activate Send E-mail function • On the E-Mail mode - E-Mail Address: input email address of the receiver...

  • Page 41: Network Setting

    1Channel Video Server SVG-3111 Full Manual 5.4. Network Setting Network Setting • General: The IP, Broadcast, Netmask, Gateway, DNS1, DNS2, and SMTP can be setup. • Ports: The port number of HTTP Port, Option Port, Video Port, Audio Port, and Control Port can be setup.

  • Page 42: Service Setting

    1Channel Video Server SVG-3111 Full Manual 5.5. Service Setting Service Setting • Version Information Firmware Version MAC Address: MAC address of a VIDEO SERVER • Firmware Update How to update Firmware from a distance: 1) Download the newest Software from the web site which provides the firmware update file and save it in a PC.

  • Page 43: Interface Setting

    1Channel Video Server SVG-3111 Full Manual 5.6. Interface Setting Interface Setting • RS-485 1) Title: less than 16 letters 2) Protocol:...
  • Page 44 1Channel Video Server SVG-3111 Full Manual Select a manufacturer of the camera or P/T/Z receiver. As the P/T/Z protocols are varied according to the manufacturers. It must be set up correctly. If not, P/T/Z function does not work properly. 3) Device ID: shows a unique ID of each camera 4) Capabilty: According to the type of camera, some specific features can be set up and operated.
  • Page 45 1Channel Video Server SVG-3111 Full Manual operated on the System Command Mode. 5) Baudrate: Set up Baudrate to make communication with the P/T/Z receiver. Please refer to the manual for the P/T/Z receiver to find setting values. 6) Data bit: Select Data Bits between 7 bits/ 8bits according to the type of camera or P/T/Z receiver.

  • Page 46: Motion Detect Setting

    1Channel Video Server SVG-3111 Full Manual 5.7. Motion Detect Setting Detection Area It can set up Motion Detection of SVG-3111. Use Motion Detect : with a click, the user can activate motion detection function. Sensitivity : It can set up the sensitivity of Motion Detection.

  • Page 47: User Setting

    1Channel Video Server SVG-3111 Full Manual 5.8. User Setting - ID: Input user ID - Password: Input user Password - Auth: Select the user type (guest, operation User, Observer, Admin) - Add: if you want to add a new ID on the user list, click ‘Add’...

  • Page 48: Appendix A. Video Server Connection Diagram

    1Channel Video Server SVG-3111 Full Manual APPENDIX A. Video Server Connection Diagrams • Connection with an LED as visual Indicator • Relay Connection...
  • Page 49 1Channel Video Server SVG-3111 Full Manual • Other Connection...

  • Page 50: Appendix B. Technical Specification Of Svg-3111

    1Channel Video Server SVG-3111 Full Manual APPENDIX B. Technical Specification of SVG-3111 General Linux 2.4 Video Compression MPEG-4 Video& Image Resolution 704x480 Audio Frame rate Max. D1(704x480) Video out Audio Compression G.711 PCM 64Kbps Bi-directional Network Network Protocol TCP/IP, DHCP.FTP, SMPT, HTTP...

  • Page 51: Appendix C. Troubleshooting

    1Channel Video Server SVG-3111 Full Manual APPENDIX C Troubleshooting Q. Video not displaying A. No electrical power: Check electrical connections A. Incorrect IP address: Check and correct the IP address A. User not authenticated: Check user ID and password A. Not connecting to network: Check PC's network settings A.
  • Page 52 1Channel Video Server SVG-3111 Full Manual Q. Cannot delete ST4 file A. Cannot delete recorded file (ST4) Files cannot be deleted while playing Stop playing and delete Seorim Technology Co., Ltd #1001, daerung technotown vi, 493-6, gasan-dong, kumchun, seoul, korea, 153-803...
