Seorim Technology SVG-3410 Full Manual

4-channel video server
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

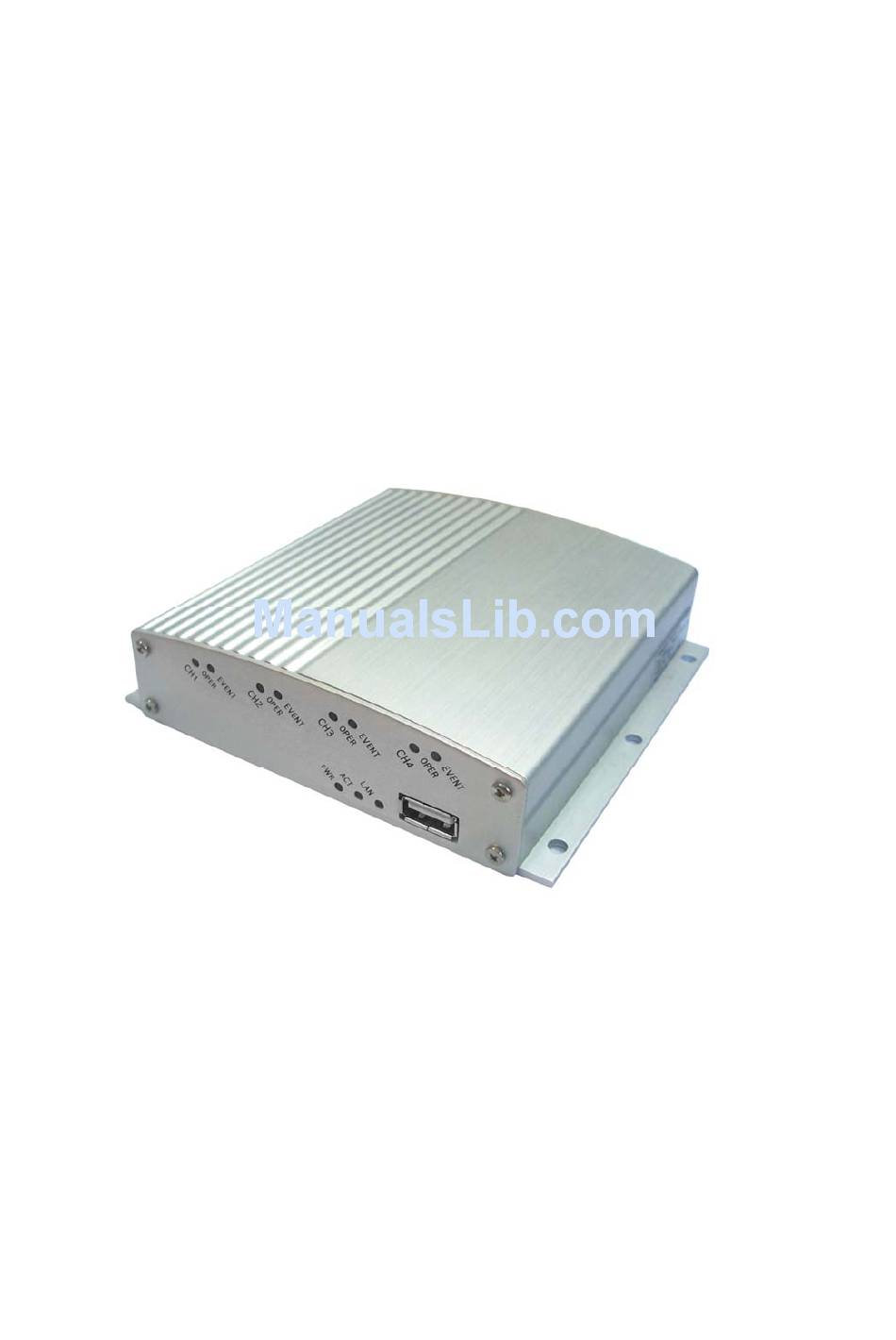

4Channel Video Server SVG-3410 Full Manual
4-CHANNEL VIDEO SERVER
MODEL: SVG-3410
TYPE C
Full Manual (English)
Version 1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SVG-3410 and is the answer not in the manual?

Questions and answers

Related Manuals for Seorim Technology SVG-3410

Summary of Contents for Seorim Technology SVG-3410

  • Page 1 4Channel Video Server SVG-3410 Full Manual 4-CHANNEL VIDEO SERVER MODEL: SVG-3410 TYPE C Full Manual (English) Version 1.0...
  • Page 2 4Channel Video Server SVG-3410 Full Manual Warning The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 3 4Channel Video Server SVG-3410 Full Manual Warning This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4 4Channel Video Server SVG-3410 Full Manual Precautions 1. HEED WARNINGS Adhere to all warnings on the appliance and in the operating instructions. 2. POWER SOURCES Operate this equipment only from the type of power source indicated on the label. If you are not sure of the type of power being used, consult your dealer or local power company.
  • Page 5 4Channel Video Server SVG-3410 Full Manual 12. IMPORTANT NOTE TO THE INSTALLER This installation should be made by a qualified service person and should conform to all local codes. In order to provide this product with protection against risk of unintentional operation by...

  • Page 6: Table Of Contents

    3.2.3. Ports Setup ....................27 3.3. Installation with a Router ..................28 3.3.1. Network Setup with a ROUTER ............... 28 3.3.2. Check the configuration of a ROUTER, SVG-3410 and PC....29 4. Display Mode ........................30 4.1. Initial Log-in Screen ..................... 30 4.1.1.
  • Page 7 5.5. Service Setting ....................... 41 5.6. Interface Setting ....................42 5.7. Motion Detect Setting ................... 45 5.8. User Setting......................46 APPENDIX A. Video Server Connectin Diagrams …………………………………….47 APPENDIX B. Technical Specification of SVG-3410 ............. 49 APPENDIX C. Troubleshooting ..................50...

  • Page 8: Introduction Of Svg-3410

    PTZ motions of the video server. Users without the administrator right (observer) can only monitor. • IP Filtering SVG-3410 can block the access from a particular IP address through IP filtering. Only the IP addresses recognized by the user can access the video server. •...
  • Page 9 • Preventing data loss - Saving data on USB Memory SVG-3410 has a USB port to save the analog camera video data on USB memory. This feature prevents data loss when network is crashed down. Video data stored on USB memory can be searched when the network connection is recovered.

  • Page 10: Features

    4Channel Video Server SVG-3410 Full Manual 1.3. Features Built-in Web Server and Network Interface No PC Needed for Operation – Standalone Unit Linux Based Operating System Motion Detection : Adaptive Detection Level Setting Monitor live video transmitted in real-time - Remote monitoring up to 120 fps live video...

  • Page 11: Packing Contents

    4Channel Video Server SVG-3410 Full Manual 1.4. Packing Contents NETWORK VIDEO DECODER Cross LAN Cable CD-ROM with manual and software DC Adapter(12V/1A) Power Cable * Separate Sale +Terminal Block 2p Terminal Block 5p 1.5. System Requirements Operating System : Microsoft Windows® 2000 or Windows® XP CPU : Intel®...

  • Page 12: System Configuration

    4Channel Video Server SVG-3410 Full Manual 1.6. System Configuration...

  • Page 13: Physical Description

    4Channel Video Server SVG-3410 Full Manual 1.7. Physical Description 1.7.1. Front View PWR : Power Supply status is displayed (Red LED on) ACT : 4Channel Video Server Action LED (Orange LED Blink) LAN: When data is transmitted and received through the LAN port, the LED blinks.

  • Page 14: Rear View

    4Channel Video Server SVG-3410 Full Manual 1.7.2. Rear View 1) ALARM OUT : TTL LEVEL OUTPUT 2) RS485 : RS485 DATA 3) ALARM IN : TTL LEVEL INPUT 4) DC 12V : DC12V, 1mA 5) LAN : RJ-45 Ethernet Connector 6) VIDEO CH1 : 1Vp-p Composite, 1Channel 7) AUDIO CH1 : MONO Audio Input &...

  • Page 15: Installation Of Svg-3410

    LAN Cable provided in the package. • On the assumption that both the user PC and SVG-3410 are used under static IP, and SVG-3410 is directly connected with the user PC or Local Network, the installation procedure is to be: ①...

  • Page 16: Network Setting Of A Pc

    4) Supply power on the Camera and SVG-3410 (Be sure to use Exclusive Power Adapter - 5) Wait about 2 minutes after power is on the SVG-3410 Video Server. The light on LINK LED shows that the system is booted successfully.
  • Page 17 4Channel Video Server SVG-3410 Full Manual 2) Click Local Area Connection 3) Check the properties of Internet Protocol [TCP/IP]...
  • Page 18 255.255.255.0 and 192.168.1.1 as it is shown in the picture above. • Caution - To activate SVG-3410, the user PC must have the same network setup status as it is preset in the SVG-3410 Video Server. But when you assign the IP address, please be careful not to use the default IP written on the back side of the video server (192.168.1.10), since the same default IP...

  • Page 19: Operation Of The Web Interface (Url 192.168.1.10)

    4Channel Video Server SVG-3410 Full Manual • After network setting of a PC, you can verify the network status as following: 1) Go to ’Start’ -> ‘Run’ ->input ‘cmd’ 2) When a DOS window appears as above, input 'ipconfig'. 3) The display shows the current network setting of a PC.
  • Page 20 4Channel Video Server SVG-3410 Full Manual 3) Click ‘Install’. 4) When installation of ‘vg3xview-viewer' is completed, the initial Log-in Page appears. User Log-in Page...
  • Page 21 4Channel Video Server SVG-3410 Full Manual 5) When the Log-in Page appears, input ID and Password and click ‘Connect’. - Default ID: admin - Password: Ser (‘S’:capital letter, ‘er’: small letter) 4Ch Web Viewer 6) The Web Viewer appears and images of the Camera display.

  • Page 22: Configuration Of Network Environment

    In a huge complex such as Company, University, Research center, public IP addresses are generally used. Under this environment, the user must set a Static IP Address for the SVG-3410 server. If DHCP server is available on the network, select ‘Dynamic IP Address’. You can get the required information (IP address, subnet mask, gateway, DHCP server) from the network administrator.
  • Page 23 : A router is required under PPPoE environment. Also with a Leased Line or Cable Modem, the user can use a router. The default IP of SVG-3410 is preset to 192.168.1.10 and Subnet Mask to 255.255.255.0 and Gateway to 192.168.1.1.

  • Page 24: Installation Without A Router

    3.2. Installation without a Router 3.2.1. Basic Network Setup 1) After checking Video, connect SVG-3410 to a PC with a Cross LAN Cable 2) Cable connection and Network Setup should be done as shown in ‘2.1. Installation and 2.2 network setting’.
  • Page 25 11) Connect SVG-3410 to a Local Area Network with a Straight LAN Cable. 12) Connect a PC to a Local Area Network with a Straight LAN Cable. 13) VIDEO CHECK: Run a Web Browser on your PC, input default IP of SVG-3410 in URL and click ‘Enter’.

  • Page 26: Dns Setup

    - When Video is seen, SVG-3410 is correctly set up. - When Video is not seen, check whether there might be IP confliction in the Network, and - re-check the network set values both of SVG-3410, and the user PC. 3.2.2. DNS Setup ▶...

  • Page 27: Ports Setup

    4Channel Video Server SVG-3410 Full Manual 3.2.3. Ports Setup Port Setting ▶ Network Setting -> ‘Ports’ -> - Setup Port number in each line of Port Setting. ▶ The default port number is preset as follows: (The user can change the port number, if necessary;...

  • Page 28: Installation With A Router

    4) Input default IP Address, Subnet Mask, Gateway of SVG-3410. 5) Input first and secondary IP addresses for DNS. In a case like this, SVG-3410 is installed with an IP Sharing Device, type the local IP of the Router in the 2 DNS Address.

  • Page 29: Check The Configuration Of A Router, Svg-3410 And Pc

    4Channel Video Server SVG-3410 Full Manual 3.3.2. Check the configuration of a ROUTER, SVG-3410 and PC Example ▶ Caution: GW of a PC and SVG-3410 must accord with the IP of the ROUTER Example WLAN-ROUTER SVG-3410 LAPTOP/ PC IP : 192.168.1.33 IP : 192.168.1.40...

  • Page 30: Display Mode

    4Channel Video Server SVG-3410 Full Manual 4. Display Mode 4.1. Initial Log-in Screen 4.1.1. Installation of the Web Interface 1. Internet Explorer browser starts. 2. When the ActiveX Code pops up, click ‘yes’, then a message window shows as below.

  • Page 31: Initial Log-In Screen Of Svg-3410

    4Channel Video Server SVG-3410 Full Manual 4.1.2. Initial Log-in Screen of SVG-3410 ▶ Admin/User Login When the Log-in Page appears, input ID and Password and click ‘Connect’. Initial Log-in setting is: - Default ID: admin - Password: Ser (‘S’:capital letter, ‘er’: small letter)

  • Page 32: Live Page

    4Channel Video Server SVG-3410 Full Manual 4.2. Live Page 4.2.1. Screen Mode To change the setting values, you can move into ‘SETTINGS’. In the ‘LIVE PAGE’, you can monitor video images transmitted from 4 channels. Two screen modes are available. You can select the types of monitoring.
  • Page 33 4Channel Video Server SVG-3410 Full Manual Channel 1: Displays video images of Channel 1 on the screen. Channel 2: Displays video images of Channel 2 on the screen. Channel 3: Displays video images of Channel 3 on the screen. Channel 4: Displays video images of Channel 4 on the screen.

  • Page 34: Admin Setting Mode

    4Channel Video Server SVG-3410 Full Manual 5. Admin Setting Mode 5.1. General Setting General Setting • Date/Time 1) Server Date : shows the date of operation 2) Server Time: shows real time of operation...

  • Page 35: Encoder Setting

    4Channel Video Server SVG-3410 Full Manual 5.2. Encoder Setting Encoder Setting • MPEG-4 Encoder 1) Channel: 1~4 2) Quality: You can adjust the quality of the live video. 500~1500kbps in the Frame mode 500~1500kbps in the GOP mode 3) Frame Rate: The frame rate can be setup.
  • Page 36 4Channel Video Server SVG-3410 Full Manual 5) Mode: The live video can be set alternatively in the frame or GOP mode. 6) Format: The video format can be setup when a camera is compatible with PAL and NTSC. (Usually, the format is selected automatically: PAL/NTSC, according to the type of camera,) •...

  • Page 37: Event Setting

    4Channel Video Server SVG-3410 Full Manual 5.3. Event Setting Event Setting...
  • Page 38 4Channel Video Server SVG-3410 Full Manual -> After selecting the channel (1~4ch), Event handling function can be set up • Generals 1) Pre Event dwell time: When an alarm occurs, recording time before the occurrence of the alarm can be setup.
  • Page 39 4Channel Video Server SVG-3410 Full Manual • FTP Server : The IP and directory of FTP server can be setup. The user ID/ and Password of FTP server can be setup. • E-Mail : The user can assign the E-mail address to receive the notification when an event occurs.

  • Page 40: Network Setting

    4Channel Video Server SVG-3410 Full Manual • On the E-Mail mode - E-Mail Address: input email address of the receiver - SMTP Address: input SMTP address of the sender * SMTP (Simple Mail Transfer Protocol): a protocol for sending e-mail messages between servers.

  • Page 41: Service Setting

    4Channel Video Server SVG-3410 Full Manual 5.5. Service Setting Service Setting • Version Information Firmware Version MAC Address: MAC address of a VIDEO SERVER • Firmware Update How to update Firmware from a distance: 1) Download the newest Software from the web site which provides the firmware update file and save it in a PC.

  • Page 42: Interface Setting

    4Channel Video Server SVG-3410 Full Manual video server. Caution: While update is in the process, do not close or re-open a window. Also power disconnection can cause fatal damage. 5.6. Interface Setting Interface Setting • RS-485 1) Title: less than 16 letters 2) Protocol: Select a manufacturer of the camera or P/T/Z receiver.
  • Page 43 4Channel Video Server SVG-3410 Full Manual 3) Device ID: shows a unique ID of each camera 4) Capabilty: According to the type of camera, some specific features can be set up and operated. Click the feature that the user wants to activate.
  • Page 44 4Channel Video Server SVG-3410 Full Manual ▪ Preset: The user can designate interesting places and give a number. The number can be saved on the preset mode. ▪ System-Command: According to the protocol of the camera, some specific features can be operated on the System Command Mode.

  • Page 45: Motion Detect Setting

    5.7. Motion Detect Setting Detection Area Channel: Select the specific channel of SVG-3410 for Motion Detect Setup.. Use Motion Detect: with a click, the user can activate motion detection function. Sensitivity: User can set up the sensitivity of Motion Detection.

  • Page 46: User Setting

    4Channel Video Server SVG-3410 Full Manual 5.8. User Setting - ID: Input user ID - Password: Input user Password - Auth: Select the user type (guest, operation User, Observer, Admin) - Add: if you want to add a new ID on the user list, click ‘Add’...

  • Page 47: Appendix A. Video Server Connectin Diagrams

    4Channel Video Server SVG-3410 Full Manual APPENDIX A. Video Server Connection Diagrams • Connection with an LED as visual Indicator • Relay Connection...
  • Page 48 4Channel Video Server SVG-3410 Full Manual • Other Connection...

  • Page 49: Appendix B. Technical Specification Of Svg-3410

    4Channel Video Server SVG-3410 Full Manual APPENDIX B. Technical Specification of SVG-3410 Video Server NTSC General Linux 2.4 Video Compression MPEG-4 Video& Audio Image Resolution 352x240, 160x144 352x288, 160x240 160x96 176x144 Frame rate 30/15/10/7.5 fps 25/13/8/6/5 fps Video out Audio Compression G.711 (Two-way Audio)

  • Page 50: Appendix C. Troubleshooting

    4Channel Video Server SVG-3410 Full Manual APPENDIX C Troubleshooting Q. Video not displaying A. No electrical power: Check electrical connections A. Incorrect IP address: Check and correct the IP address A. User not authenticated: Check user ID and password A. Not connecting to network: Check PC's network settings A.
  • Page 51 4Channel Video Server SVG-3410 Full Manual Q. Cannot delete ST4 file A. Cannot delete recorded file (ST4) Files cannot be deleted while playing Stop playing and delete Seorim Technology Co., Ltd #1001, daerung technotown vi, 493-6, gasan-dong, kumchun, seoul, korea, 153-803...
