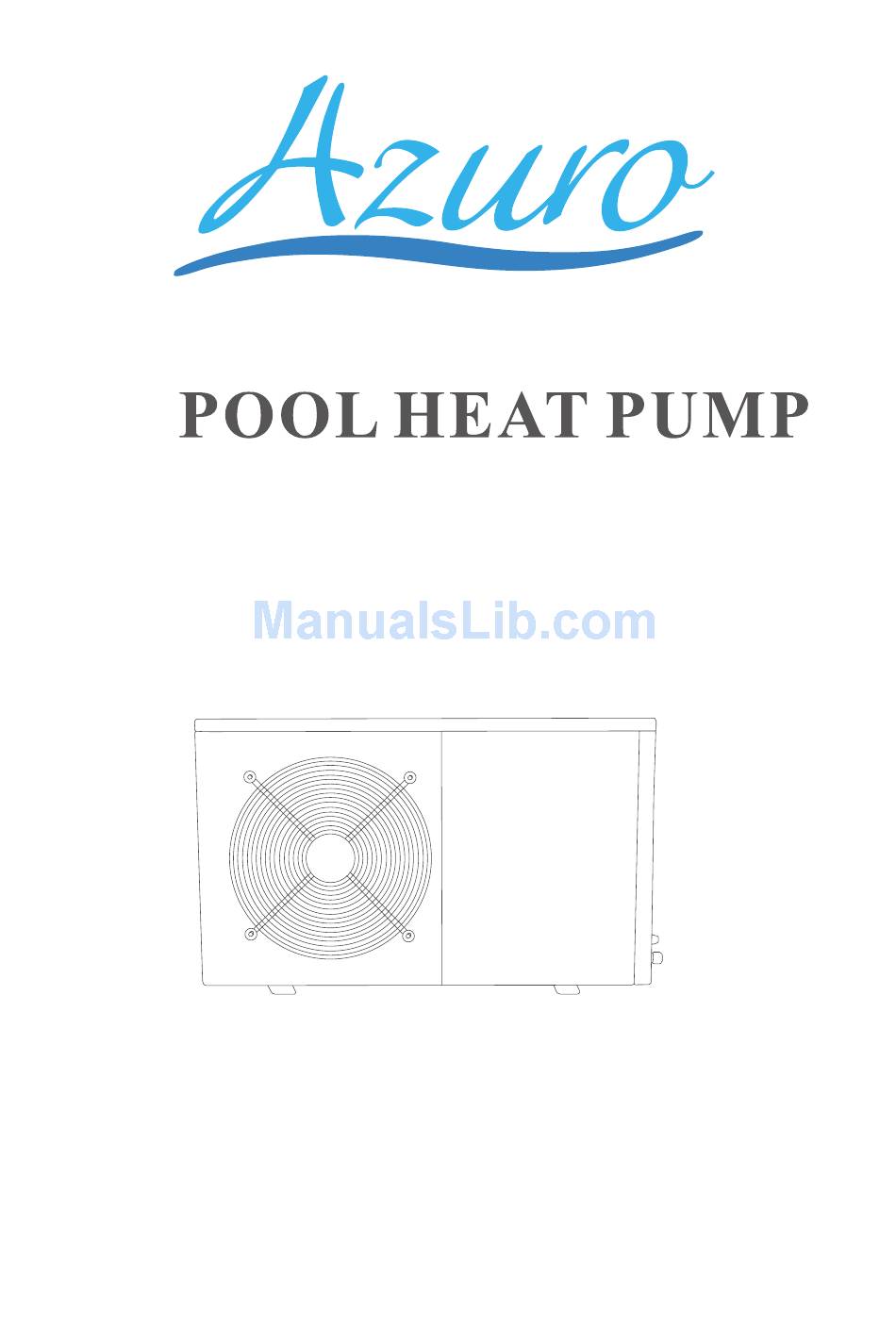

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
INDEX 1. Introduction 2. Specifications 3. Installation 4. Initial Startup of the unit 5. Operation 6. Maintenance... -
Page 3: Introduction
1.Introduction Thank you for using AZURO swimming pool heat pump for your pool heating, it will heat your pool water and keep the constant temperature when ambient temperature at-5℃ to 40℃ In order to offer qualified, reliable and flexible heat pump unit to our customer, please read this manual carefully before installing, operating and troubleshooting, then process accordingly. -
Page 4: Specifications
2. Specifications Swimming Pool Heat Pump Horizontal Design Models XP09Hs Capillary XP12Hs-EEV XP12Hs Capillary XP03Hs- Capillary XP05Hs-EEV XP05Hs Capillary XP09Hs-EEV * Capacity at +25℃ Heat Output 0.70 1.45 1.45 Power Consumption * Capacity at +15℃ Heat Output 2.56 6.45 6.45 0.61 0.89 0.89... -
Page 5: Installation
3. Installation Installation illustration NOTE: The factory only provides the heat pump unit. The other items in the illustration are necessary spare parts for the water system which are provided by users or installers. ATTENTION: Please follow these steps when operating the first time : 1.Open valve and charge water 2.Make sure that the pump and the water-in pipe have been filled with water 3.Close the valve and start the unit... - Page 6 (4) The unit should not be installed in a limited air ventilation area ,or placed in a bush where it will block the air inlet，These location deny the unit of a continuous source of fresh air .When seasons changing ,it may stick leaves on the evaporator coil ,thereby reducing its efficiency and impact of its service life .
-
Page 7: Initial Startup Of The Unit
The location of chemical 's instruction to your system is also critical to the heater's life. If an automatic chlorinator or brominates is used, it must be located downstream of the heater.A trap must be installed between the chlorinator and the heater to prevent chlorine return into the heat pump. -
Page 8: Operation
Time Delay: HP unit should be equipped with a 3-minute built-in solid-state re-start delay protection. Time delay control is an integral part of the circuit control, it can eliminate restart cycling and contactor chatter. The time delay will automatically restart the HP unit approximately 3 minutes after each control circuit interruption .Even a brief power interruption will activate the solid state 3 minute restart delay and prevent the unit from the starting until the 3 minutes countdown is completed. -
Page 9: Total Working Time Of
Parameter 0 Parameter 1 To set the entering water To set the entering water temp. under cooling mode temp. under heating mode ℃ (15-35℃, default (8-35 ,default setting: setting:28℃) ℃ MODE HEAT HEAT Parameter 2 Parameter 3 Total working time of Terms of Entry defrosting compressor after frosting to 0 ,... -
Page 10: Expansion Valve
Parameter 7 Parameter 6 Mode selection of Electronic Mode : 0 Cool 1 Heat and Cool 2 Heat and cool + auxiliary elec. expansion valve ( 0 to 1), Heating 3 Heat default setting 1 (auto) default setting : 3 Heat HEAT HEAT Note: Parameter 7 is only applied... - Page 11 ”5 seconds to enter operating parameter setting interface. (1) Long press“ Press hold for 5 seconds to enter operating parameter setting interface .You can check water -in/water-out /Condenser/ambient temperature. (3) Mode can be changed while running. (4) When the unit is switched off, current time is displayed. Time setting: Press to set the time, and press...
-
Page 12: Terms Of Exit Defrosting
Meaning Range Parameter Default Remarks To set the entering water temp. under cooling mode Adjustable 8-35℃ 28℃ To set the entering water temp. under heating mode Adjustable 15-35℃ 28℃ Entry into defrosting time period 30-90MIN 40MIN Terms of Entry defrosting function ℃... -
Page 13: Maintenance
6. Maintenance (1) You should check the water supply system regularly to avoid the air entering the system and occurrence of low water flow, because it would reduce the performance and reliability of HP unit. (2) Clean your pools and filtration system regularly to avoid the damage of the unit as a result of the dirty of clogged filter.
