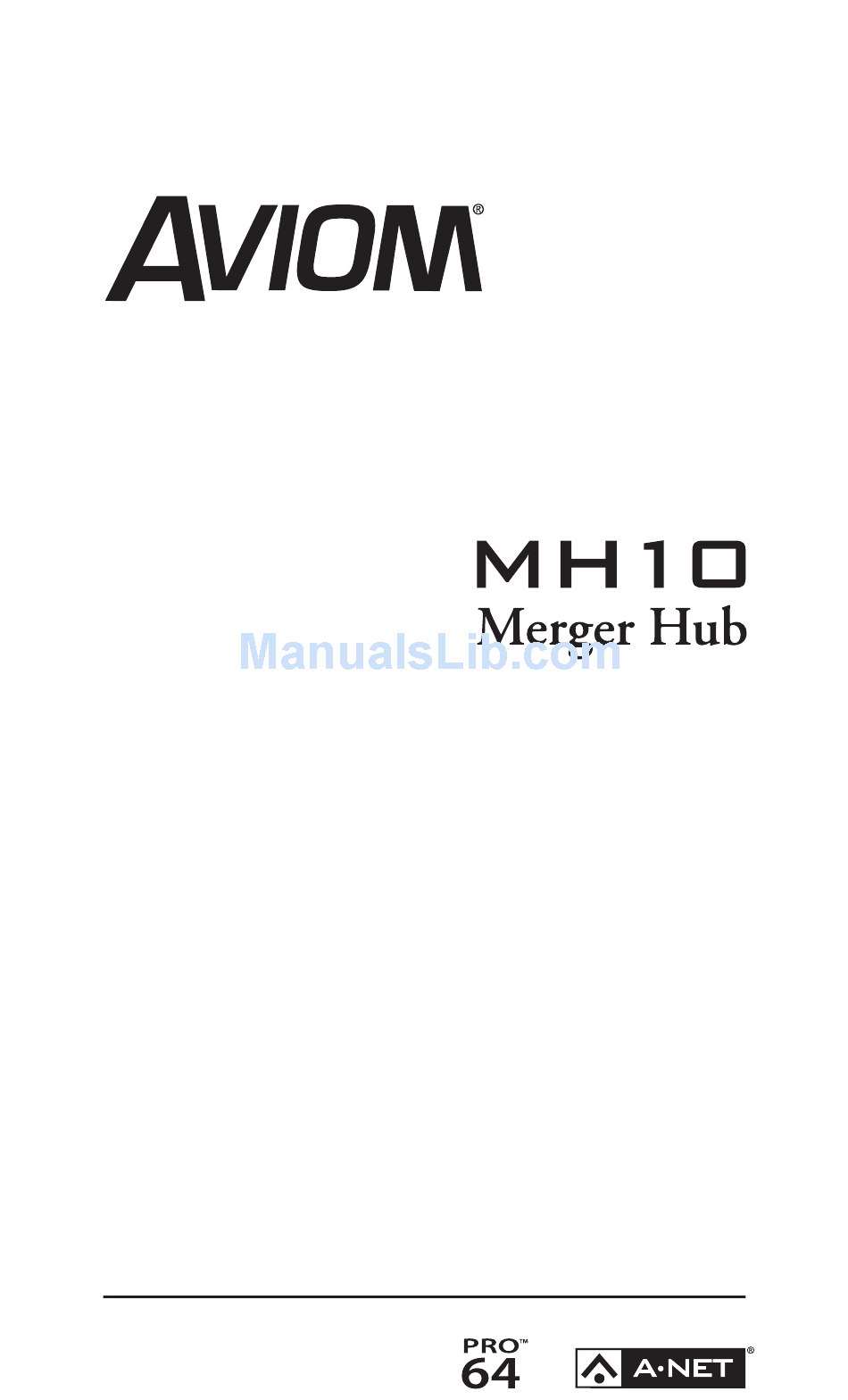

Page 1: User Guide
User Guide P/N 9310 1015 0001F rev. 1.00 © 2006 Aviom, Inc. - Page 2 Aviom and the Aviom logo are trademarks of Aviom, Inc. A-Net and the A-Net logo are trademarks of Aviom, Inc. Pro16, Pro64, and Virtual Data Cables are trademarks of Aviom, Inc. All other trademarks are the property of their respective owners.
- Page 3 • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to the product not expressly approved by Aviom, Inc. could void the user’s FCC authority to operate the equipment.
-
Page 4: Important Safety Instructions
Important Safety Instructions Read these instructions. Keep these instructions Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 5: Warranty Information
To fulfill warranty requirements, your Aviom product should be serviced only at an authorized Aviom service center. The Aviom serial number label must appear on the outside of the unit, or the Aviom warranty is void. This manual and its contents are copyrighted by Aviom, Inc. All rights are reserved by Aviom, Inc. - Page 6 If a defect is discovered, first write or call Aviom, Inc. to obtain a Return Authorization number. No service will be performed on any product returned without prior authorization.
-
Page 7: Table Of Contents
Manual Mode Configuration Button ..14 MH10 Configurations ....15 Auto Mode ..... . 15 Manual Mode . - Page 8 viii...
-
Page 9: Welcome
• EtherCon® RJ45 network connectors • Three Manual Mode configurations Multiple MH10 Merger Hubs can be used when creating a Pro64 audio network. The EtherCon Connector Pro64 Series products feature locking connectors for all network I/O. The Neutrik® EtherCon connector is a dual RJ45-type connector that can receive a standard Category 5e cable or a cable fitted with the special locking EtherCon connector. -
Page 10: Cat-5E
PC host computer with RS-232 connection capability, a null modem DB9 cable, and the update file for the particular Pro64 device being updated. Refer to the Aviom web site for information about the availability of the latest software upgrades and feature updates. -
Page 11: About A-Net
By eliminating Ethernet data structures, A-Net creates a superior network, with enhanced audio performance. With A-Net and the Pro64 Series, Aviom continues to break new ground in the design and development of innovative digital audio networking technologies and solutions. -
Page 12: Clocking
Control Data The Pro64 Series has built-in, dedicated bandwidth for 14 channels of non-audio control data through the use of Aviom’s innovative Virtual Data Cables™. These data streams are always available to carry MIDI, RS-232, or GPIO (General Purpose I/O), and they never compete with the audio channels for network resources, regardless of the system configuration. -
Page 13: Support For Pro16 Series Products
on the makeup of the network and the distribution of audio signals. The user can direct A-Net data from an input module to a specific port (A, B, or both). Output modules can be configured to output audio signals from a specific port (A or B). Support For Pro16 Series Products Pro64 Series products can be combined with Pro16™... -
Page 14: Ac Power
Do not expose the Pro64 device to moisture, rain, or excessively damp environments. AC Line Conditioning Aviom products are digital devices and as such are sensitive to sudden spikes and drops in the AC line voltage. Changes in the line voltage from lightning, power outages, etc. can sometimes damage electronic equipment. -
Page 15: Ventilation
Always be sure to dry the surface of the unit before proceeding with use. When cleaning your Aviom products, never spray cleaners directly onto the product surfaces. Instead, spray a small amount of the cleaning solution onto a clean cloth first. -
Page 16: Front Panel Components
Front Panel Components Auto Mode LED Manual Mode LED Manual Mode configuration (A, B, C) indicator Active A-Net port LED A-Net LED Managed Mode LED roNt ANel oMPoNeNts... -
Page 17: Rear Panel Components
Rear Panel Components Power On/Off Switch IEC Power Inlet Fuse Holder A-Net ports, EtherCon connectors Manual Mode configuration selector button Manual Mode configuration LED ANel oMPoNeNts... -
Page 18: Front Panel Features
A-Net ports on input modules that are part of the network. Once the network has been set to operate in Manual Mode, the red Manual LED and one of the yellow configuration LEDs will be lit on the MH10. By choosing one of the three Manual Mode configurations, A-Net digital streams can be routed in different ways to accomplish a variety of audio distribution tasks. -
Page 19: A-Net Port Leds
Control Master. Once a module is enumerated and is part of the Pro64 network, the blue A-Net LED will light solidly. The blue A-Net LED is also used during the software update process. Software updates on an MH10 must be initiated from another Pro64 device which has VDC capability. roNt... -
Page 20: Managed Mode Led
When the network is placed under control of a computer, the Managed LED will light on all modules in the network. The Managed LED is for information only. No user settings are available on the MH10 for Managed Mode. roNt ANel... -
Page 21: Rear Panel Features
In Auto Mode, all ten A-Net ports are identical. Cables from any Pro64 device can be plugged into any available port. Multiple MH10s can be connected simply by connecting them to any available A-Net port. There is no need to match MH10 port numbers (Port 1 connected to Port 1, etc.). ANel... -
Page 22: Manual Mode Configuration Button
Manual Mode is selected at the Control Master, the selected Manual Mode Configuration is automatically applied. The corresponding LED on the front panel of the MH10 will also light when Manual Mode is active. When multiple MH10 Merger Hubs are used in a network, note that each can be configured as needed, making complex Manual Mode networks easy to set up. -
Page 23: Mh10 Configurations
Each A-Net port on the MH10 is always contributing its data to the Pro64 data stream (as in the case of a 6416i Input Module, for example) while at the same time distributing the network data. -
Page 24: Manual Mode
Merger Distributor Auto Mode and Manual Mode configuration A A-Net Receive A-Net Transmit In Auto Mode, all ports on an MH10 have the same functionality; they (Ports 1-10) (Ports 1-10) Merger Distributor will accept digital audio inputs and VDC data and then transmit a combined data stream with all audio and VDC data. - Page 25 (mic, line-level, or digital) originating on the stage enter the MH10 at Ports 1-4 (marked as “Stage Inputs”). The audio inputs are merged in the MH10 and a 64-channel stream is sent out of Port 10. One Cat-5e cable spans the distance from stage to the front-of-house mixer. Port 10 is connected to a group of four output modules at FOH which are connected to the mixing console (marked as “Stage Outputs”).
-
Page 26: Configuration C (Merge 1-8)
ASI (connected to Port 8) translates Pro64 data for use with Pro16 monitoring devices. Again, any of the ports numbered 1-9 on the MH10 can be connected to additional Pro64 devices for splits. Remember that any output devices connected in series to any Pro64 device already connected to the MH10 can also output the content coming from the FOH engineer. - Page 27 Two MH10 Merger Hubs are used. Inputs on the stage (mic, line-level, or digital) are connected to Ports 1-8 of the MH10 on stage. Port 8 on this MH10 is connected to output modules that feed the monitor console and recording devices.
- Page 28 STAGE Stage Inputs 1-16 Stage Inputs 17-32 Stage Inputs 33-48 Stage Inputs 49-64 FOH Returns 1-16 Out Stage Outputs 1-16 Stage Outputs 17-32 Stage Outputs 33-48 Stage Outputs 49-64 MO NITOR FO H CO NSOL E FOH Returns 1-16 In Stage Outputs 1-16 Stage Outputs 17-32 Stage Outputs 1-16...
-
Page 29: Mh10 Configuration Errors
MH10 Configuration Errors Data Loops When using multiple MH10 Merger Hubs in a digital network, never connect a pair of ports between MH10s other than Ports 9-10 in Manual Mode Configuration C. Doing so will cause an A-Net data loop. Only... -
Page 30: Specifications
Use Unshielded Twisted Pair (UTP) cable Power Supply 100-240VAC 50-60Hz, 24W Internal switching power supply; IEC connector, interchangeable Fuse F4AL Dimensions 1U; 19”w x 8”d x 1.75”h 482.6 x 203 x 45 mm Weight 6 pounds; 2.72 kg All Aviom products are designed and manufactured in the USA. PeciFicAtioNs... -
Page 31: Dimensions
Dimensions PeciFicAtioNs... -
Page 32: Index
ndex Clock Master 4 computer 2, 12 A, B, C LEDs Configuration A 16 Manual Mode 14 Configuration B 17 A-16II, A-16R 18 Configuration C 18, 21 Personal Mixers 5 Configuration Errors 21 A-Net Configurations Pro64 Series 3 Manual Mode 15 A-Net Distributor 5 Control Data 4 A-Net LED 8, 11... - Page 33 Merge All 10 RoHS iii Merger 15 RS-232 4 MH10 null modem cable 2 using multiple 14 MH10 Configurations 15 MIDI 4 Monitor Mixing System Pro16 5 Safety Instructions v Mounting, Rack 6 Safety Warnings iv Sample Rate 3, 22...
- Page 34 Unshielded Twisted Pair 2 UTP 22 Update Operating System 2 Update Tool 2 UPS 6 UTP 2 UTP cable Cat-5e, Cat-6 3 VDC data 17 Ventilation 7 Virtual Data Cables 4 VDC 15 wander 3 Warnings iv Warranty vii Weight 22 Index...
