Summary of Contents for Aviom MH10f

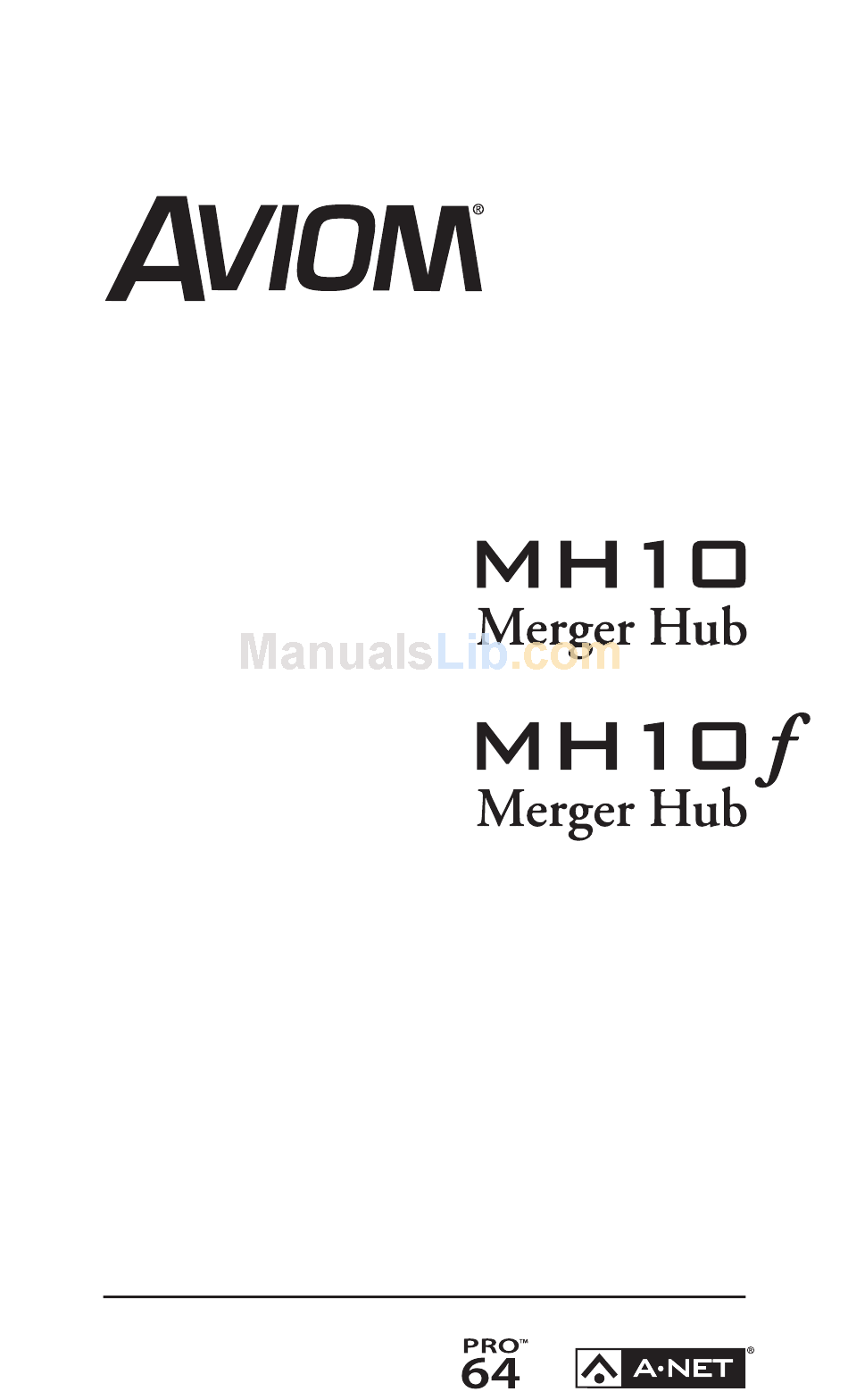

- Page 1 User Guide P/N 9310 1015 0002F rev. 1.0 © 2007 Aviom, Inc.
- Page 2 Aviom and the Aviom logo are trademarks of Aviom, Inc. A-Net and the A-Net logo are trademarks of Aviom, Inc. Pro16, Pro64, and Virtual Data Cables are trademarks of Aviom, Inc. All other trademarks are the property of their respective owners.
- Page 3 • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to the product not expressly approved by Aviom, Inc. could void the user’s FCC authority to operate the equipment. WARNING! To reduce the risk of fire or electric shock do not expose this product to rain or moisture.
-
Page 4: Important Safety Instructions
Important Safety Instructions Read these instructions. Keep these instructions Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 5: Warranty Information
To fulfill warranty requirements, your Aviom product should be serviced only at an authorized Aviom service center. The Aviom serial number label must appear on the outside of the unit, or the Aviom warranty is void. This manual and its contents are copyrighted by Aviom, Inc. All rights are reserved by Aviom, Inc. - Page 6 If a defect is discovered, first write or call Aviom, Inc. to obtain a Return Authorization number. No service will be performed on any product returned without prior authorization.
-
Page 7: Table Of Contents
MH10 Rear Panel ..... . 10 MH10f Rear Panel ..... 11 Front Panel Features . - Page 8 viii...
-
Page 9: Welcome
This document is a combined User Guide for the MH10 and MH10f Merger Hubs, which have many features in common. Differences in functionality will be called out as needed. -
Page 10: The Sfp Module
The SFP Module The MH10f Merger Hub ships with two 100 Mbps SFP format fiber optic ports (9 and 10) which allow the user to connect optional single-mode or multi-mode fiber optic transceivers that can transmit A-Net data over longer distances than Cat-5 cabling can provide. -
Page 11: Cat-5E
Refer to the Aviom website for information about the availability of the latest firmware upgrades and feature updates. The MH10 or MH10f must be connected to another Pro64 device with Virtual Data Cable™ capability in order to be updated. 64 P... -
Page 12: About A-Net
By eliminating Ethernet data structures, A-Net creates a superior network, with enhanced audio performance. With A-Net and the Pro64 Series, Aviom continues to break new ground in the design and development of innovative digital audio networking technologies and solutions. -
Page 13: Clocking
Control Data The Pro64 Series has built-in, dedicated bandwidth for 14 channels of non-audio control data through the use of Aviom’s innovative Virtual Data Cables™. These data streams are always available to carry MIDI, RS-232, RS-422, or GPIO (General Purpose I/O), and they never compete with the audio channels for network resources, regardless of the system configuration. -
Page 14: Support For Pro16 Series Products
Mode network, two 64-channel streams are available on the cable and in each module. The configuration of the cables and ports has an impact on the makeup of the network and the distribution of audio signals. The user can direct A-Net data from an input module to a specific port (A, B, or both). -
Page 15: Ac Power
Do not expose the Pro64 device to moisture, rain, or excessively damp environments. AC Line Conditioning Aviom products are digital devices and as such are sensitive to sudden spikes and drops in the AC line voltage. Changes in the line voltage from lightning, power outages, etc. can sometimes damage electronic equipment. -
Page 16: Ventilation
Always be sure to dry the surface of the unit before proceeding with use. When cleaning your Aviom products, never spray cleaners directly onto the product surfaces. Instead, spray a small amount of the cleaning solution onto a clean cloth first. -
Page 17: Front Panel Components
Front Panel Components The front panel components of the MH10 and MH10f are identical; the MH10 is shown in the diagrams below. Auto Mode LED Manual Mode LED Manual Mode configuration (A, B, C) indicator Active A-Net port LED... -
Page 18: Mh10 Rear Panel
MH10 Rear Panel Power On/Off Switch IEC Power Inlet Fuse Holder A-Net ports, EtherCon connectors, 10x Manual Mode configuration selector button Manual Mode configuration LED roNt ANel oMPoNeNts ... -
Page 19: Mh10F Rear Panel
MH10f Rear Panel Power On/Off Switch IEC Power Inlet Fuse Holder Backup DC Power Inlet, 4-pin XLR Manual Mode configuration selector button Manual Mode configuration LED A-Net ports, SFP connectors, 2x A-Net ports, EtherCon connectors, 8x ... -
Page 20: Front Panel Features
Auto or Manual at the network’s Control Master. When the Pro64 network is operating in Auto Mode, the red Auto LED will be lit. In Auto Mode, no user settings are available on the MH10/MH10f; all ten A-Net ports function identically. It does not matter which rear-panel A-Net port is used when connecting Pro64 devices to the network. -
Page 21: A-Net Port Leds
Control Master. Once a module is enumerated and is part of the Pro64 network, the blue A-Net LED will light solidly. The blue A-Net LED is also used during the firmware update process. Firmware updates on an MH10/MH10f must be initiated from another Pro64 device which has VDC capability. roNt... -
Page 22: Managed Mode Led
When the network is placed under control of a computer, the Managed LED will light on all modules in the network. The Managed LED is for information only. No user settings are available on the MH10/MH10f for Managed Mode. roNt ANel... -
Page 23: Rear Panel Features
Backup DC Power - MH10f For applications where a backup power source is required, the MH10f is equipped with a backup DC power inlet using a locking 4-pin XLR jack. A DC power supply capable of outputting 24VDC ±5% at 1 amp is required. -
Page 24: A-Net Ports
The MH10f can be powered via its internal power supply or an optional external 24 volt supply. Both internal AC and external DC power sources can be connected simultaneously. A-Net Ports Ten EtherCon jacks are provided for A-Net connections on the MH10, numbered 1 to 10. -
Page 25: Manual Mode Configuration Button
Manual Mode is selected at the Control Master, the selected Manual Mode Configuration is automatically applied. The corresponding LED on the front panel of the MH10/MH10f will also light when Manual Mode is active. When multiple MH10/MH10f Merger Hubs are used in a network, note that each can be configured as needed, making complex Manual Mode networks easy to set up. -
Page 26: Mh10 Configurations
C) for routing the digital audio and Virtual Data Cable (VDC) content of the A-Net streams received at its ten ports in Manual Mode. Each MH10 or MH10f Merger Hub in a network can be set individually to one of the three configurations, which is especially powerful when configuring Manual Mode networks. - Page 27 (Ports 1-10) Auto Mode and Manual Mode Configuration A A-Net Receive In Auto Mode, all ports on an MH10/MH10f have the same functionality; (Ports 1-10) they will accept digital audio inputs and VDC data and then transmit a combined data stream with all audio and VDC data.
-
Page 28: Manual Mode
Configuration B (Merge 1-9) This configuration is well suited for a basic digital snake using only one MH10 Merger Hub, or as a basic snake using two MH10f units when the redundancy and local digital split functionality of Configuration C are not required. - Page 29 mixer. Port 10 is connected to a group of four output modules or Pro64 console interface cards (such as the 6416Y2 card for Yamaha® digital products) at FOH which are connected to the mixing console (marked as “Stage Outputs”). The engineer creates mixed audio for the speakers, amps, and processing devices and connects this audio to the input module marked “FOH Returns 1-16 In.”...
- Page 30 STAGE Stage Inputs 1-16 Stage Inputs 17-32 Stage Inputs 33-48 Stage Inputs 49-64 FOH Returns 1-16 Out Pro16 Pro16 Monitors 1 Monitors 2 This 64x48 digital snake uses one MH10 Merger Hub. Input and output modules at the FOH position are connected serially. The ASI (connected to port 8) translates Pro64 data for use with Pro16 monitoring devices.
-
Page 31: Configuration C (Merge 1-8)
Configuration B Example 3 This example substitutes a pair of MH10f hubs for the single MH10 in the previous diagram. Fiber optic cable is also substituted for the Cat-5e cable used between stage and FOH positions. STAG E Stage Inputs 1-16... - Page 32 Inputs on the stage (mic, line-level, or digital) are connected to ports 1-8 of the MH10/MH10f on stage. Port 8 on this MH10/MH10f is connected to output modules that feed the monitor console and recording devices. (Optionally, another MH10 or MH10f could be connected to port 8 to create a parallel rather than serial digital split.)
- Page 33 STAGE Stage Inputs 1-16 Stage Inputs 17-32 Stage Inputs 33-48 Stage Inputs 49-64 FOH Returns 1-16 Out Stage Outputs 1-16 Stage Outputs 17-32 Stage Outputs 33-48 Stage Outputs 49-64 MONITO R CONSOL E Stage Outputs 1-16 Stage Outputs 17-32 Stage Outputs 33-48 Stage Outputs 49-64 RECO RD ING 64 inputs on stage feed a monitor console and recording devices.
-
Page 34: Mh10 Configuration Errors
Data Loops When using multiple MH10/MH10f Merger Hubs in a digital network, never connect a pair of ports (two cables) between MH10/MH10f devices other than ports 9-10 in Manual Mode Configuration C. Doing so will cause an A-Net data loop. Only Manual Mode, and its Configuration C specifically, can use a pair of Cat-5e or fiber cables connected between ports 9 and 10 in a backup/redundant cable setup. -
Page 35: Specifications
Specifications A-Net I/O - MH10 A-Net I/O - MH10f MH10f SFP Module Fiber Optic Modes Network Sample Rates 44.1/48kHz; 88.2/96kHz; 176.4/192kHz Network Sample Rate Range Network Bit Depth Network Latency Cable Length, Cat-5e Power Supply MH10 Power Supply MH10f MH10f Backup DC... -
Page 36: Dimensions
Dimensions PeciFicAtioNs... - Page 37 ndex Symbols 100 Mbps 2, 16 SFP Module 27 1 Gbps 2 4-pin XLR 11, 15 6416Y2 card 21 A, B, C LEDs Manual Mode 17 A-16II, A-16R 21 Personal Mixer 6 A-Net Pro64 Series 4 A-Net Distributor 6 A-Net I/O 27 A-Net LED 9, 13 A-Net Port 5, 9, 16 A-Net Systems Interface 21...
- Page 38 duplex 2 Duplex LC connector 27 dust cap SFP 2 Enter/Cancel button 12 Errors 26 EtherCon 1, 3, 16 Ethernet 4 Fast Ethernet 27 FCC info iii fiber optic 16, 27 multi-mode 2 single-mode 2 Firmware Update 3, 13 FOH 21 Front Panel Components 9 Fuse 27 AC 15...
- Page 39 Personal Mixers 21 Port 12, 20 Port A, B. See A-Net Port; See A-Net Ports Ports A-Net 5 Ports 9 and 10 redundant/backup 26 Power On/Off Switch 10, 11 Power Supply 15, 27 DC Backup 15 Pro16 21 Pro16 Series 6 Pro64 1, 4 Pro64 to Pro16 convert 6...
