Ripmax SuperNova 250S User Manual

Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

Dear Customer
Thank you for purchasing the highly advanced, low cost, easy-to-use Ripmax Pro-Peak SuperNova charger. To obtain
maximum performance from your new charger, please carefully read the following instruction manual.
The SuperNova 250S is an innovative multi-function charger far superior to existing conventional chargers. This unit is
especially designed to maximize charge efficiency using SJ's own unique algorithm. The integral 2 line, 16 character LCD screen
displays various information relating to the operating modes and adjustment parameters, as well as key functions such as
battery charge state, which shows the percentage of capacity remaining. Furthermore, the SuperNova 250S is very user friendly,
even for beginners, thanks to its 10 intelligent selectable 'battery parameter' memories. The 10 memories, containing factory
pre-set battery parameters, can be re-programmed to store your own standard battery pack parameters so that you can obtain
the same precise results whenever you charge.
• Designed to fast charge/discharge 1~25 cell Nickel Cadmium
(NiCd) & Nickel Metal Hydride (Ni-MH) packs, and to charge
only 1~6 cell (2~12volt) Lead Acid (Pb) batteries.

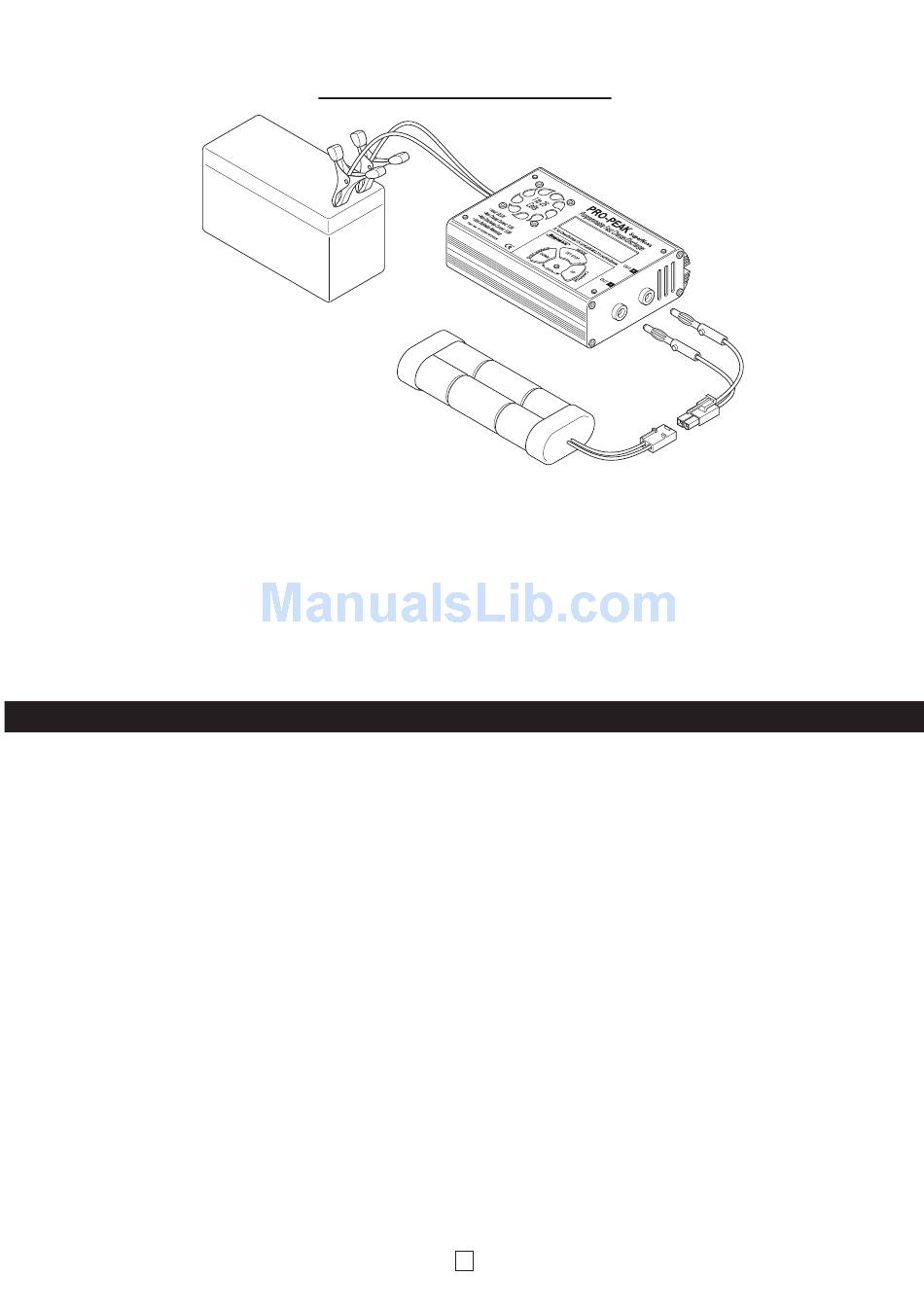

• Uses either 12volt Lead Acid battery or 10~15volt DC power
supply input (Not supplied).
•The most outstanding feature of the SuperNova 250S is
its 10 intelligent battery memories, numbered 0 to 9.
These enable individual cell or pack parameters to be
memorised and stored, i.e. battery type, number of cells,
battery capacity, charge current and discharge current.
As a result of this, up to 10 different battery packs can have
their individual charge/discharge requirements set.
NOTE: The SuperNova is supplied with the 10 memories
already programmed. Unless these programs exactly match
your requirements, it will be necessary to modify them to suit
the battery packs being charged. How to carry this out
is detailed under Setting Battery Parameters.
• To protect both the charger and batteries, the maximum
charge and discharge currents are automatically limited.
• When discharging battery packs, the discharge cut off
voltage level is set at 0.9 volt per cell to avoid damage to
SuperNova 250S Charger
FEATURES
the battery being discharged.
• Zero Current Voltage Check prevents incorrect delta peak
auto cut-off caused by high connection resistance or high
resistance/old/faulty battery packs.
• Low and over voltage input battery warning function-input
voltages outside the range 9.5 to 15.5 volts causes a warning
message 'Input Power' to be shown on the display, together
with an audible warning.
• Automatic initial charge stage checks the condition of
the battery being charged. If the battery is not in a condition
suitable for charging, the display shows a warning message
'Output Battery Connector Error' along with an audible
warning.
• In the event of the battery being charged becoming
disconnected from the charger the display shows a warning
message 'Output Battery Connector Error' along with an
audible warning.
• Reverse polarity protection. The display will show 'Output
Battery Reverse Polarity' if the battery being charged is
connected in reverse along with an audible warning.
1
Item No. O-SUNG-RP250S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperNova 250S and is the answer not in the manual?

Questions and answers

Related Manuals for Ripmax SuperNova 250S

Summary of Contents for Ripmax SuperNova 250S

  • Page 1 Furthermore, the SuperNova 250S is very user friendly, even for beginners, thanks to its 10 intelligent selectable ‘battery parameter’ memories. The 10 memories, containing factory pre-set battery parameters, can be re-programmed to store your own standard battery pack parameters so that you can obtain the same precise results whenever you charge.

  • Page 2: Input Buttons

    – Ni-MH battery: • Weight: 560g – Pb battery: 100mA • Discharge Current: INPUT BUTTONS There are three input buttons on the SuperNova 250s. SET/STOP: This is used to enter and exit program mode and to stop charging and discharging procedure. CHARGE/UP: –...

  • Page 3: Automatic Mode

    CONNECTION TO POWER SUPPLY (CONT…) AUTOMATIC MODE (CONT…) When charging, the peak detection circuitry will terminate the charge automatically when the battery is fully charged. Connect the battery to be charged to the SuperNova using appropriate charge leads. Discharging will be terminated when the battery voltage has MODELS fallen to 0.9v per cell, discharge beyond this point may damage the battery and will not provide any further useful...
  • Page 4 MANUAL MODE (CONT…) SETTING BATTERY PARAMETERS (1-10 MEMORIES) (CONT…) Press the SET/STOP button twice. The display will now show this, use the UP/DOWN buttons to select the memory you wish to program (0-9). All of these memories are preset during manufacture and can be modified as necessary.

  • Page 5: Sound Function

    SETTING BATTERY PARAMETERS (1-10 MEMORIES) (CONT…) MEMORY ALL CLEAR FUNCTION (CONT…) Press SET/STOP and the display will show discharge current–NiCd and Ni-MH can be discharged from 0.5 to 3.0A in 0.1A increments, Pb cannot be discharged using this program. Press SET/STOP and the display will show. Press SET/STOP and the display will show.
  • Page 6 When the battery is being charged the following screen will be displayed. Distributed by: Ripmax Plc. Ripmax Corner, Green Street, Enfield, EN3 7SJ. Tel: 020 8282 7500 Fax: 020 8282 7501 Email: mail@ripmax.com Web Site: http://www.ripmax.com Made in Korea...
