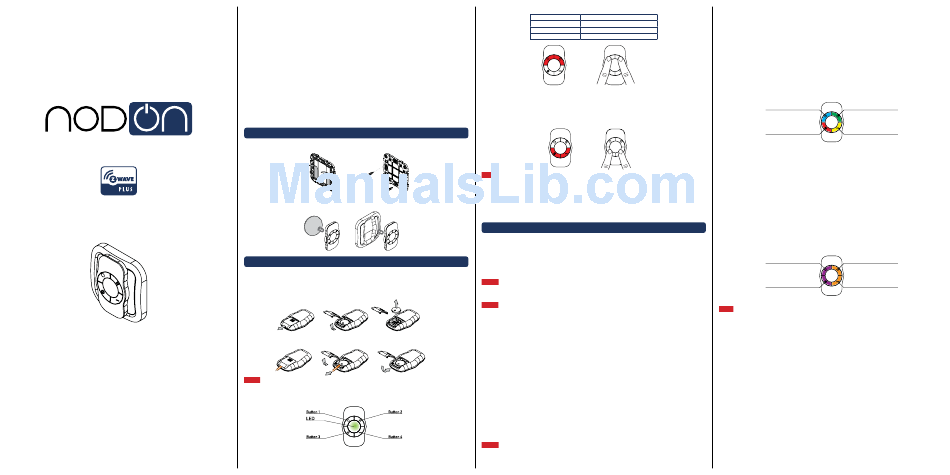

nodon OCTAN User Manual

USER GUIDE
OCTAN REMOTE

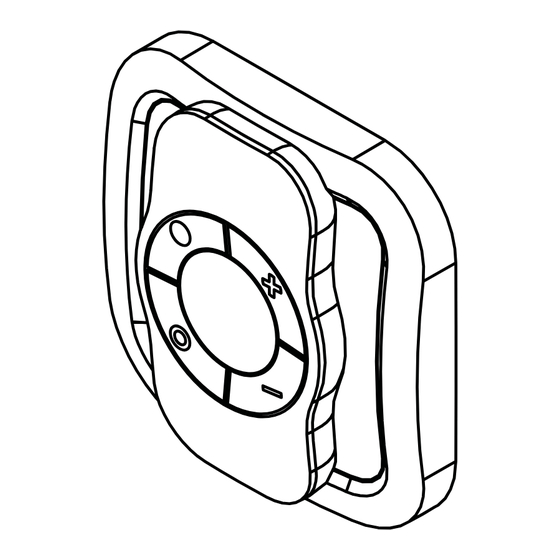

OCTAN Remote with wall support
Reference: CRC-3-1-0x
Power supply: CR2032 battery
Radio frequency: 868MHz
Range up to 80 meters outdoor
Range up to 40 meters indoor
Operational temperature: -10°C / 50°C
IP20
Radio protocol: Z-Wave Plus (500 series)
®
Dimensions: 80 mm (L) x 80 mm (l) x 17.5 mm (h)
Weight: 68 g (with wall plate)
Warranty: 2 years
The NodOn ® Octan remote can be added and operated in any Z-Wave
with other Z-Wave certified devices from other manufacturers and/or other
®
applications.
All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability
of the network.
It has 2 distinctive working modes:
1. «STANDALONE» MODE
The Octan remote can control Z-Wave ® compatible devices directly, such as the
NodOn ® Smart Plug or a light dimmer, whoever is the manufacturer.
Note: No home automation gateway is involved and necessary in this mode.
2. «GATEWAY» MODE
The Octan remote is in "Gateway" Mode as soon as it is added in a Z-Wave
network managed by a home automation gateway. The remote control becomes
then the gateway's assistant, capable to launch up to 16 different scenes through it
(SCENE Profile) or directly associated to your Z-Wave compatible devices (MONO
®
or DUO Profile).
WALL SUPPORT
A magnetic wall support is included with your Octan Remote. This support can be
screwed (screws not included) or fixed by adhesive bonding (included).
The remote control embeds a small magnet, allowing fixing it on its wall support
or on any metallic surface (fridge door, heater, etc.).
USAGE
BATTERY REPLACEMENT
The Octan remote operates using a CR2032 coin cell battery (included).
To replace the battery, slide slowly the battery cover, located on the backside of the
remote.
Before the first use, take care of removing the battery protector, after opening the
battery cover.
Careful : In order to save as much as possible the battery life time, avoid long learning process, and place the remote
control as close as possible to the device you want to associate.
OCTAN REMOTE INTERFACE
The remote control has 4 buttons and one LED located at the center of the product.
BATTERY LEVEL
In order to know the battery level, a simultaneous short press on I and P must
® network be performed. The LED will display the battery level according to below table:
LED state Battery level
Green Under 50%
Orange Between 50 and 20%
Red Below 20%
FACTORY RESET
®
A factory reset will completely delete the memory of the remote control and
restore all the parameters to default value.
A simultaneous long press (1sec) on O and M will perform this factory reset.
The LED will blink red and green to validate the reset
Careful : In "Standalone" Mode, make sure to remove all the devices added or associated in the remote control's
network before performing a factory reset.
In "Gateway" Mode, use the factory reset procedure only when the Primary
Controller (i.e. the gateway) is missing or defective. Reset the remote control
does not mean that it has been removed from the Primary Controller memory.
Remove the remote controller (through the Primary Controller) before performing
a factory reset.
« STANDALONE » MODE
By default, the Octan remote is in "Standalone" Mode. It means it can control
compatible Z-Wave ® devices without involving the gateway. The Octan remote acts
as the Primary Controller of the network.
While the remote control is in "Standalone" Mode, you can:
•Control one or several devices (up to 8) with only 1 button: MONO Profile.
•Control one or several devices (up to 8) with 2 buttons: DUO Profile.
Careful : You must not unplug a Z-Wave device definitely without removing it from the remote control's Z-Wave
®
network first (See the "Exclusion" part below). This can have a serious impact on the battery lifetime.
ASSOCIATION
Careful : Before associating a device which was not recently bought, please perform an "EXCLUSION" first. Please
refer to the "Exclusion" section below.
Association is performed in 3 steps:
Push 3 times (quickly) on the I button to activate the "Association" Mode.
1
The LED glows in blue
Choose which button will control your device, within 10 seconds.
2
• A short press on one of the buttons of the remote control (I, O, P or
M) will activate the MONO Profile. The pressed button will then control
your device.
• A long press on the I button will activate the DUO Profile, combined
with the O button. The I (ON) and O (OFF) buttons will then control
your device.
• A long press on the P button will activate the DUO profile, combined
with the M button. The P (ON) and M (OFF) buttons will then control
your device.
The LED blinks in blue to confirm your choice
Place the device you want to associate in "Learning" Mode, within 10 seconds.
3
To do so, please refer to your device's user guide.
The LED of the remote control blinks green to confirm the association process
Careful : In case of a too long association process or others problems during the process, the LED will blink red.
Please restart the procedure.
Once the association is validated, your remote control is able to control your
device. Different actions are possible.
1. MONO PROFILE
This profile allows controlling your associated device(s) using just a single button
of the Octan remote.
A short press on I, O, P or M (depending on your choice during association
process) will activate (ON) your associated device(s), a second short press will
deactivate (OFF) your associated device(s).
If your device has dimming features (light dimmer, roller shutter, etc.):
• A long press on the I, O, P or M (depending on your choice during
association process) will dim up your associated device (light, roller
shutter, etc.) until you release the button.
• A second long press on the same button will dim down your associated
device (light, roller shutter, etc.) until you release the button.
ON & OFF ON & OFF
Up & Down Up & Down
Up & Down Up & Down
ON & OFF ON & OFF
2. DUO PROFILE
This profile allows controlling your associated device(s) with two mutual buttons.
• A short press on I (or P depending on your combination choice during
association process) will activate (ON) your associated device(s).
• A short press on O (or M depending on your combination choice during
association process) will deactivate (OFF) your associated device(s).
If your associated device(s) has dimming features (light dimmer, roller shutter, etc.):
• A long press on I (or P depending on your combination choice during
association process) will dim up your associated device (light, roller
shutter, etc.) until you release the button.
• A long press on O (or M depending on your combination choice during
association process) will dim down your associated device (light, roller
shutter, etc.) until you release the button.
ON
Up
®
Down
OFF
Carful : It is not possible to cumulate a MONO and DUO profile on the same button.
Repeat the association process as many times as you want to associate a new
device.
DISASSOCIATION
The disassociation deletes any association relationship between the device and
the remote control's buttons. However, your device will remain in your remote
control's Z-Wave network.
®
Push 3 times (quickly) on the P button.
1
The LED blinks in blue
2 Place the device you want to disassociate in "Learning" Mode, within 10
seconds. To do so, please refer to your device's user guide.
The LED blinks in green to confirm the disassociation
INCLUSION
Inclusion allows adding a device into the remote control's Z-Wave
without associating it with any buttons of the remote control. The remote control
will then not be able to control your added device.
Push 3 times (quickly) on the O button.
1
The LED blinks in blue
Place the device you want to add in "Learning" Mode, within 10 seconds. To do
2
so, please refer to your device's user guide.
The LED blinks in green to confirm the inclusion
ON
Up
Down
OFF
® network,
