LA5597 IR Transmitter can intelligent control home electrical IR device using in home
automation system which can connect wireless AM433Hz signals with wireless IR signals.
Through 5597 IR Transmitter, users can control all the devices which can use IR remote
controllers like TV, air conditioner, electric curtain etc. Its wireless communication is stable, fast
and it does not need any wire. Installing it, you just need to bind relevant IR controlled devices. It
is very convenient.
1.0- System Feature
•
Learn two IR signal from any IR device (TV, air conditioner etc) and two wireless control
panel signal.
•
Double color LED indicate learning status
•
One learn mode and one test mode

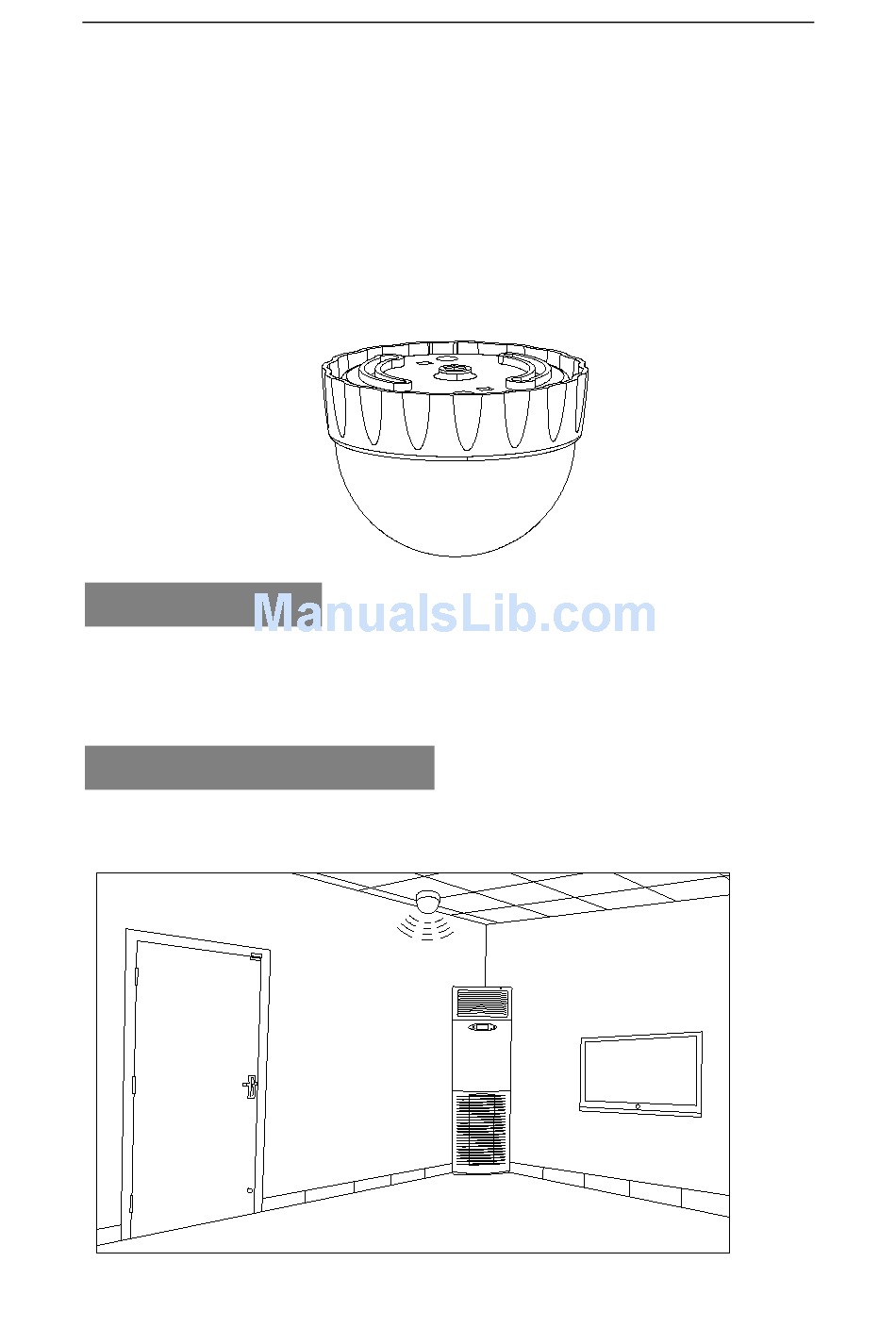

2.0 – Location of components
•
Do not site an IR Transmitter where its field of view may be obstructed (e.g. by curtains.)
•
Ensure the IR signal of IR transmitter cover with IR electrical device(TV, air condition etc)
LA5597- IR Transmitter
Operation Manual
LA5597 IR Transmitter Operation Manual
24°
- 1 -
Advertisement
Summary of Contents for TECHVIEW LA5597
- Page 1 LA5597- IR Transmitter Operation Manual LA5597 IR Transmitter can intelligent control home electrical IR device using in home automation system which can connect wireless AM433Hz signals with wireless IR signals. Through 5597 IR Transmitter, users can control all the devices which can use IR remote controllers like TV, air conditioner, electric curtain etc.
-
Page 2: Section 1 - Using Ir Transmitter
Section 1 - Using IR Transmitter 4.0 - How to register IR Electrical Device To learn IR signal from IR remote control to LA5597 IR Transmitter 1. Signal A : Press the LEARN button 1 time, the LED becomes Red LED light Press LEARN Red indicating learn mode for IR signal A. - Page 3 LA5597 IR Transmitter Operation Manual 4.1 - How to register Control Panel H Set home automation controller entering to learning status as follow: Set home automation controller entering to learning status as follow: POWER [SET] [ACTION] [RESET] Home Automation Control Panel ·System is in Day mode.
-
Page 4: Output Device
LA5597 IR Transmitter Operation Manual To learn wireless signals from LA5597 IR transmitter to LA5592 Home Automation Controller 1.Signal A : Press the LEARN button 3 times, the LED becomes Red and flashing indicating learn mode for Red LED flash Press LEARN button signal A. - Page 5 LA5597 IR Transmitter Operation Manual Test IR Transmitter via controller ·System is in Day mode. 08:00 01- Jan ·Press [SET] to go into Program Mode 08:00 01- Jan ACT INFO SETUP ·Rotate [SET] to select INFO ? 08:00 01- Jan...
-
Page 6: Section 2 - Troubleshooting Guide
LA5597 IR Transmitter Operation Manual 5.0- How to enter to Test mode You can test the two IR signals which you had learnt into Press TEST button Orange LED flash the transmitter. Test mode last out 15 seconds. for 3 seconds Pressing TEST button for 3 seconds, the led flashing orange indicates enter to test mode. -
Page 7: Section 3 - Specifications
LA5597 IR Transmitter Operation Manual Section 3 - Specifications Wireless IR transmitter Double color LED : Learn mode, Test Mode and Transmission indication IR LED : 38K Hz IR transmitter, range 10 meters Transmission Frequency : AM 433MHz Wireless Transmission Range : 100 meters (line of sight) Power Supply : 12V AC 50Hz max load 0.5A...
