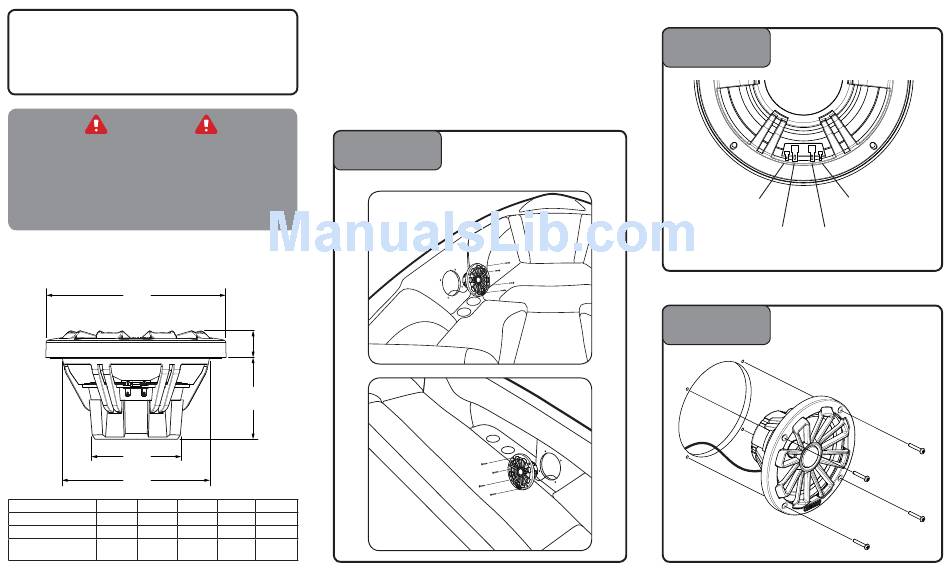

MBQuart NK1-116 Quick Start Installation Manual

Congratulations on your choice of a MBQuart speaker.
This "Quick Start" Installation guide is meant to help
you complete a basic installation. For more detailed
information on system setting, speaker and subwoofer
confi guration, and full specifi cations by model, visit our
website at mbquart.com
CAUTION
Always consider consulting a professional audio installer
before installing new speakers. Many manufacturers locate
speakers behind interior panels that require special tools to
remove. Be careful and take your time.
If you are using the speaker wire supplied with your new
speakers make sure that you run the speaker wires only
through safe areas. Do not let speaker wire make contact with
metal edges or hot engine components.

Speaker Dimensions

A
D
E
A B
6.58"(174) 3.02"(77) 1.14"(29)
NK1-116 / NK1-116L
8.46"(215) 3.58"(91) 1.26"(32)
NK1-120 / NK1-120L
9.69"/6.86" 3.50"(89) 1.20"(30)
NK1-169 / NK1-169L
(246/174)

Before you start

It's a good idea to confi rm that you have purchased the
correct size speakers to fi t your application. If you have any
reservations about being able to complete the installation
yourself, we recommend contacting a professional.

Speaker Mounting Location

Choose a suitable
mounting location
C
B
C D E
3.58"(91) 5.59"(142)
5.20"(132) 7.09"(180)
3.87"(99) 8.58"/5.74"
(218/147)
If you are replacing an older or inferior speaker, the
location is chosen for you. Make sure the speaker fi ts
properly in the hole for the old speaker.
If you are creating your own new location, you must be
careful to verify that there is suffi cient depth to mount the
speaker.
Wiring
Route signal and
Carefully select a route for the speaker wires. If
using existing speaker wires, confi rm that the wire
illumination wires
is in good shape and not shorted. In the case of an
illuminated model, route a positive and negative wire
from a switched +12V source.
Illumination Illumination
Negative
Audio Signal Audio Signal
Negative Positive

Speaker installation

Confi rm fi t and
Once you are sure the speaker fi ts and has
adequate clearance, connect the positive and
mount speaker
negative wires to the proper terminals. Securely
screw the speaker into place.
Positive
