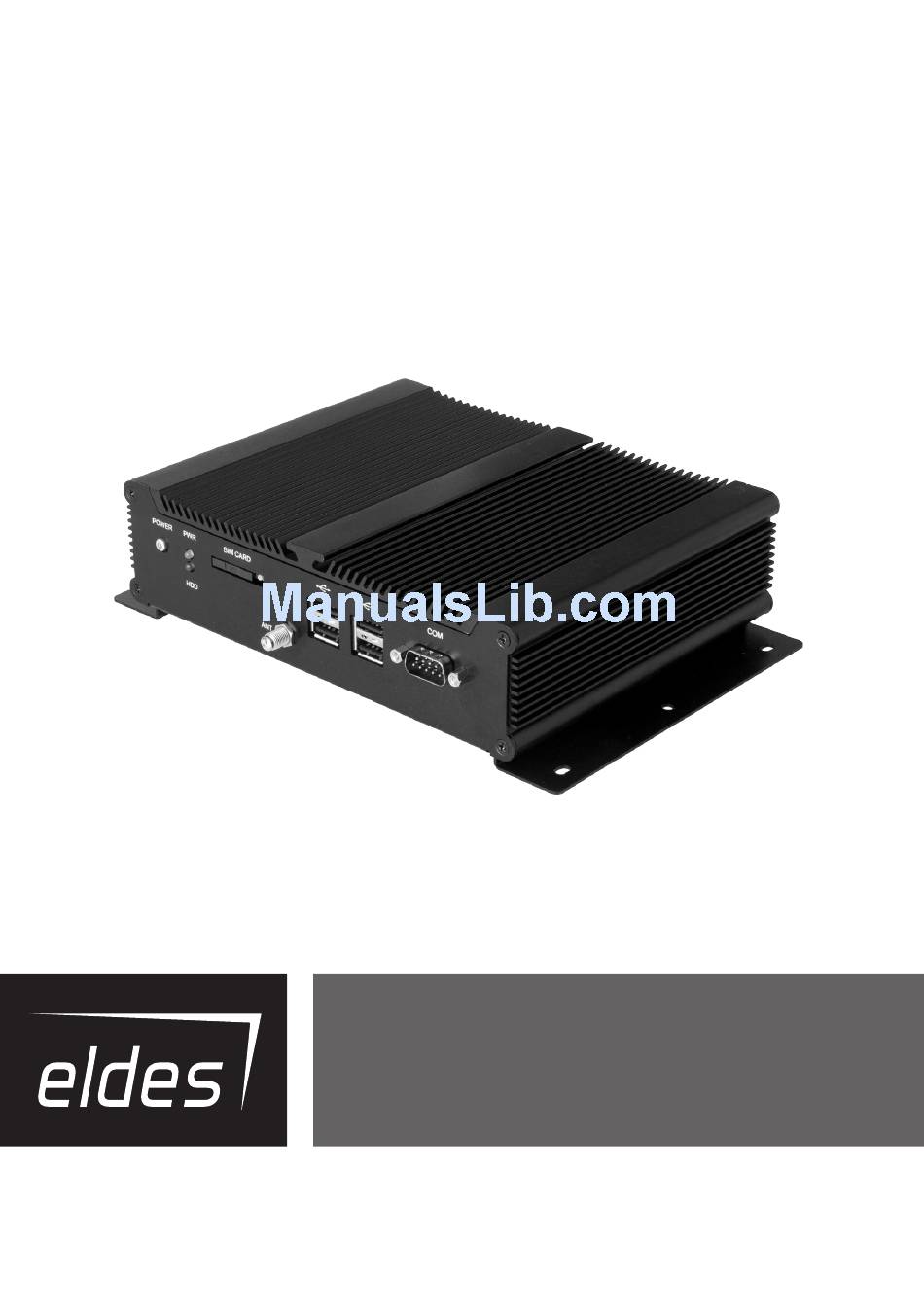

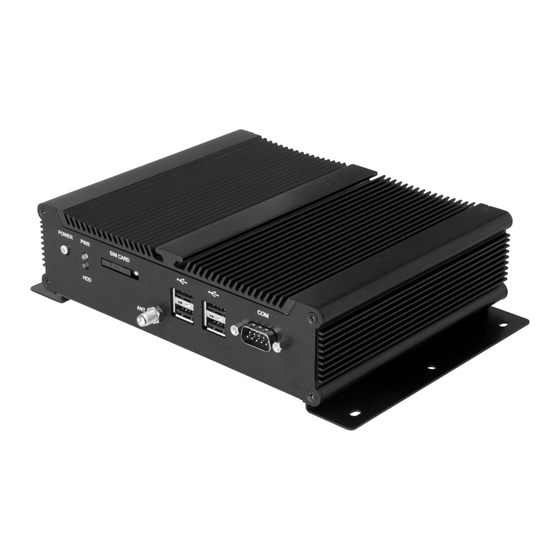

- Page 1 ESR100 ELDES DIGITAL RECEIVER...
-
Page 2: Table Of Contents
QUICK START GUIDE ................................3 2. RECOMMENDED NETWORK DIAGRAM............................5 3. TOOLBAR....................................6 4. ADMIN ......................................6 LOWER TOOLBAR ..................................7 6. DEVICES ....................................8 CLIP DATA BASE ..................................10 8. MONITORING ..................................11 9. GSM ......................................12 10. RECEIVER ....................................13 11. PASSWORD RESET .................................14 User manual ESR100 v.1.1... -
Page 3: Quick Start Guide
Before you begin using ESR100 you will have to preform certain system configurations, depending on your network topology or personal preferences. This can be done by connecting ESR100 to your local area network (LAN) or a personal computer and using an Internet browser. For best security and user experience please use a modern web-browser like: Chrome, Firefox, Opera, IE9+. - Page 4 You should be redirected to the Login window, where you can enter your default user name and password , see picture below. After the successful login procedure, you will be able to start operating the device. For more information and control options, please refer to About section of the device web-interface. User manual ESR100 v.1.1...
-
Page 5: Recommended Network Diagram
We do not recommend to connect ESR100 directly to WAN. However, this possibility is available. In this case we recommend to turn off remote access on ETH0 or ETH1 (depending to witch WAN is connected) in web interface section Receiver. -
Page 6: Toolbar
Admin - opens up the drop-down list, which allows you to logout or change admin credentials, like the username and password. To change current login credentials you have to enter your current username and password in specified fields. Then you need to enter your new username and password, and click Change button afterwards. User manual ESR100 v.1.1... -
Page 7: Lower Toolbar
System load % - Specifies how much system resources are currently used. Memory usage % - Specifies current memory usage of the system. NOTE: The lower toolbar is fixed at the bottom of the window and appears in all sections. User manual ESR100 v.1.1... -
Page 8: Devices
CLIP DB database. For more information see chapter 6. CLIP DB. FW Version – Current firmware version of connected devices. GSM Level - GSM signal strength level. User manual ESR100 v.1.1... - Page 9 USB3 - USB port USB4 - USB port ATTENTION: If you want ESR100 to display event times correctly, you must set the Time Settings. The time settings can be found in Receiver menu. Delete button You can delete a certain device from the database by clicking the Delete button next to it. After the button is pressed, a message will pop up, asking you to confirm your action.
-
Page 10: Clip Data Base
If the CLIP Data Base parameter is turned ON and SMS/CSD channel is used for data transmission, the DEVICES → Last Channel Value field will display a username assigned to the telephone number in CLIP Data Base. User manual ESR100 v.1.1... -
Page 11: Monitoring
In order to save edited options, you must click the check-box, located at the end of each entry in the table. After you click the check-box, the Submit Selected button will be highlighted and you will be able to save you parameters. User manual ESR100 v.1.1... -
Page 12: Gsm
GSM section lets you check the modem status and configure CSD parameters. In order to use the GSM section, you will need to insert a SIM card with disabled PIN code request into ESR100. You can disable the PIN code by placing the SIM card in your mobile phone and following the appropriate menus on your mobile phone. -
Page 13: Receiver
If the network settings have been changed and the user does not log on within the next 15 minutes, the network settings will revert to default state (see pic. 32). TCP/UDP Port TCP/UDP Port is used for exchanging data with security systems such as Eldes EPIR3 and ESIM364. User manual ESR100 v.1.1... -
Page 14: Password Reset
Submit button. The default Timezone value is UTC. There is also an option to specify the NTP server for time synchronization. If ESR100 is used in closed local network and can’t access NTP server, please specify your own local NTP server. - Page 15 User manual ESR100 v.1.1...
- Page 16 Made in the European Union www.eldes.lt...
