Possum HC2006 Installation Instructions

Sero! telephone

Hide thumbs Also See for HC2006:

Download this manual

Enlarged version

PO Box 31

Silver Grove, KY 41085

Phone: 859-240-2817

Fax: 859-586-0619

customerservice@breakboundaries.com

www.breakboundaries.com

HC2006

Sero! Telephone

Installation & Fitting Instructions

HC2006-605 Installation Instructions

Issue: 01

Part Number: 034-689

Page 1

Need help?

Do you have a question about the HC2006 and is the answer not in the manual?

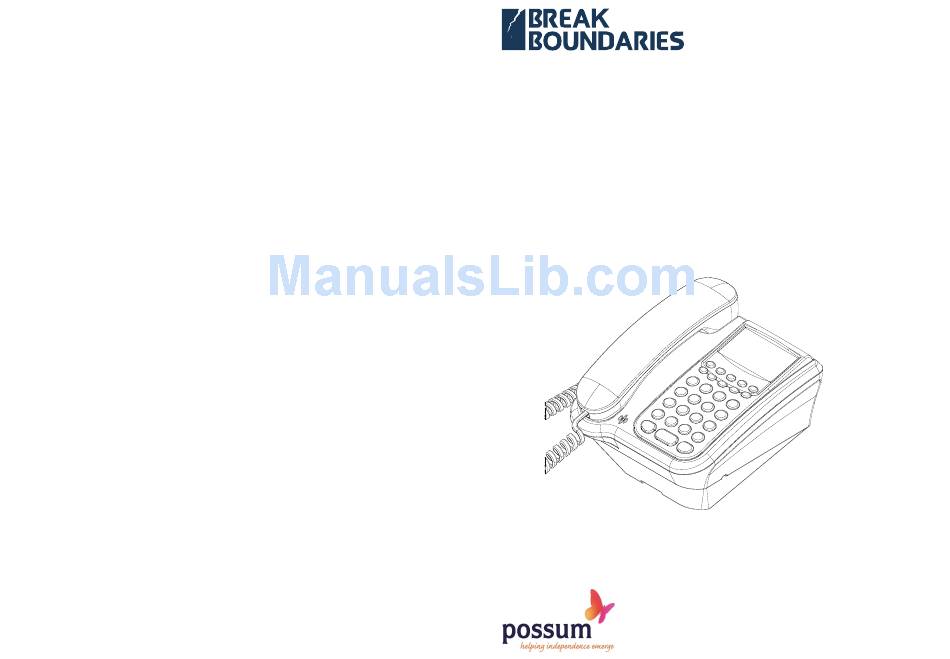

Page 1 Silver Grove, KY 41085 Silver Grove, KY 41085 Phone: 859-240-2817 Phone: 859-240-2817 Fax: 859-586-0619 Fax: 859-586-0619 customerservice@breakboundaries.com customerservice@breakboundaries.com www.breakboundaries.com HC2006 Sero! Telephone Installation & Fitting Instructions HC2006-605 Installation Instructions Issue: 01 Part Number: 034-689 © Possum Limited, July 2008 Page 1...
Page 2 KEYPAD / BATTERY COMPARTMENT REMOVAL DETAILS WALL MOUNTING DRILLING TEMPLATE STEP 1 Insert removal key into each slot as shown, until keypad catch ‘clicks’ and keypad section lifts slightly. SIDE VIEW REAR VIEW STEP 2 Pivot keypad section up from rear of unit by hand and then slide it free from the main body of the telephone.
Page 3 WALL MOUNTING INSTRUCTIONS BATTERY INSERTION DETAILS 1. MARKING OUT Use page 7 of this guide as a template. When positioning the telephone make sure that the screws avoid all utilities. STEP 1 Insert the 5 off ‘AAA’ size 2. CONCRETE AND BRICK WALLS. Ni-MH Rechargeable batteries (Part No.355-038) Use No.
Page 4 CONNECTION DETAILS FITTING MOUNTING BASE CHANNEL FOR FITTING FOR ROUTING CABLE VERTICAL MOUNTING LINE LINE NOTE PHONE LINE Remove all bung feet from underside of telephone VIEW ON UNDERSIDE and re-fit them to the mounting base. Clip mounting base into position. (See mounting instructions for full details) HEADSET HANDSET...
