The HH4SE, HH6SE and HH8SE have been exempted under the clean air act 1993 as suitable for
use in smoke control areas when burning seasoned wood logs. The stove contains a factory
fitted secondary air stop which ensures that the secondary air cannot be closed further than:
5mm open for the 4SE, 9mm open for the 6SE and 4mm open for the 8SE. Please carefully read
the instructions on wood burning contained in this manual, these MUST be adhered to at all
times. Please see page 16 of the manual for further reference to the clean air act 1993
Please hand these instructions to the stove user when the installation is complete. Leave the stove ready for
operation and instruct the user in the correct use of the appliance and operation of controls.
Important: – This product must be installed by a suitably qualified installer.
PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY!
For safety reasons it is essential that your stove is correctly installed and operated. Hothouse cannot
accept responsibility for any fault or consequential problems arising through incorrect installation or
operation.

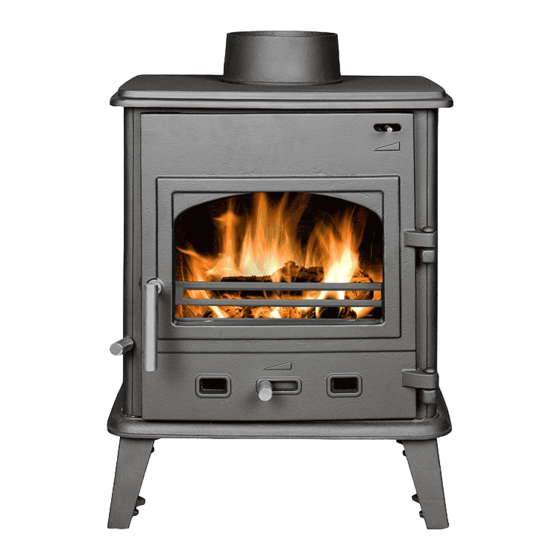

HH4SE,HH6SE & HH8SE
DEFRA
SMOKE EXEMPT
FREESTANDING STOVE
Installation and Operating
Instructions
Please fix label with serial number and stove
type here before putting manual into stove
Hothouse Inspired Products Ltd
Express Trading Estate
Bolton BL4 9TN
technical@hothouseproducts.co.uk
Imperial Point
Stonehill road
Farnworth
Advertisement
Table of Contents
Related Manuals for HotHouse HH4SE
Summary of Contents for HotHouse HH4SE
- Page 1 Please fix label with serial number and stove type here before putting manual into stove The HH4SE, HH6SE and HH8SE have been exempted under the clean air act 1993 as suitable for use in smoke control areas when burning seasoned wood logs. The stove contains a factory fitted secondary air stop which ensures that the secondary air cannot be closed further than: 5mm open for the 4SE, 9mm open for the 6SE and 4mm open for the 8SE.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Section Page No 1. List of Components 2. Component Identification and Assembly 3. Installation Instructions Warnings and important safety information 4 Installation Information Chimney Ventilation Flue Draught Connection to Chimney Material Clearances Hearths Commissioning & Handover 5. Technical Data 6. -
Page 3: List Of Components
Tool Ash Pan Flue Collar Flue Collar fixing screws & Washers Legs Stove Operating Glove Touch up paint Warranty Card Fig 2 – HH4SE Stove Assembly and controls Fig 3 – HH6SE and HH8SE Stove assembly and controls HH468SE 25-07-12... -
Page 4: Component Identification And Assembly
2. Component Identification and Assembly Your Hothouse Stove comes packed in a cardboard box. Carefully remove any straps and remove all cardboard and any plastic packaging, open the door and remove all the contents. See List of Components section and check contents carefully. -
Page 5: Installation Information
Keep all ventilation clear and free of blockage. Health And Safety Precautions Handling Adequate facilities must be available for unloading and site handling. Hothouse Cassette Stoves are very heavily built so always ask for assistance when lifting and siting the stoves. Fire Cement Some types of fire cement are caustic and should not be allowed to come into contact with the skin. -
Page 6: Connection To Chimney
Hearths: Hothouse stoves require a 125mm thick non-combustible constructional hearth beneath them to protect the building, this can include any solid non-combustible floor. A non-combustible superimposed hearth forming an apron of at least 225mm at the front of the stove and 150mm on either side must also be provided. The superimposed hearth must not be less than 12mm thick and must have a clearly defined edge (change of level) to discourage placing of any combustible materials on or partially over it. -
Page 7: Commissioning & Handover
Advise the user on what to do should smoke or fumes be emitted into the room from the stove – see Safety Notes section. The user should be warned that they MUST use a suitable fireguard in the presence of children, aged and/or infirm persons. 5.0 Technical Data HH4SE HH6SE HH8SE Technical Specifications (Wood) -
Page 8: Air Controls
Multifuel Grate Your Hothouse Stove is fitted with a rotary style grate, which is operated from the front of the stove via a riddle rod. Use the “Hook” end of tool to operate the riddling system. This rotary grate is located in the centre of a cast iron flat bed with suitable air slots that assist the burning of most fuels. -
Page 9: Fuels
Fuels Wood Burn only seasoned timber products with a moisture content of less than 20%. To obtain this moisture content allow cut wood to dry for at least 12-18 months. Do not burn construction timber, treated or painted wood, manufactured board or pallets. Solid Fuel Burn only manufactured smokeless fuels listed as suitable for use in a closed appliance. -
Page 10: Shutting Down
with the air controls fully open for a prolonged period as it will cause over firing and may result in smoke being produced. If there is insufficient burning material in the fire bed to light a new Refuelling on to a low fire bed fuel charge, excessive smoke emission can occur. -
Page 11: Stove Dimensions
If the wall is becoming hot, move the furniture away. Ensure that the Fire Brigade can gain access to your roof space in order to check this area for signs of fire spread. 8.0 Stove Dimensions Fig. 3 – HH 4SE,6SE,8SE Stove Stove HH4SE 5” HH6SE 5” HH8SE 6”... -
Page 12: Frequently Asked Questions
A call out charge will apply if our engineer attends any stove problem that is not related to product failure. 6 Where can I get spare parts? Your local Hothouse Stove retailer will be pleased to supply spare parts and to provide any other information you require. -
Page 13: Legs
10. HH4SE Spare Parts List and Codes Component HH04SE Component HH04SE Door Glass Y1HDF04D01E Ashpan Y1HDF04D28E Glass Brackets and Screws Y1HDF04D02E Glove Y1HD29E Door Handle assembly Y1HHF04D03E Ashpan Tool Y1HD31E Coalcatcher Y1HDF04D04E Door Y1HHF04D32E Back Plate/fireboard Y1HDF04D05E Primary Air Control including handle... -
Page 14: Hh 6Se Spare Parts List & Codes
11. HH6SE Spare Parts List and Codes Component HH6SE Component HH6SE Door Glass Y1HDF06D01E Collar Y1HD23E Glass Brackets and Screws Y1HDF06D02E Ashpan Y1HDF06D28E Door Handle assembly Y1HHF06D03E Glove Y1HD29E Coalcatcher Y1HDF06D04E Ashpan Tool Y1HD31E Back Plate/fireboard Y1HDF06D05E Door Y1HHF06D32E Side Plate Left/fireboard Y1HDF06D06E Primary Air Control including handle Y1HHF06D33E... -
Page 15: Hh 8Se Spare Parts List & Codes
12. HH8SE Spare Parts List and Codes Component HH8SE Component HH8SE Door Glass Y1HDF08D01E Collar Y1HD24E Glass Brackets and Screws Y1HDF08D02E Ashpan Y1HDF08D28E Door Handle assembly Y1HHF08D03E Glove Y1HD29E Coalcatcher Y1HDF08D04E Ashpan Tool Y1HD31E Back Plate/fireboard Y1HDF08D05E Door Y1HHF08D32E Side Plate Left/fireboard Y1HDF08D06E Primary Air Control including handle Y1HHF08D33E... - Page 16 Your local authority is responsible for implementing the Clean Air Act 1993 including designation and supervision of smoke control areas and you can contact them for details of Clean Air Act requirements Hothouse Inspired Products Ltd Imperial Point Express Trading Estate...
