Page 1: User Instructions
User instrUctions TV-Dex... -
Page 3: Table Of Contents
Your new tV-Dex . . . . . . . . . . . . . . . . . . . -
Page 4: Package Contents
PaCkage Contents user manual tV-controller Box 1: mini usB power supply Box 2: lanyard Box 3: a. 3.5 mm jack to 3.5 mm jack cable b. 3.5 mm jack to phono cable Box 4: a. TV-Base b. SCART adaptor... -
Page 5: Your New Tv-Dex

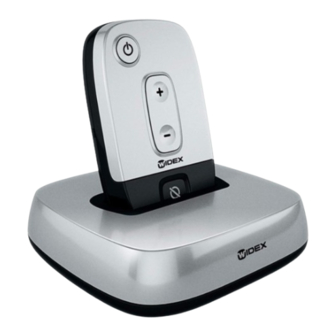

Your new tV-Dex We hope you will be pleased with your deX™ tv- Controller and tv-base . these user instructions ex- plain how these units should be operated . Please read this booklet carefully before you start using the units . -
Page 6: Tv-Controller
tV-Controller the controller is provided with four keys: 1 . transmission on/off 2 . room off 3 . Volume up 4 . Volume down... -
Page 7: Tv-Base
tV-Base on the back of the base you will find the following inputs: 1 . Power 2 . tV 3 . audio on the underside of the base there is a switch with a choice of two settings: 1.HEARING AID 2.HEARING AIDS 1 . -
Page 8: Light-Emitting Diodes
light-emitting DioDes there are two light-emitting diodes (leds) on the controller . 1 . constant green light: transmission 2 . changing from green to red: transmission off 3 . constant red light: room off active 4 . flashing red and green light: battery charging... -
Page 9: Getting Started
getting starteD you can skip steps 5+6 if you only wish to transmit from the tv, and steps 3+4 if you only wish to trans- mit from an audio source . connecting the units: Connect the mini-usb power supply unit to the base . - Page 10 3a . Connect the jack to phono cable to the base . 4a . Plug the two phono connectors at the other end of the cable into audio out on the tv . Please refer to the user guide for your tv for further details .
- Page 11 if the tv has no audio out, a sCart adaptor should be used: 3b . Connect the phono connectors to the two terminals on the included sCart adaptor (red to red and white to white) . 4b . Plug the sCart adaptor into the tv´s sCart socket .
- Page 12 5 . Plug the jack to jack cable into the audio input on the base . 6 . Connect the other end to the audio source (e .g . a stereo system) . PoWer tv audio...
- Page 13 7 . Place the controller in the base and allow it to charge for eight hours (the first time) .
-
Page 14: When Using More Than One Tv-Base
when using more than one tV-Base if you only have one base, this base is automatically selected the first time you charge the controller in the base . if you have more than one base, you can change between these by placing the controller in the base you wish to use for approx . -
Page 15: Usage
usage We recommend that you hang the controller around your neck when in use, on the lanyard provided . Up to 10 m... - Page 16 Place the controller in the plastic holder at the end of the lanyard as illustrated . the breakaway buckle of the lanyard must be posi- tioned at the back of your neck (1) .
-
Page 17: Transmission
transmission with either tV or audio connected • Press the transmission on/off key on the control- ler once to start transmitting from the connected source . an acoustic signal will sound in your hear- ing aids, and the transmission led will turn green . •... - Page 18 if you carry your controller around with you and move outside the operating range, transmission will be interrupted and your hearing aids will switch to the master program . the led will flash at slow in- tervals to indicate that transmission has been inter- rupted .
-
Page 19: Adjusting The Volume
aDjusting the Volume Press the volume up key to raise the volume of the transmitted tv or audio sound . Press the volume down key to lower the volume . DoWn mute you can mute the transmitted tv or audio sound on the tv or audio source . -
Page 20: Recharging The Battery
. to recharge the battery, place the controller in the base for approximately 4 hours . you can also recharge the battery using an appro- priate usb power supply supplied by Widex . Contact your hearing care professional if the bat- tery needs replacement . -
Page 21: Troubleshooting
trouBleshooting Problem Potential cause solution your tv- the battery is Charge the battery Controller exhausted does not work base has not been Place the tv- selected Controller in the tv-base for at least 5 seconds the battery needs Contact your hearing replacement care professional the green... - Page 22 Problem Potential cause solution transmission tv-Controller battery Charge the tv- interrupted is exhausted Controller tv-Controller is out move within of operating range operating range When trans- monaural/binaural Check that the switch mitting, parts switch on the is in the correct of the sound underside of the position .
-
Page 23: Caring Tips And Warnings
. in case of ingestion, contact a physician immedi- ately . • do not use the tv-deX units on aircraft or in hos- pitals without permission . - Page 24 • do not use the tv-deX units in mines or other ar- eas with explosive gases . • although the tv-deX units have been designed to comply with the most stringent international electromagnetic compatibility standards, the possibility cannot be excluded that they may cause interference with other equipment, such as medical devices .
-
Page 25: Safety Warning
. Widex strongly recommends that you always use a power supply that is delivered by your Widex dis- tributor to ensure safe and efficient use of your tv- deX . -
Page 26: Regulatory Information
Widex a/s declares that this tv-Controller and tv-base are in compliance with the essential requirements and other relevant provisions of directive 1999/5/eC . a copy of the declaration of Conformity can be found at: http://www . w idex .com... - Page 27 federal communications commission and industry canada statement fCC id: tty-tvb fCC id: tty-tvC iC: 5676b-tvb iC: 5676b-tvC this device complies with part 15 of the fCC rules and with rss-210 of industry Canada . operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired...
- Page 28 Canada rf radiation exposure limits set forth for an uncontrolled environment as per iC rss-102 issue 3 . Changes or modifications to the equipment not expressly approved by Widex could void the user’s authority to operate the equipment .
- Page 29 electrical and electronic equipment (eee) contains materials, components and substances that can be hazardous and present a risk to human health and the environment when waste electrical and electronic equipment (Weee) is not handled correctly . do not dispose of hearing aids, hearing aid acces- sories and batteries with ordinary household waste .
- Page 30 (labels/ifu/etc .) symbol title/Description manufacturer the product is produced by the manufacturer whose name and address are stated next to the symbol . if ap- propriate, the date of manufacture may also be stated .
- Page 31 symbol title/Description keep dry the product must be protected from moisture and/or the product must be kept away from rain lower limit of temperature the lowest temperature to which the product can be safely exposed . upper limit of temperature the highest temperature to which the product can be safely exposed .
- Page 32 symbol title/Description ce mark the product is in conformity with the requirements set out in european Ce marking directives . alert the product is identified by r&tte directive 1999/5/eC as an equipment Class 2 product with some restrictions on use in some Ce member states . c-tick mark the product complies with emC and radio spectrum regulatory requirements for products supplied to the...
- Page 36 6, dK-3540 lynge, denmark www . w idex . c om manual no .: É[5qr0q3|;;;a;h] 9 514 0130 001 #02...
