Page 2

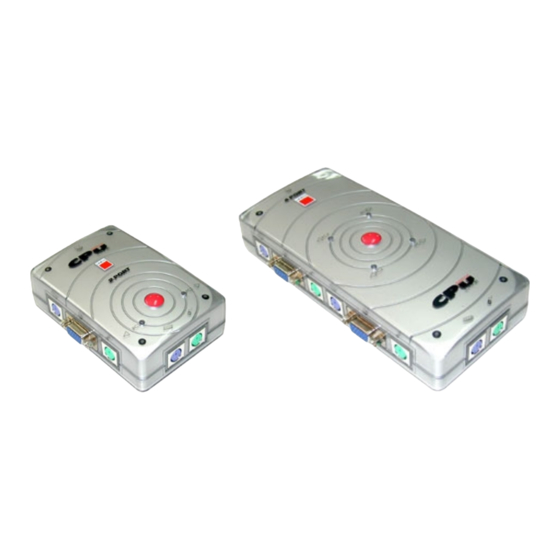

3. This manual Please read this manual thoroughly, and follow the installation and operation procedures carefully to prevent any damage to the LINDY CPU Switch unit, and/or any of the devices connected to it. Der Lieferumfang des LINDY CPU Switch LITE besteht aus: 1.
Page 3
Short Installation Manual Switch off all devices to be connected. Connect the CPU Switch LITE to the computers and to your keyboard, monitor and mouse using the appropriate cables. Switch on the monitor followed by the computers. Don’t switch the channels during boot up of the connected computers.
Connect the keyboard, monitor and mouse directly to sockets of the LINDY CPU Switch LITE. If your keyboard has a 5-pin DIN connector you can use a PS/2 adaptor (LINDY Art No. 70129) in most cases this adaptor will work.
This PC port is selected but the PC is powered OFF Direct Port Selection / Keyboard Hot Key Commands: You can also conveniently command the CPU Switch LITE to switch the CPU port using simple key sequences. To send commands to the KVM switch the SCROLL LOCK key must be pressed twice within 2 seconds.
LINDY’s control. Also LINDY will not be responsible for any loss, damage or injury arising directly or indirectly from the use of this product. LINDY’s total liability under the terms of this warranty shall in all circumstances be limited to the replacement value of this product.
Page 7
Deutsches Benutzerhandbuch Überblick Der LINDY CPU Switch LITE erlaubt die einfache und komfortable Bedienung und Steuerung von mehreren Computern von nur einem Eingabeplatz aus. Ihre Maus und Tastatur sollten aktuelle Modelle mit PS/2 Anschluss sein. Mäuse mit 9 poligem oder USB-Anschluss werden nicht unterstützt.
Page 8
Sie können auch bequem von der Tastatur aus die Ports bzw. Rechner anwählen. Dazu drücken Sie zweimal kurz hintereinander die ROLLEN-Taste. Zur Bestätigung sendet der CPU Switch einen Signalton. Drücken Sie dann enteder die Ziffer für den Port, S für Autoscan oder Cursor-Taste RAUF oder RUNTER:...
Page 9
Oberseite des CPU Switch aufgedruckten Symbole sowie die farbliche Kodierung für die Maus- (GRÜN) und Tastauranschlüsse (LILA). Der LINDY CPU Switch bezieht seinen Strom über die Tastaturports der angeschlossenen Computer. Er benötigt daher kein Netzteil. Sollte ein Computer, z.B. ein Mini-Notebook, nicht in der Lage sein genug Strom zu liefern, so müssen die weiteren angeschlossenen Rechner...
Page 10
Manuel en français Introduction Le LINDY CPU Switch LITE permet le contrôle de plusieurs unités centrales PCs à partir d’un seul écran, clavier et souris. Le clavier et la souris du PC doivent être tous deux de type PS/2. Avec ce produit, vous pourrez éviter l’achat de claviers, souris, moniteurs supplémentaires.
Page 11
Ce port PC est sélectionné mais le PC n’est pas allumé Sélection de Ports Directe / Commandes de Raccourci Clavier: Vous pouvez également commander le CPU Switch LITE pour la commutation entre les ports suivant une séquence de touches clavier. Pour envoyer une commande clavier au commutateur, appuyez deux fois sur la touche ARRET DEFIL en moins de deux secondes.
Page 12
3. Certaines souris, comme les souris radio sans fils, les souris 5 boutons ou certaines souris à molettes utilisent un signal propriétaire différent (comme Logitech). Bien que LINDY ait vérifié minutieusement la compatibilité, il se peut que certaines souris ne fonctionnent pas.
CPU Switch Lite. Se la vostra tastiera ha un connettore di tipo AT (5 poli DIN) potete provare ad utilizzare un adattare PS/2-AT (Lindy art. 70129). Nella maggior parte dei casi questa soluzione funziona senza problemi. Mouse con connettori seriali o USB non sono supportati e non possono essere utilizzati.
E’ possibile anche selezionare direttamente il PC da utilizzare tramite una semplice sequenza di tasti . Per inviare comandi al CPU switch premete due volte in sequenza (entro 2 secondi) il tasto Blocco Scorr (Scroll Lock). Sentirete un bip che conferma l’ingresso in modalità comandi.
Page 15
è un cavo di qualità sufficientemente elevata per un corretto funzionamento con il CPU Switch Lite (I cavi di alta qualità di solito hanno un diametro di 8 mm o più). Il CPU Switch Lite non supporta cavi di lunghezza superiore a 5m.
