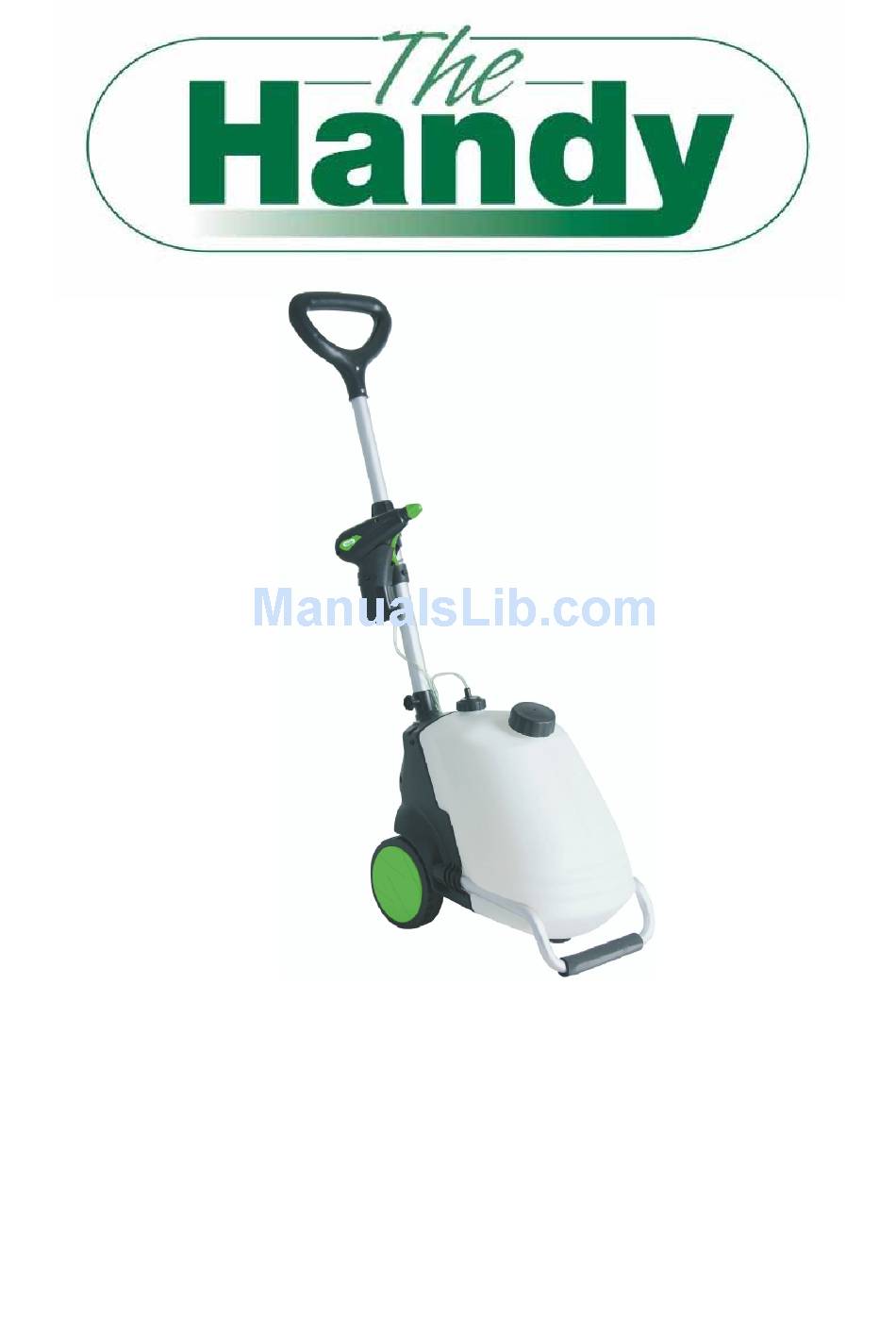

- Page 1 OPERATOR’S MANUAL AND PARTS LIST CORDLESS GARDEN SPRAYER - THCGS Spares & Support: 01793 333212 www.thehandy.co.uk Before use please read & understand this manual, paying particular attention to the safety instructions. 07/06/2012 Page 1...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS MAJOR PARTS LIST OF PARTS SUPPLIED SPECIFICATION ASSEMBLY MAINTENANCE AND STORAGE PARTS DIAGRAM AND LIST EC DECLARATION OF CONFORMITY Page 2... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Read and understand the owner’s manual and labels affixed to the garden sprayer. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for reference. • Use only with chemicals that are approved and recommended for use with a battery operated sprayer. -
Page 4: Major Parts
MAJOR PARTS Handle Telescopic Tube Spray Gun Fill Cap Tank Bracket Holster Wheel Connector Nozzle Trigger Safety Lock Pick-up Tube Spring Tube Extension Wand Nozzle Battery Charger Charge Control Indicator Charging Inlet Plug Connector for Charger Clip Filter Page 4... -
Page 5: List Of Parts Supplied
Extension Misting Wand. Battery Charger. Instruction Manual. Please recycle the cardboard packaging in a responsible way. Contact your local recycling centre for details. SPECIFICATIONS Model THCGS Battery Pack Voltage DC3.6V Battery Pack Capacity 1300 mAH Battery Type Lithium-ion Tank Capacity... -
Page 6: Assembly
ASSEMBLY Before using for the first time, the battery must be fully charged. • Insert the charger cable into the charging inlet on the sprayer. • Plug the battery charger plug into the ains power supply. • The ref LED indicator lights up to tell you that the battery pack is on charge. • The battery is fully charged when the red LED light indicator is no longer lit. -
Page 7: Maintenance And Storage
ASSEMBLY cont’d Two different nozzles are supplied with the machine. We suggest that the nozzle which is not in use, is screwed onto the telescopic tube, as shown below (Fig 7 & 8). Fig 7 Fig 8 MAINTENANCE AND STORAGE • Keep the safety switch in the lock position when not in use. • Do not switch between different chemicals without first cleaning the sprayer head thoroughly. -
Page 8: Parts Diagram And List
PARTS DIAGRAM Page 8 ... - Page 9 PARTS LIST No. Part No. Description QTY No Part No. Description QTY 1 TH154‐1 Screws ST4.2x13 4 45 TH154‐49 Left cover 1 2 TH154‐2 Bolt M4 2 46 TH154‐51 Small pole 1 3 TH154‐3 Handle lower cover 1 47 TH154‐52 Motor 1 4 TH154‐4 Inner tube 1 48 TH154‐53 Gearbox 1 ...
-
Page 10: Ec Declaration Of Conformity
- Electromagnetic Compatibility Directive 2004/108/EC - Machinery Directive 2006/42/EC Handy Distribution Ltd hereby declares that the product: Machine Type: Cordless Garden Sprayer Machine Model: THCGS Rating: 3.6V dc. 1300mAH Tank capacity: 11 litres Spray Distance: 4m Conforms to the main safety requirements of the EC Directives listed above. - Page 12 To order spare parts and see the complete range of garden machinery and garden equipment from Handy, visit: www.thehandy.co.uk Spares & Support: 01793 333212...
