Summary of Contents for CopterX CX 600E Pro

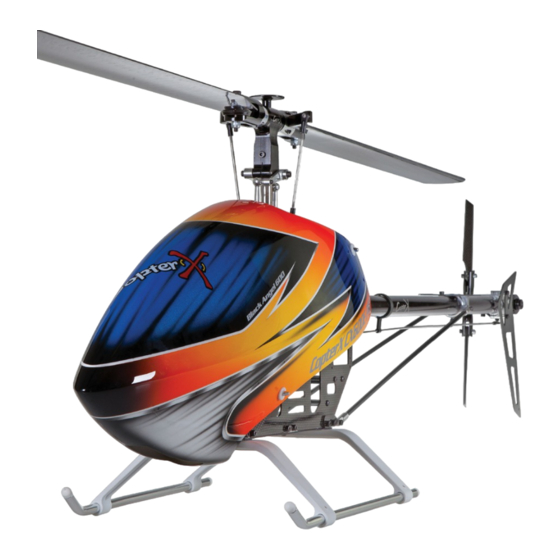

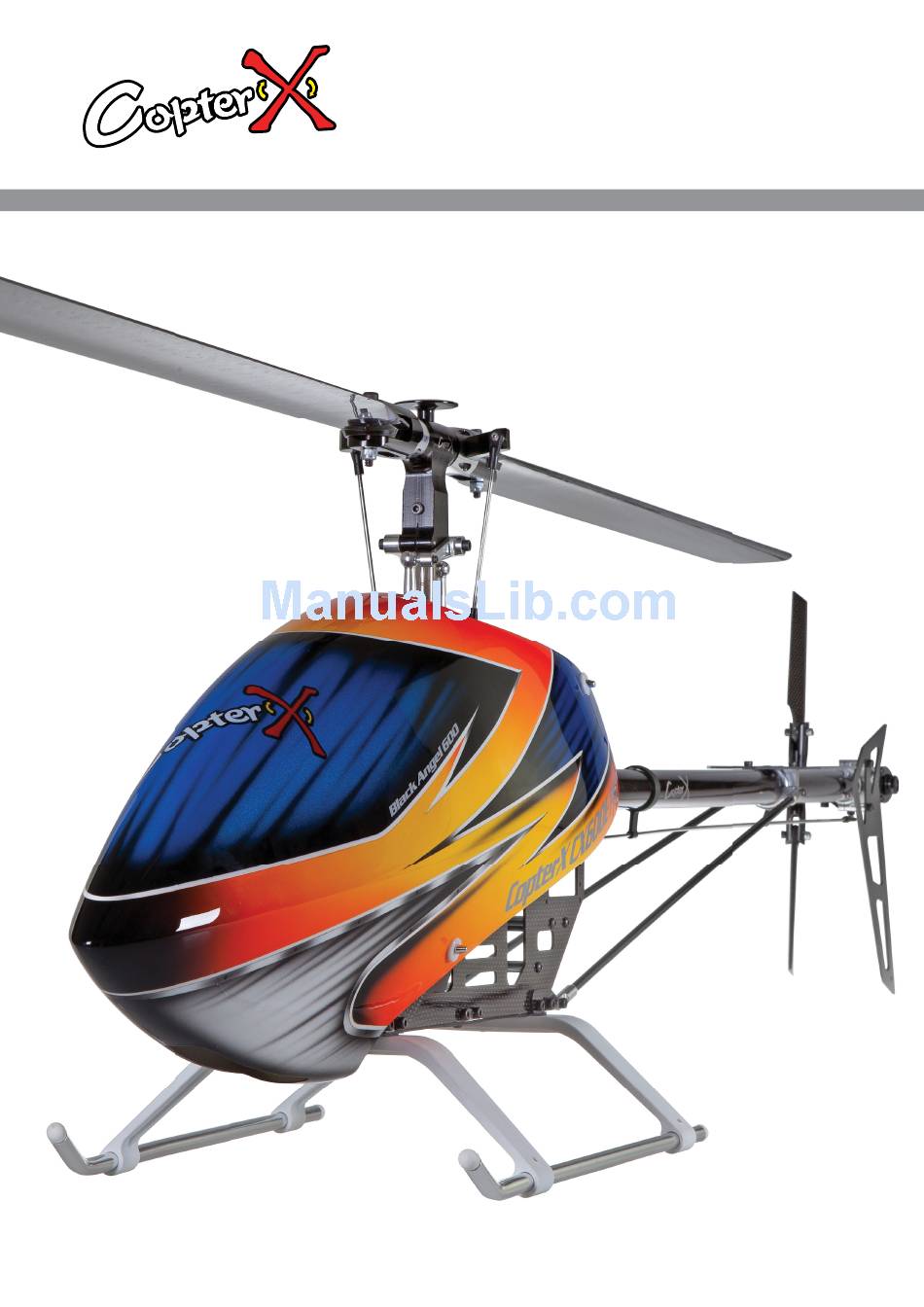

- Page 1 CX 600E Pro Flybarless Torque Tube Version Helicopter Kit INSTRUCTION MANUAL INSTRUCTION MANUAL www.copterx.com Copyright © 2013 KY MODEL Company Limited.
-
Page 2: Table Of Contents
CX 600E Pro Flybarless Torque Tube Version Helicopter Kit MENU Table of content Introduction Safety Guidelines Radio Equipment and Electronics Assembly Tools Requirement Main Rotor Assembly Frame Assembly Tail Rotor Assembly Tail Section Assembly Frame and Gear Assembly Complete Kit Assembly... -
Page 3: Introduction
Flybarless Torque Tube Version Helicopter Kit 1. Introduction Thank you very much for purchasing a CopterX CX 600E Pro flybarless helicopter. In order to be able to use this product safely, please read this manual before flying the helicopter. Please fly the helicopter safely observing all rules and manners after having fully understood the flight precautions, the unit’s capabilities, and the best way to fly it. -
Page 4: Radio Equipment And Electronics
CX 600E Pro Flybarless Torque Tube Version Helicopter Kit Prevent Moisture: R/C models are composed of many precision electrical components that is sensitive to moisture and water. Keep away from water sources or moisture related places. The introduction of moisture in any form can seriously damage the electrical parts of the model that can cause malfunction and premature flight patterns. -
Page 5: Main Rotor Assembly
CX 600E Pro Flybarless Torque Tube Version Helicopter Kit 5. Main Rotor Assembly Parts No. Name Spec. CX600BA-01-05 Feathering Shaft CX600BA-01-16 Metal Rotor Housing CX600BA-01-14 Metal Head Stopper CX600BA-01-18 Metal Blade Holder CX600BA-01-15 Main Shaft Spacer CX600BA-09-06 8X14X4mm Bearings Ø8xØ14x4mm... - Page 6 CX 600E Pro Flybarless Torque Tube Version Helicopter Kit Parts No. Name Spec. CX600BA-01-02 210 Degree Reinforced Swashplate CX600BA-01-13 Main Shaft CX600BA-01-19 Linkage Rod (Swash to Blade Grip) Ø2X58X10mm M3 Locknut M3X25...
-
Page 7: Frame Assembly
CX 600E Pro Flybarless Torque Tube Version Helicopter Kit 6. Frame Assembly M2.5X6 Parts No. Name Spec. CX600BA-03-17 Carbon Fiber Gyro Mount CX600BA-03-06 Metal Elevator Servo Mount CX600BA-03-11 Metal Main Shaft Bearing Block CX600BA-03-07 Metal Pitch / Aileron Servo Mount... - Page 8 CX 600E Pro Flybarless Torque Tube Version Helicopter Kit Parts No. Name Spec. CX600BA-07-02 Tail Boom Brace CX600BA-03-10 Frame Mounting Block CX600BA-03-12 Elevator Arm Set CX600BA-03-13 Motor Mount CX600BA-03-09 Front Sub Frame M2.5X6 NOTE: Bearing holder with larger diameter (14.95mm) faces outward, smaller diameter (14.5mm) faces inward...
- Page 9 CX 600E Pro Flybarless Torque Tube Version Helicopter Kit Parts No. Name Spec. CX600BA-04-02 Landing Skid CX600BA-04-03 Landing Skid Pipe M3X8 M3X35 M3X12 Ø3 washer...
- Page 10 CX 600E Pro Flybarless Torque Tube Version Helicopter Kit Parts No. Name Spec. CX600BA-03-01 Carbon Fiber & Metal Main Frame Ø2.5 washer M2.5X10 Ø2.5 washer M2.5X10...
- Page 11 CX 600E Pro Flybarless Torque Tube Version Helicopter Kit Parts No. Name Spec. CX600BA-10-01 13T Pinion Gear M4X5 M3X10 M3X6...
- Page 12 CX 600E Pro Flybarless Torque Tube Version Helicopter Kit Parts No. Name Spec. CX600BA-09-05 12X18X4mm Bearings Ø12xØ18x4mm CX600BA-09-04 4X9X4mm Bearings Ø4xØ9x4mm CX600BA-05-07 M0.8 Torque Tube Front Drive Gear Set/34T M0.8 / 34T CX600BA-02-03 Torque Tube Ø1.5X9 Pin M3X16 M2.5X6 Ø1.5x9 Pin...
-
Page 13: Tail Rotor Assembly
CX 600E Pro Flybarless Torque Tube Version Helicopter Kit 7. Tail Rotor Assembly Parts No. Name Spec. CX600BA-02-01 Metal Tail Torque Tube Unit CX600BA-05-06 Tail Drive Gear CX600BA-09-07 5X10X4mm Bearings Ø5xØ10x4mm CX600BA-02-04 Tail Rotor Slider Set Ø3xØ6x2.5 bearing M3x16 NOTE: Adjust the spacing between two gears by... - Page 14 CX 600E Pro Flybarless Torque Tube Version Helicopter Kit Parts No. Name Spec. CX600BA-02-02 Metal Tail Rotor Holder M3x8 M3x16 M2x8 M3 Locknut Ø6xØ10x3mm bearing M2x8...
-
Page 15: Tail Section Assembly
CX 600E Pro Flybarless Torque Tube Version Helicopter Kit 8. Tail Section Assembly Parts No. Name Spec. CX600BA-03-16 Tail Boom Holder CX600BA-06-02 Carbon Horizontal Stabilizer CX600BA-07-04 Metal Stabilizer Mount CX600BA-07-01 Tail Boom CX600BA-07-03 Tail Control Rod Assembly CX600BA-06-01 Carbon Vertical Stabilizer NOTE: After inserting the tail boom into the gear box, positioning drill a Ø2.5 hole... - Page 16 CX 600E Pro Flybarless Torque Tube Version Helicopter Kit M3X8 Ø3xØ7x0.5 Washer M3X12...
-
Page 17: Frame And Gear Assembly
CX 600E Pro Flybarless Torque Tube Version Helicopter Kit 9. Frame and Gear Assembly Please push the Elevator Arm to the left side Parts No. Name Spec. first in oder to tighten the M4X4 screw. CX600BA-09-01 3X7X3mm Flanged Bearings Ø3xØ7x3mm M2.5X10... - Page 18 CX 600E Pro Flybarless Torque Tube Version Helicopter Kit Parts No. Name Spec. CX600BA-05-05 One-way Bearing Shaft CX600BA-05-01 One Way Bearing Case CX600BA-05-04 CNC Slant Thread Main Drive Gear CX600BA-05-03 CNC Autorotation Tail Drive Gear Ø8xØ12x4 bearing Ø12xØ18x6 bearing M3X6...
- Page 19 CX 600E Pro Flybarless Torque Tube Version Helicopter Kit Parts No. Name Spec. CX600BA-01-11 Flybarless Main Rotor Set M4X30 M4 Locknut M3X25 M3 Locknut...
-
Page 20: Complete Kit Assembly
CX 600E Pro Flybarless Torque Tube Version Helicopter Kit 10. Complete Kit Assembly... - Page 21 Copyright © 2013 KY MODEL Company Limited.
