CopterX CA180 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

INSTRUCTION MANUAL

INSTRUCTION MANUAL
CA180F
CA180F
Main Rotor Diameter : 345mm
Main Rotor Diameter : 345mm
Length : 415mm
Length : 415mm
Height : 175mm
Height : 175mm
Weight RTF w/Battery : 250g
Weight RTF w/Battery : 250g
Main Motor : 180 motor (2 Installed)
Main Motor : 180 motor (2 Installed)
Battery : 7.4V 800mAh Li-Po (Included)
Battery : 7.4V 800mAh Li-Po (Included)
Transmitter : FM 4-Channel (Included)
Transmitter : FM 4-Channel (Included)
Servo : High-Speed, High-Torque (2 Installed)
Servo : High-Speed, High-Torque (2 Installed)
On-board electronics : 3-in-1 Mixer/ ESC/ Gyro (Installed)
On-board electronics : 3-in-1 Mixer/ ESC/ Gyro (Installed)
Receiver : 4CH
Receiver : 4CH
www.copterx.com
Copyright © 2008 KY MODEL Company Limited.
CA180
CA180F
RC Helicopter
CA180
CA180

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA180 and is the answer not in the manual?

Questions and answers

Related Manuals for CopterX CA180

Summary of Contents for CopterX CA180

  • Page 1: Instruction Manual

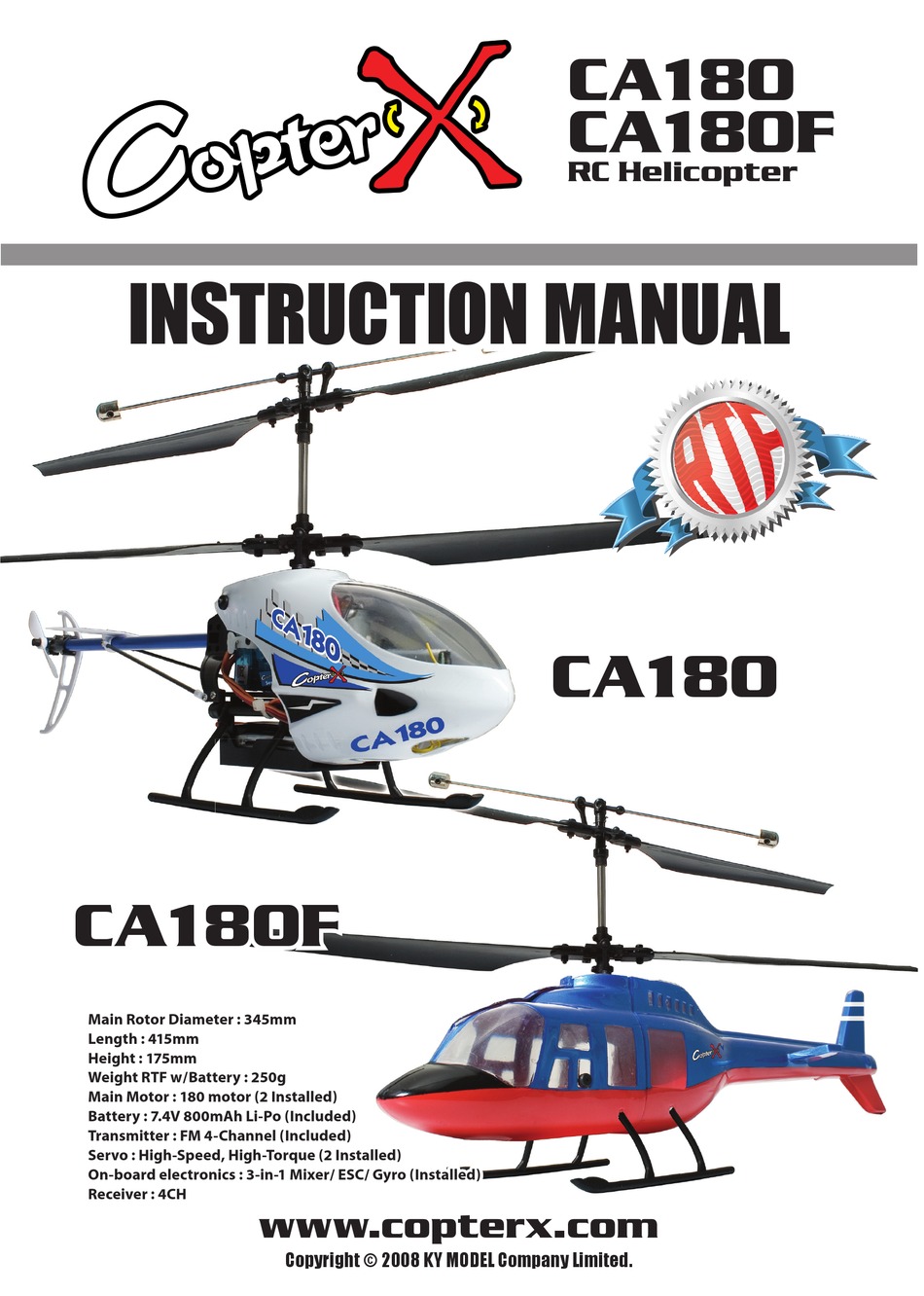

    CA180 CA180F RC Helicopter INSTRUCTION MANUAL INSTRUCTION MANUAL CA180 CA180 CA180F CA180F Main Rotor Diameter : 345mm Main Rotor Diameter : 345mm Length : 415mm Length : 415mm Height : 175mm Height : 175mm Weight RTF w/Battery : 250g Weight RTF w/Battery : 250g...

  • Page 2: Table Of Contents

    7. CA180 / CA180F Parts List ........

  • Page 3: Introduction And Safety Guidelines

    RC Helicopter 1. Introduction CopterX CA180 / CA180F is a ready-to-fly (RTF) micro electric powered helicopter. It is designed for both new and experienced pilots who enjoy flying RC helicopters. The coaxial counter-rotating blades make it fly stably and easily. You will enjoy many outstanding features, including pre-installed main motors, servo, receiver and 3-in-1 control unit with mixer, ESC &...
  • Page 4 CA180 / CA180F RC Helicopter Only use batteries designed for the CA180 model helicopters from KY Model Company Limited. Always connect the batteries with the correct polarity, otherwise electronic parts could be damaged. Keep away from spinning rotors. Standing too close to the helicopters in operation puts you at risk of being cut by the rotor blades.

  • Page 5: Package Contents / Radio Operation

    CA180 / CA180F RC Helicopter 2. Package Contents / Radio Operation Items Included CA180 /CA180F is 100% Ready To Fly. Below is a list of all the components required to operate the model. 1 x CA180 / *CA180F (CA180 shown here)
  • Page 6 CA180 / CA180F RC Helicopter Disassembling CA180F Canopy To remove the fuselage, pull the sides open and remove the front half. Take away the small carbon rod and remove the landing skid to remove the rear part of the fuselage.

  • Page 7: Battery Usage

    CA180 / CA180F RC Helicopter 3. Battery Usage Battery and Charger Please connect the adaptor, charger and Battery should be mounted inside the battery as illustrated and plug the adaptor battery holder. to a power supply. Warning: Do not leave battery unattended while charging! Improperly using/charging battery may result in damage! Do not disconnect the battery when the charger is in operation.
  • Page 8 CA180 / CA180F RC Helicopter Main Blades Adjustment 1. The main blades may 2. The adjustment can be 3. Please make sure each rotate inconsistently out of done by pulling each blade is spinning on the the box. blade. same horizontal.
  • Page 9 CA180 / CA180F RC Helicopter Adjustment of the Aileron and Elevator The two servos are playing the role in left and right, forward and backward movement of the helicopter. The adjustment of the servo and the servo rod helps gaining the stability.

  • Page 10: Basic Control

    CA180 / CA180F RC Helicopter 5. Basic Control Rudder controls the helicopter’s direction and tail motor’s power. Helicopter nose moved to the left by Helicopter nose moved to the right fingering the rudder stick left. by fingering the rudder stick right.
  • Page 11 CA180 / CA180F RC Helicopter Practice lifting the helicopter a few centimeters off the ground first, then slowly add throttle. Wind Direction 20cm Move slowly upward Keep focusing on the direction of the helicopter and control it by using the rudder control.
  • Page 12 CA180 / CA180F RC Helicopter After acquiring the basic skills, a hovering exercise can be performed. Move the sticks lightly further to start the hovering. Try to let it fly forward, backward, side to side and hold the helicopter at the same height.

  • Page 13: Ca180 / Ca180F Parts List

    CA180 / CA180F RC Helicopter 7. CA180 / CA180F Parts List CA180-001 CA180-002 CA180-003 CA180-004 CA180-005 Main Blades Flybar Set Inner Shaft Outer Shaft & Gear Set Main Frame (for CA180F) CA180-007 CA180-008 CA180-009 CA180-010 CA180-006 Main Blades Grip Set Gear &...
  • Page 14 Copyright © 2008 KY MODEL Company Limited.
