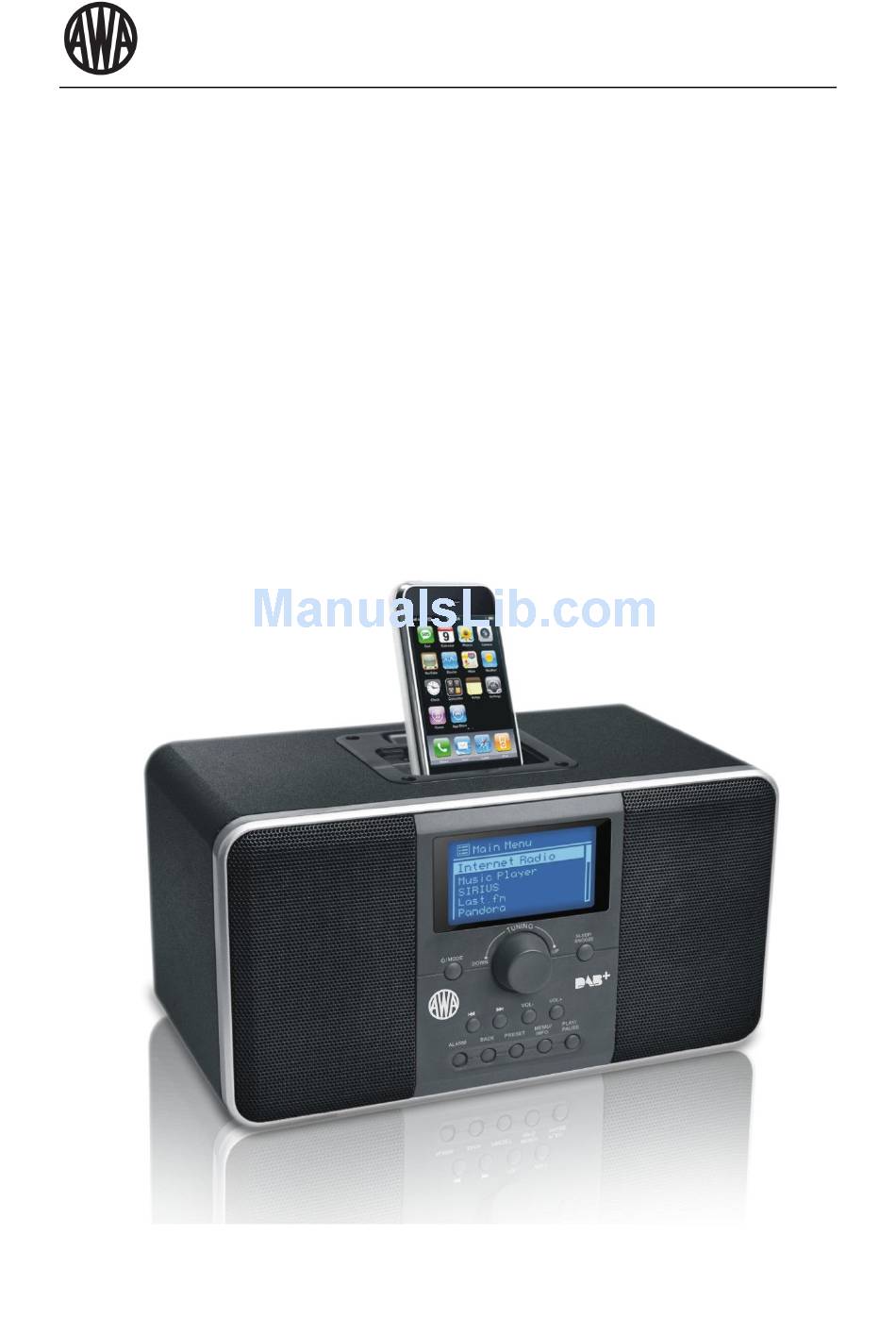

- Page 1 WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone WF900i DAB+ Internet Radio with Docking for iPod/ iPhone User Manual...
- Page 2 WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone Should you encounter any problems, please contact the help line before you return this product back to the place of purchase. Contact our Toll Free Warranty Support Help Line 1300 366 144 Email: warrantyhelp@awa.com.au...
- Page 3 WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone Attention: - Avoid installing this unit in places exposed to direct sunlight or close to heat radiating appliances such as electric heaters, on top of other stereo equipment that radiates heat, places lacking ventilation or dusty areas, places subject or constant vibration and/or humid or moist areas.
-
Page 4: Table Of Contents
WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone TABLE OF CONTENTS Introduction............................. 3 Conventions used in this guide....................3 Infrastructure requirements....................3 Part List..........................4 Menu structure..........................5 Menu names .......................... 5 Key Functions ........................5 Menus ............................ 8 Screens.......................... - Page 5 WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone FM Mode ............................22 Selecting Stations ........................ 22 Now playing infomation......................22 Setting..........................22 iPod Mode ............................ 23 Now playing infomation ....................... 23 Aux-in Mode ..........................24 Alarm and Sleep ........................... 25 10.1...
-
Page 6: Introduction
WF900i-DAB+ Internet Radio with Docking for iPod/ iPhone 1 Introduction This manual describes how to use the WF900i - Internet radio, an advanced but easy-to-use Wi-Fi connected audio system with the following modes: Its main functions are to: Internet Radio with access to over 20,000 stations, “Listen again” broadcasts and podcasts,... -
Page 7: Part List
WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone Figure 1: Wi-Fi radio infrastructure Part List Item Qty. Main Unit Audio Cable iPod/ iPhone Stand AC Adaptor Instruction Manual... -
Page 8: Menu Structure
WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone 2 Menu structure Menu names The Wi-Fi radio features three types of menu. These are: The Main menu • This is the menu which allows users to enter into different modes, setup the radio, and check the information in the radio (for example software version, product ID). - Page 9 WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone Rotary Tuning Turn to scroll through a menu or station list. The chosen option is highlighted in reverse text Controls (dark characters on a white background). Press to select. Previous: Select start of track, previous track or hold to scan down/rewind...
- Page 10 WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone (2) (3) ‘’ANTENNA Set the antenna to a vertical position to ensure best reception of wireless signal. ‘’AUX IN’’ For connecting an MP3 player, portable CD player, or other audio device with a 3.5mm line (MUSIC PORT) level output.
-
Page 11: Menus
WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone Menus Figure 3 shows the site-map of all the menu and sub-menu in the WF-900i. Figure 3: Menu Structure of the WF-900i... -
Page 12: Screens
WF900i has basically three types of menu. Use the Select control to step through and select options. A scroll bar on the right of the screen shows if there are further options above or below those visible. -
Page 13: Getting Started/ Setup
WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone 3 Getting started/ setup Although the WF900i is sophisticated, getting started is simple. To play DAB or FM radio, all you need is a power source (a 100-240 V mains supply). -
Page 14: Setting 12/24 Hour Display
Select WLAN region/ country, Wi-Fi network (SSID). If the network is open (non-encrypted), WF900i connects without any further ado; see Completion below. Standard encrypted network To enter the network’s key (password), use the Select control to move the cursor through the characters and select. As each character is selected, the key is built up near the top of the display. - Page 15 For more information on setting up a WPS encrypted network, see your WPS router‟s instructions. Completion WF900i tries to connect to the selected network. If connecting fails, WF900i returns to a previous screen to try again. If the network connection is lost, WF900i automatically tries to reconnect.
-
Page 16: Other Setting
Network WF900i remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find. You can see the list of registered networks through Menu > System settings > Network > Network profile >. -
Page 17: Setting Up A Music Server
Setting up a music server In order for WF900i to play music files from a computer, the computer must be set up to share files or media. UPnP media sharing allows devices like WF900i to play music from a shared media library, navigating through tag menus such as Artist, Album or Genre. - Page 18 WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone Make sure that the radio has access to the shared media by selecting it and clicking Allow. You can also set a name for the shared media in Settings… Click OK to close the dialogue boxes.
-
Page 19: Internet Radio Mode
To enter Internet Radio mode, either press Mode until the display shows Internet Radio or select Menu > Main menu > Internet Radio. Note: The station list menu is provided from the Internet radio portal, so it is only accessible when WF900i is connected to the Internet. Station lists and submenus may change from time to time. -
Page 20: Browse
WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone Browse To browse Internet broadcasts, select Menu > Station list > then either Stations > or Podcasts >. Browse through the menus to find broadcasts. Note: ABC Brisbane radio ‘Listen Again’ programmes are accessible through the Podcast menu, for example Menu >... -
Page 21: My Added Stations
Even though the Internet radio portal contains thousands of stations, you may want to listen to stations not listed. You can add your own stations via the portal. These added stations are accessible from WF900i by selecting Menu > Station list > My added stations > [Station]. -
Page 22: Shared Media (Network And Usb)
WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone 5 Music player mode (network and USB) Music player mode plays audio files such as MP3s, AACs or WMAs from a computer on the local network or from a USB Flash stick/hard drive. -
Page 23: Usb Playback
WF900i plays either the selected track or the playlist. Playlists WF900i holds a queue of up to 500 tracks in the playlist. Playlist tracks can be mixed from multiple UPnP servers and USB. To manage the playlist, select Menu > My playlist. -
Page 24: Dab Mode
Scanning for stations The first time you select DAB radio mode, or if the station list is empty, WF900i automatically performs a full scan to see what stations are available. You may also need to start a scan manually to update the list of stations for one of the following reasons: Available stations change from time to time. -
Page 25: Fm Mode
Menu > Main menu > FM. Selecting stations To find a station, press Select . The frequency display starts to run up as WF900i scans the FM band. Alternatively, you can scan up or down by pressing and holding the buttons or tune manually with quick presses, or by turning the Select control. -
Page 26: Ipod Mode
To enter iPod mode, 1. Place the iPod on the docking station. WF900i asks if you want to switch to iPod mode. Select YES. 2. If you already had the iPod connected to WF900i, either press Mode until the display shows iPod or select Menu >... -
Page 27: Aux-In Mode
Aux in mode plays audio from an external source such as an MP3 player. To play audio with Aux in mode, 1. Turn the volume low on both WF900i and, if adjustable, the audio source device. 2. Connect the external audio source to the Aux In 3.5 mm stereo socket. -
Page 28: Alarm And Sleep
WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone 10 Alarms and sleep As well as a clock/calendar, there are two versatile wake-up alarms with snooze facility, and a sleep function to turn the system off after a set period. Each alarm can be set to start in a particular mode. -
Page 29: Software Upgrade And Factory Reset
You can either check manually, or set WF900i to check periodically automatically (this is the default). If WF900i detects that newer software is available, it asks if you want to go ahead with an update. If you agree, the new software is then downloaded and installed. -
Page 30: Troubleshooting And Error Messages
• If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to resolve a problem by following these hints, consult your dealer or AWA for help. 12.1 Error messages... -
Page 31: Troubleshooting
WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone 12.2 Troubleshooting Problem Cause Solutions FM: Hiss Low signal strength - If the signal is too weak, adjust the DAB: burbling/ antenna or connect an external intermittent cut-out antenna for better reception. - Page 32 WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone Firewall preventing Check the following ports are open access on the router: UDP and TCP ports 80 and 123; DNS port 53. Windows shares: ports 135 – 139 and 445. Windows Media Player: varies –...
- Page 33 WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone Glossary - Digital Audio Broadcasting - Dynamic Label Segment – short text information broadcast with DAB audio - Frequency Modulation - (USB) Mass Storage Class (device) - Radio Data System UPnP - Universal Plug and Play...
-
Page 34: Service Information
WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone 13 Service Information Specifications: Model : WF900i Type : Wi-Fi Internet Radio with Docking for iPhone Dimension : 250 x 130 x 135 mm Weight (Net) : 1.8 KG (approx.) FM Frequency : 88 –... -
Page 35: Product Warranty
Mileage or travelling time in respect of service outside the authorised AWA Service Centre nor pick up and delivery cost incurred. Service calls arising from failure to correctly operate the product or to observe noted instructions, or repair which reveals the product is in normal working order. - Page 36 WF900i- DAB+ Internet Radio with Docking for iPod/ iPhone G. No person is authorised to make or give any assertions, statements or undertakings, whether expressed or implied about the product other than or additional to the terms of this warranty.
