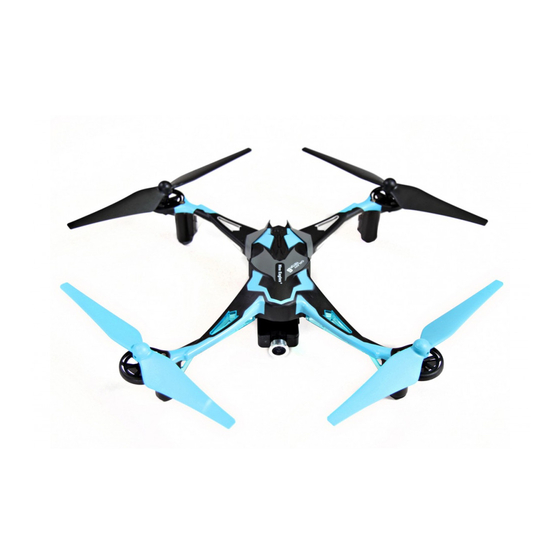

Nine Eagles Galaxy Visitor 6 NE-MASF 15 Instruction Manual

Nine Eagles Galaxy Visitor 6 NE-MASF 15 Instruction Manual

2.4ghz 4ch quadcopter

Advertisement

NE-MASF 15
2.4GHz 4CH QUADCOPTER
INSTRUCTION MANUAL
Shanghai Nine Eagles Electronic Technology Co.,Ltd
NE-MASF 15 20140926

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Galaxy Visitor 6 NE-MASF 15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nine Eagles Galaxy Visitor 6 NE-MASF 15

  • Page 1 NE-MASF 15 2.4GHz 4CH QUADCOPTER INSTRUCTION MANUAL Shanghai Nine Eagles Electronic Technology Co.,Ltd NE-MASF 15 20140926...
  • Page 2: Table Of Contents

    Catalog Ⅰ Introduction ......................... 1 1.Technology support ........................1 2.Intellectual property .......................... 1 3.Safety precautions Ⅱ Brief Introduction ..........................1、Kit contents ......................2 2、Specification and parameter ................... 3 3、Model and specification of main parts ................3 4、WIFI camera’s specifications and parameters Ⅲ...
  • Page 3: Technology Support

    2.4GHZ 4CH Quadcopter Ⅰ. Introduction 1.Technology support: “Shanghai Nine Eagles Electronic Technology Co., Ltd” guarantees that all the products have been strictly inspected and tested before export from factory. For technology update or operation modification, please visit www.nineeagle.com and click links to related remarks.
  • Page 4: Ⅱ Brief Introduction

    NE-MASF 15 2.4GHZ 4CH Quadcopter Ⅱ.Brief introduction Thanks you for purchasing GALAXY VISITOR 6 quadcopter produced by Shanghai Nine Eagle Electronic Technology Co., Ltd (hereinafter referred to Nine Eagle Technology). We are certain you will get many hours of enjoyment out of this model. GALAXY VISITOR 6 quadcopter is 2.4GHz 4 channel model quadcopter, whose controller internally installed three-axis gyro and three-axis accelerating sensor with excellent control function.
  • Page 5: Model And Specification Of Main Parts

    NE-MASF 15 2.4GHZ 4CH Quadcopter 二.产品介绍 Main parts model and specification: Transmitter:NE-TXOS216-D,2.4GHz 4CH Receiver:NE-MASF15 Charger: NE-CH1020M USB Charger Motor:8520 DC motor Battery:3.7V 700mAh Li-po battery WIFI camera’s specifications and parameters: Memory: Accepts up to 32G Micro SD card Camera Size: 45mm L x 25mm W x 8mm H Codec Video: Motion JPEG, 1280X720, 30fps, file extension .
  • Page 6: Battery Installation For Transmitter

    NE-MASF 15 2.4GHZ 4CH Quadcopter This USB charger can recognize different charger power supply sources. When using computer as the power supply source, the charging current is about 500mA and the rough charging time will be 70 minutes. When using adaptor with USB interface as the power supply source, the charging current is about 1000mA and the rough charging time will be 45 minutes.
  • Page 7: High Rate/Low Rate Switch

    NE-MASF 15 2.4GHZ 4CH Quadcopter VIDEO / VIDEO OFF PICTURE ON All controls are described with the tail pointing directly toward you. This is the best way to fly in the beginning since it keeps the control inputs oriented the same direction. Once you start getting comfortable you can work on side hovering and nose-in.
  • Page 8: Transmitter Calibration

    NE-MASF 15 2.4GHZ 4CH Quadcopter Press the right stick and keep pressing. The constant voice “Bi” will appear. Now the transmitter enters into gain setting mode. Push throttle stick upper to the value you need. The voice will turn to incontinuous “Bi, Bi, Bi”.Then release the right stick and then the transmitter will save the value.
  • Page 9: Rise/Decline

    NE-MASF 15 2.4GHZ 4CH Quadcopter 3)Climb or Descend MODE 2 Moving the throttle stick up or down will cause the quadcopter to climb or descend 4)Nose Rotates MODE 2 Moving the tail rotor stick left or right will cause the quadcopter nose to rotate that direction 二.产品介绍...
  • Page 10: Connect Quadcopter With Li-Po Battery

    NE-MASF 15 2.4GHZ 4CH Quadcopter 2)Connect quadcopter and Li-po battery Picture1 Picture2 Put quadcopter in horizontal level, and then connect li-po battery to quadcopter. During this stage, please don’t touch quadcopter body and keep it still and quiet till initialization is done. After 5 seconds, put li-po battery into the battery compartment.
  • Page 11: Flip

    NE-MASF 15 2.4GHZ 4CH Quadcopter 7)Flip Please press the Flip button on the top left corner of the transmitter one time, then move the right stick to any direction to its maximum position. The quadcopter will Flip 360°in that direction where your right stick goes.
  • Page 12: Video And Photo Shooting

    NE-MASF 15 2.4GHZ 4CH Quadcopter C.Push the throttle trim button upwards and then the tail indicator light turns to quickly flashing. D.During its flashing, press the 向下按一次摇杆后松开 press the throttle stick one time to save throttle stick (the left stick) one time to save.
  • Page 13: Reading Data

    NE-MASF 15 2.4GHZ 4CH Quadcopter (3)Reading Data Please read data as following steps after video/photo shooting: 1) Disconnect quadcopter LI-PO battery. 2) Take out SD card. 3) Insert SD card into the USB card reader. 4) Connect USB card reader to USB interface of the computer. 5) Find video/photo in “portable storage”...
  • Page 14: Exploded Drawing And Part List 1.Exploded Drawing

    NE-MASF 15 2.4GHZ 4CH Quadcopter Ⅳ. Explosive View and Spare Parts List 1.Explosive View...
  • Page 15: Part List

    NE-MASF 15 2.4GHZ 4CH Quadcopter 2.Spare Parts List 序号 物料编号 物料名称 规格 main blade set (red and black) NE-MASF15/ NE International Ne401055 main blade set (green and black ) NE-MASF15/ NE International NE401038 main blade set (grey and black) NE-MASF15/ NE International NE401039 gear set NE-MASF15/ NE International...
  • Page 16: Safety And Environment Protection

    NE-MASF 15 2.4GHZ 4CH Quadcopter Ⅴ. Safety and environment protection 1.WARNING AND FCC INFORMATION GALAXY VISITOR 6 4CH QUADCOPTER is not a toy. 2.FCC statement This device complies with Part 15 of the FCC Rules...
  • Page 17 NE-MASF 15 2.4GHZ 4CH Quadcopter in a particular installation.if this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on,the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.
  • Page 18 NE-MASF 15 2.4GHZ 4CH Quadcopter...
  • Page 19 NE-MASF 15 2.4GHZ 4CH Quadcopter Disposal of Li-Po batteries Put the pack in a safe open area and connect a moderate resistance across the cell terminals until the cell is completely discharged. CAUTION:The pack may get extremely hot during discharge. Puncture the plastic envelope and innerse in salt water for several hours.
  • Page 20 Shanghai Nine Eagles Electronic Technolegy CO.,LTD ADD:No.818,Fengrao Road,Malu,Jiading District,Shanghai,p.r.c. Tel:0086-21-52919366 Fax:0086-21-52919361 http://www.nineeagle.com E-mail:sales@nineeagle.com...
