CAUHF-P14
EASY INSTALL 36 ELEMENTS
UHF AERIAL
–
○
Triple boom main body
A
–
○
B
Dipole box
–
○
Reflectors
C
–
○
D
Pole mast
SPECIFICATION:
Frequency Range
Channels
Gain
Beam Width H/V
Front to Back Ratio
Impedence
Fully Opened Dimension
CAUHF-P14
470 – 862MHz
21 - 69
9 – 14dB
H:40° / V:55°
16dB
75Ω
680 x 500 x 940(antenna length) mm
Item ref: 130.011UK
User Manual
Advertisement
Table of Contents
Related Manuals for Mercury CAUHF-P14
Summary of Contents for Mercury CAUHF-P14

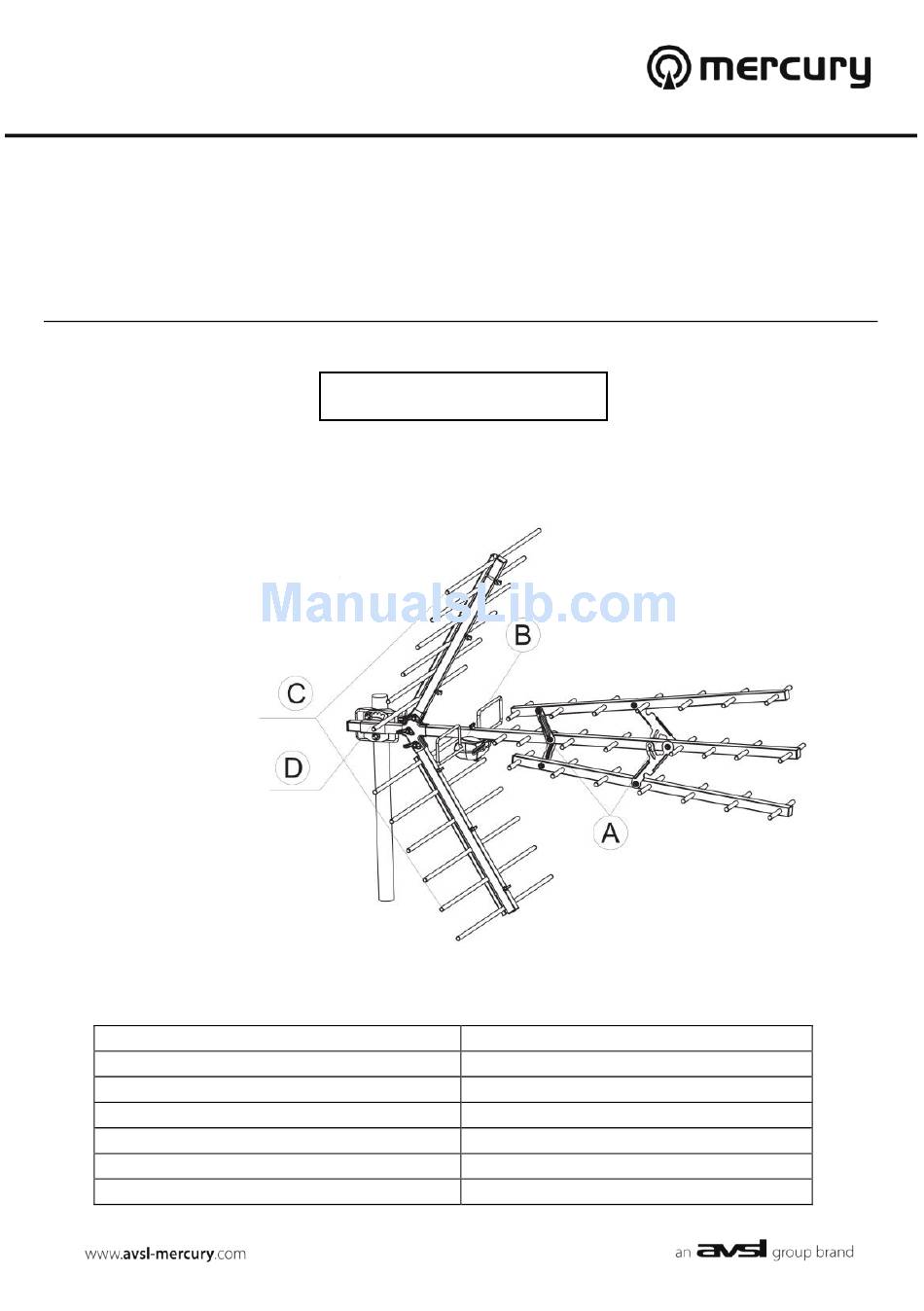

- Page 1 CAUHF-P14 Item ref: 130.011UK EASY INSTALL 36 ELEMENTS User Manual UHF AERIAL CAUHF-P14 – ○ Triple boom main body – ○ Dipole box – ○ Reflectors – ○ Pole mast SPECIFICATION: Frequency Range 470 – 862MHz Channels 21 - 69 Gain 9 –...
- Page 2 INTRODUCTION: Thank you for choosing Mercury antenna. This antenna has an easy install design which allows tool free quick installation. The simple pull and fasten design make this product ideal for both DIY and professional installation. Please follow the steps below for assembly.
- Page 3 Step 3: Rotate the elements until they sit into the pre-cut slot in position. Tighten the 3 wing nuts on the reflector to ensure the elements are tight in place. Step 4: Position the reflector housing, reflector and main body as picture below, guide the 3 screws through the pre drilled holes and fasten the wing nuts on to the screws to ensure reflectors are secured on the main body.
- Page 4 Step 5: Loosen the mast clamp until the mast pole can fit through it, ensure the tip of the antenna is facing directly toward the signal transmitter you wish to receive on and tighten up the wing nuts until the aerial is securely mounted on the mast pole.
