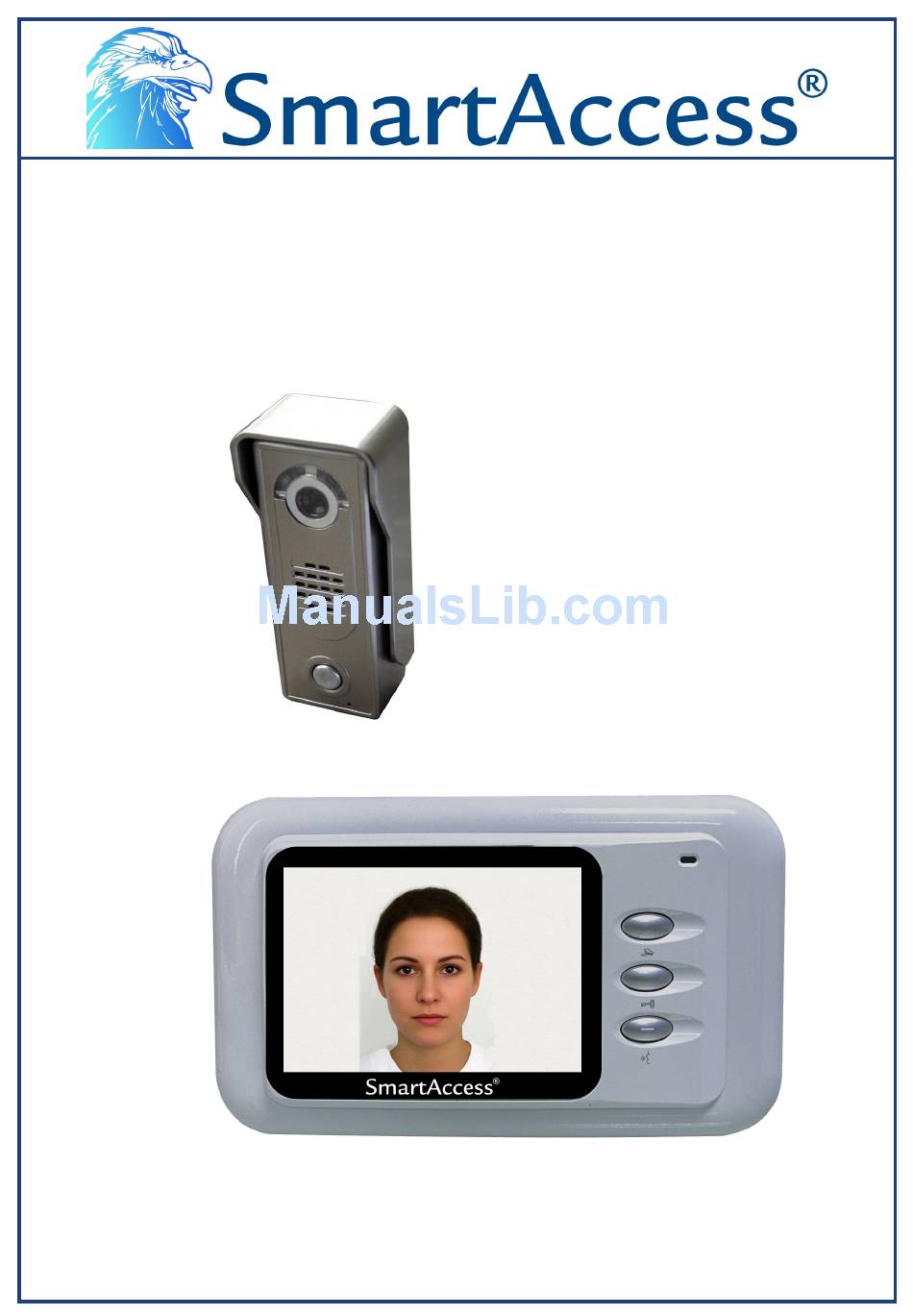

  • Page 1 Video Intercom User Manual C10SAVK2...

  • Page 2: System Overview

    System Overview ® The SmartAccess Video Intercom Kit (C10SAVK2) includes one outdoor station, one hands free video monitor and a power supply. Additional units can be purchased using the codes shown below. Outdoor Station (C10SAVEP-2) Hands Free Video Monitor (C10SAVM-2)

  • Page 3: System Configuration

    System Configuration Notes: The system should be wired using standard 4 core alarm cable.  (CAT5 is not recommended)  The system supports two door stations.  A DC14.5V transformer is required for every hands free video monitor on the system. ...
  • Page 4 Outdoor Station Mounting Instructions 1. Remove the door station from its rain shield by removing the screw at the base of the unit. 2. Mark and drill 2 holes to mount the rain shield. 4. Attach the door station to its rain shield and secure using the screw at the base of the unit.

  • Page 5: Sample Wiring Diagram

    Sample Wiring Diagram One Entrance Panel - Two Monitors FRONT DOOR Lock Wiring DC14.5V Transformer DC14.5V Transformer...
  • Page 6 Sample Wiring Diagram Two Entrance Panels - One Monitors FRONT DOOR Lock Wiring DC14.5V Transformer BACK DOOR Lock Wiring...

  • Page 7: Operating Instructions

    Operating Instructions 1. Call: Visitor presses call button. 2. All video stations ring and display the live camera image. 3. Answer: To speak to the visitor, press this button. 5. Door Release: Press this button to release the door. 6. Monitoring: When the system is in standby, press this button to view Door 1.

  • Page 8: Specifications

    Specifications ® The SmartAccess Video Intercom Kit (C10SAVK4-2) includes one outdoor station, one hands free video monitor and a power supply. Outdoor Station Camera: Colour 1/3” CCD Lens: 3.6mm Dimensions: 135 x 58.5 x 40mm Back Light: 4 LEDs Power Supply:...
