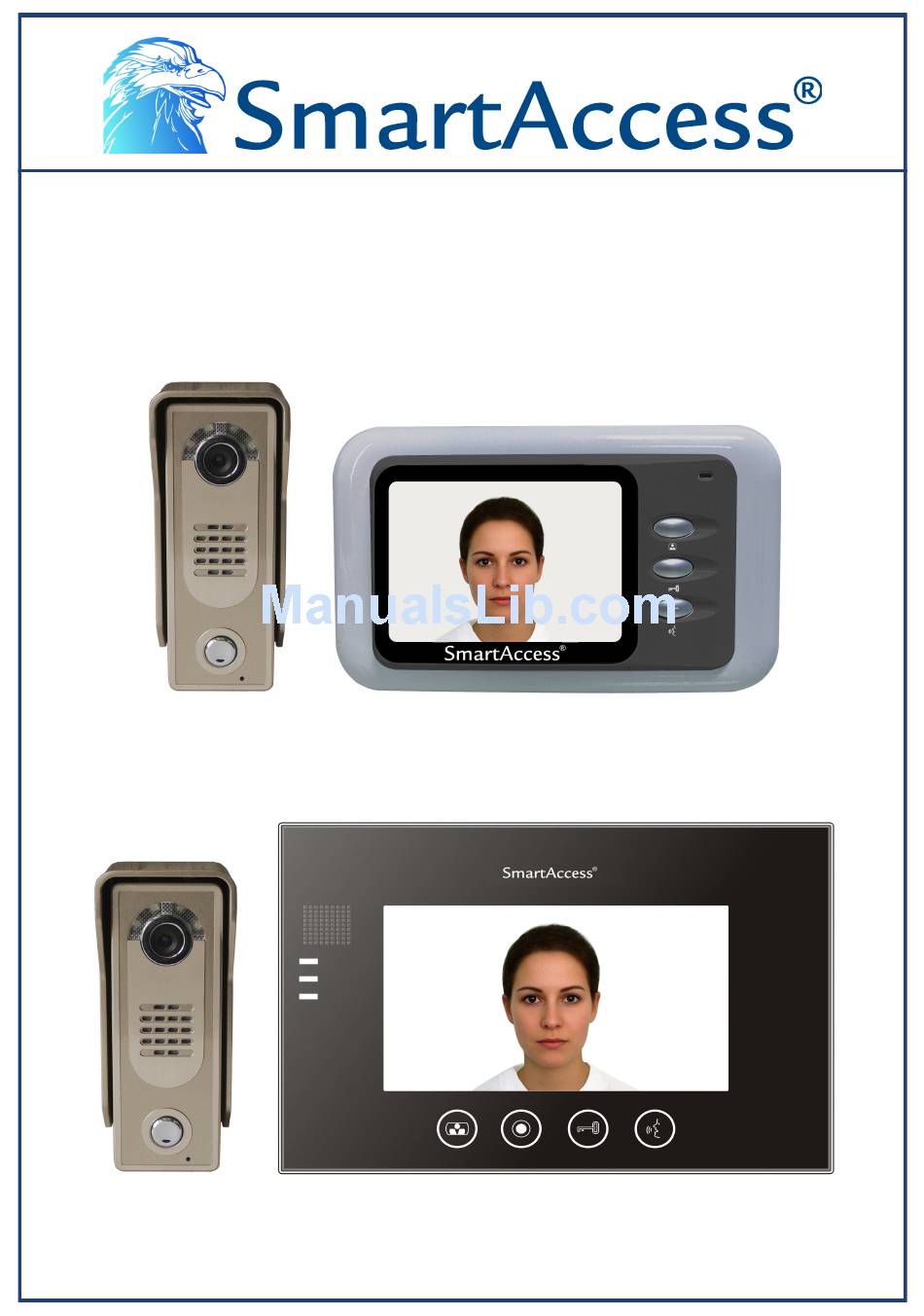

- Page 1 Video Intercom User Manual C10SAVK2 C10SAVK3...
-
Page 2: System Overview

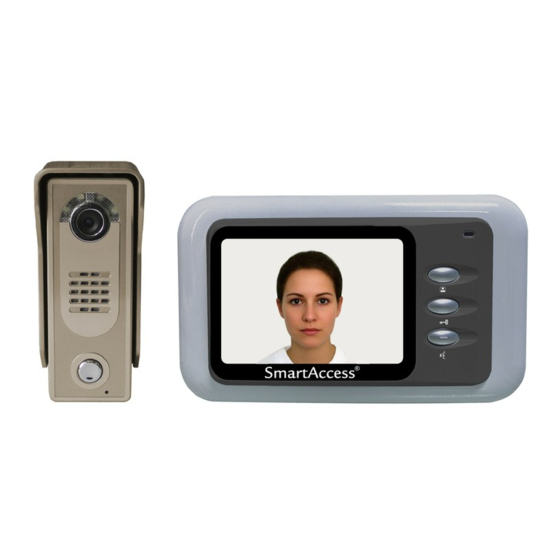

System Overview C10SAVK2: Contents: 1 x C10SAVEP2 outdoor station, 1 x C10SAVM2 hands free video monitor, 1 x power supply. Additional components may be purchased as follows: Hands free video monitor - C10SAVM2 (max. 4 per system) Entrance panel - C10SAVEP2 (max. 2 per system) ... -
Page 3: System Configuration
System Configuration Notes The system should be wired using standard 4 core alarm cable CAT5 cable is not recommended The system supports up to a maximum of two door stations The system supports up to a maximum of 4 hands free video monitors ... - Page 4 Outdoor Station Mounting Instructions 1. Remove the door station from its rain shield by removing the screw at the base of the unit. 2. Mark and drill 2 holes to mount the rain shield. 3. Insert the rawl plugs supplied and mount the rain shield using the screws supplied. 4.
- Page 5 Sample Wiring Diagram One entrance panel - two monitors DC14.5V Transformer DC14.5V Transformer...
- Page 6 Sample Wiring Diagram Two entrance panels - one monitor DC14.5V Transformer...
-
Page 7: Operating Instructions
Operating Instructions 1. Call - Visitor pushes call button 2. All video monitors ring and display the live camera image 3. Answer - To speak to the visitor, press this button 4. Door release - Press this button to release the door 5. -
Page 8: Specifications
Specifications C10SAVEP2 Outdoor Station Camera: Colour 1/3” CCD Lens: 3.6mm Dimensions: 135 x 58.5 x 40mm Back Light: 4 LEDs Power Supply: Power from monitor Operating Temperature: -20°C to 70°C Weather Resistance: IP45 Door Release: Dry Contact N/O going N/C Duration 3 seconds C10SAVM2 Hands Free Video Monitor Monitor:...
