Installation Instructions
Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all
instructions carefully before using the product. Please keep instructions for future reference.
Warranty
•
This fan remote controller is covered by a 12 month warranty. Please retain proof of purchase.
•
Warranty will be void if there is any damage due to improper usage or modification to the fan remote control.
•
Installation requirements
•
Must be installed by a licensed electrician.
•
All wiring and installation must adhere to local and national wiring rules.
eg. AS/NZS 3000:2007/Amendment 2:2012 Electrical installations.
•
Do not exceed rated power input specification.
•
Select a suitable location for installation;
-
This product is suitable for indoor use only.
•
This ceiling fan remote controller is only suitable for controlling the fan motor and the light kit associated with the
ceiling fan only. Any other use would consider as misuse and warranty is void.
•
Do not install fan remote controller with existing fan wall controller. Remove existing wall controller and replace with
a double pole wall switch, to power the fan remote controller.
•
Do not use a solid state dimmer with this ceiling fan remote controller.
•
Check whether the product has been damaged during transport. Do not operate/install any product which appears
damaged in any way. Return the complete product to the place of purchase for inspection, repair or replacement.
This remote controller is designed to control your ceiling fan speed, and lamp. There are 4 buttons (HI, MED, LOW,
OFF) to control the fan speed and on/off, And one button to control light on/off.
1 | P a g e
Lucci Remote Fan Control Non Dimming
Rated Voltage 240V~ 50Hz
Receiver (controller)
SKU# 210019

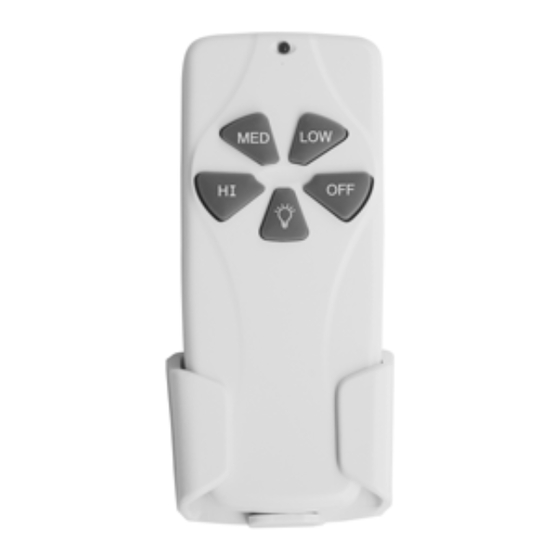

Transmitter (remote)
Advertisement
Table of Contents
Related Manuals for LUCCI 210019
Summary of Contents for LUCCI 210019
-
Page 1: Installation Instructions
Lucci Remote Fan Control Non Dimming SKU# 210019 Rated Voltage 240V~ 50Hz Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all instructions carefully before using the product. Please keep instructions for future reference. Warranty •... - Page 2 Installation Instructions Installation preperation Before carrying out the installation the following must be considered. • 1 x 9VDC (size) battery is required to operate the remote controller. Remove the battery cover from the back of the remote and plug battery into the battery connector (Battery not included). •...
- Page 3 Installation Instructions Remove/ disconnect electrical power from the working circuit. 2. Remove the ceiling fan CANOPY cover from the mounting bracket. Disconnect existing wiring from the supply at ceiling. 3. Connect the earth (GREEN/YELLOW) wire to the supply EARTH wire, and ensure continuity for the whole electrical earth wiring.
- Page 4 Installation Instructions NOTE: Slope ceiling angle should not exceed the fan hanging system supported degrees. It will damage the receiver and causes electric shock. Please check with retailer about pitch angle suitable for fan slope ceiling mounting with remote control. NOTE: DO NOT use Fan Wall Controls that have speed adjustment / light dimmer function with the Fan that has Remote Control device to avoid damage to the Remote as following: If the Remote Control device is to be installed with an existing ceiling fan with any of the above Wall Manual Fan...
- Page 5 Installation Instructions Operating the remote ICONS ON THE REMOTE LCD PANEL Before you start using the remote, take the time to read through this section and get familiar with the button and function of each button. Fig. 5 LED Indicator The red LED indicator on the top of transmitter will flash when the buttons are active.
- Page 6 4. More than one fan code. Each pair of transmitter and receiver operates interference at RF interference must have unique DIP switch code. same area. Specifications SKU# 210019 Transmitter (Remote): Receiver (Controller) : Model No UC7070T Model No UC7076R Rated Voltage...
- Page 7 LUCCI WARRANTY HOTLINE- 1800 602 243 In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday. Please make sure you have all the ceiling fan details filled out at the end of the manual before making the call.
- Page 8 Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI WARRANTY HOTLINE- 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME………………………………………………………………………………… ADDRESS…………………………………………………………………………… ……………………………………………………POSTCODE…………………… MODEL NUMBER…………………………………………………………………… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE ……………………………………………………… DATE OF PURCHASE………………………………………………………………...
