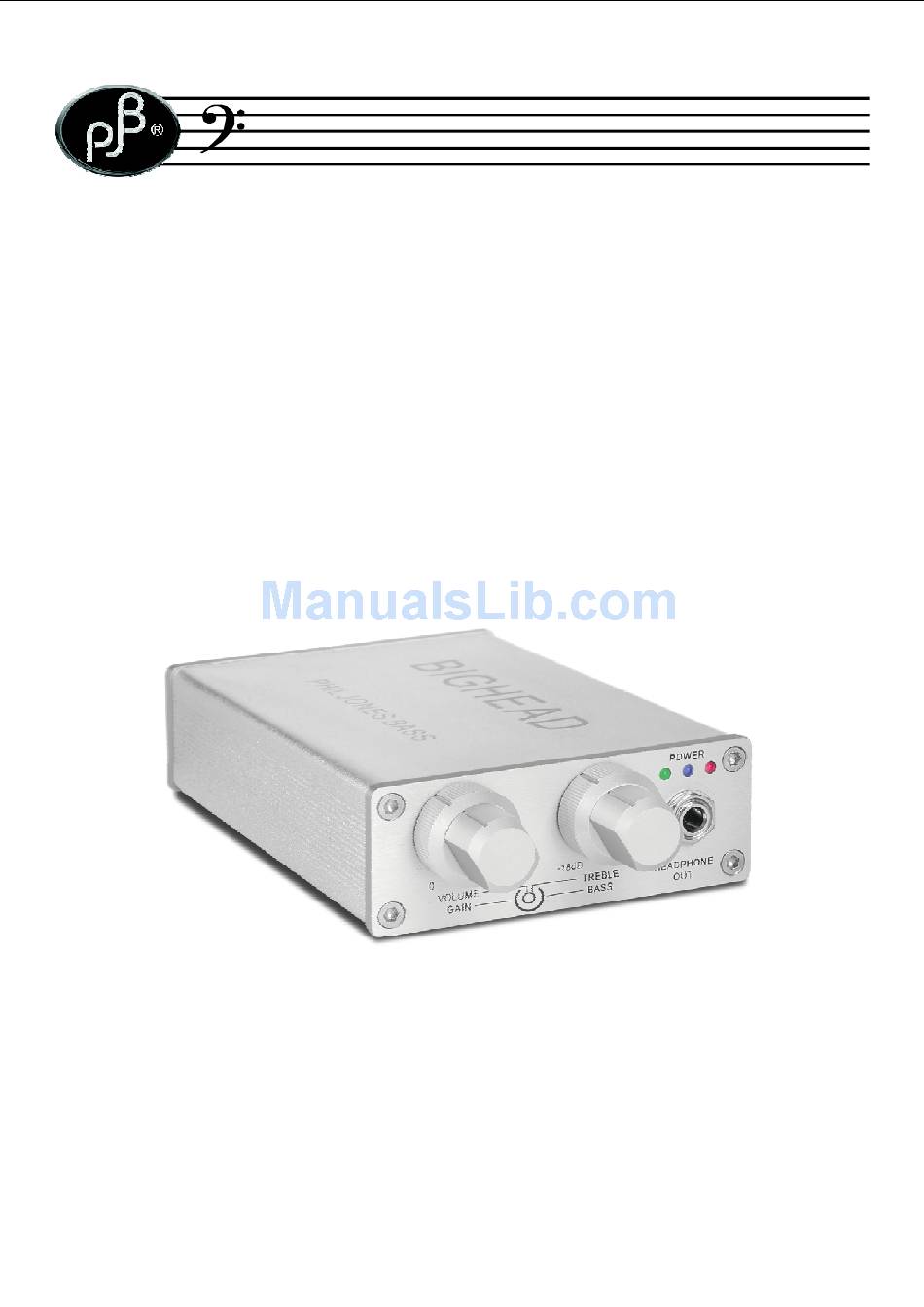

- Page 1 Phil Jones Bass PJB BIGHEAD Multi Function Bass pre/headphone amplifier OWNER’S MANUAL...
- Page 2 Phil Jones Bass Thank you for purchasing the BIGHEAD. A great deal of dedication and passion we nt into de si gni ng and buil di ng thi s no-compromise, hi gh performance compact-combo amplifier. It was concieved to be a dedicated amplifier for the “conessieur”...
- Page 3 5. Pre Amplifier. The head phone out jack can be connected to the aux input of a PJB Bass Cub BG-100 or Double Four BG-75 giving the amp an extra input channel with EQ. The Big Head features an internal rechargeable lithium ion battery which can last...
- Page 4 Phil Jones Bass FRONT & BACK PANEL OVERVIEW FRONT POWER -18dB +18dB VOLUME TREBLE HEADPHONE GAIN BASS BACK PHIL JONES BASS POWER DC INPUT 1000mA AUX INPUT S/N: INPUT 1. LED indicators. Green (left): Charging state to battery and power fed from computer or charger. Blue (Middle): Power On.
- Page 5 Phil Jones Bass 4. Bass Cut /Boost. (Outer Control) Cut and boost signal +/- 18dB of instrument only not aux signal. 5. Treble Cut /Boost. (Inner Control) Cut and boost signal +/- 18dB of instrument only not aux signal. 6. Headphone Jack. Standard stereo 3.5mm headphone jack.
- Page 6 This warranty covers defect in materials or workmanship that occurs in normal use. Within warranty period PJB or its local distributor will repair or replace the defect unit free of labor and parts charge. It is the buyer’s responsibility to use the unit strictly according to instructions written in the owner’s manual.
- Page 7 Phil Jones Bass 8509 Mid County Industrial Dr / St Louis, MO 63114 USA Phone: 314-814-3383 Fax: 636-536-1338 www.pjbworld.com Printed in CHINA...
