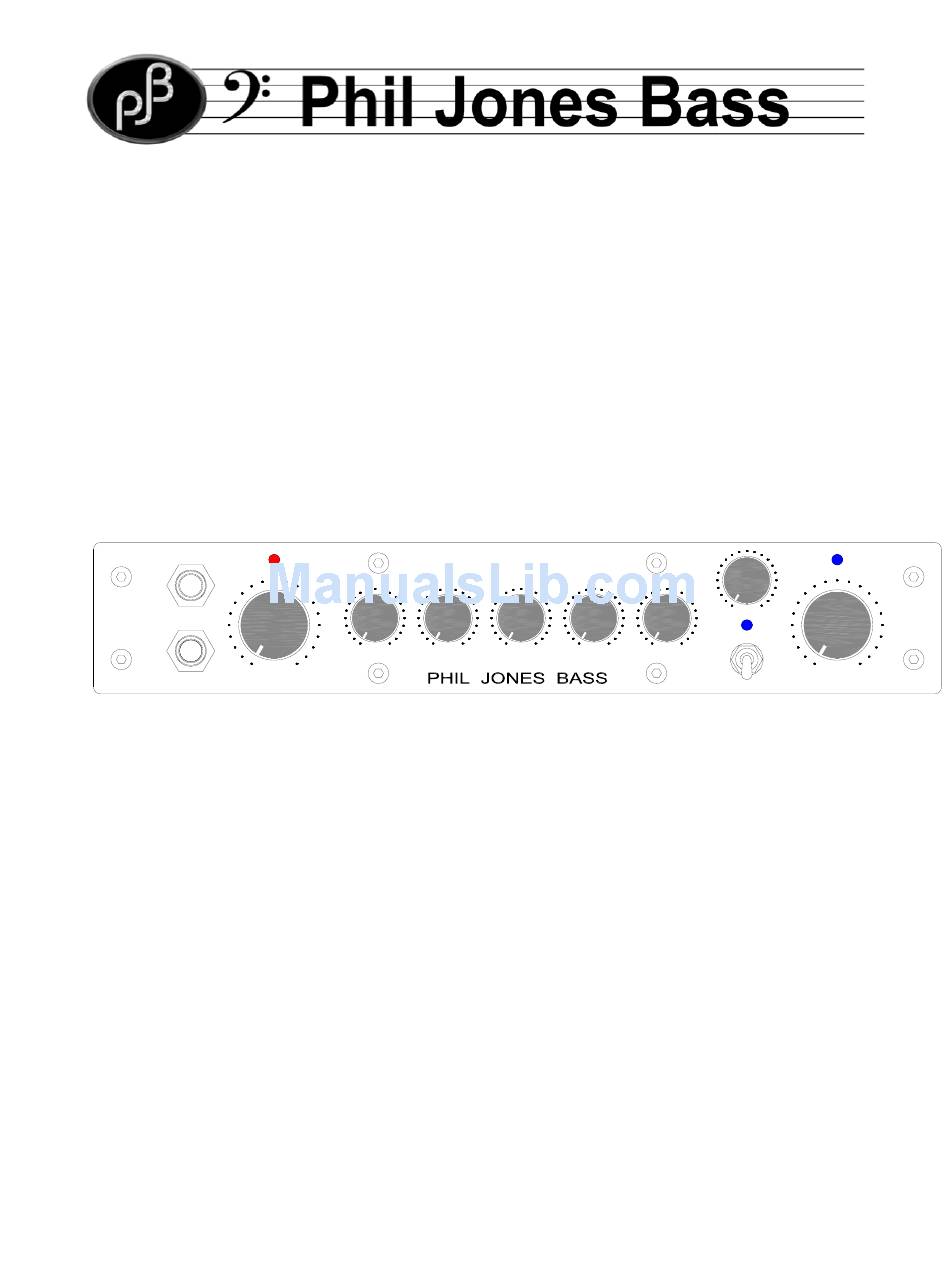

- Page 1 PJB D-200 PASSIVE LO-BASS HI-BASS LO-MID HI-MID TREBLE BASS -18dB +18dB -18dB +18dB -18dB +18dB -18dB +18dB -18dB +18dB -10dB +10dB ACTIVE INPUT LEVEL LIMITER MASTER VOLUME OWNER’S MANUAL...
-
Page 2: Read This First
• Keep all original packing. • Never use this product in the vicinity of water. If the D-200 were to get wet, it could kill you by electrocution. • Do not use this amplifier in a way that would compromise its ventilation system. -
Page 3: Front And Back Panel Description
This is a standard ¼ inch mono jack socket. For the best possible sound we recommend you use the PJB BI-12 instrument cable as it has very low self-capacitance and absolute shielding resulting in greater transparency of sound and less noise. - Page 4 Connects the amplifier to AC power supply. Always use a grounded plug and make sure the AC cable is more than 3A rating at 250-volt AC. If you require a longer AC power cord, we recommend the PJB heavy-duty 20 foot power cords. These are available as an...
- Page 5 DI output. 21. LOUDSPEAKER OUTPUT. The D-200 amplifier will work on any load from 16Ω down to 4Ω, which is the safe maximum load for this amplifier. The jack sockets are in parallel so connecting two 8Ω speakers will result in a 4Ω...
-
Page 6: Operation & Positioning
OPERATION & POSITIONING TURN THE VOLUME DOWN on the D-200 before plugging in your instrument. Connect the speaker or speakers to the D-200. For best results with this amplifier you should use PJB loudspeaker cabinets and PJB cables. ALWAYS USE A HIGH QUALITY GROUNDED AC POWER CABLE. NEVER USE THIS AMPLIFIER WITH THE GROUND CONNECTION REMOVED. -
Page 7: Specifications
SPECIFICATIONS Amplifier PJB 150watt, D class amplifier with digital switch mode power supply. Frequency Response Passive and Active input: 40Hz -20KHz Low Cut Filter: 24dB/Octave at 40Hz. Maximum Output Power 150 watts RMS Signal to Noise Ratio Better than 96 dB (EQ off, Volume on Full.) Impedance Passive Input: >4MΩ/22pF... -
Page 9: Service & Warranty Information
This warranty covers defect in materials or workmanship that occurs in normal use. Within warranty period PJB will repair or replace the defect unit free of labor and parts charge. It is the buyer’s responsibility to use the unit strictly according to instructions written in this manual and amplifier manual.
