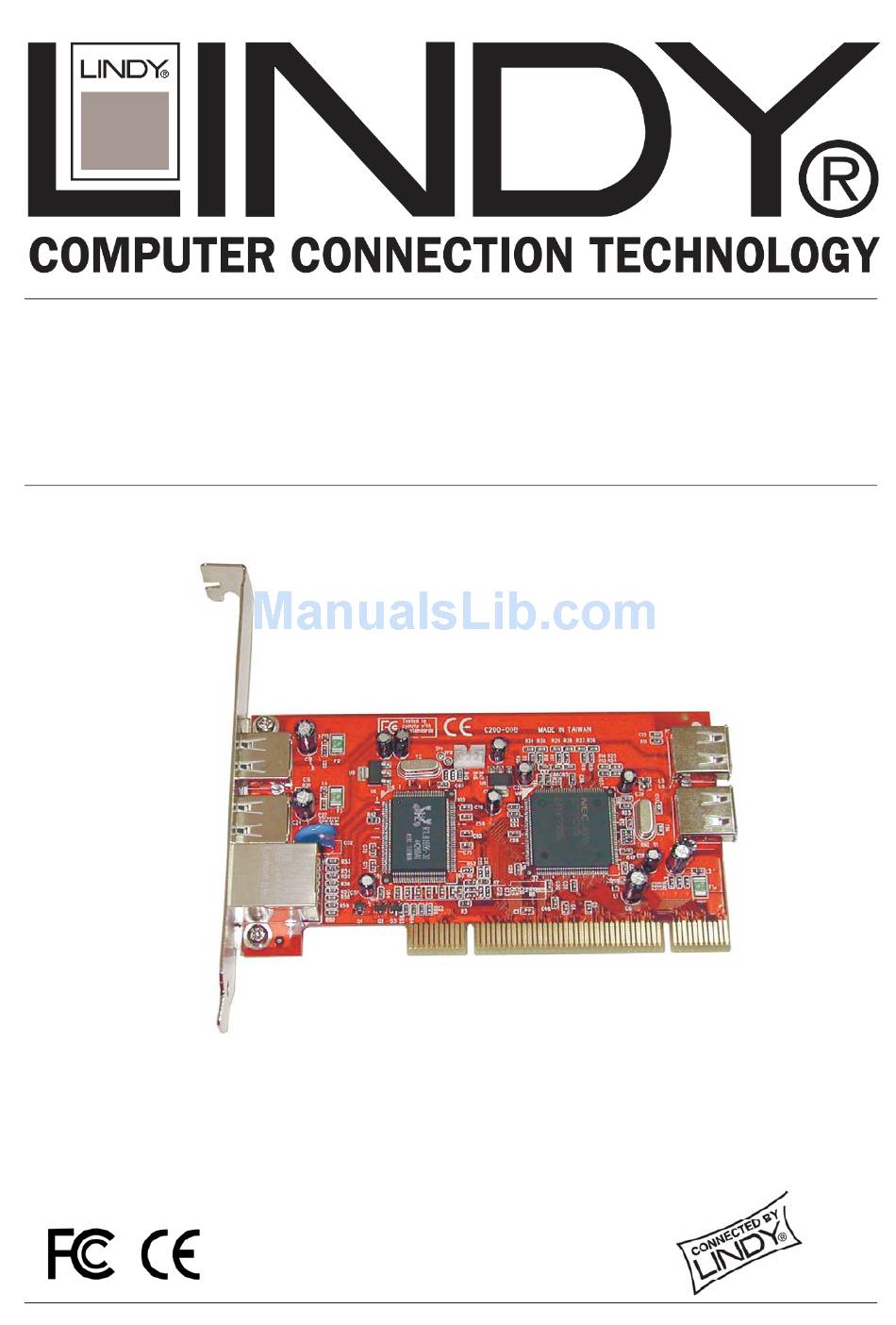

- Page 1 Gigabit Lan + USB2.0 PCI Host User Manual English LINDY No. 70570 www.LINDY.com © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (November 2004)
- Page 2 1. Introduction This PCI Host Adapter is a PCI controller board which can upgrade your desktop computer to have Gigabit Ethernet (1000Mbps, 100 Mbps, 10 Mbps) and three USB2.0 / USB1.1 ports. The board supports a 32-bit 33 MHz PCI bus revision 2.2, USB transfer rate of 1.5Mb/s, 12Mb/s, 480Mb/s and Gigabit Ethernet 10/100/1000Base-T.
-
Page 3: Usb Interface
Wake-on-LAN and remote wake-up support Microsoft® NDIS5 Checksum Offload (IP, TCP, UDP) and largesend offload support Supports Full Duplex flow control (IEEE 802.3x) Supports IEEE 802.1Q VLAN tagging 8K Transmit FIFO and 64K Receive FIFO support Supports power down/link down power saving 1.1.3. - Page 4 5. During OS boot up, all necessary USB drivers will be detected and installed automatically. 6. Windows will display the Found New Hardware Wizard, “Ethernet controller”, Click “Next”. 7. Select “Search for a suitable driver for my device (Recommended)” and Click “Next”, and make sure the Driver CD in your CD-ROM/DVD.
- Page 5 “Next”. Then click “Finish”. 2.3. Verifying the installation under Windows 2000 and XP Follow the instructions in this section to verify that the controller was installed correctly. 1. Right click on “My Computer” icon, select “Properties”, left click on “Hardware” tab, and then on “Device Manager”...
- Page 6 and click “Next”. 8. Select “Search for the best driver for your device(Recommended)”. “Next”. 9. Select “Floppy disk drives” and uncheck the other boxes and click “Next”, Select “The Updated driver (Recommended)” NEC USB Open Host Controller, and click “Next”, then click “Next” to continue. 10.
- Page 7 3. Make sure “Search for the best driver for your device (Recommended)”, and “Specify a location are both selected, uncheck the other boxes, and type in E:\ (If your CD-ROM/DVD is E:\) and click “Browse”. 4. Points specify a location, example E:\USB2.0 Host\NEC\Win98_me. Click “OK”, and click “Next”.
- Page 8 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations.
