Summary of Contents for Durapac HC-45C

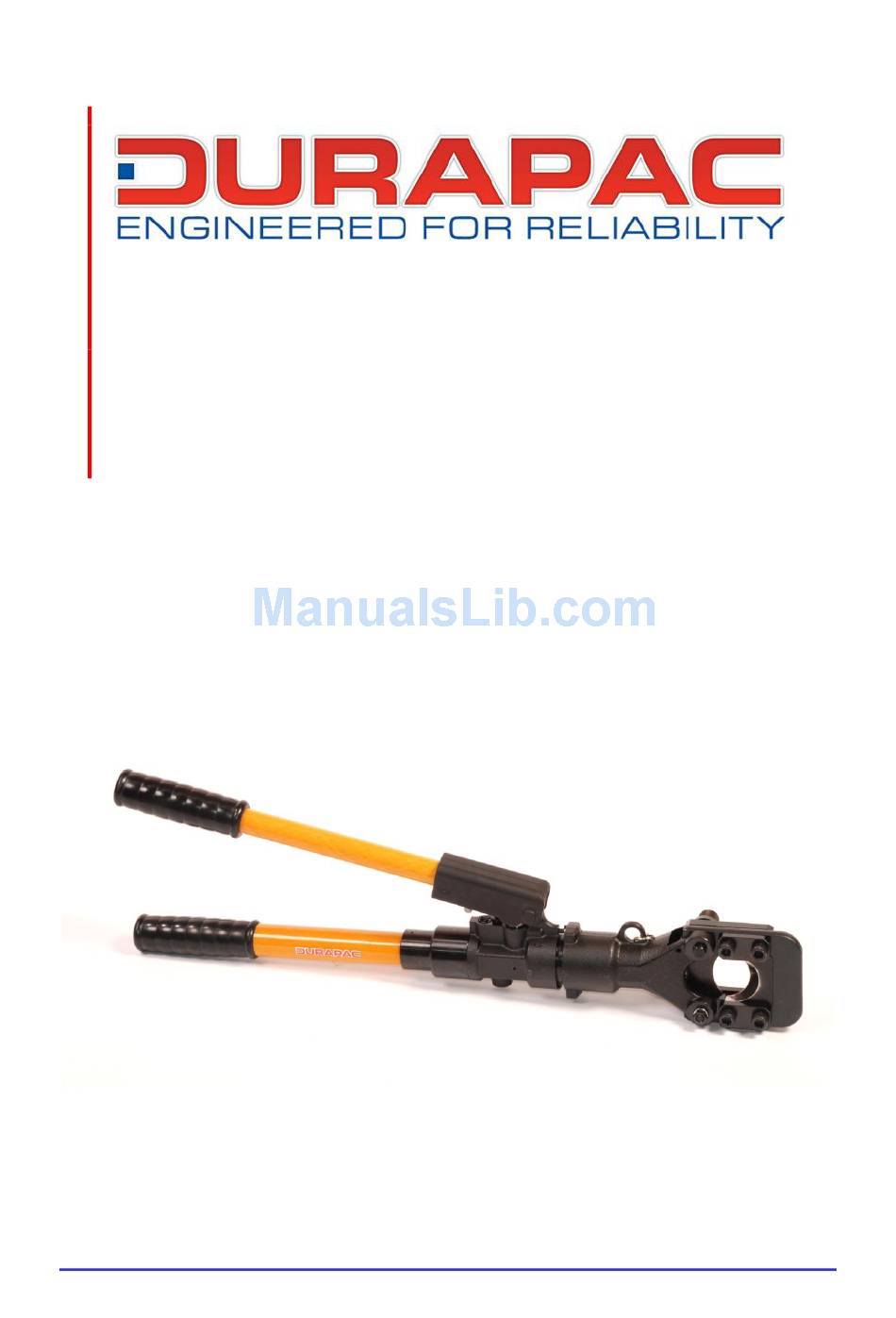

- Page 1 Instruction Manual Self-Contained Hydraulic Cutter Model – HC-45S Maximum Operating Pressure – 700 bar ABSOLUTE EQUIPMENT PTY LTD – 2/186 Granite Street, GEEBUNG QLD 4034 – Australia sales@absoluteequipment.com.au – Phone: +61 7 3865 4006 – Fax: +61 7 3102 6288...
-
Page 2: Product Information
The user must ultimately make the decision regarding suitability of the product for any given task and assume the responsibility of safety for all in the work area. Contact a Durapac representative if you are unsure of your hydraulic cutter’s suitability for a particular application. - Page 3 The operator is responsible for this activity towards other persons Hydraulic equipment must only be serviced by a qualified hydraulic technician. For repair service, contact the Durapac authorised service centre in your area. To protect your warranty, use only high quality hydraulic oil CAUTION: ...
-
Page 4: Installation
4.1 Familiarise yourself with the specifications and illustrations in this owner’s manual. Know your hydraulic cutter, its limitations and how it operates before attempting to use. Refer to the specification table below or if in doubt, contact a Durapac representative. - Page 5 Turn the moving handle clockwise and press down the release lever by pushing down the moving handle. The tool will return to its starting position. 5.2.8 Repeat steps 5.2.3 – 5.2.7 until the cutting operation is complete. HC-45S SC Cutter - V1.1 www.durapac.com Page 5 of 10...
-
Page 6: After Operation
Use only good quality hydraulic fluid. Do NOT use brake fluid, transmission fluid, turbine oil, motor oil, alcohol, glycerine etc. Use of anything other than good quality hydraulic oil will void warranty and damage the cutter. We recommend Durapac Hydraulic Oil or equivalent ... -
Page 7: Adding Hydraulic Fluid
6.5 Storage 6.5.1 Check to ensure that all pieces are in good working condition. 6.5.2 Apply rust preventive oil to the product and blades before returning to the carrying case. HC-45S SC Cutter - V1.1 www.durapac.com Page 7 of 10... -
Page 8: Troubleshooting
Cables are over specification Use tool that is appropriate for cutting requirements Internal leakage Send to a Durapac authorised service centre for repair Handle is jammed or unable to Foreign objects preventing Clean the moving handle to... -
Page 9: Parts Breakdown And List
Instruction Manual 8.0 Parts Breakdown and List HC-45S SC Cutter - V1.1 www.durapac.com Page 9 of 10... - Page 10 Locating screw Fibre glass pipe Release valve stem Spring pin O-ring Handle grip Relief valve set Washer Compression spring Serial number and model need to be quoted when ordering parts. HC-45S SC Cutter - V1.1 www.durapac.com Page 10 of 10...
