Summary of Contents for Durapac HC-24S

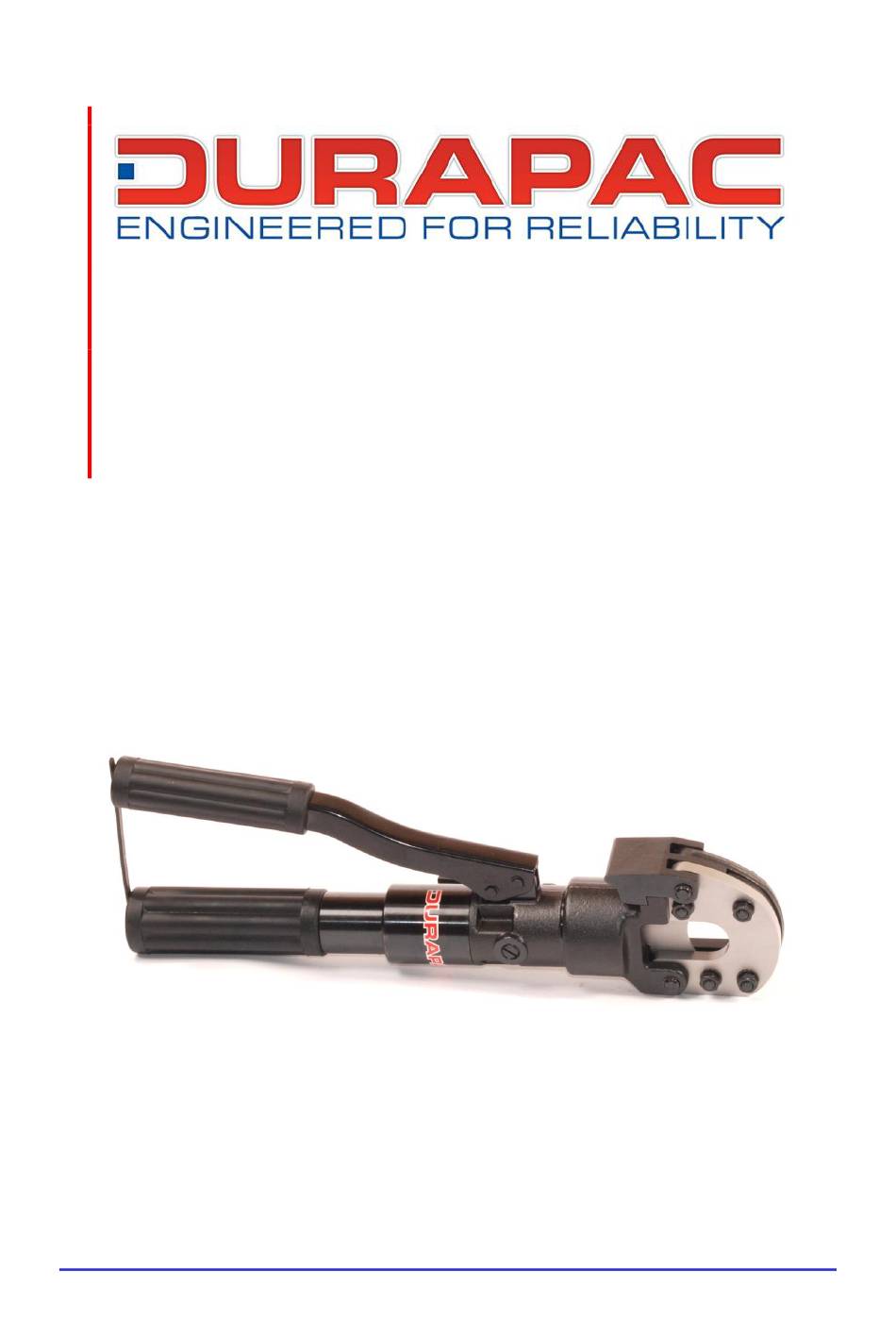

- Page 1 Instruction Manual Self-Contained Hydraulic Cutter Model – HC-24S Maximum Operating Pressure – 700 bar ABSOLUTE EQUIPMENT PTY LTD – 2/186 Granite Street, GEEBUNG QLD 4034 – Australia sales@absoluteequipment.com.au – Phone: +61 7 3865 4006 – Fax: +61 7 3102 6288...
-
Page 2: Product Information
The HC-24S cuts with ease though cable, round bar, wire rope, wire strand and more. It is a proven performer in the electrical, railway, mining, manufacturing and construction industries. - Page 3 The operator is responsible for this activity towards other persons Hydraulic equipment must only be serviced by a qualified hydraulic technician. For repair service, contact the Durapac authorised service centre in your area. To protect your warranty, use only high quality hydraulic oil CAUTION: ...
-
Page 4: Installation
4.1 Familiarise yourself with the specifications and illustrations in this owner’s manual. Know your hydraulic cutter, its limitations and how it operates before attempting to use. Refer to the specification table below or if in doubt, contact a Durapac representative. -
Page 5: After Operation
Use only good quality hydraulic fluid. Do NOT use brake fluid, transmission fluid, turbine oil, motor oil, alcohol, glycerine etc. Use of anything other than good quality hydraulic oil will void warranty and damage the cutter. We recommend Durapac Hydraulic Oil or equivalent ... -
Page 6: Blade Replacement
6.3.4 Repeat the process several times to ensure that all air bubbles are removed. 6.3.5 Recheck oil level after removing air. HC-24S SC Cutter - V1.0 www.durapac.com Page 6 of 9... -
Page 7: Troubleshooting
Use lubricant to clean the tool Lower blade does not advance Air in the hydraulic system Refer to 6.3 – Bleeding Air or advances slowly from the System HC-24S SC Cutter - V1.0 www.durapac.com Page 7 of 9... -
Page 8: Parts Breakdown And List
Instruction Manual 8.0 Parts Breakdown and List HC-24S SC Cutter - V1.0 www.durapac.com Page 8 of 9... - Page 9 Fibre glass pipe Back-up ring Handle grip Dust seal Holding band Pump piston Screen holder Hinge pin Spring pin Crescent Serial number and model need to be quoted when ordering parts. HC-24S SC Cutter - V1.0 www.durapac.com Page 9 of 9...
